Tests TJ: Output Shaft Speed (OSS) Sensor

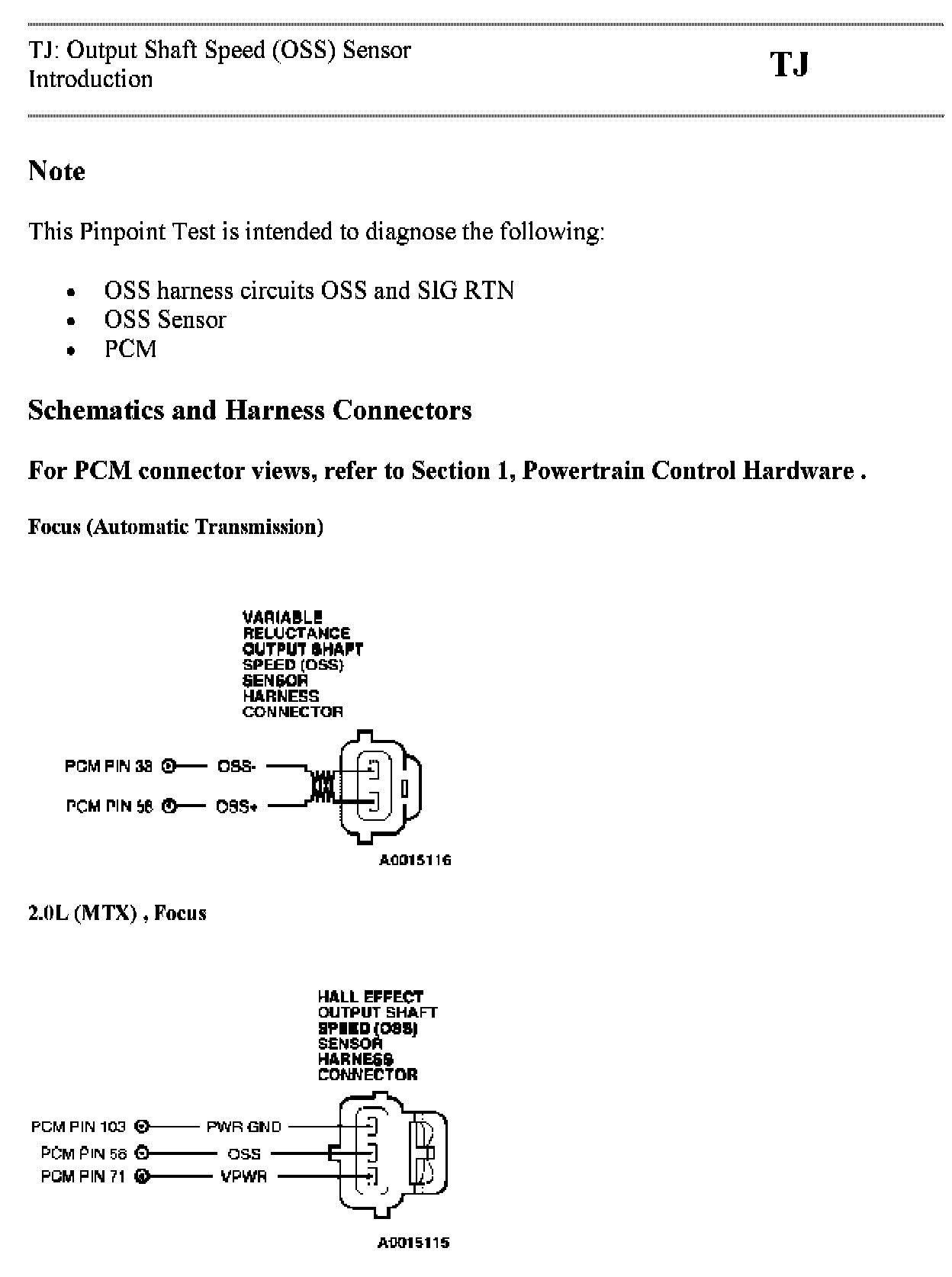

TJ INTRODUCTION 1 OF 3:

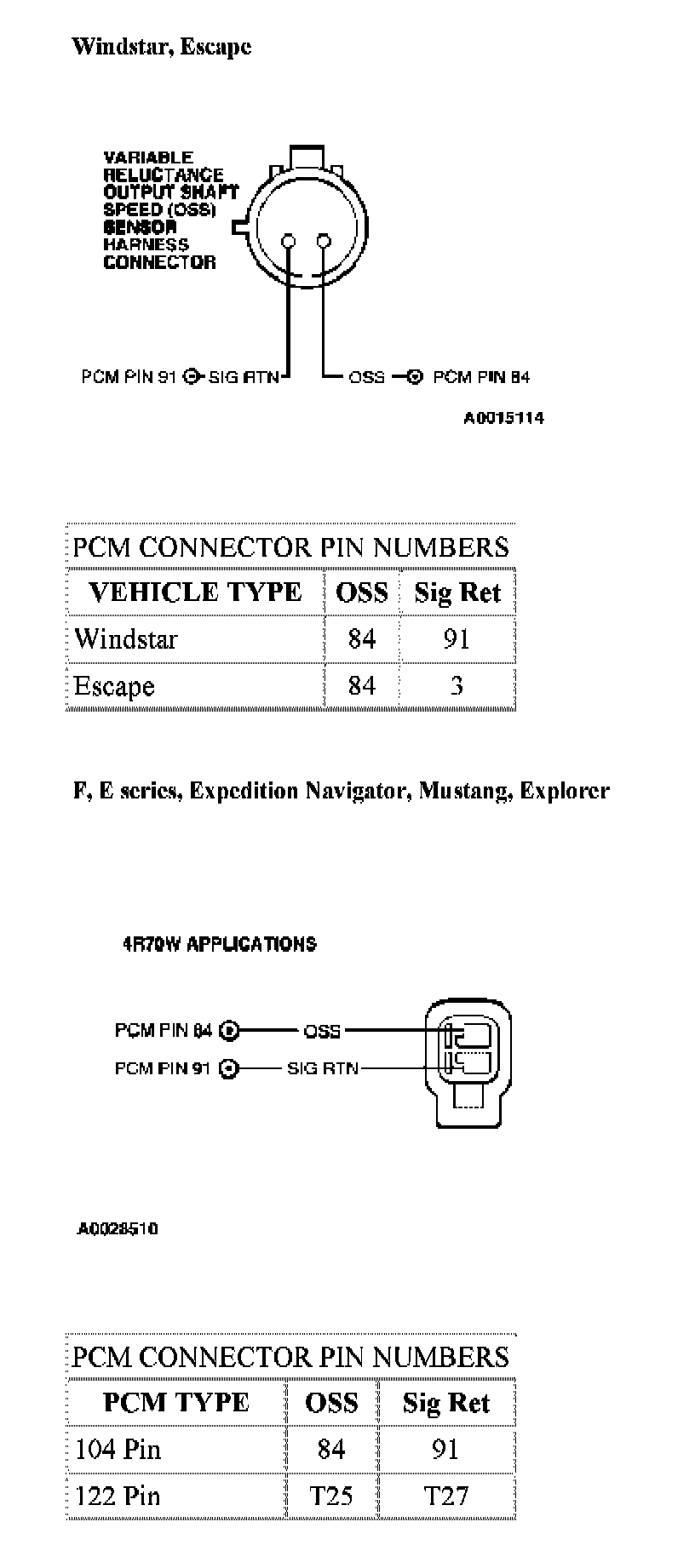

TJ INTRODUCTION 2 OF 3:

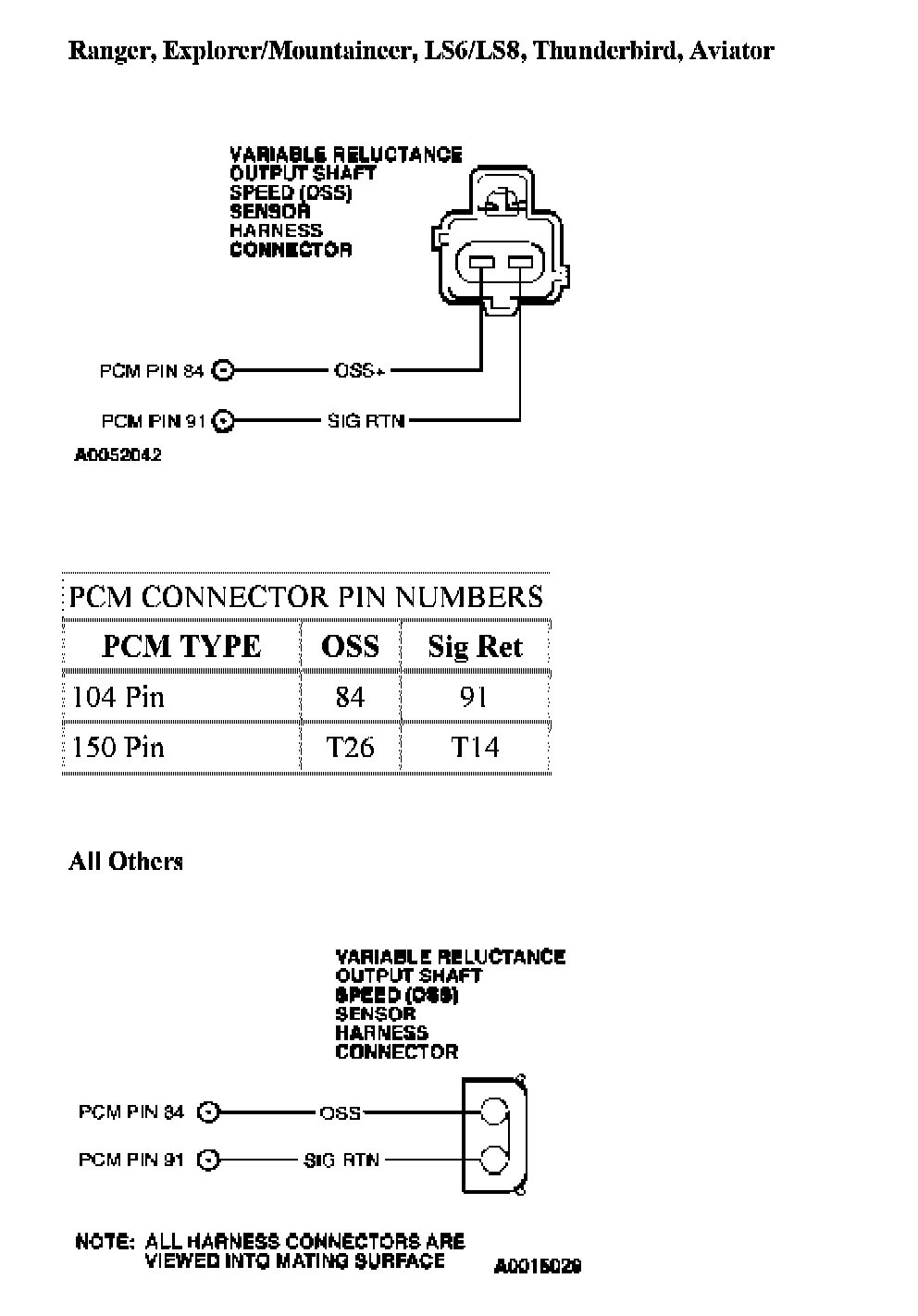

TJ INTRODUCTION 3 OF 3:

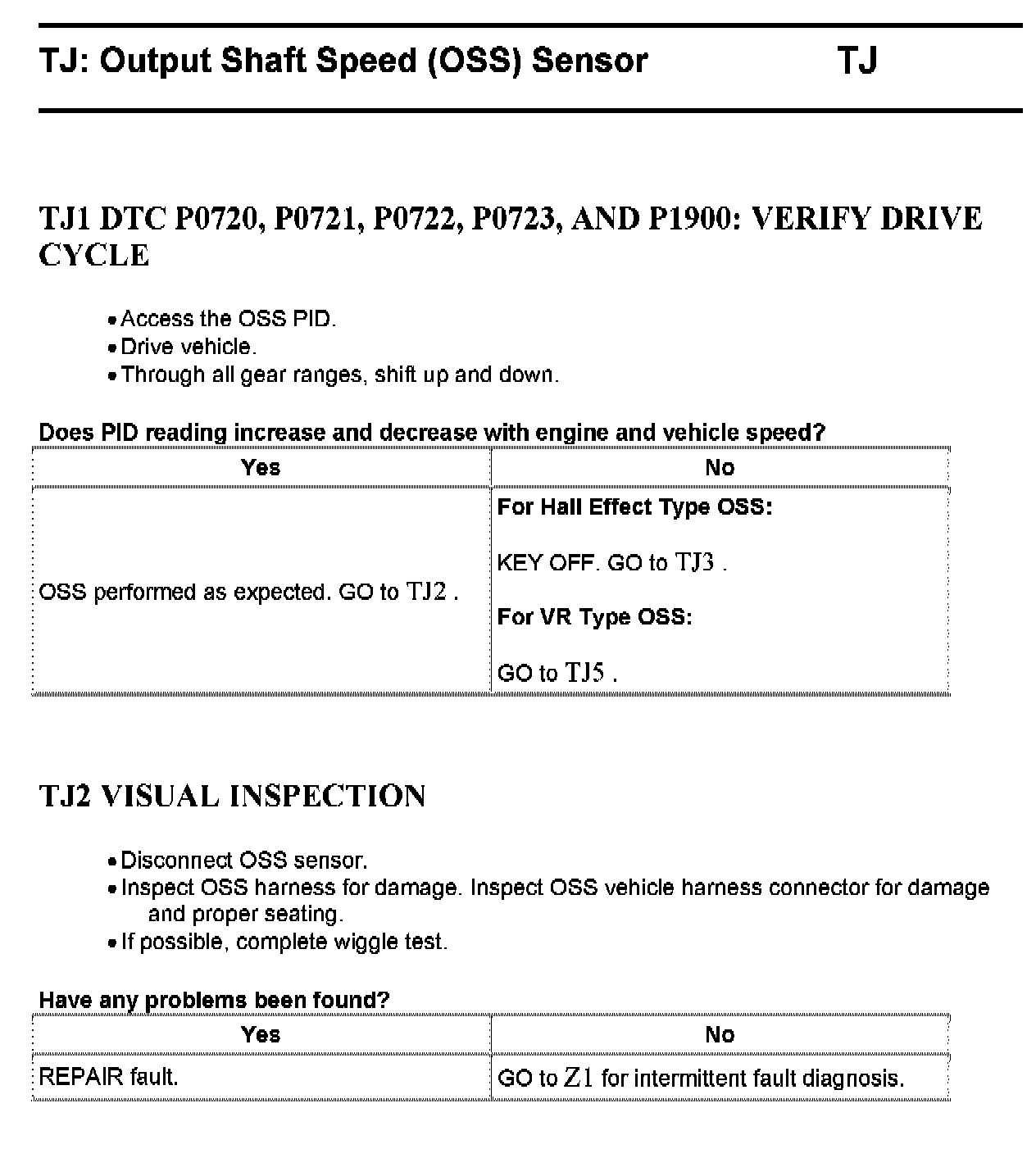

TJ1 - TJ2:

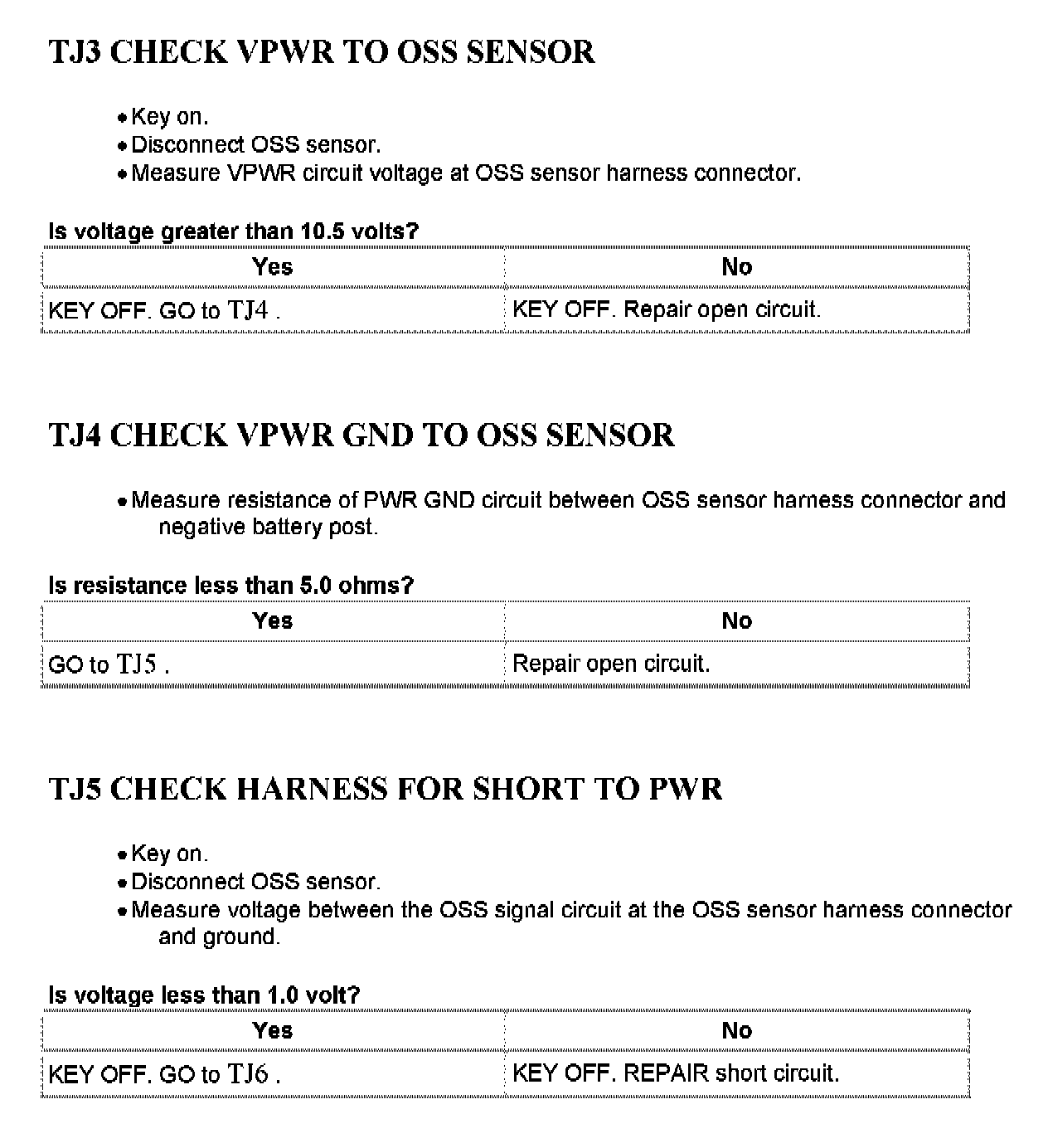

TJ3 - TJ5:

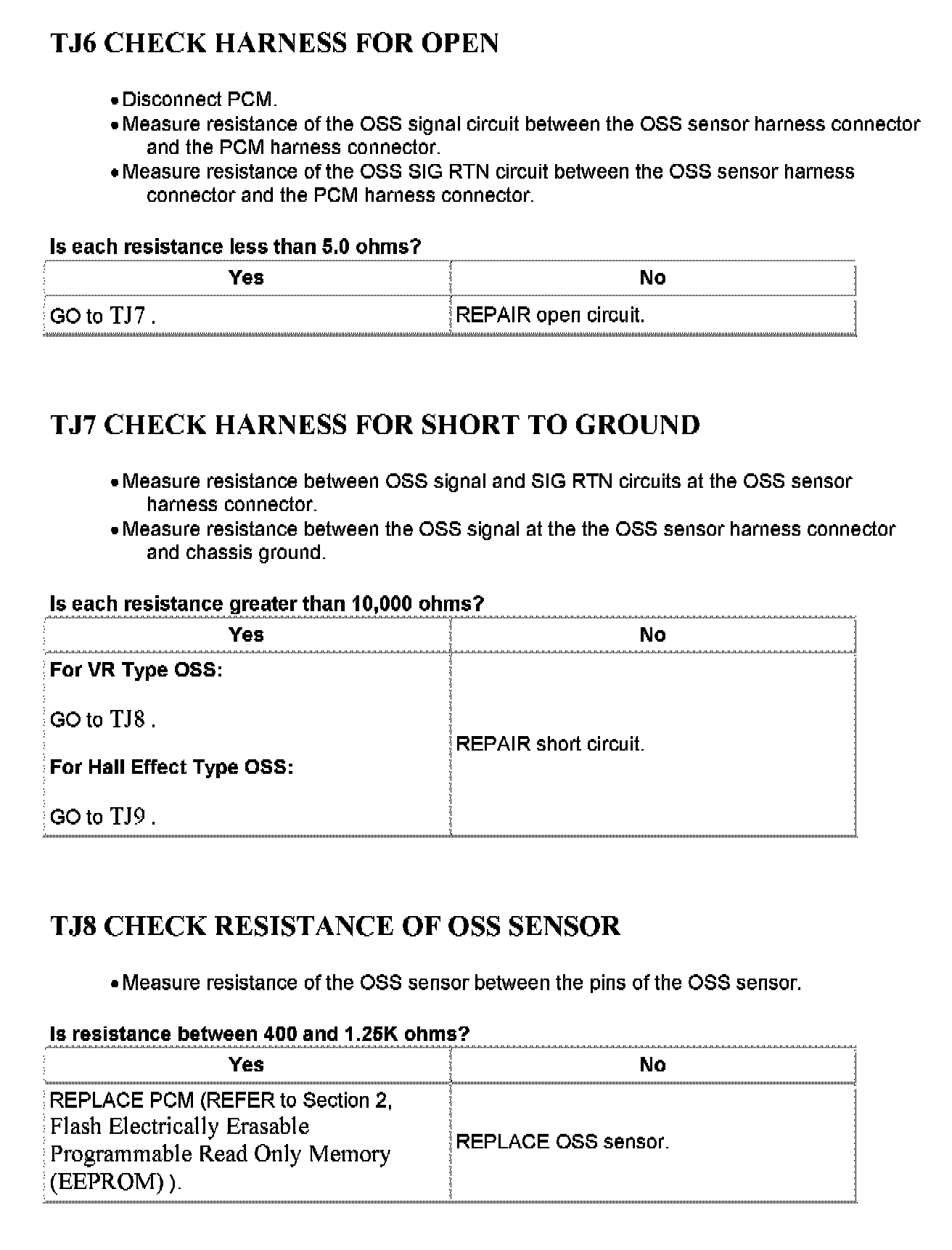

TJ6 - TJ8:

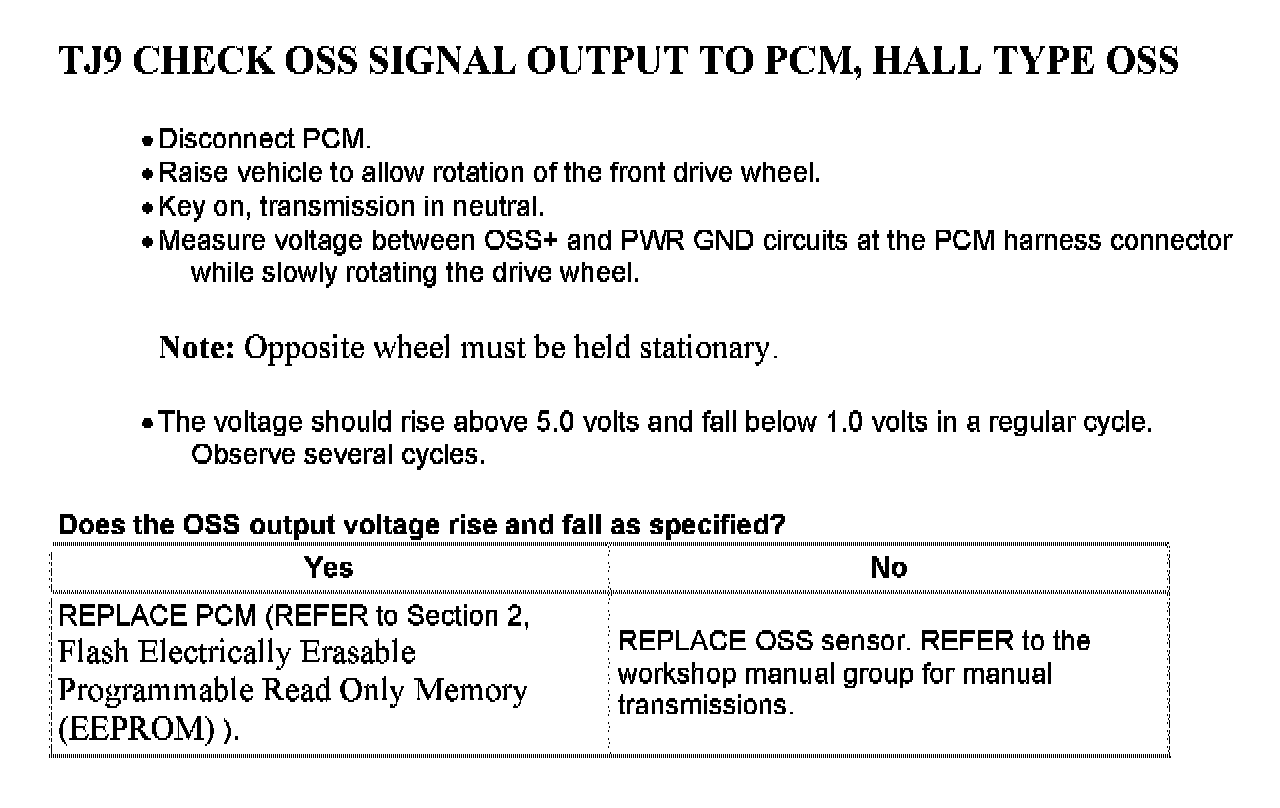

TJ9:
