Power seat switch, left
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power seat switch, left

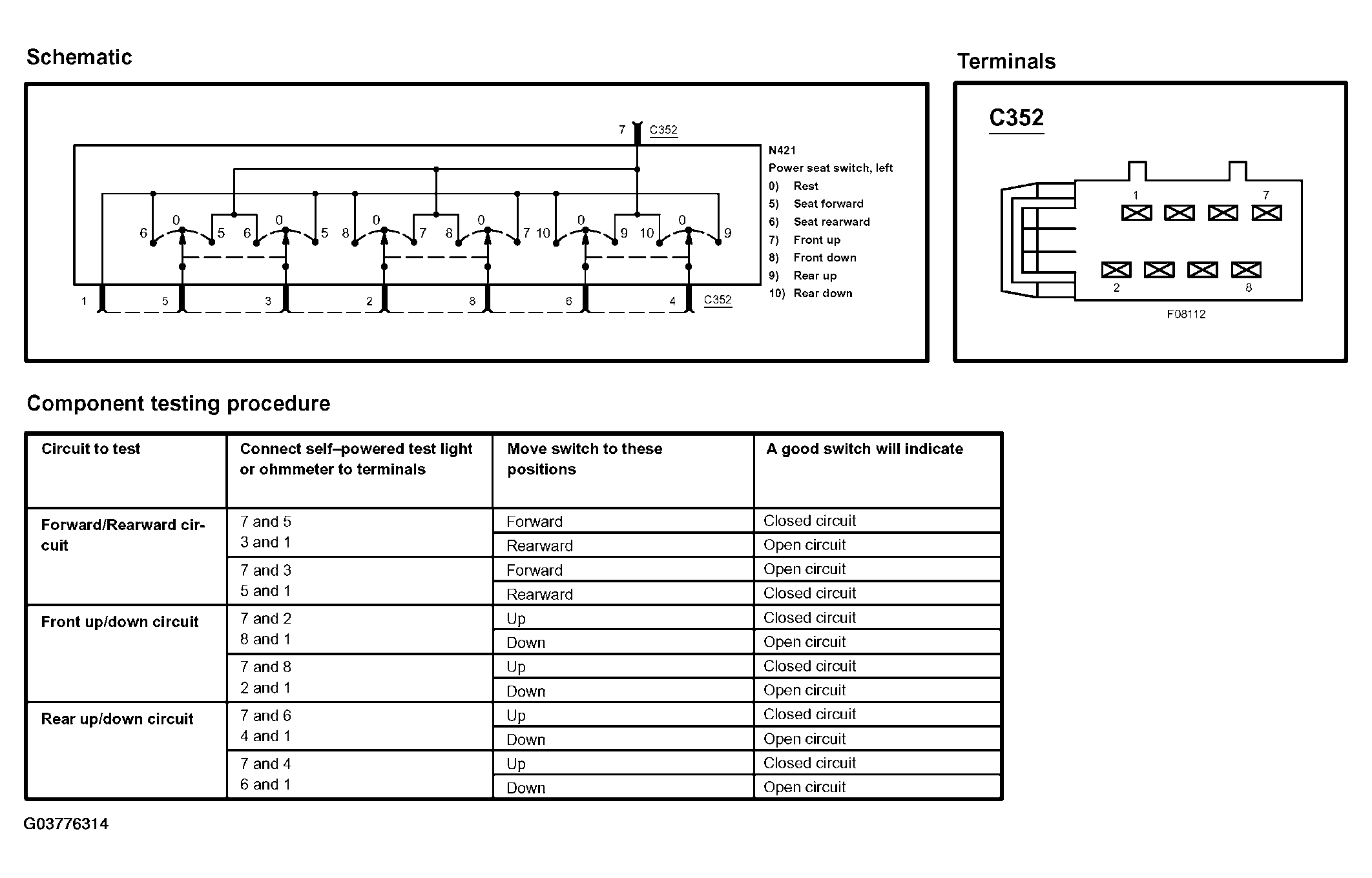

Fig 1: Testing Power Seat Switch (Left)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
