Rear Toe Adjustment
- Start the engine and center the steering wheel.
- Turn the engine off, and hold the steering wheel in the "straight ahead" position using a suitable holding device.

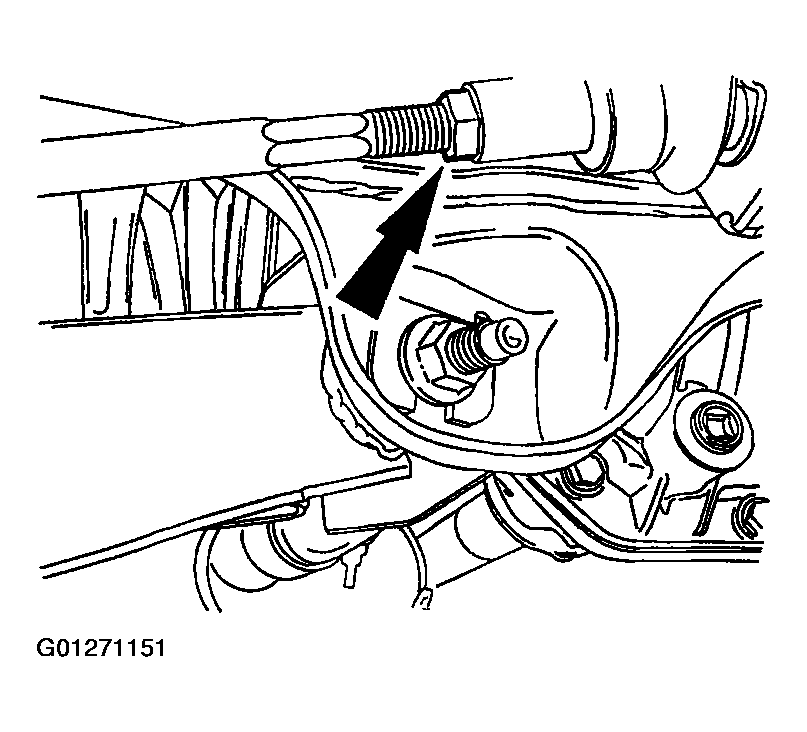

- Loosen the nuts.
- Clean and lubricate the nut(s) and rear toe link threads.

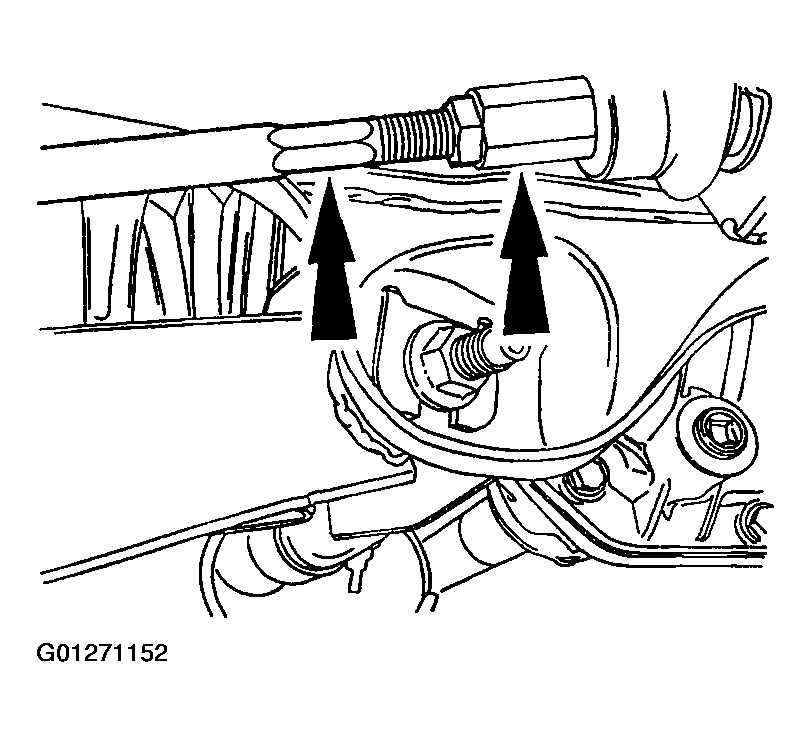

- While holding the toe link spindle tie-rod, rotate the toe link adjuster.

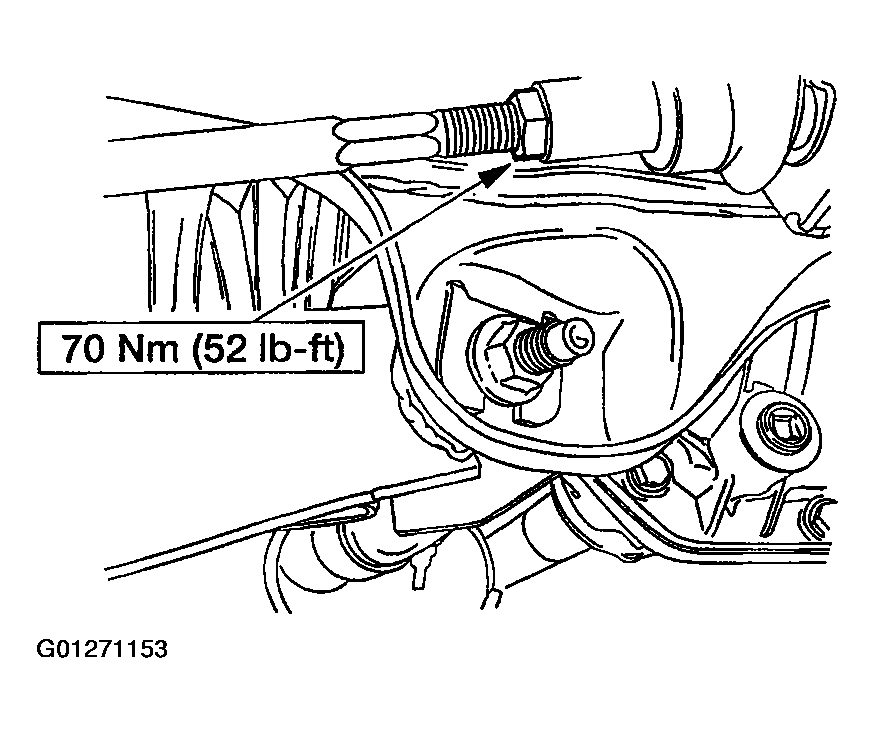

- While holding the adjuster, tighten the nuts.
NOTE:
Make sure the toe settings are not disturbed while tightening the nuts.
