Symptom Chart

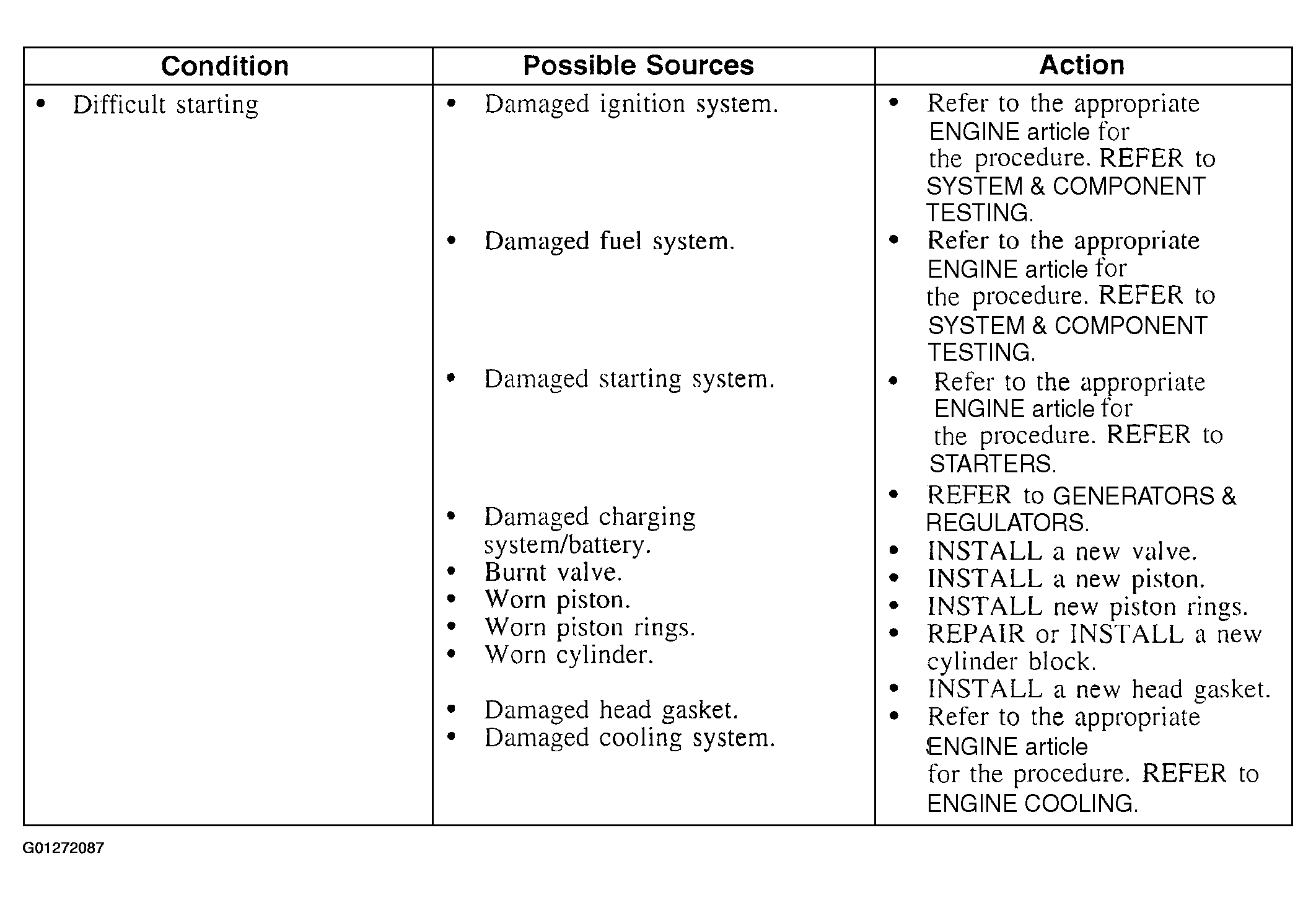

Fig 1: Engine System Trouble Symptom Chart (1 Of 5)
G01272087Courtesy of FORD MOTOR CO.

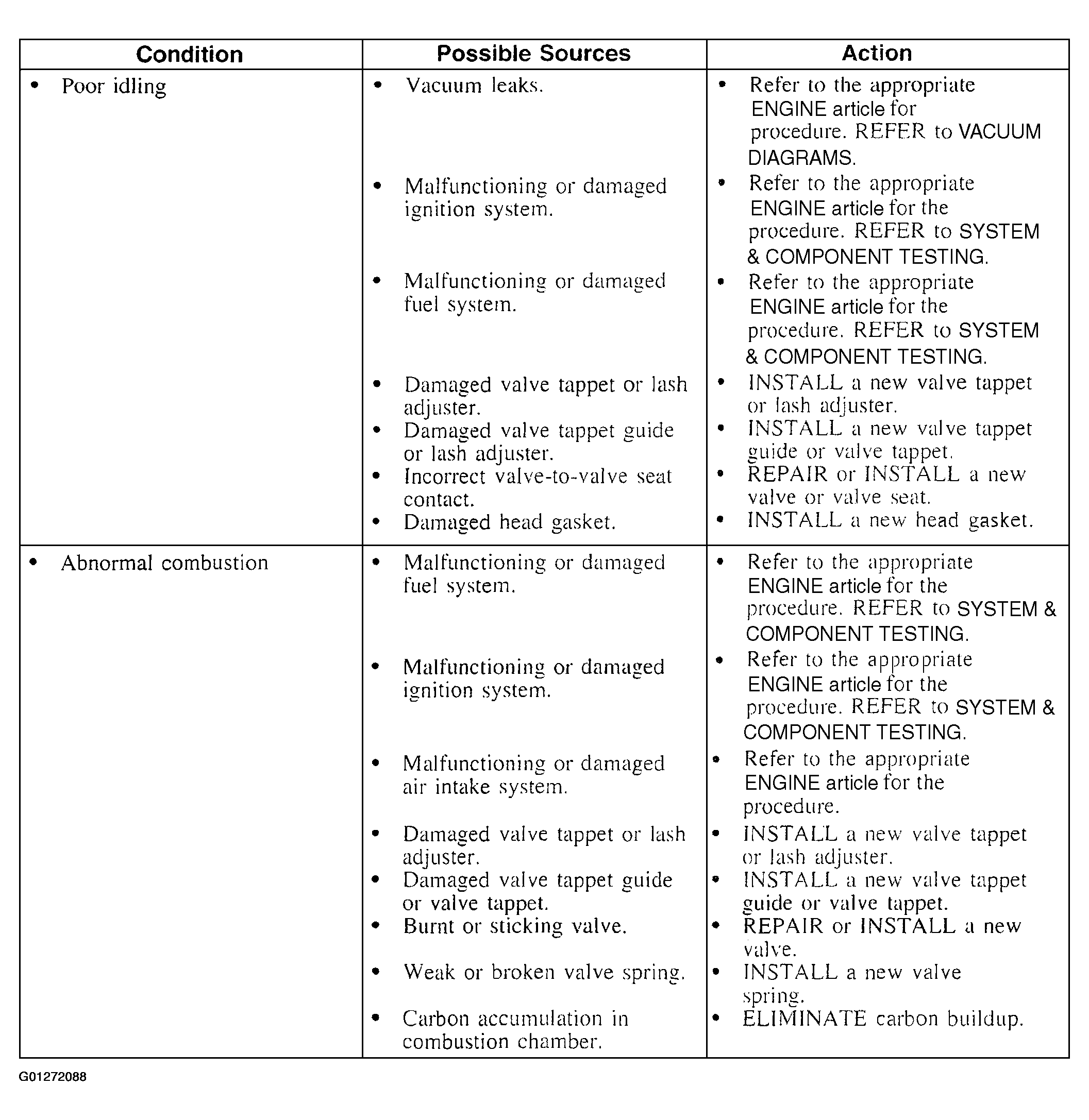

Fig 2: Engine System Trouble Symptom Chart (2 Of 5)
G01272088Courtesy of FORD MOTOR CO.

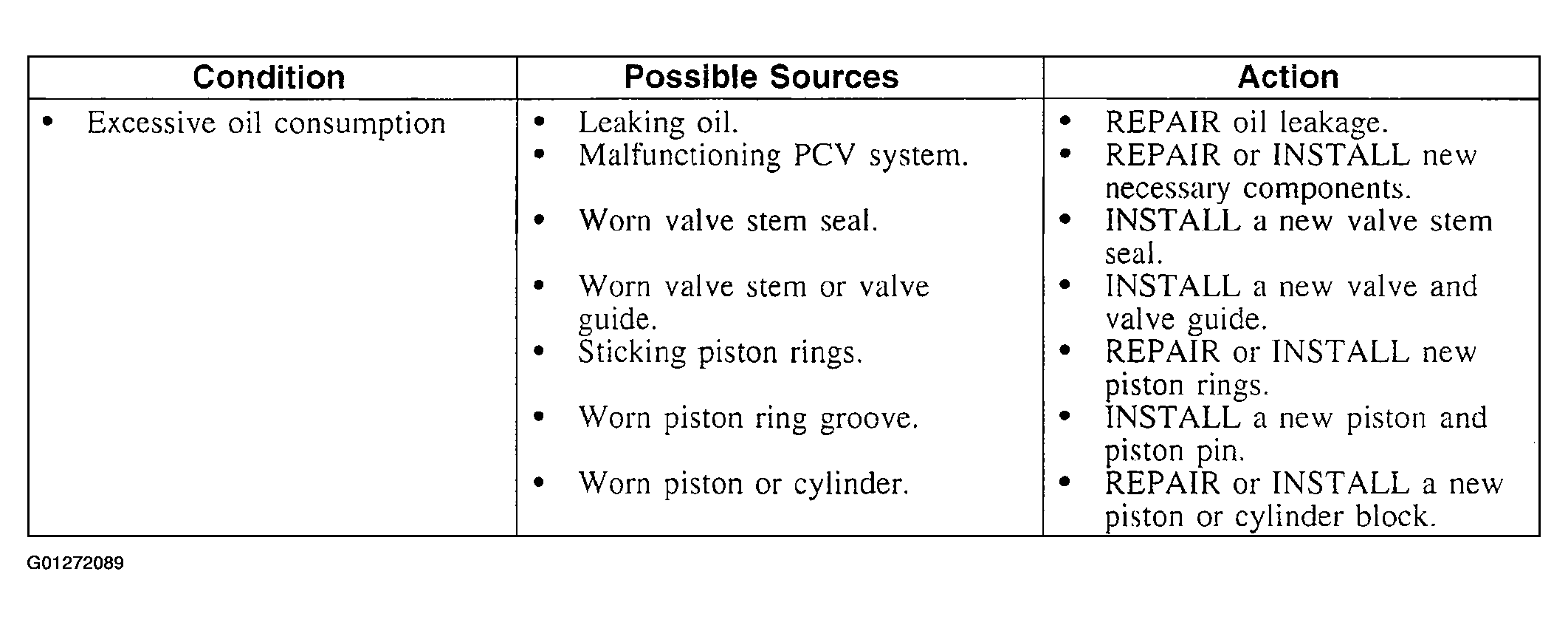

Fig 3: Engine System Trouble Symptom Chart (3 Of 5)
G01272089Courtesy of FORD MOTOR CO.

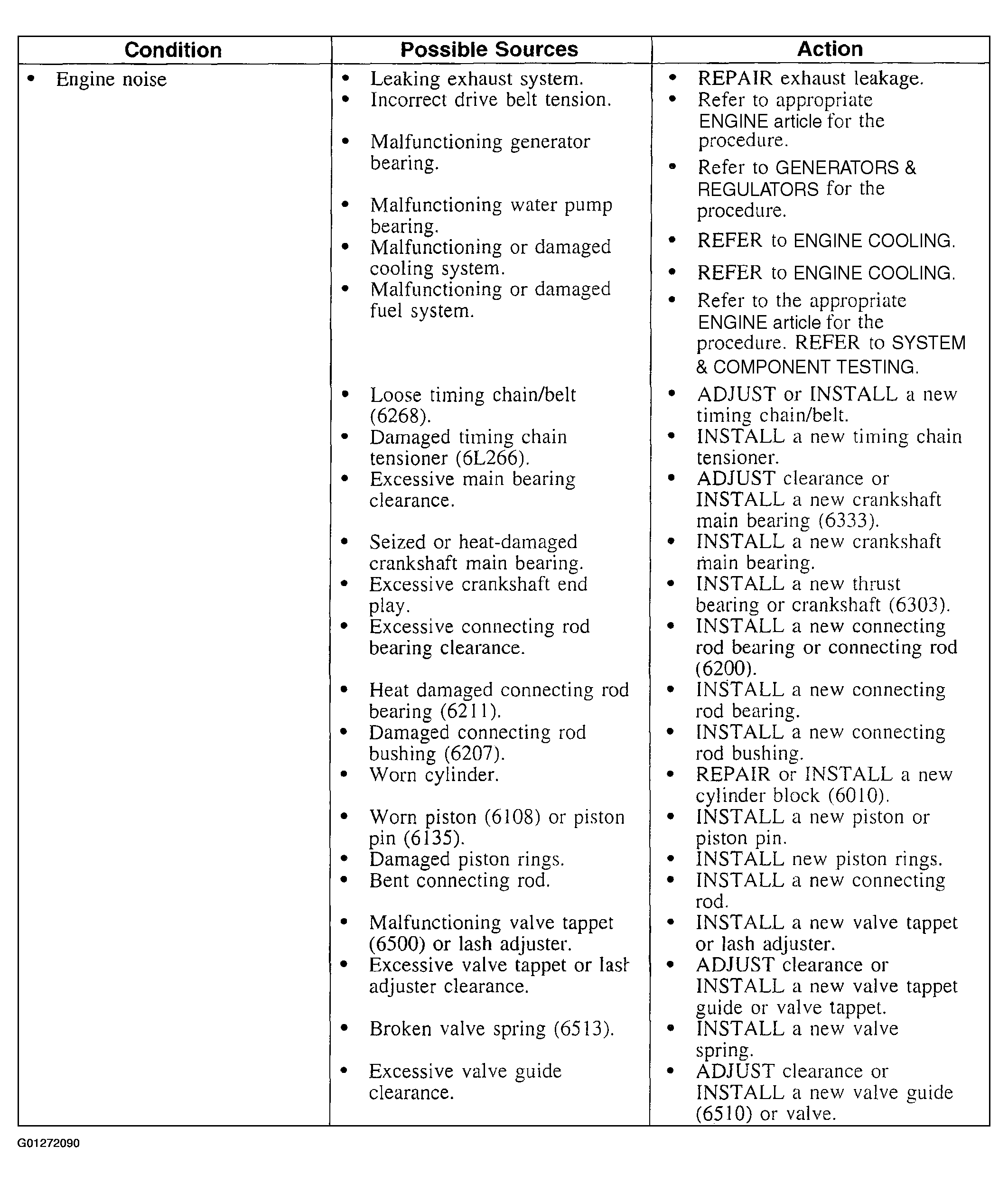

Fig 4: Engine System Trouble Symptom Chart (4 Of 5)
G01272090Courtesy of FORD MOTOR CO.

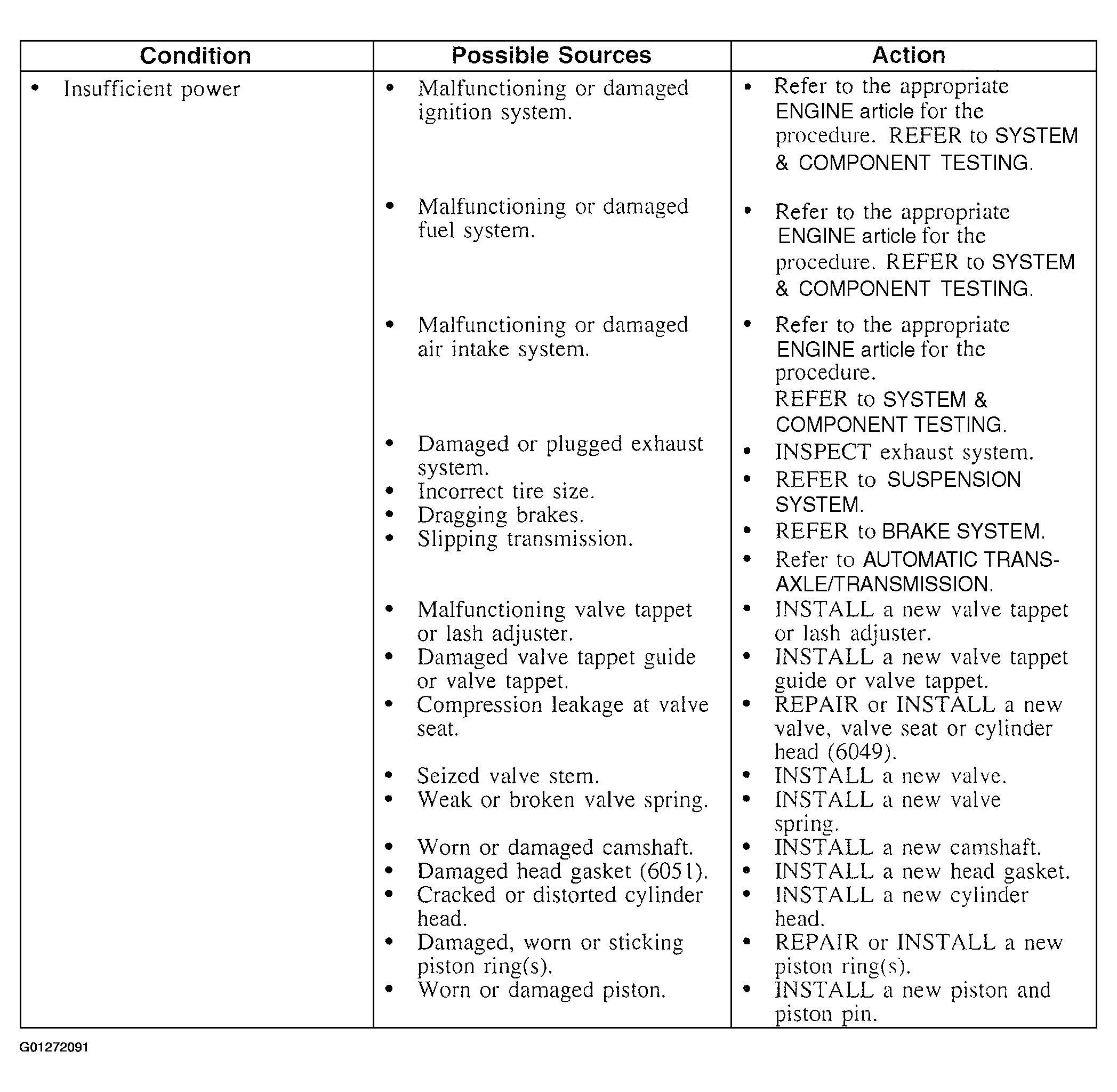

Fig 5: Engine System Trouble Symptom Chart (5 Of 5)
G01272091Courtesy of FORD MOTOR CO.
