Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the LH instrument panel lower insulator.
1. Remove the pin-type retainers.
2. Disconnect the courtesy lamp.

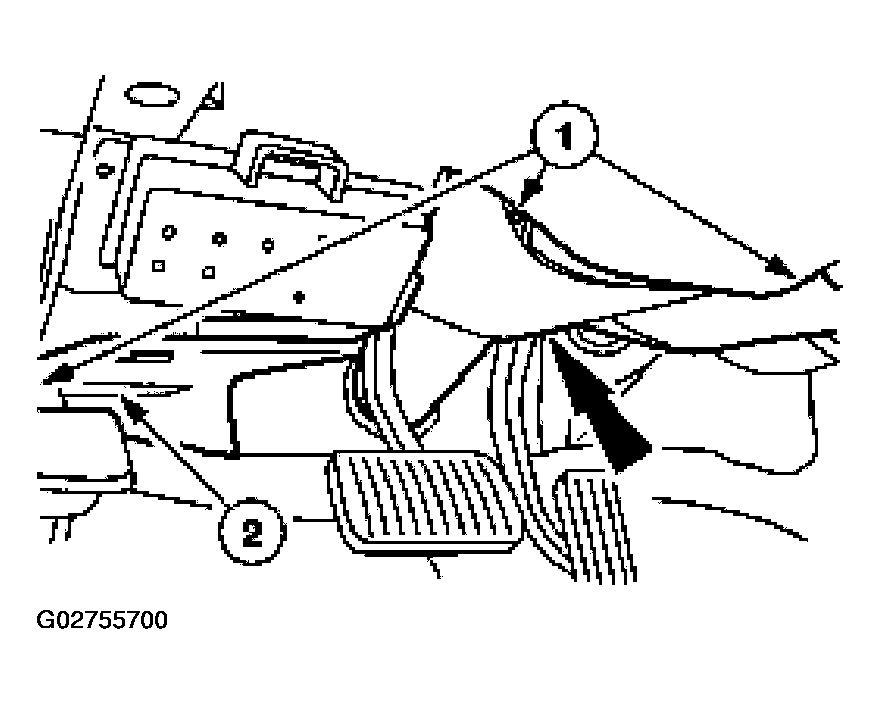

Fig 1: Removing LH Instrument Panel Lower Insulator
Courtesy of FORD MOTOR CO.
If equipped with adjustable pedals, remove the accelerator pedal, and shaft. For additional information, refer to ACCELERATION CONTROL .
Position the LCM aside.
1. Remove the screws.
2. Release the locking tab.

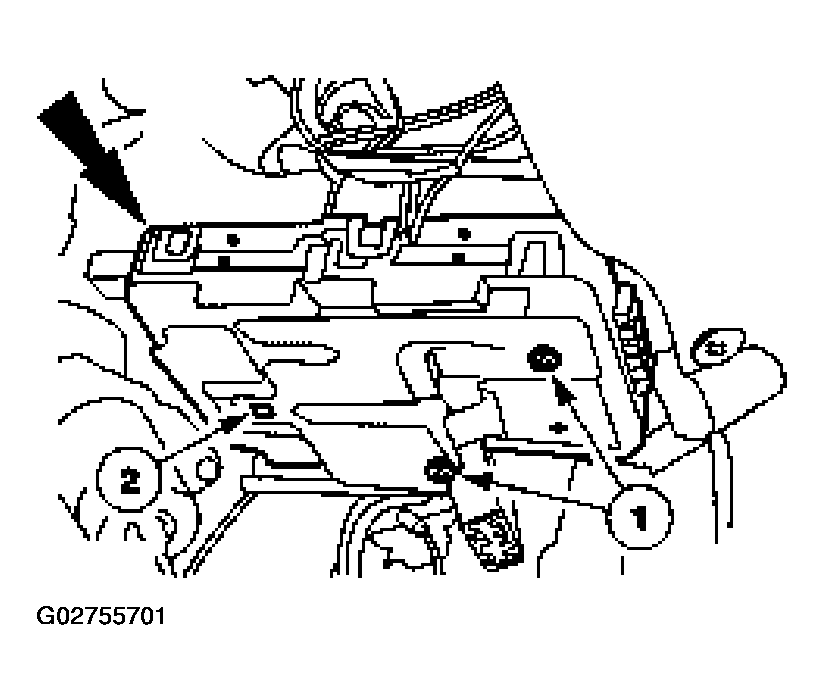

Fig 2: Removing LCM
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and remove the LCM.

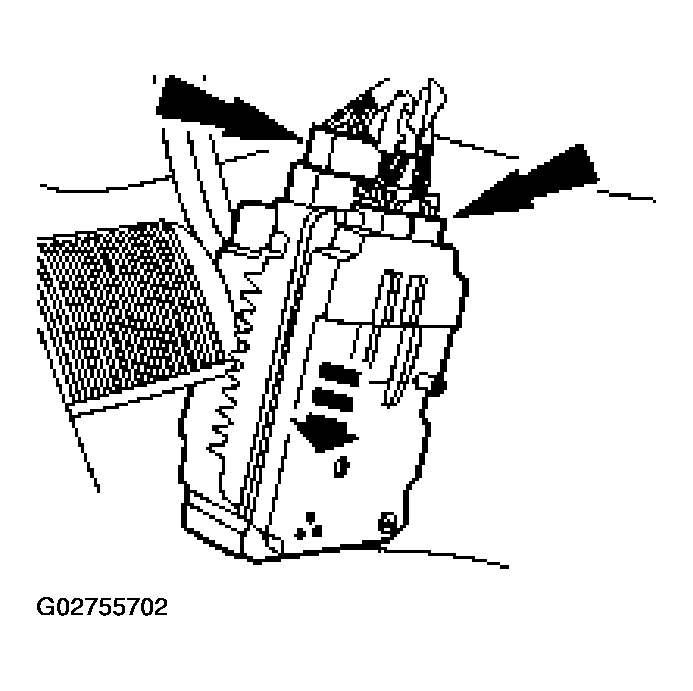

Fig 3: Removing Lighting Control Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Check for correct operation.
