Climate Control System Control Components

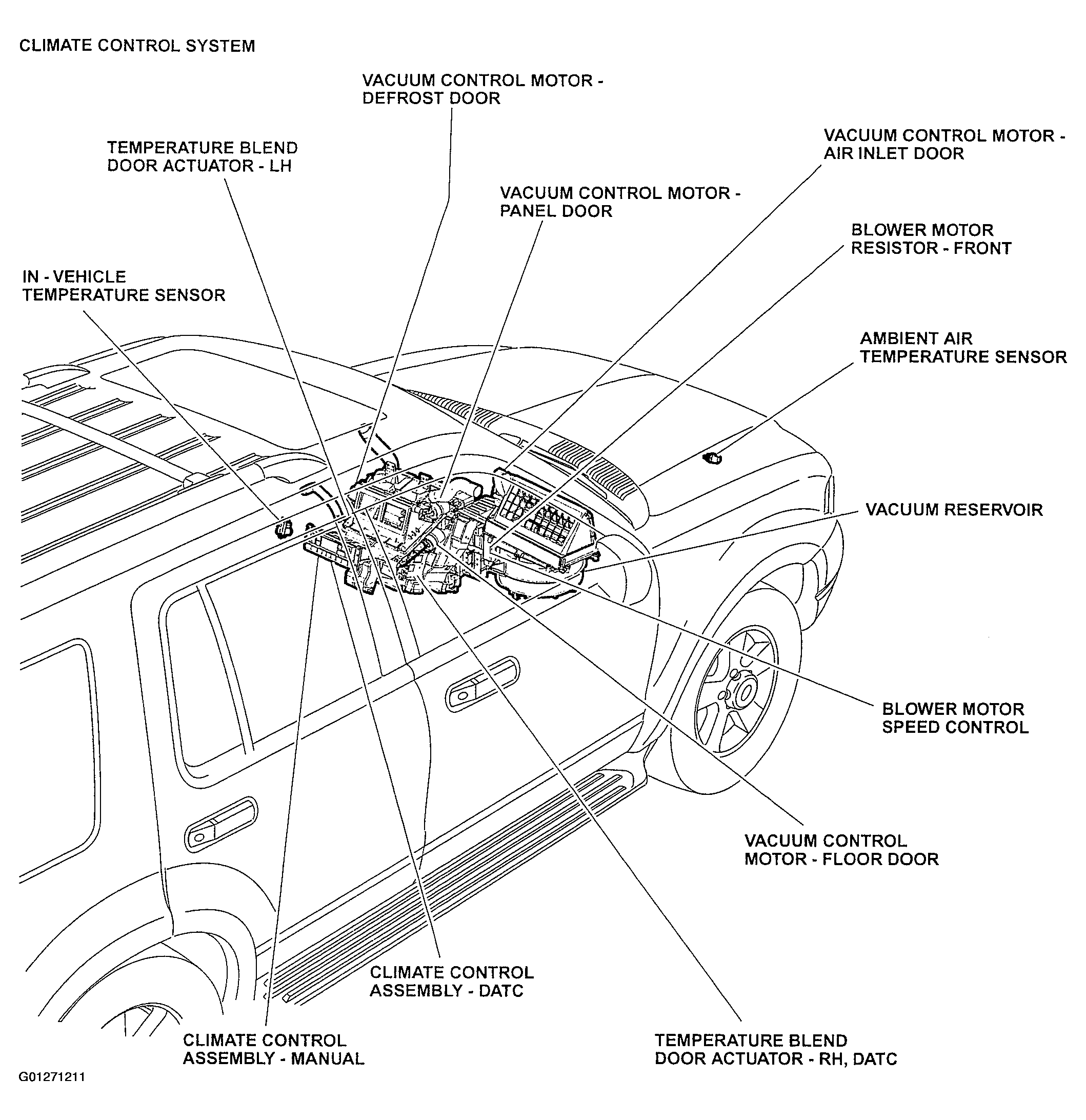

Fig 1: Identifying Climate Control System Control Components Location
G01271211Courtesy of FORD MOTOR CO.
