Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY-MANUAL A/C .
Pull and remove the temperature control switch knob.
Remove the temperature control switch.
1. Remove the screw.
2. Rotate and remove the temperature control switch.

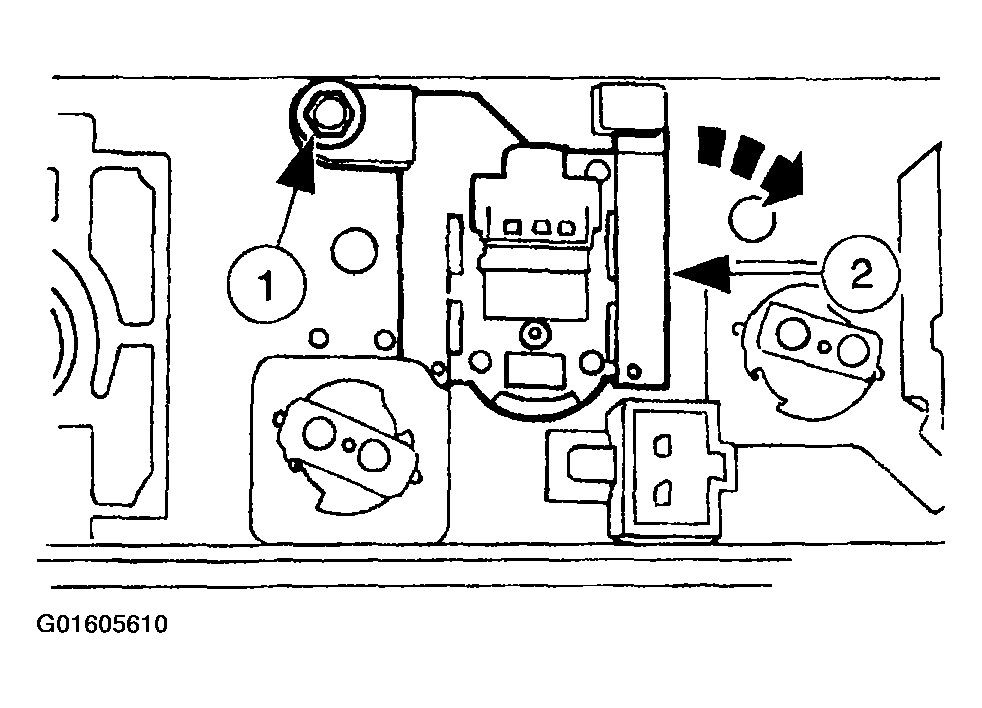

Fig 1: Removing Temperature Control Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
