Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

REMOVAL

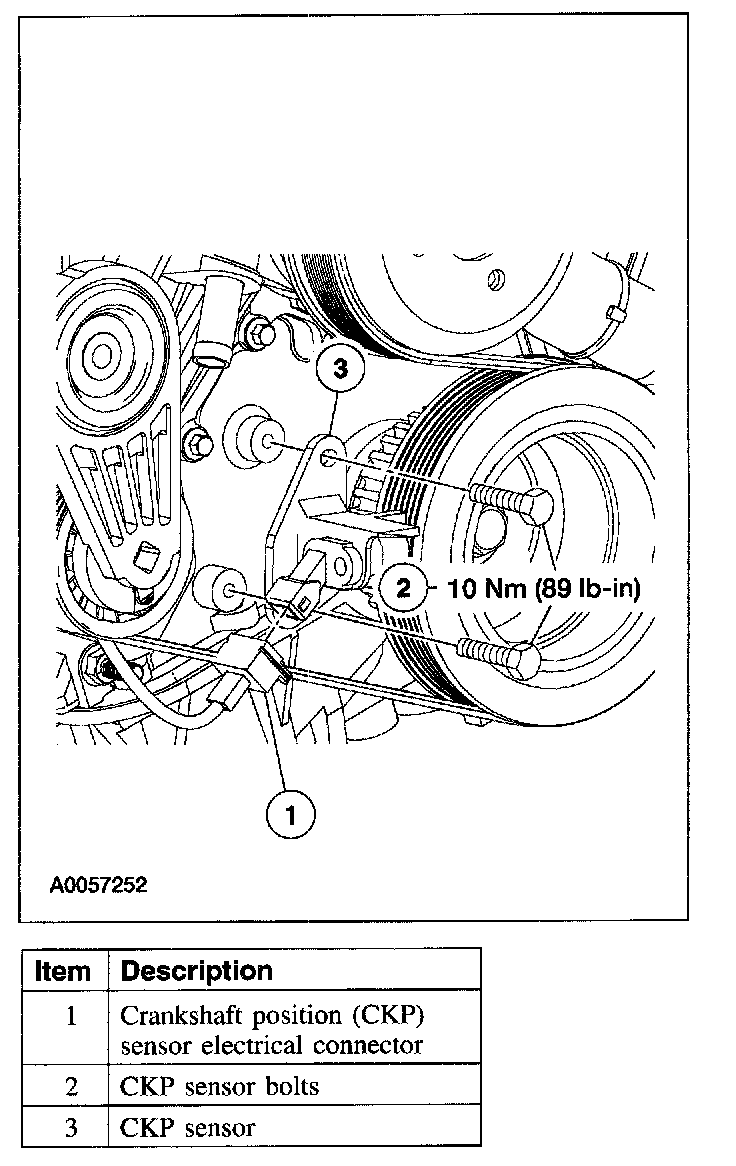

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION

1. NOTE: Be sure the sensor wiring is routed away from the battery cable.

To install, reverse the removal procedure.
