Oxygen Sensor: Service and Repair
HEATED OXYGEN SENSOR (HO2S) AND CATALYST MONITOR SENSORSocket, Exhaust Gas Oxygen Sensor:

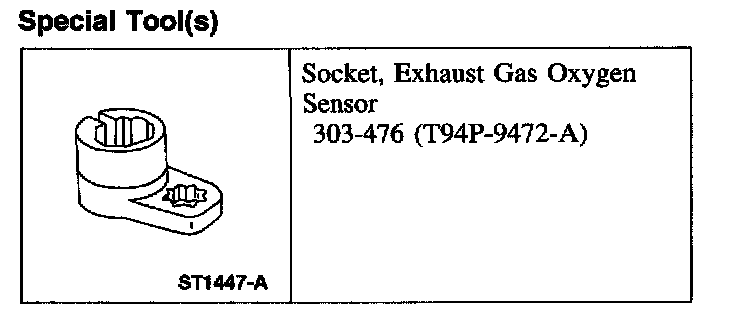

SPECIAL TOOL(S)
REMOVAL
1. With the vehicle in neutral, position it on a hoist.

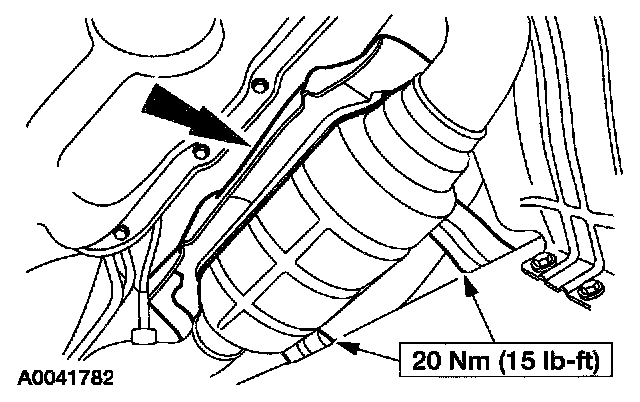

2. For the RH side catalytic converter, remove the two bolts and position the heat shield aside.

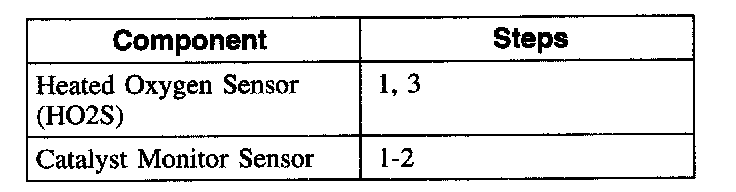

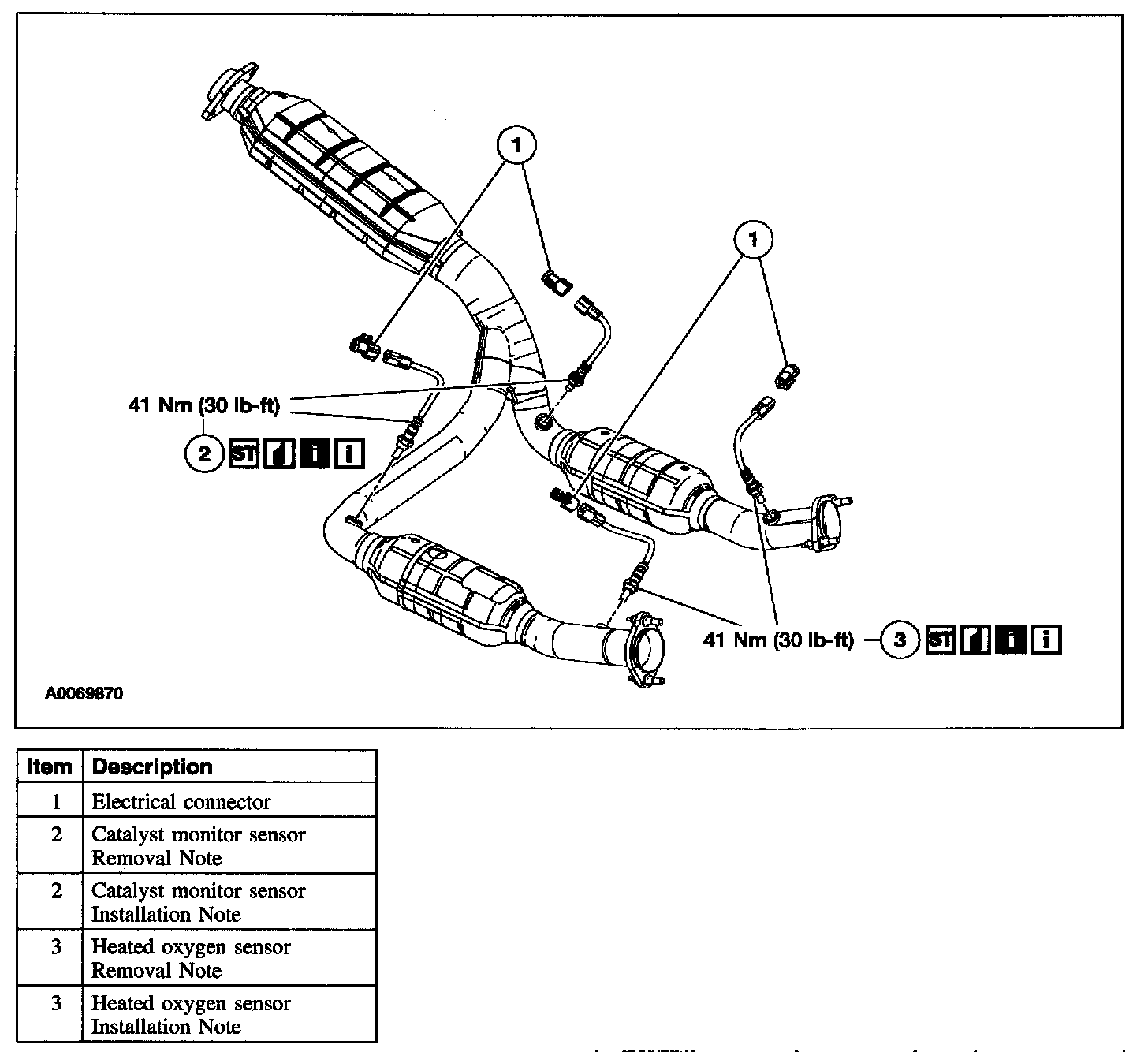

3. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.
Item 2: Catalyst Monitor Removal Note

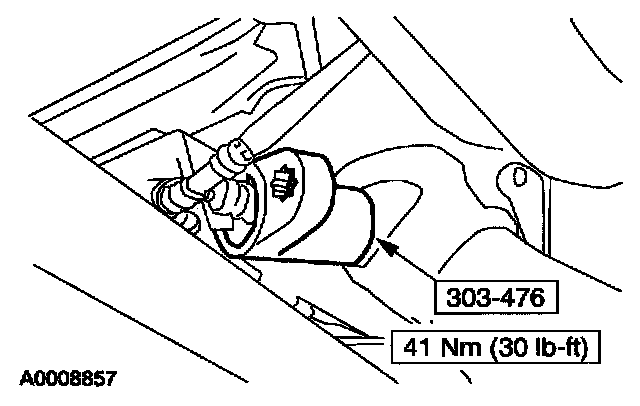

1. Using the special tool, remove the catalyst monitor sensors.
Item 3: Heated Oxygen Sensor Removal Note

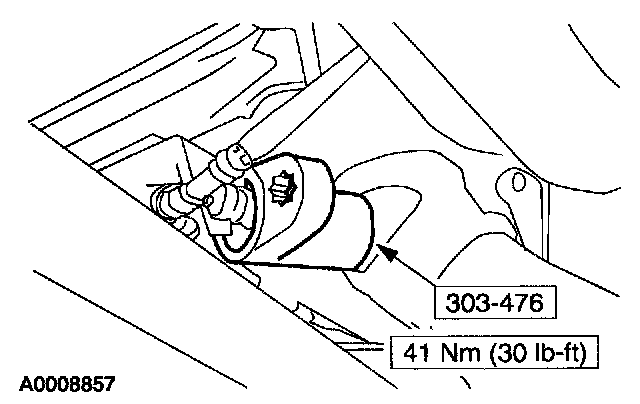

1. Using the special tool, remove the heated oxygen sensors.
INSTALLATION
1. To install, reverse the removal procedure.
Item 3: Heated Oxygen Sensor Installation Note
1. Apply a light coat of anti-seize lubricant to the threads of the heated oxygen sensors.
Item 2: Catalyst Monitor Installation Note
1. Apply a light coat of anti-seize lubricant to the threads of the catalyst monitor sensors.
