Ignition Switch: Service and Repair
IGNITION LOCK CYLINDERREMOVAL

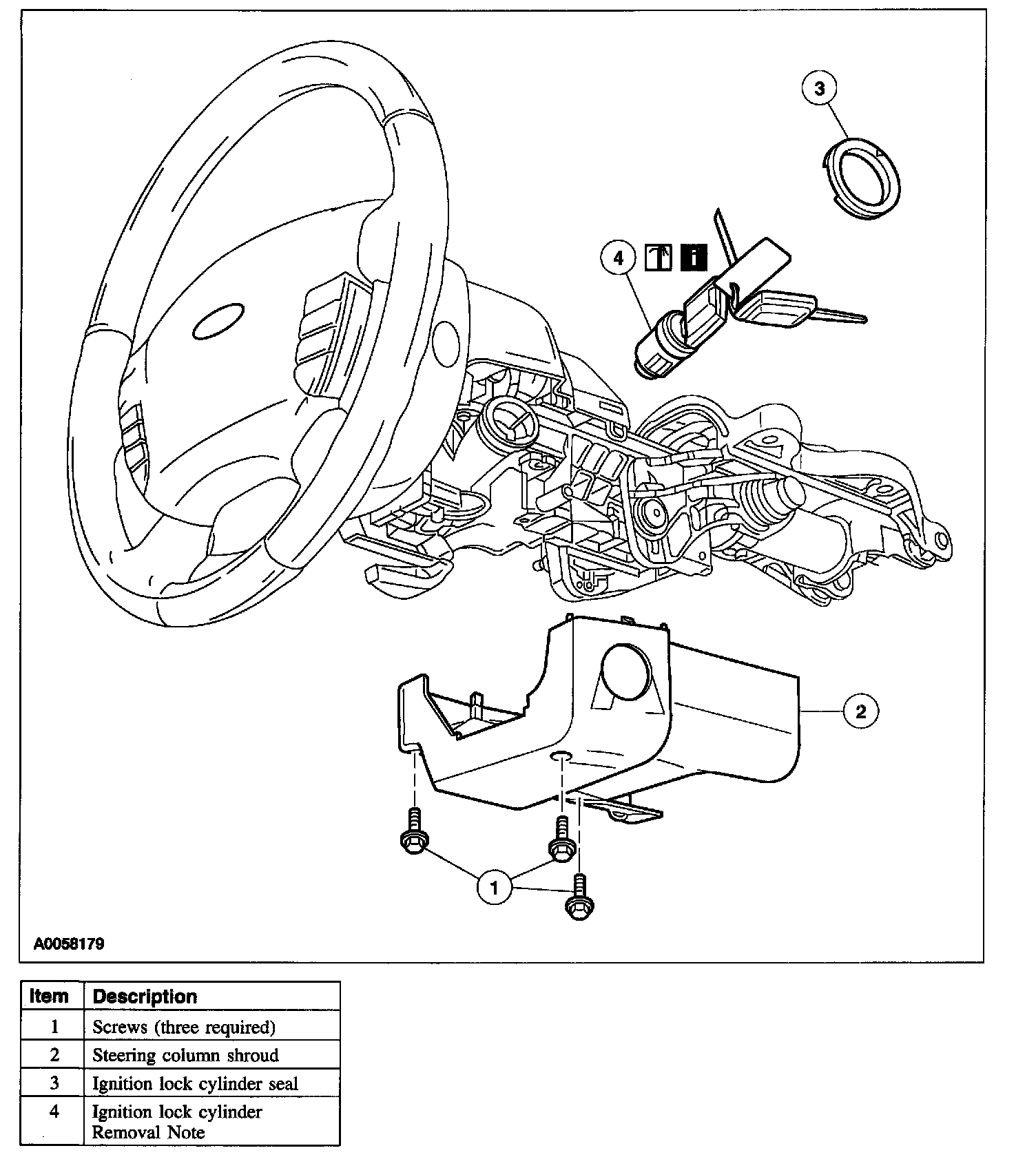

1. Remove the components in the order indicated in the illustration and table.
Item 4: Ignition Lock Cylinder Removal Note
1. With the ignition switch in the ON position, press the locking pin with a suitable tool and remove the cylinder.
INSTALLATION
1. To install, reverse the removal procedure.
