Power Window Relay: Locations


View 151-29:






ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Central Junction Box/Passenger Compartment Fuse Panel.

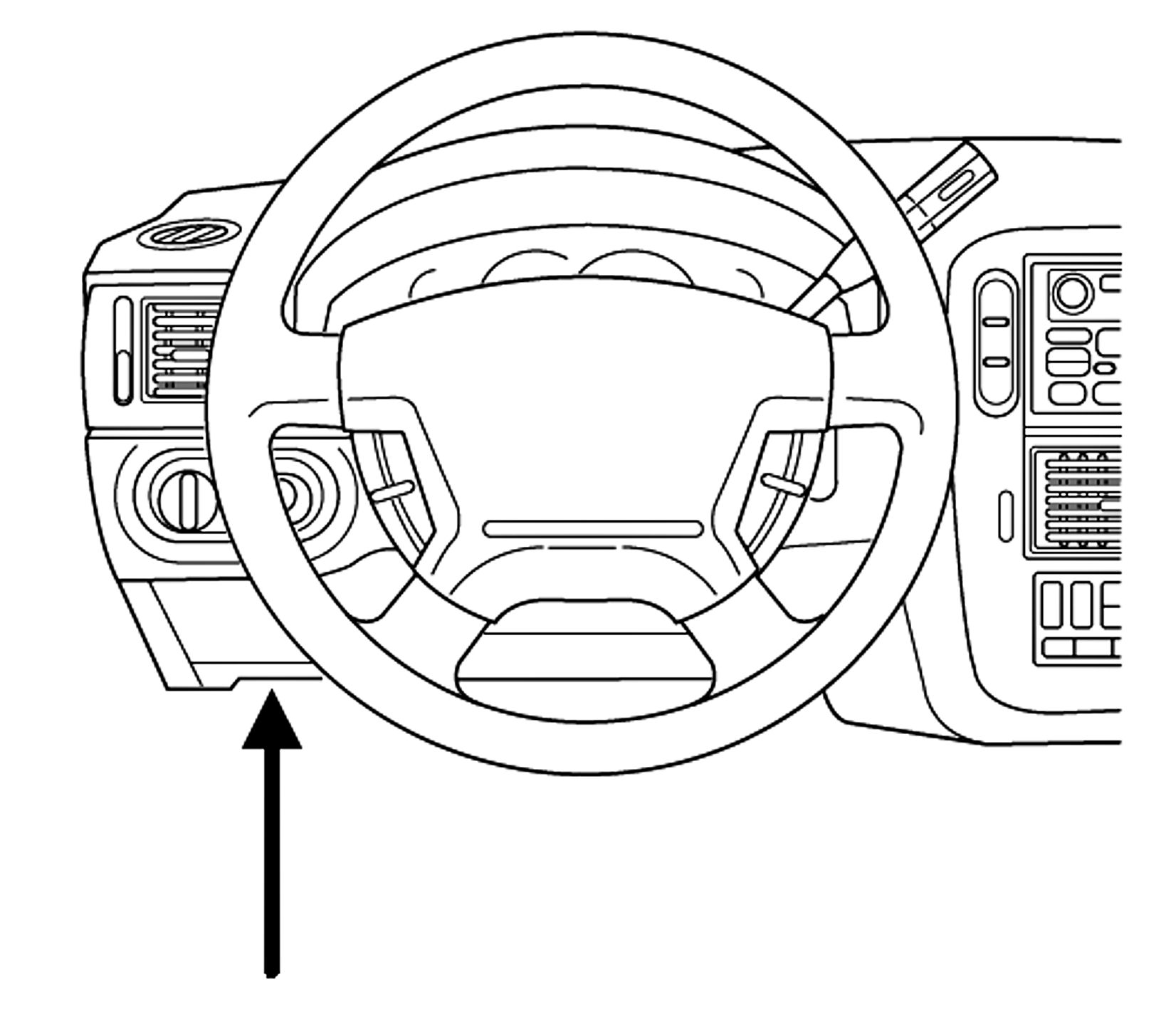

Location:

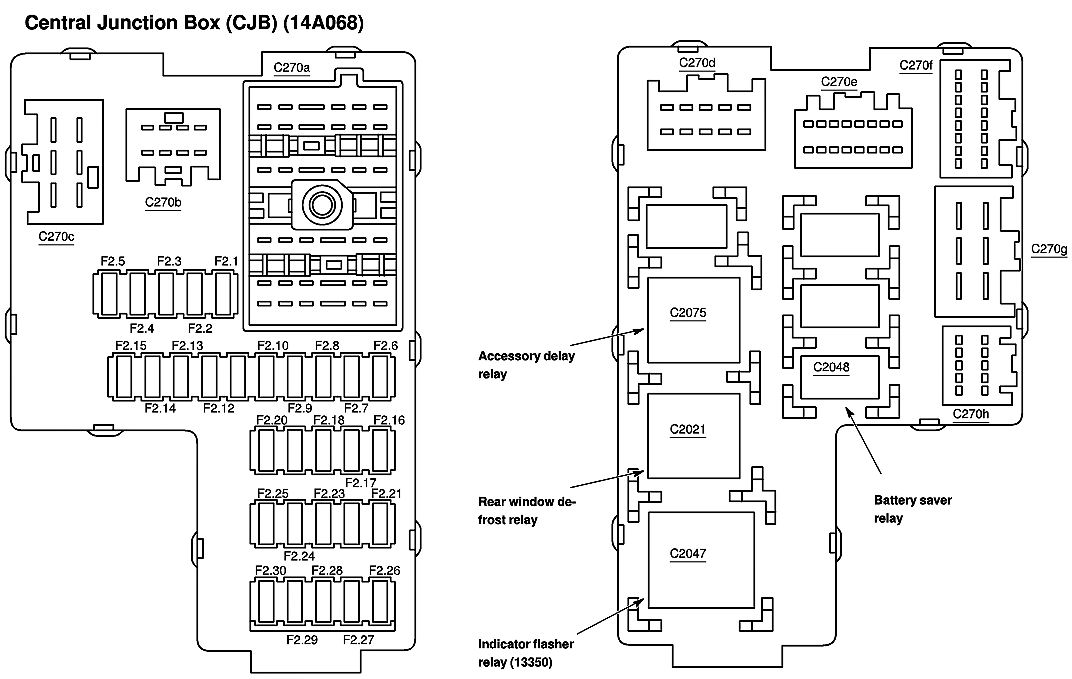

Passenger Compartment Fuse Panel / Central Junction Box (CJB):

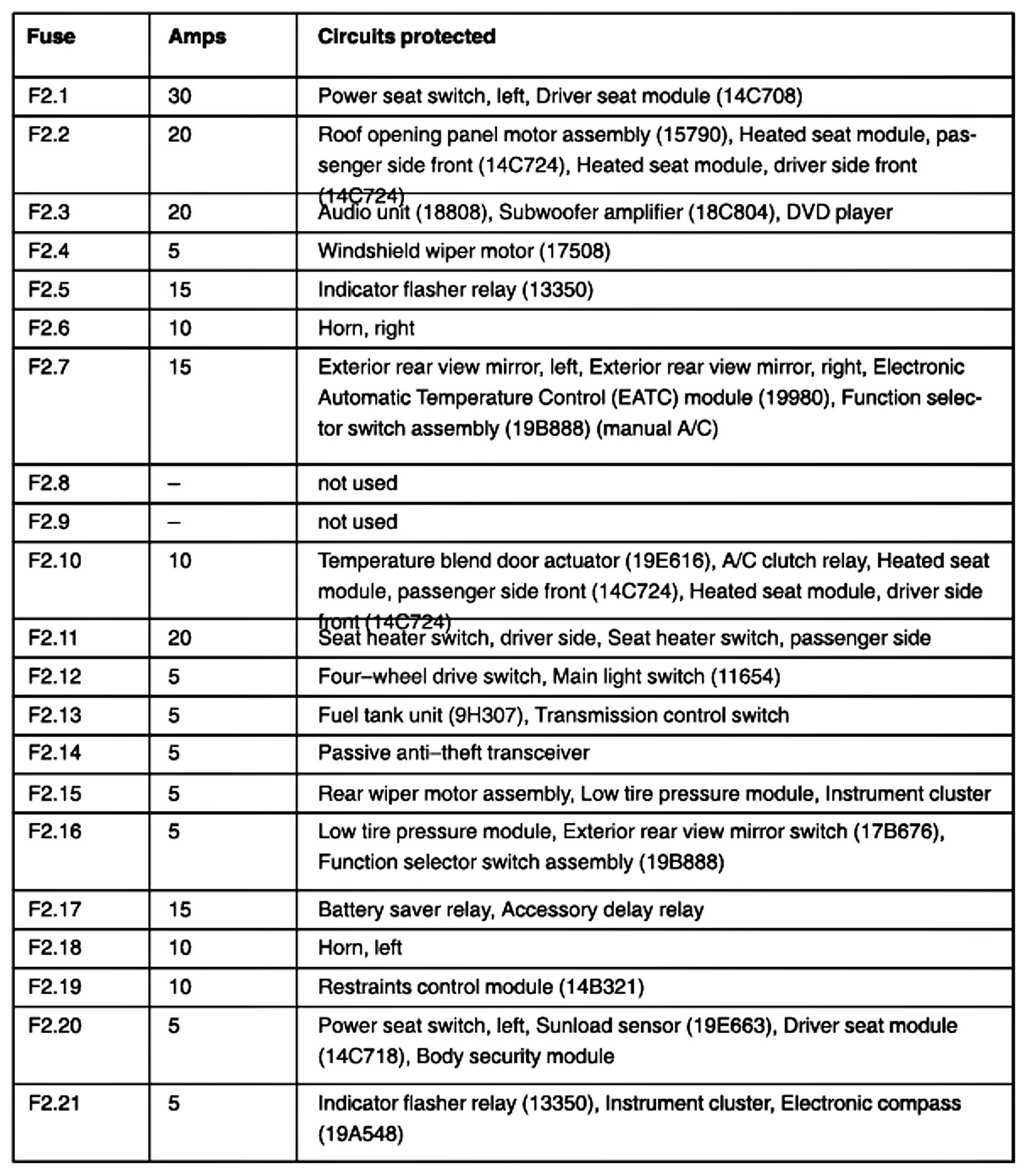

Fuse:

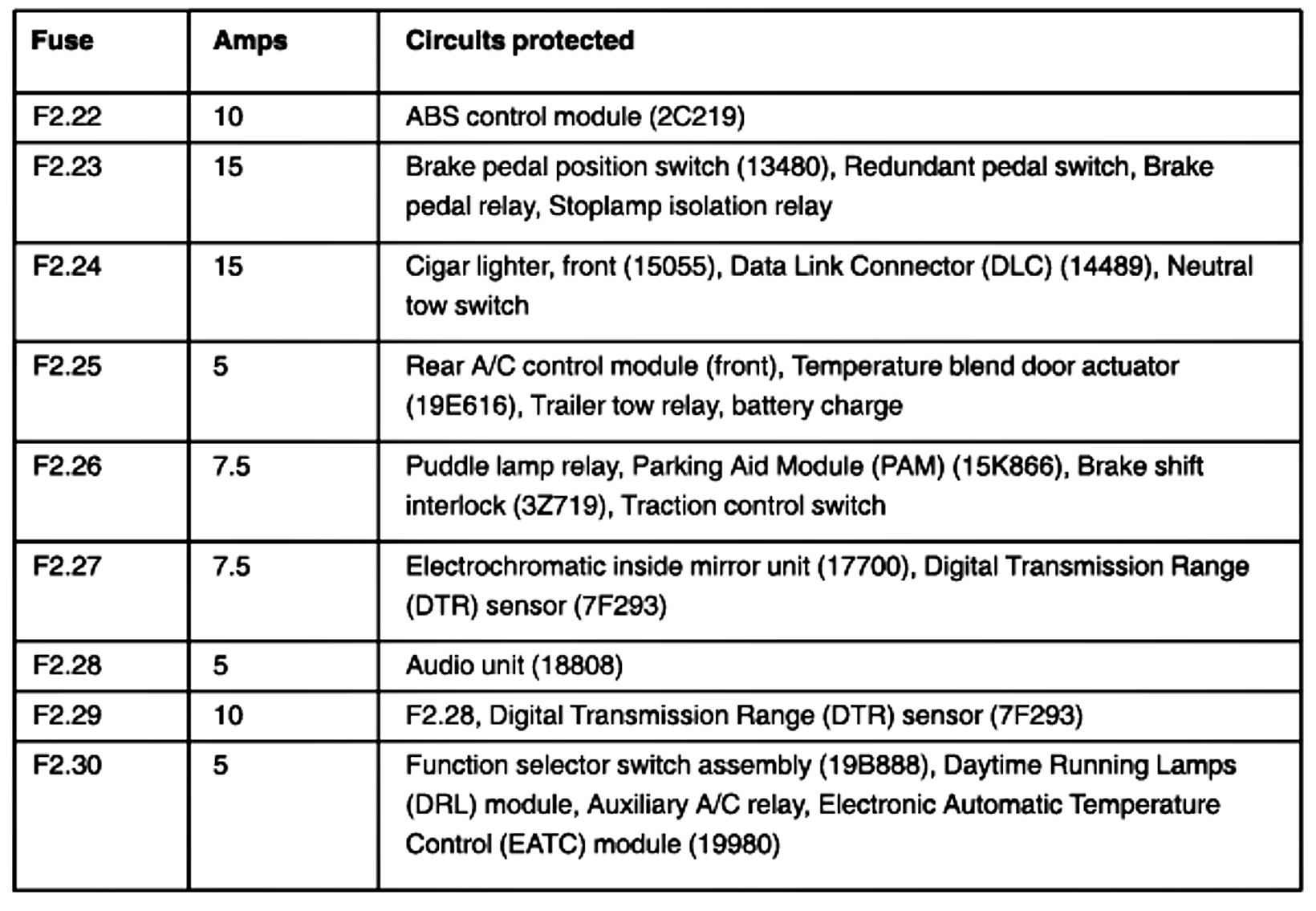

Fuse:

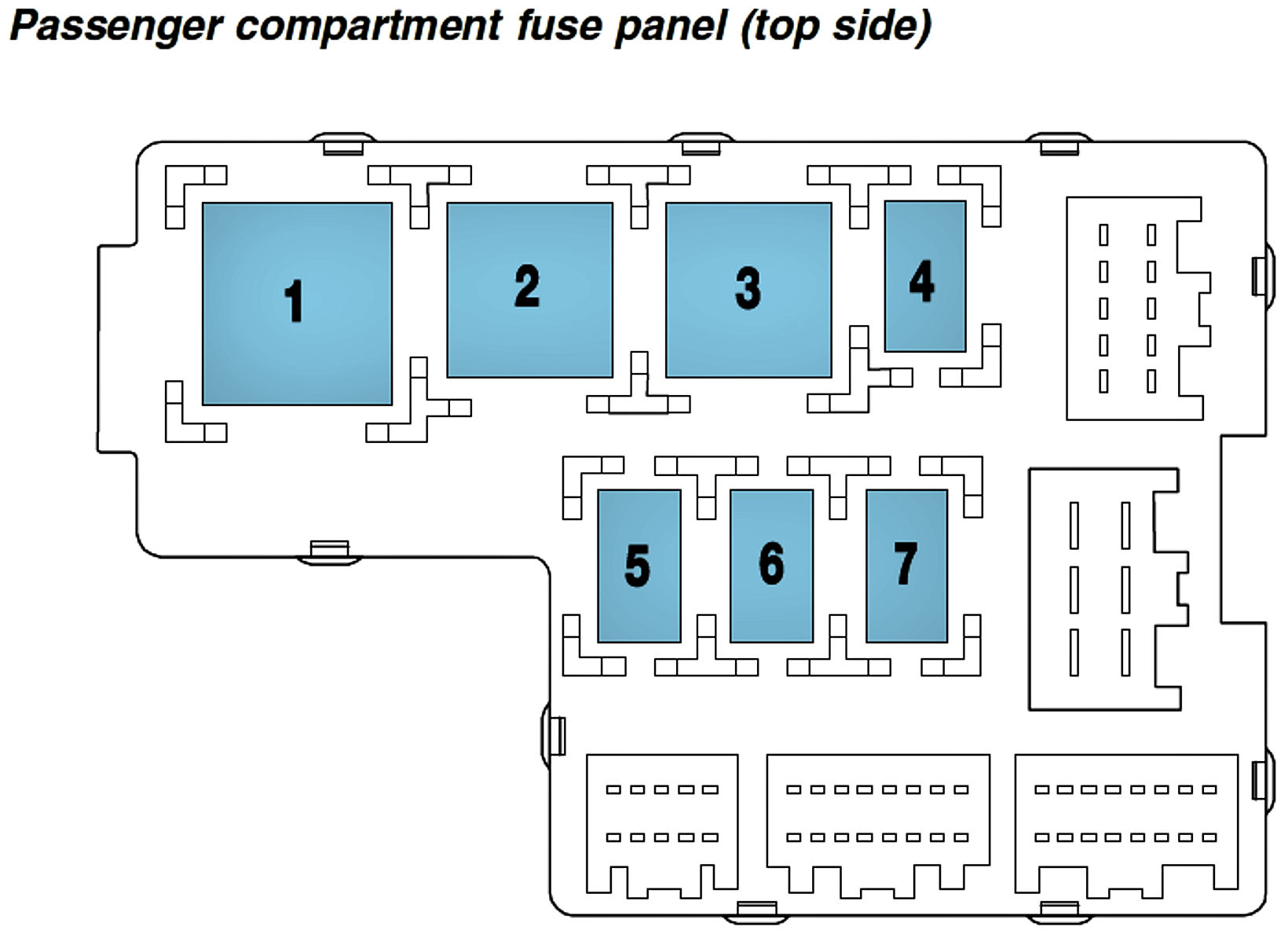

Top Side:

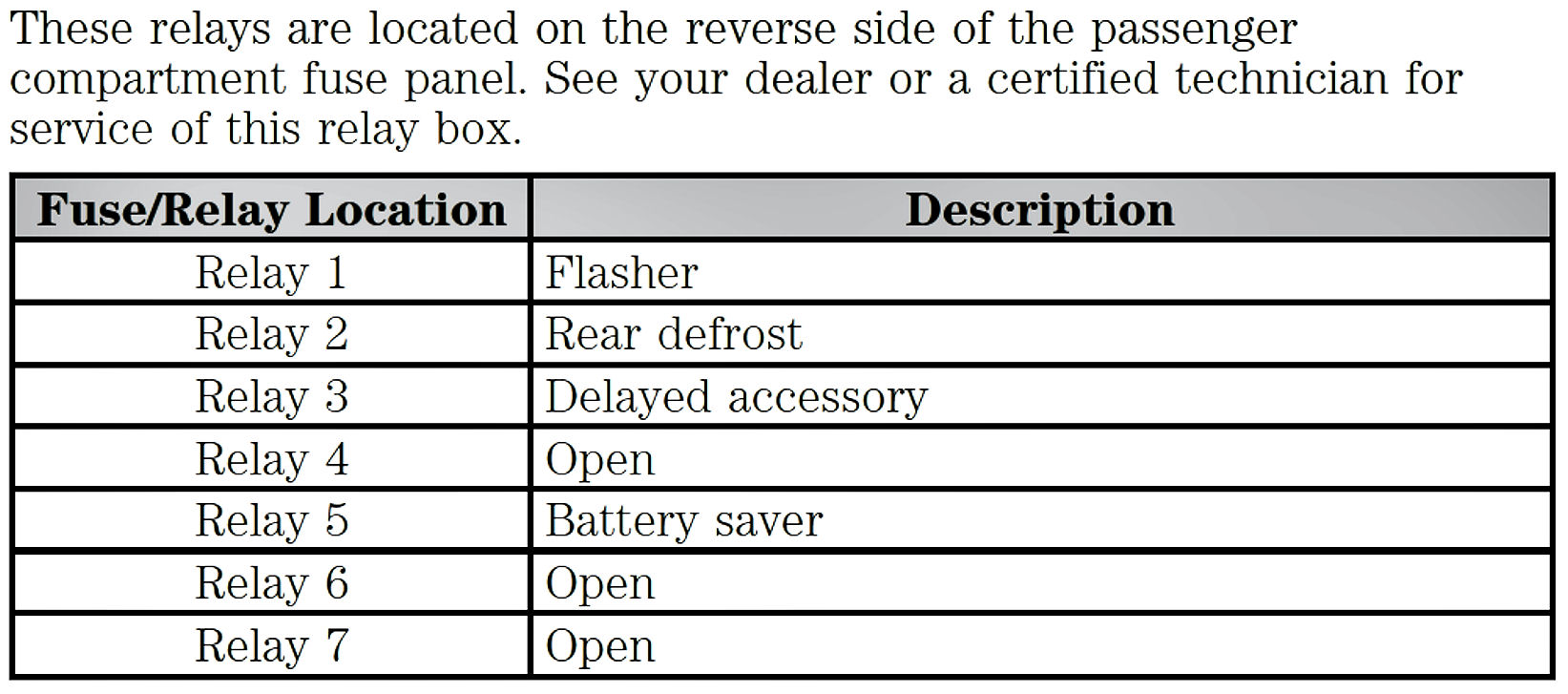

Relays:
