Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

REMOVAL

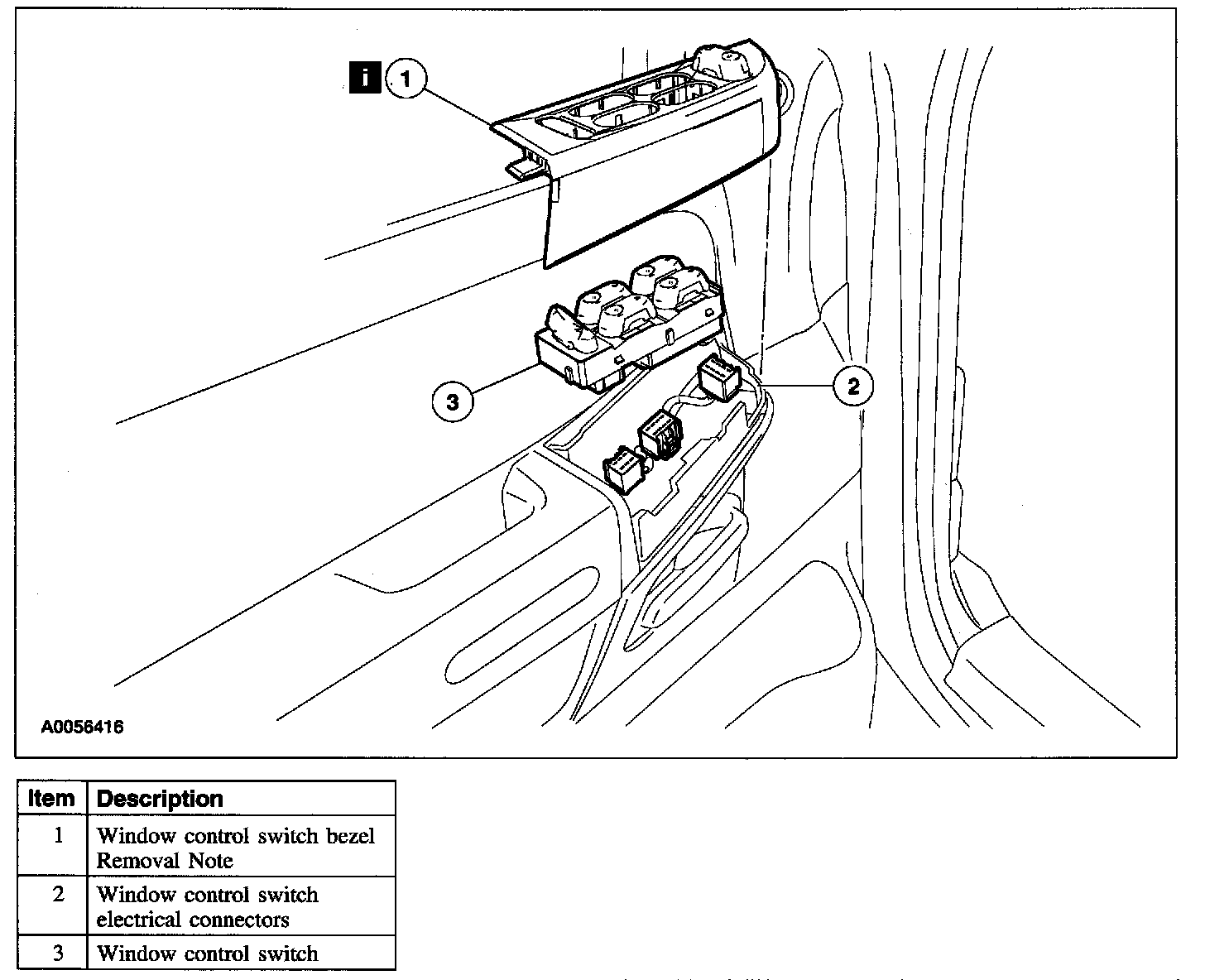

1. Remove the components in the order indicated in the illustration and table.

Item 1: Window Control Switch Bezel Removal Note
1. Lift the front of the window control switch bezel upward to release the front hold-down clip.
2. Slide the window control switch bezel forward to release the rear tab.

INSTALLATION
1. To install, reverse the removal procedure.
