Line Pressure Chart

NOTE: Prior to using this chart, you should check the transmission identification tag. Some early built units will use a different specification.

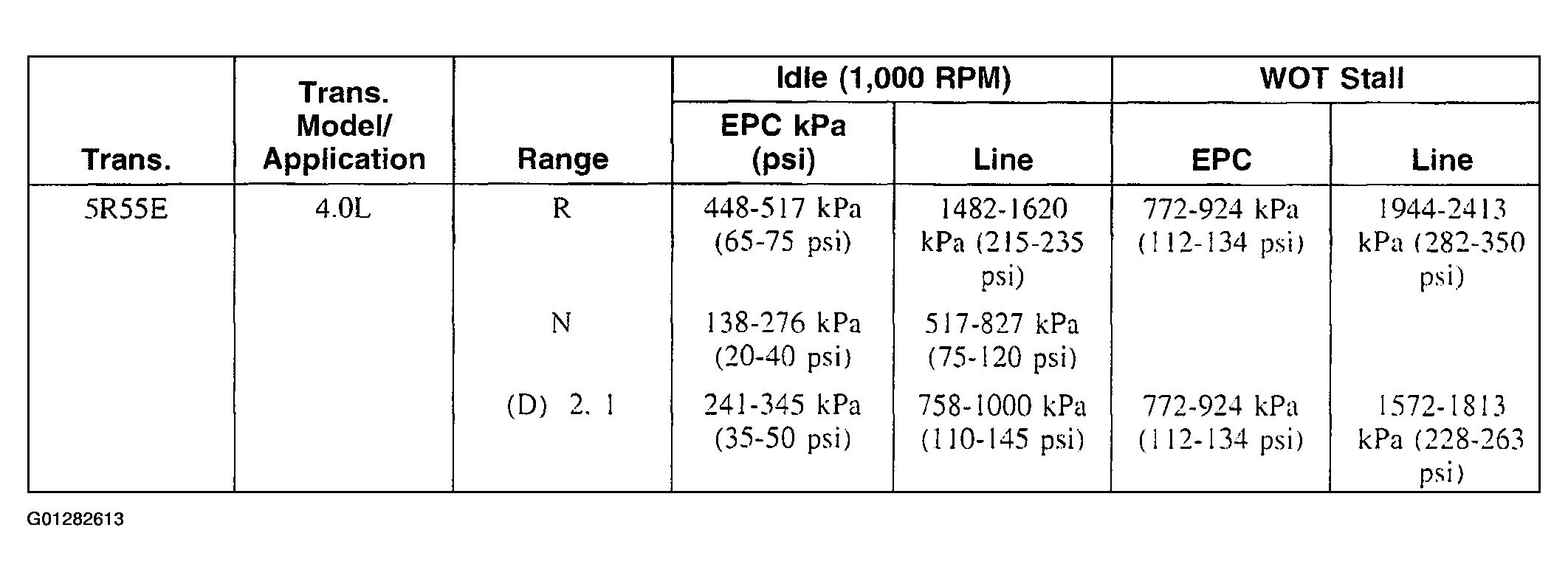

Fig 1: Line Pressure Chart

Courtesy of FORD MOTOR CO.
