Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Sender Unit - 4.2L

Removal

1. Partially drain the cooling system.

2. Remove the water temperature indicator sender unit.

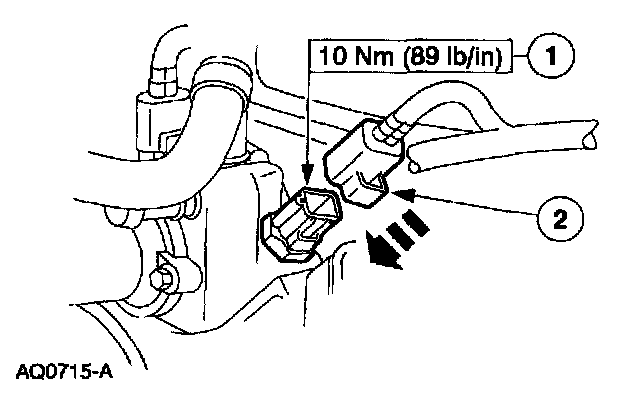

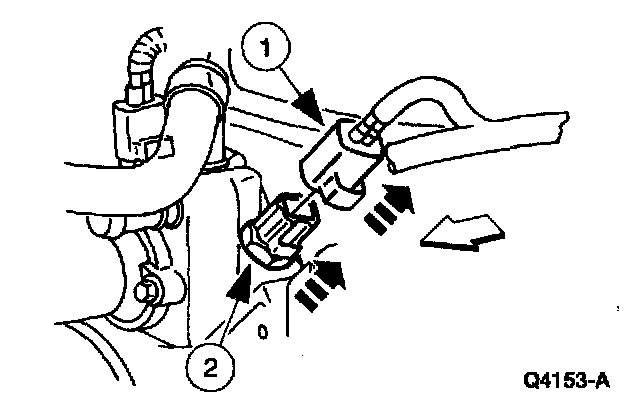

1. Disconnect the connector.
2. Remove the water temperature indicator sender unit.






Installation

1. To install, reverse the removal procedure.
