Engine Temperature Sensor: Service and Repair



CYLINDER HEAD TEMPERATURE (CHT) SENSOR - 4.2L

REMOVAL and INSTALLATION

1. Disconnect the battery ground cable.

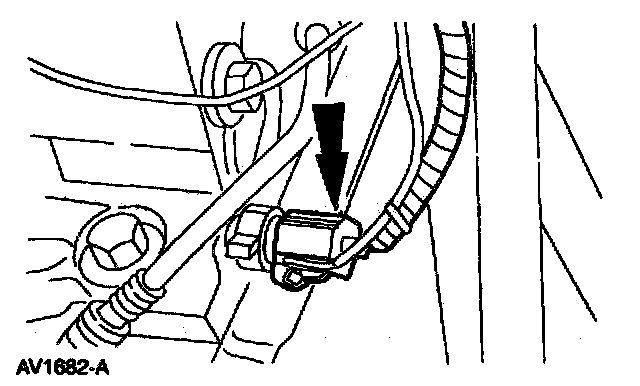

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

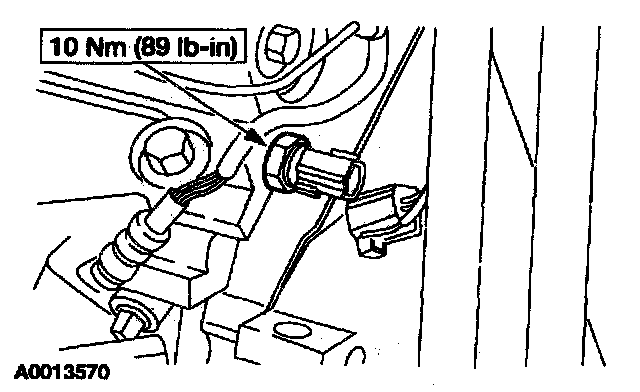

3. Remove the CHT sensor.






4. To install, reverse the removal procedure.
