System Specifications

Timing belt idler pulley 38 Nm (25 ft. lbs.)
Timing belt tensioner 25 Nm (18 ft. lbs.)





Camshaft retaining bolts

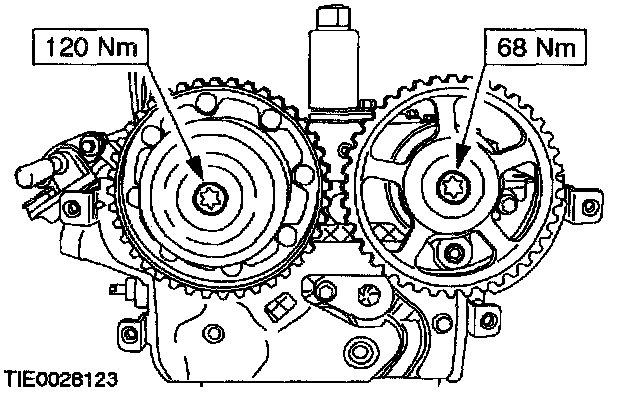

Intake camshaft pulley blanking plug 37 Nm
