Piston Pin

WARNING: This page is about a different variant/trim than selected.

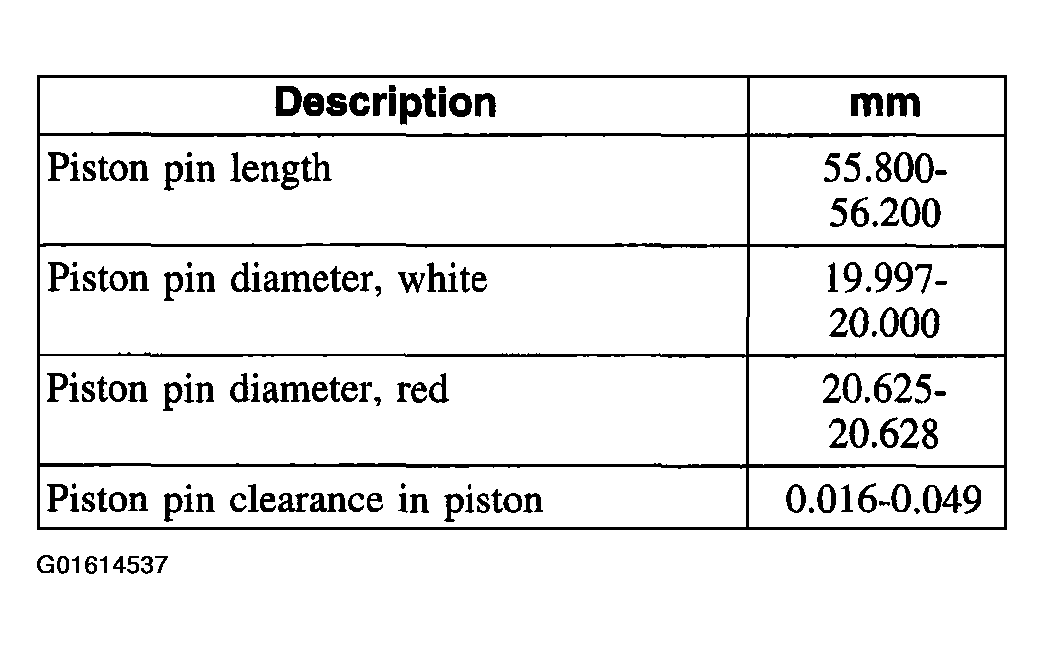

Fig 1: Piston Pin Specification Chart
G01614537Courtesy of FORD MOTOR CO.
