Section 2 (Engine-2.0L SPI): Specifications: Camshaft

WARNING: This page is about a different variant/trim than selected.

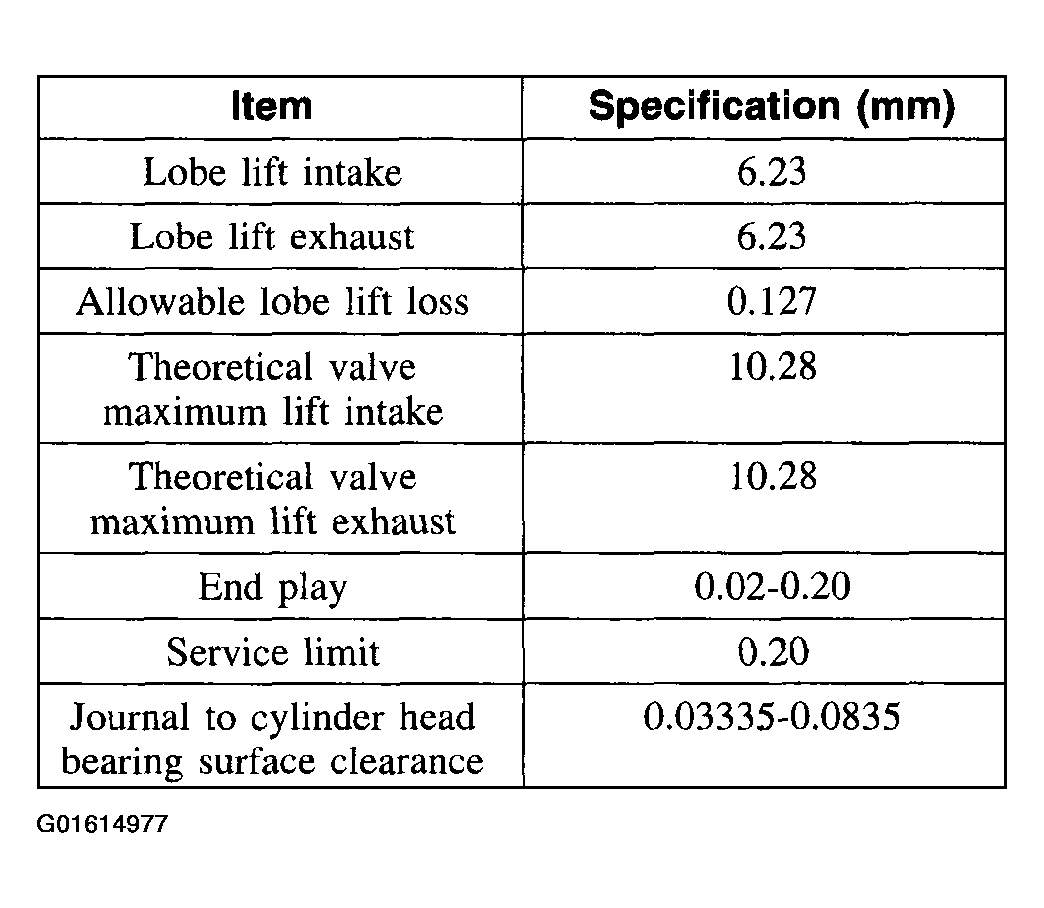

Fig 1: Camshaft Specifications Chart (1 Of 2)
G01614977Courtesy of FORD MOTOR CO.
Fig 2: Camshaft Specifications Chart (2 Of 2)
G01614978Courtesy of FORD MOTOR CO.
