Selector Plate: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the selector mechanism.
    1. Selector shaft.
    2. Reverse gear selector lever.
    3. Fifth and reverse gear selector rod guide sleeve.
    4. Selector plate.
    5. Fifth and reverse gear selector rod.

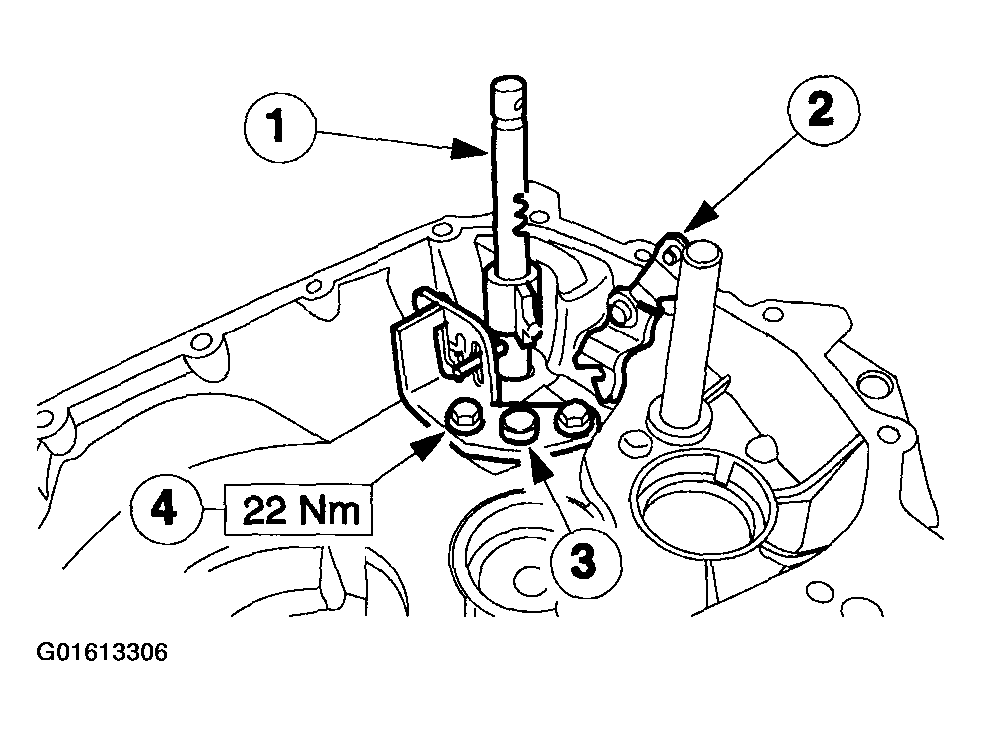

      Fig 1: Installing Selector Mechanism
      G01613306Courtesy of FORD MOTOR CO.
