Selector Plate: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the selector mechanism.
    1. Fifth and reverse gear selector rod.
    2. Selector shaft.
    3. Reverse gear selector lever.
    4. Selector plate.
    5. Fifth and reverse gear selector rod guide sleeve.

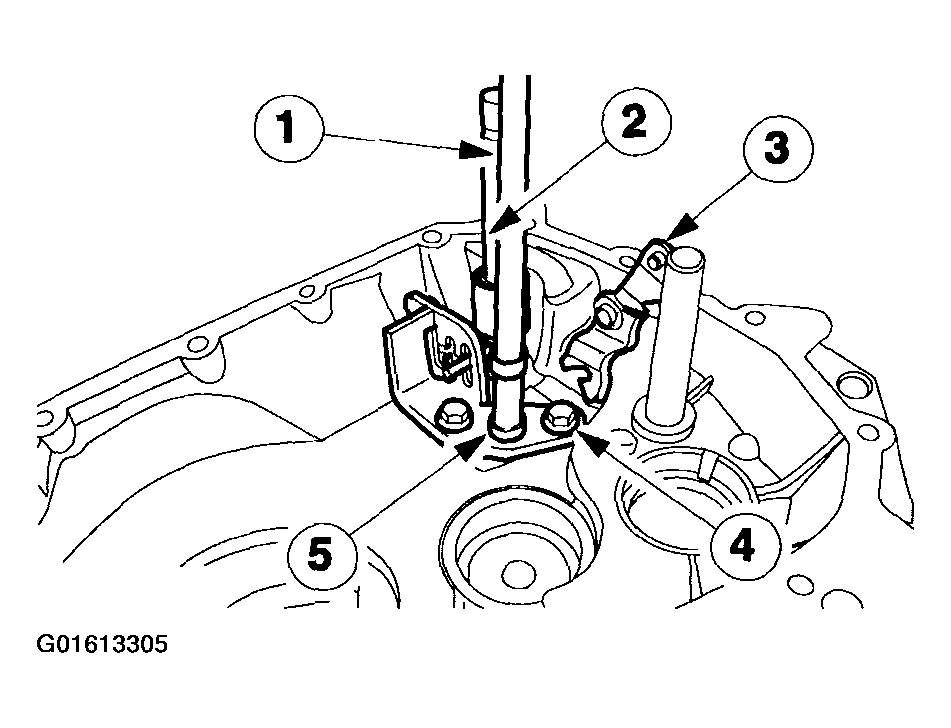

      Fig 1: Removing Selector Mechanism
      G01613305Courtesy of FORD MOTOR CO.
