Power Steering System Filling: Refill

NOTE: When filling the power steering fluid reservoir, make sure that the power steering fluid is clean and not agitated prior to use. The fluid should be poured slowly into the reservoir to minimize the possibility of aeration. The fluid level should be checked with the fluid cold.

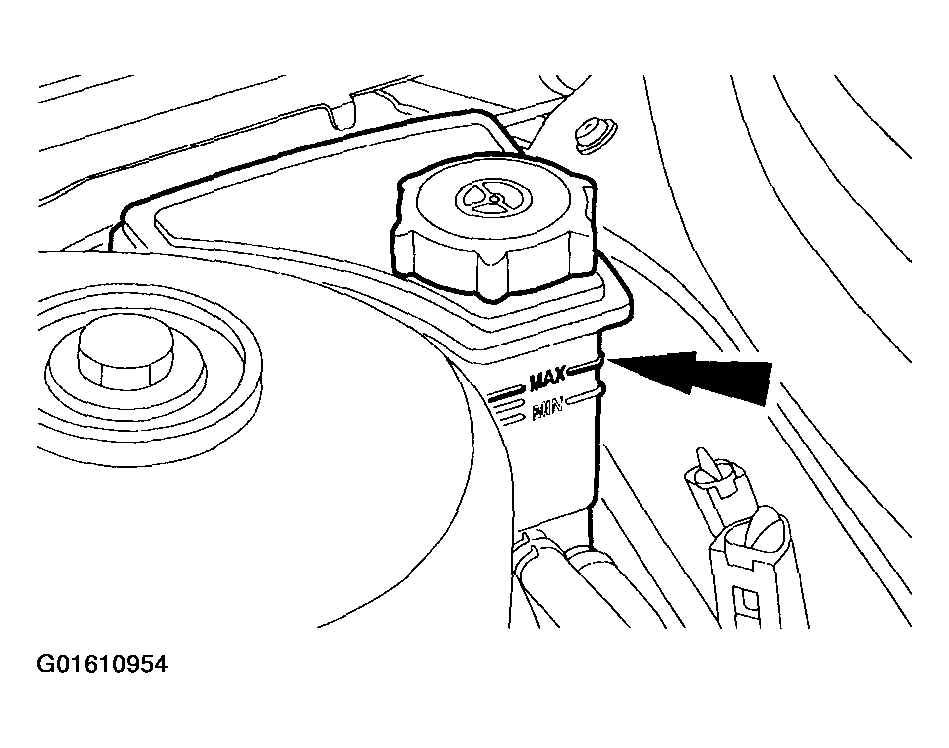

Fig 1: Filling Power Steering Fluid Reservoir To MAX Mark With Power Steering Fluid

Courtesy of FORD MOTOR CO.

Fill the power steering fluid reservoir to the MAX mark with power steering fluid.
Using the special tool, apply a vacuum of 84-101 kPa (25-30 in-Hg) for 30 seconds.

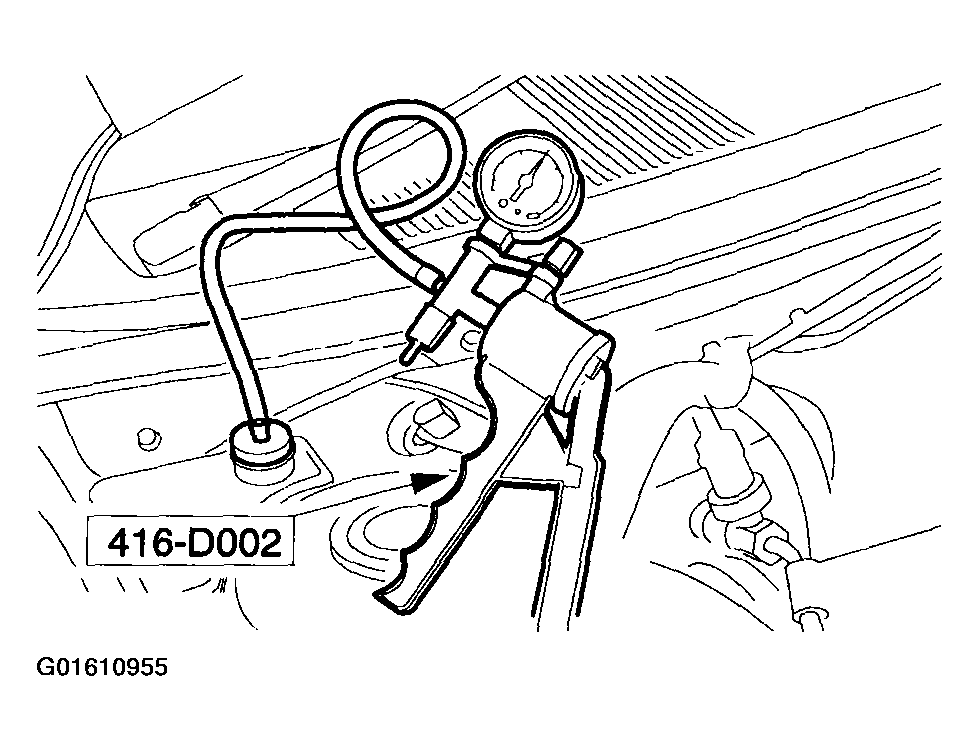

Fig 2: Applying Vacuum
Courtesy of FORD MOTOR CO.
Observe the vacuum gauge reading.
- If the vacuum decreases by more than 7 kPa (2 in-Hg) in five minutes, the system should be checked for leaks.
Remove the special tool.
Fill the power steering fluid reservoir to the MAX mark with power steering fluid.
