Pinpoint Test P: The Yellow Abs Warning Indicator Does Not Self-Check

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

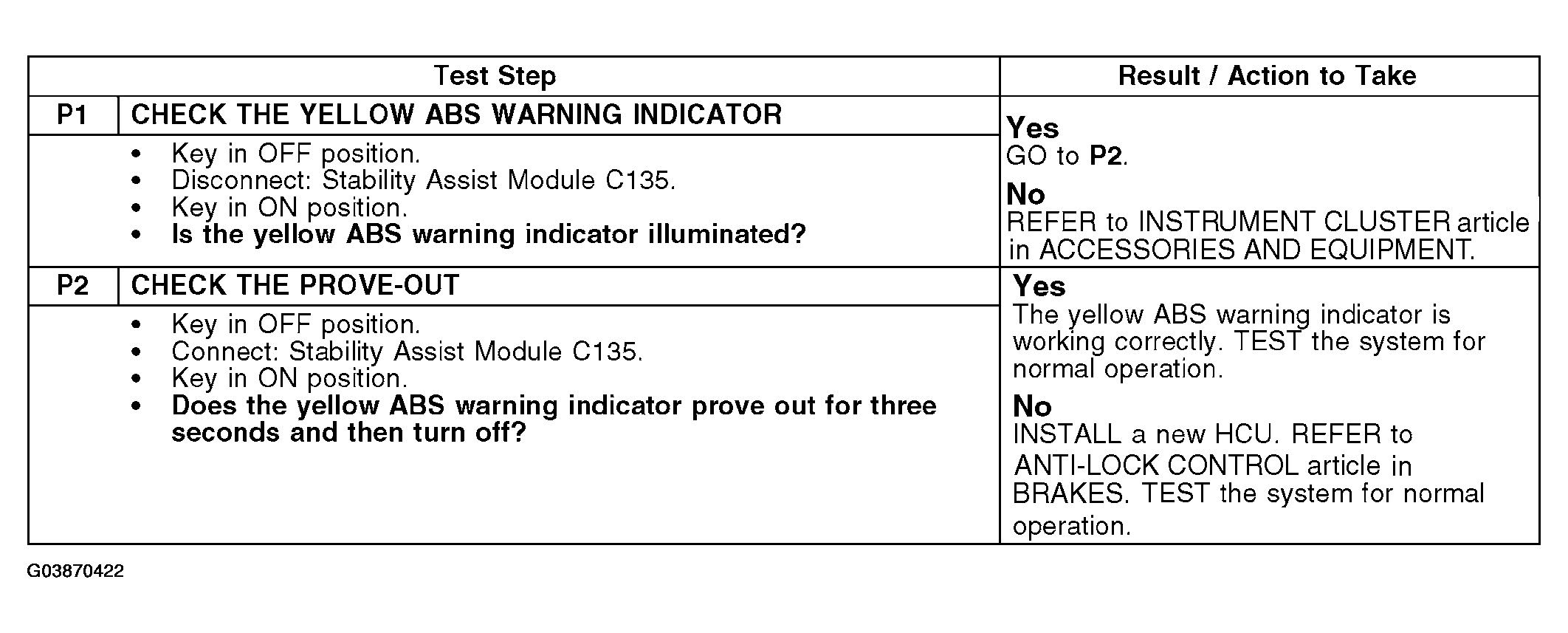

Fig 1: Pinpoint Test P: Yellow ABS Warning Indicator Does Not Self-Check (Step P1-P2)

Courtesy of FORD MOTOR CO.
