Pinpoint Test N: The Passenger Temperature Controlled Seat Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

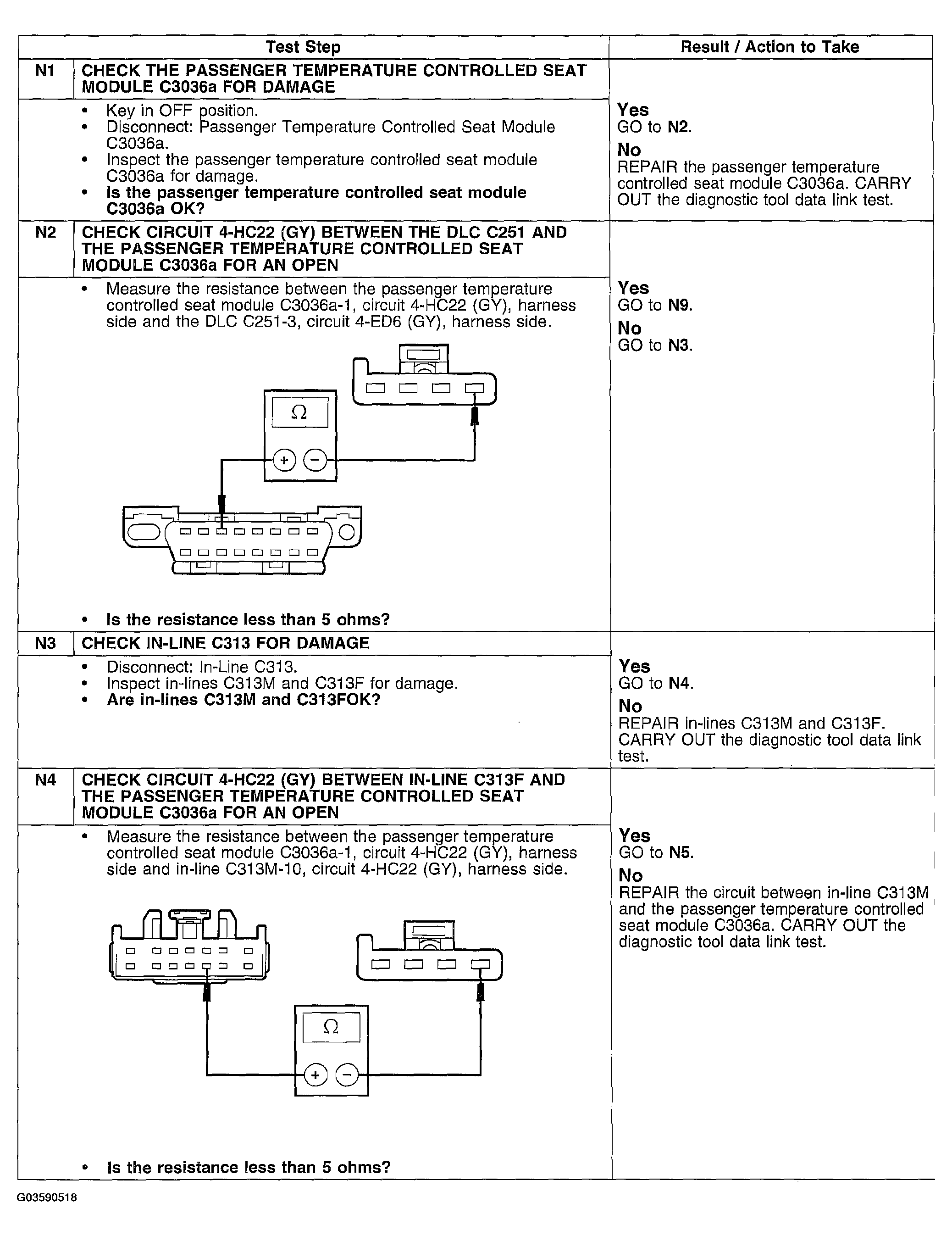

Fig 1: Pinpoint Test N: Passenger Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (Step N1 - N4)

Courtesy of FORD MOTOR CO.

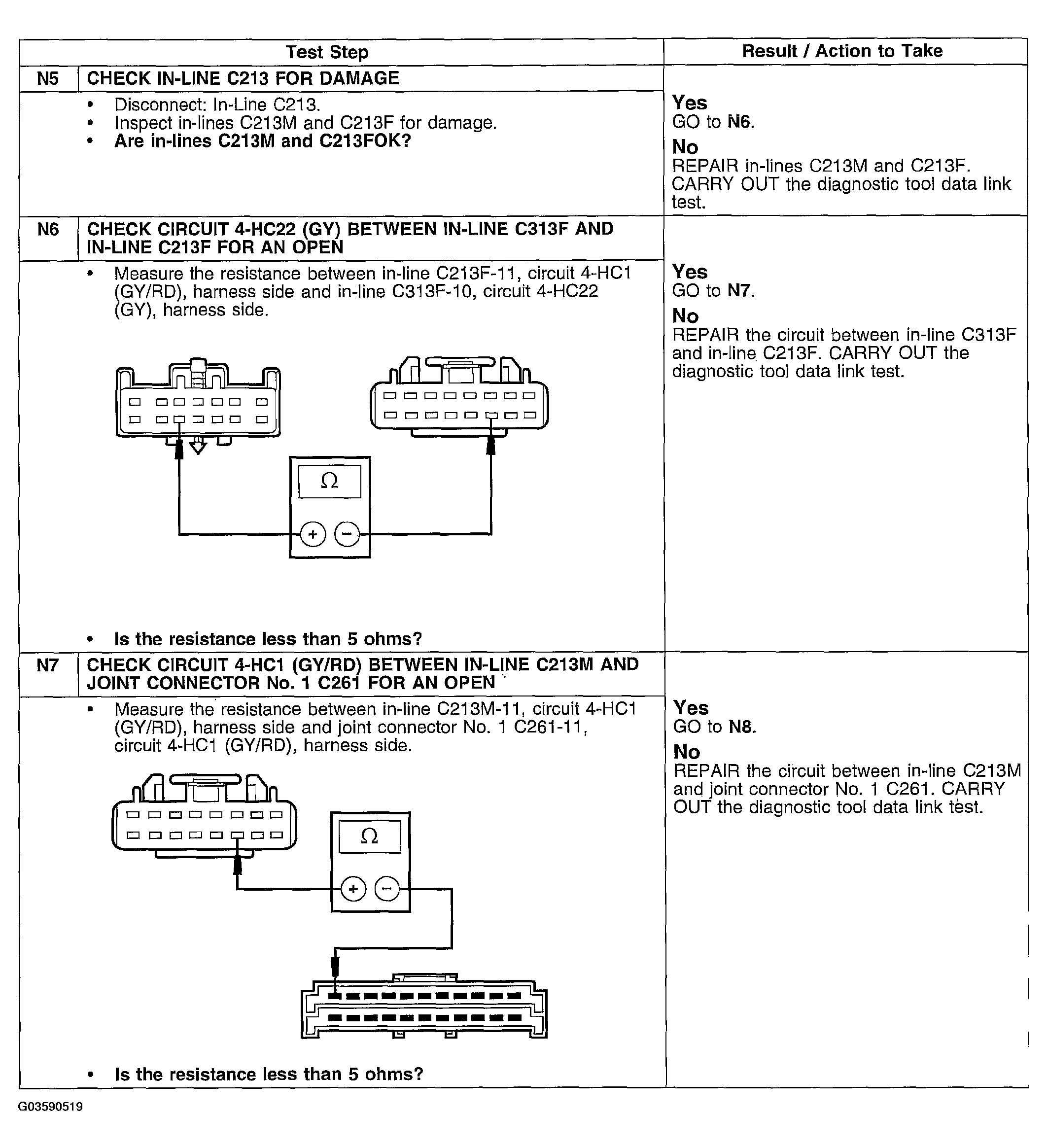

Fig 2: Pinpoint Test N: Passenger Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (Step N5 - N7)

Courtesy of FORD MOTOR CO.

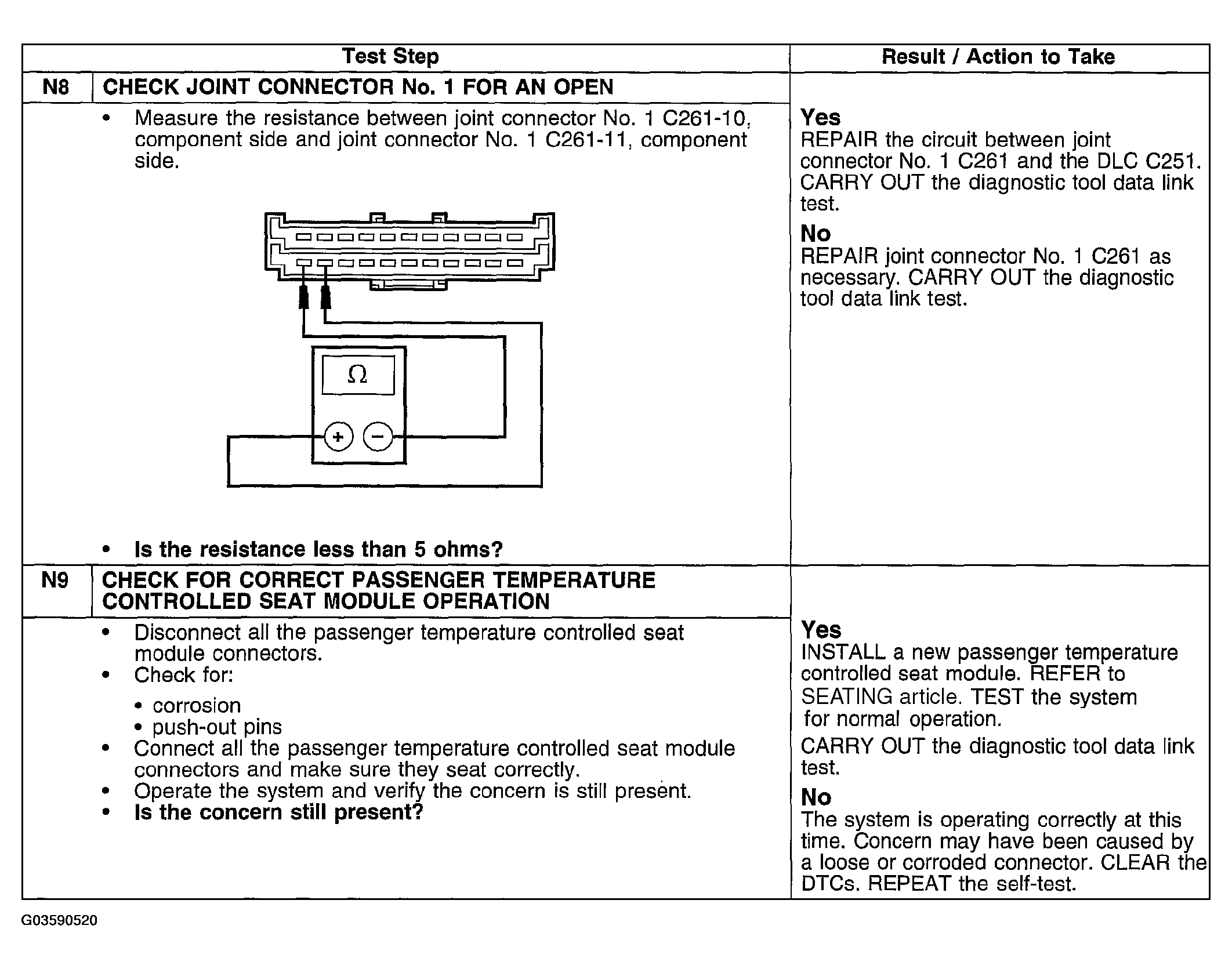

Fig 3: Pinpoint Test N: Passenger Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (Step N8 - N9)

Courtesy of FORD MOTOR CO.
