Direct Clutch: Notes

Special Tool(s)

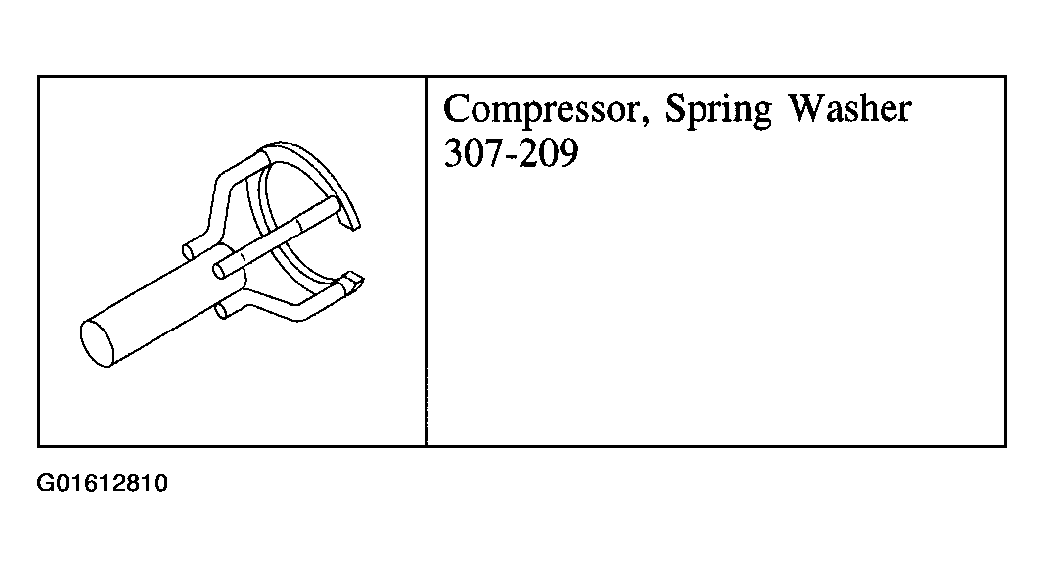

Fig 1: Identifying Special Tool
G01612810Courtesy of FORD MOTOR CO.

Material

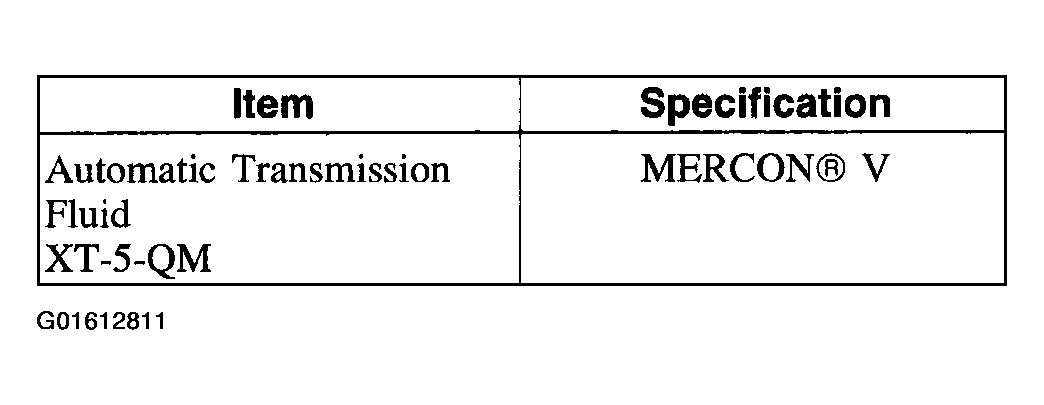

Fig 2: Material Specifications
G01612811Courtesy of FORD MOTOR CO.

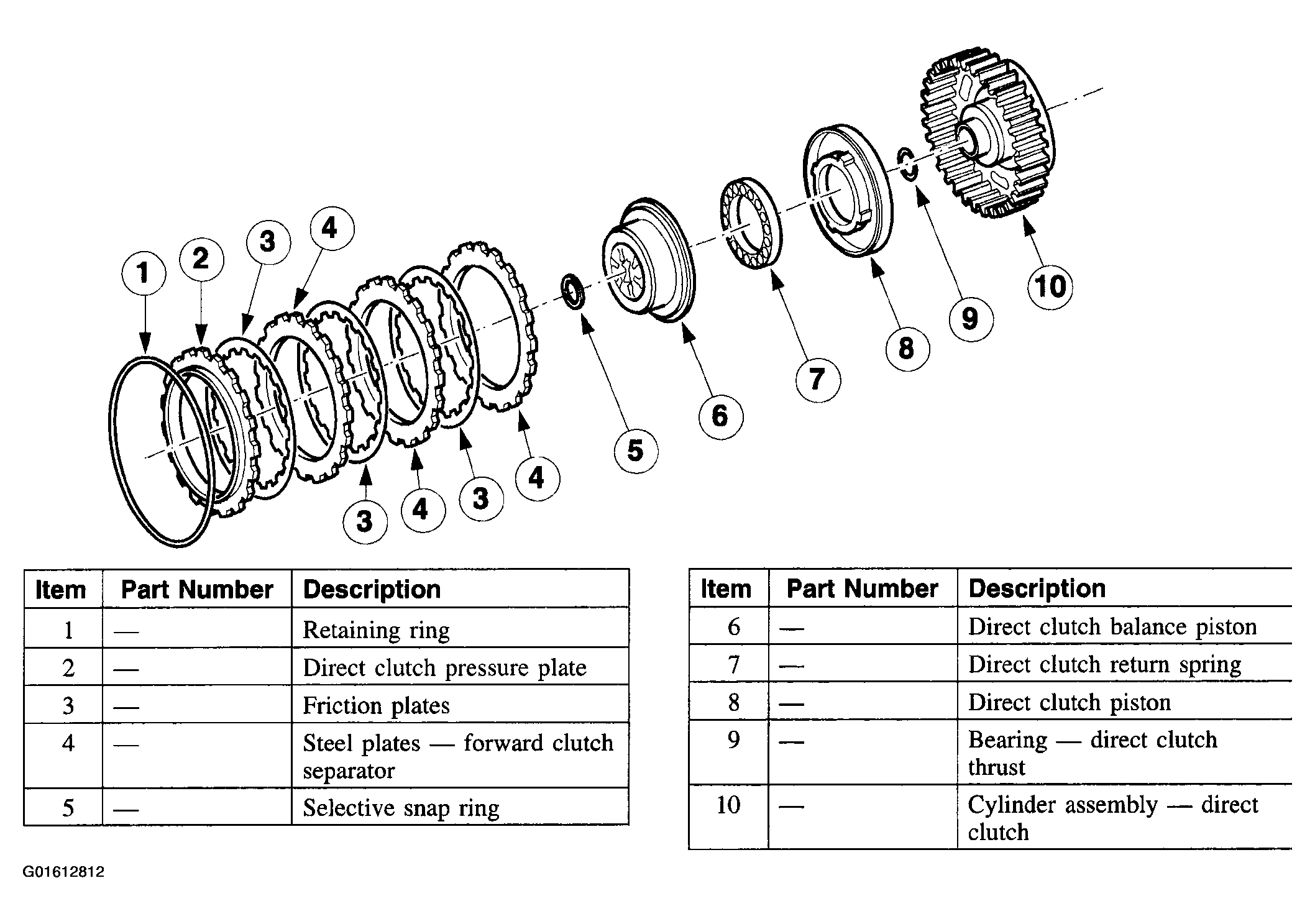

Fig 3: Identifying Components Of Direct Clutch
G01612812Courtesy of FORD MOTOR CO.
