Main Control Valve Body: Disassembly

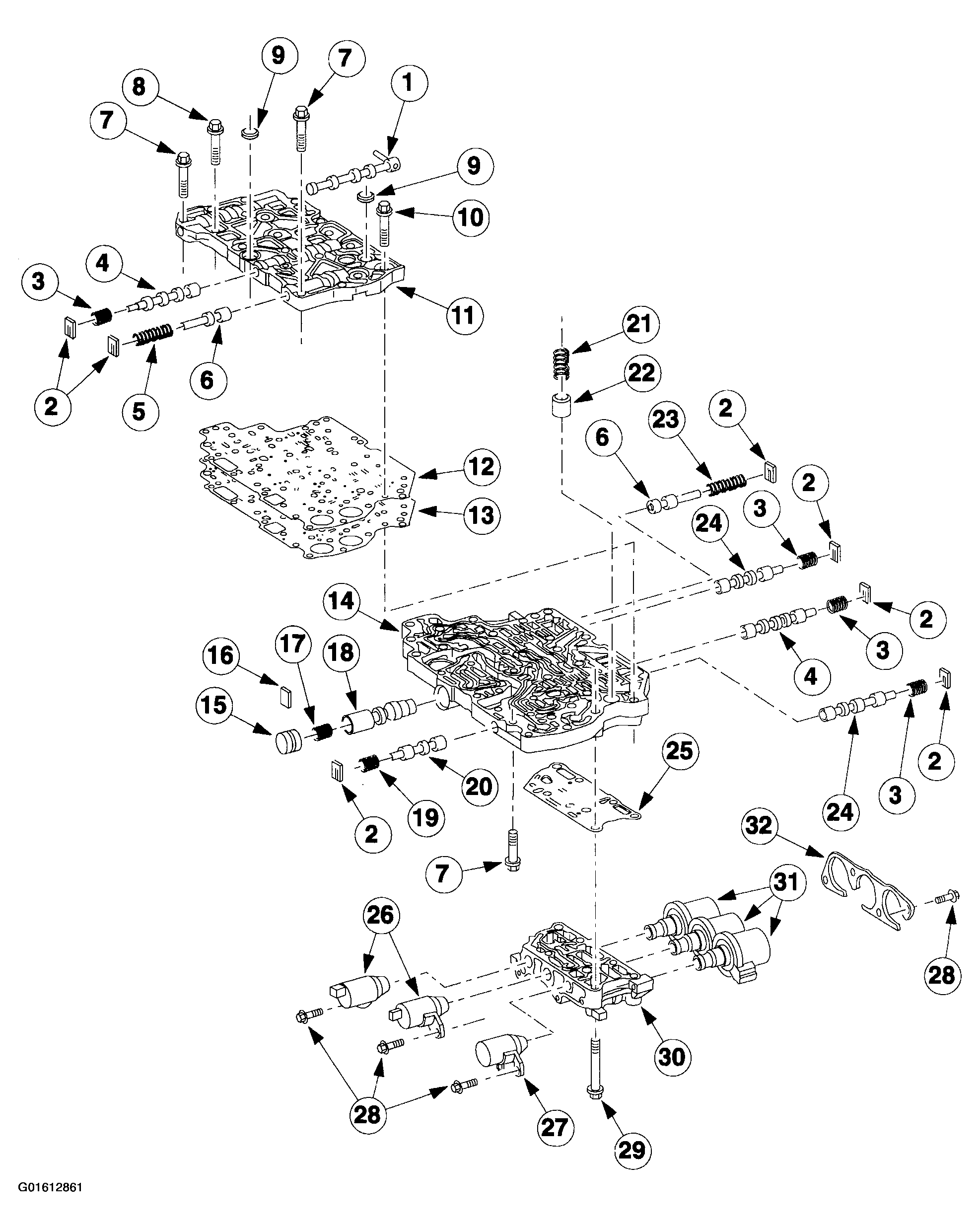

Fig 1: Identifying Components Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

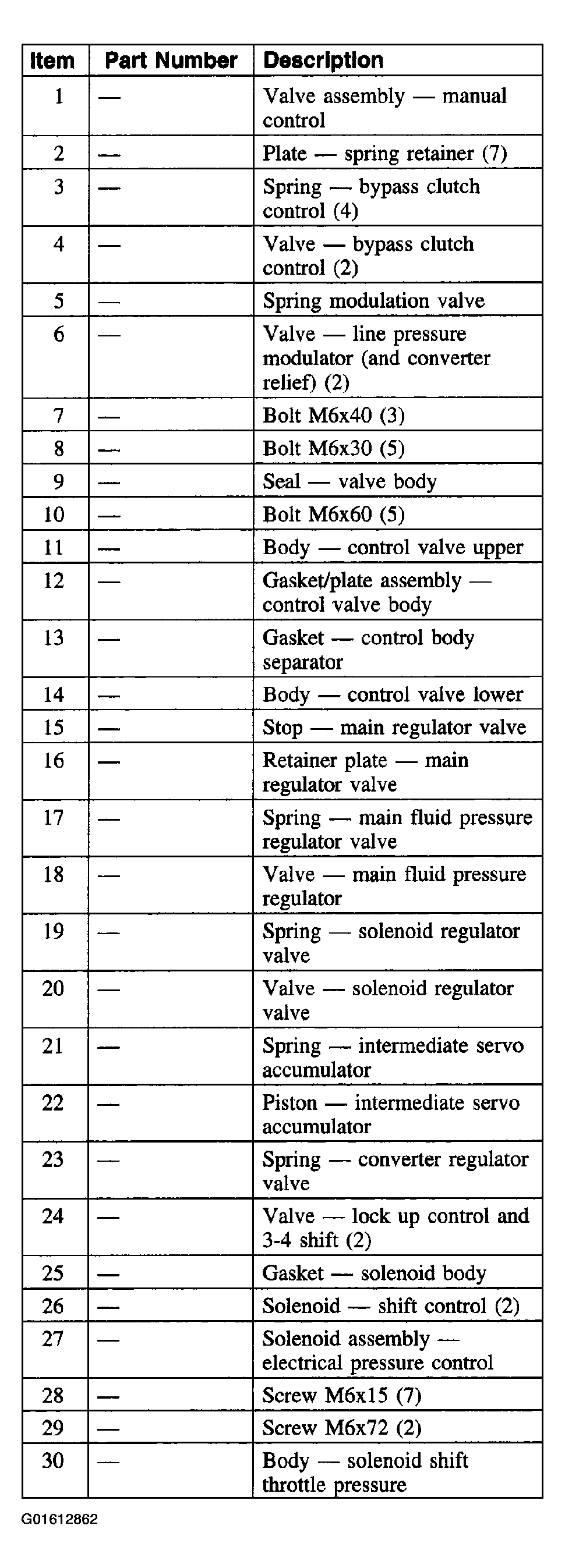

Fig 2: Main Control Valve Body Components Description (Items 1-30)

Courtesy of FORD MOTOR CO.

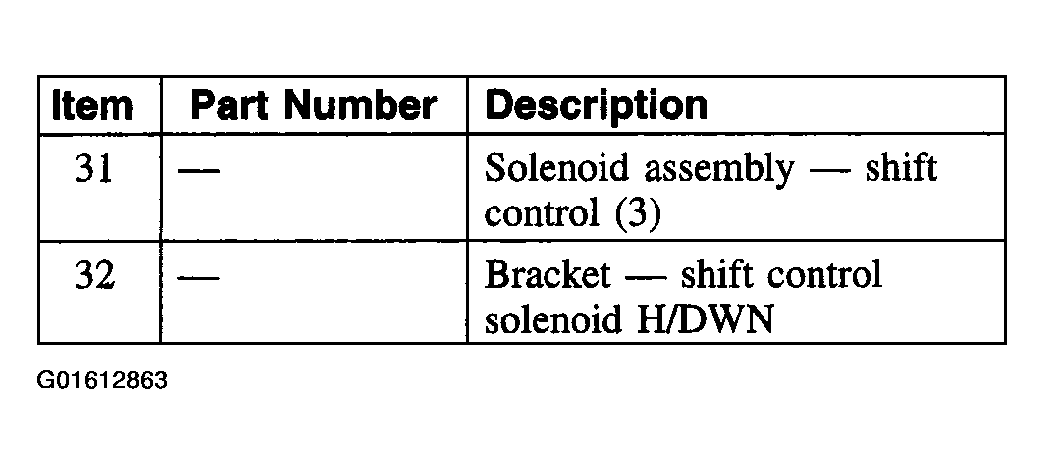

Fig 3: Main Control Valve Body Components Description (Items 31-32)

Courtesy of FORD MOTOR CO.

Remove the solenoid body bolts and the solenoid body.

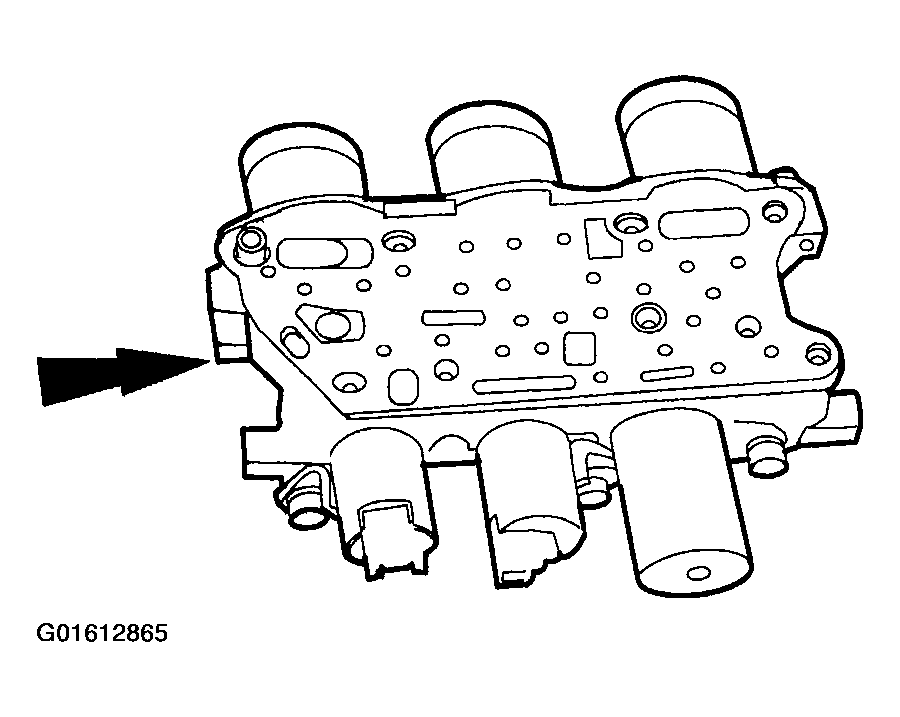

Fig 4: Removing Solenoid Body
Courtesy of FORD MOTOR CO.
Remove and discard the solenoid body gaskets.

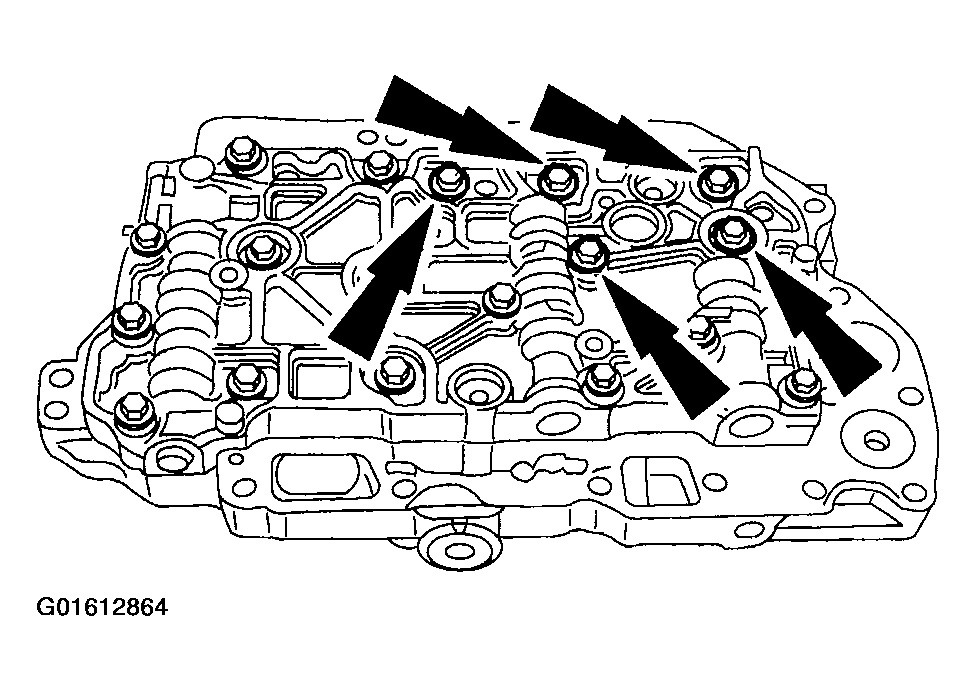

Fig 5: Removing Solenoid Body Gaskets
Courtesy of FORD MOTOR CO.
Remove and discard the seals.

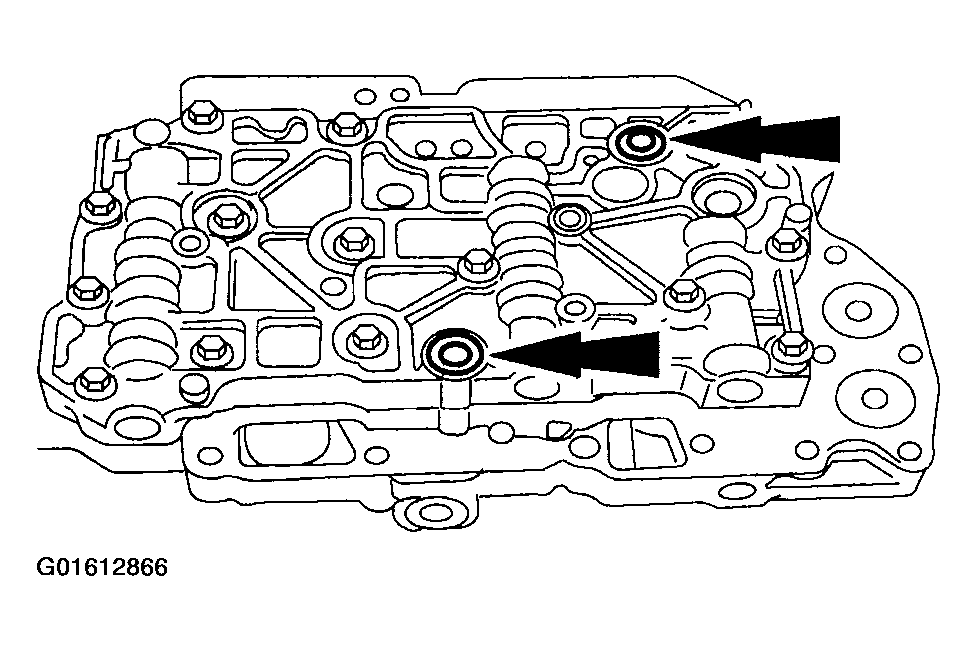

Fig 6: Removing Seals
Courtesy of FORD MOTOR CO.

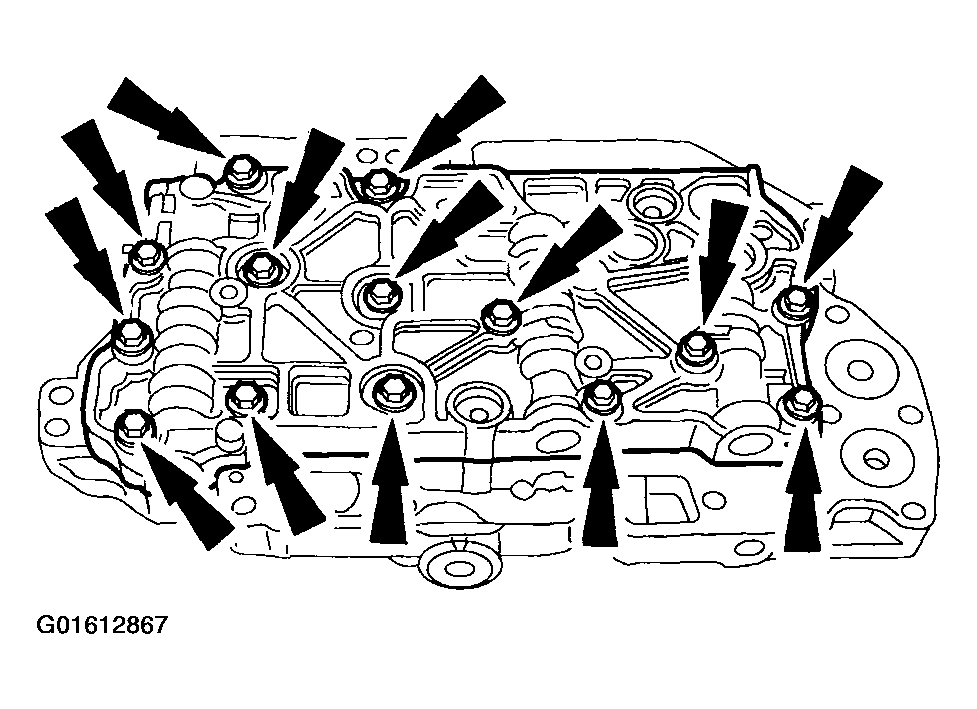

Disassemble the main control valve body.

Fig 7: Disassembling Main Control Valve Body
Courtesy of FORD MOTOR CO.
