Reverse Clutch: Notes

Special Tool(s)

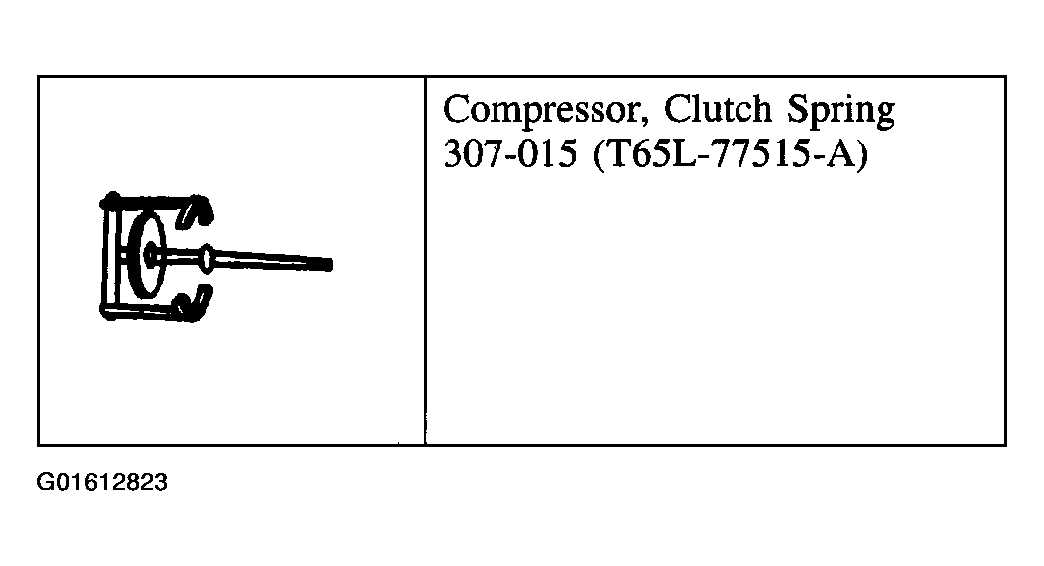

Fig 1: Identifying Special Tool
G01612823Courtesy of FORD MOTOR CO.

Material

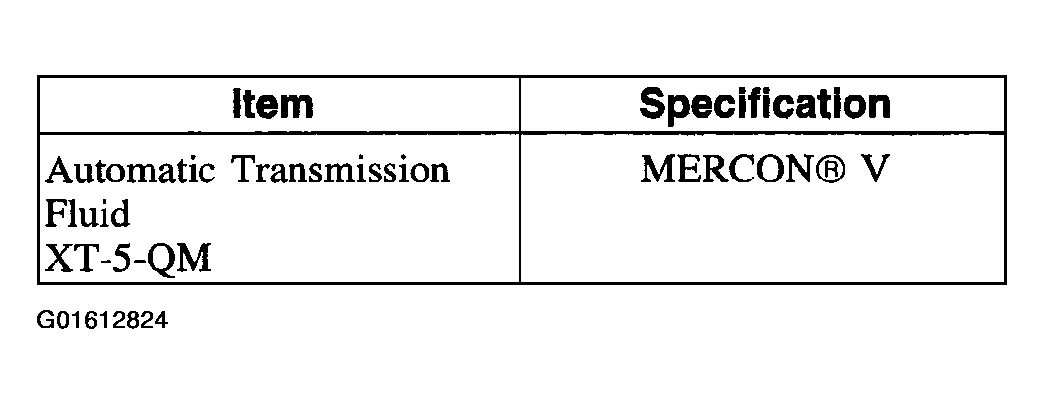

Fig 2: Material Specifications
G01612824Courtesy of FORD MOTOR CO.

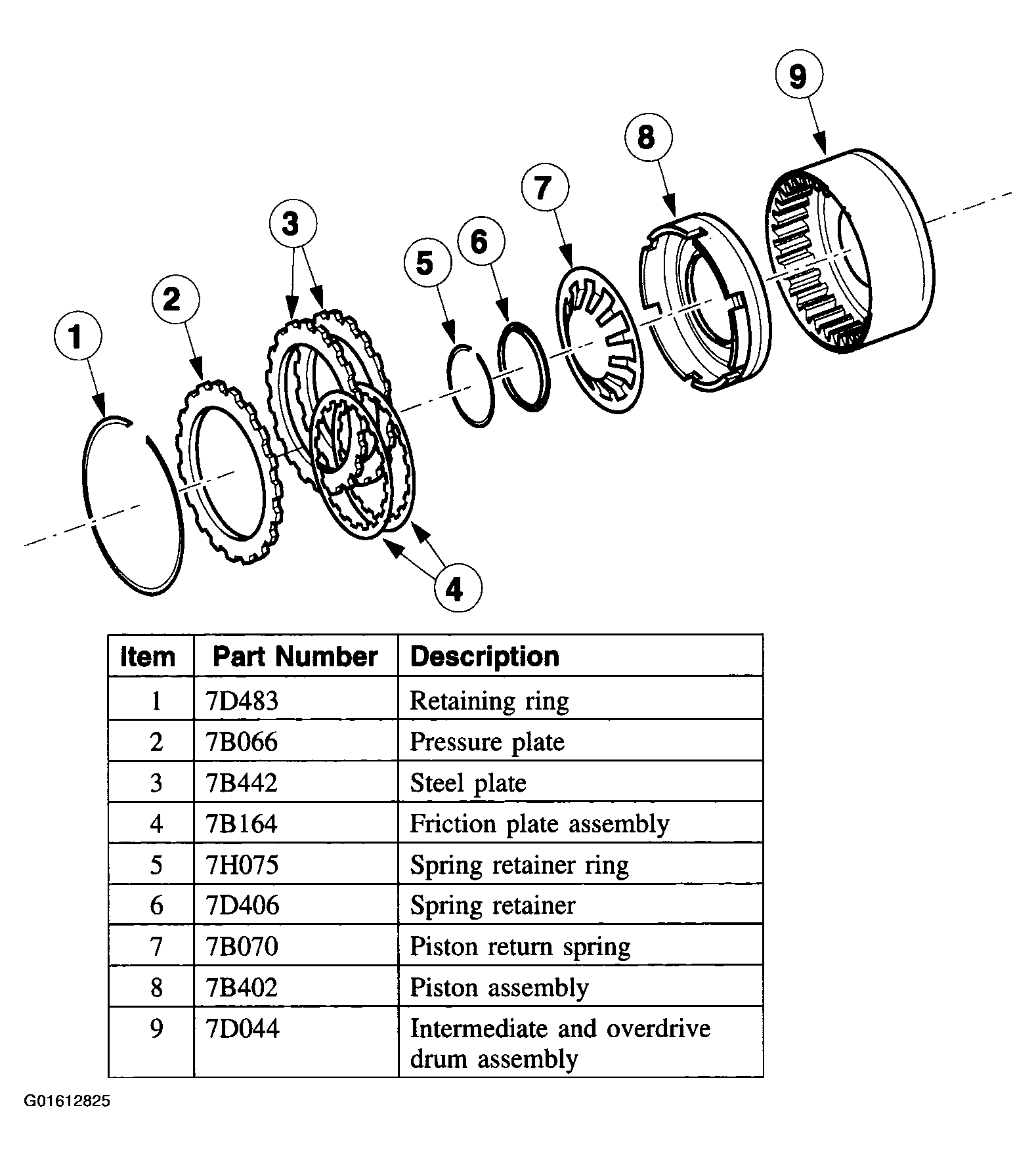

Fig 3: Identifying Components Of Reverse Clutch
G01612825Courtesy of FORD MOTOR CO.
