Reference: Band/Clutch Application Chart

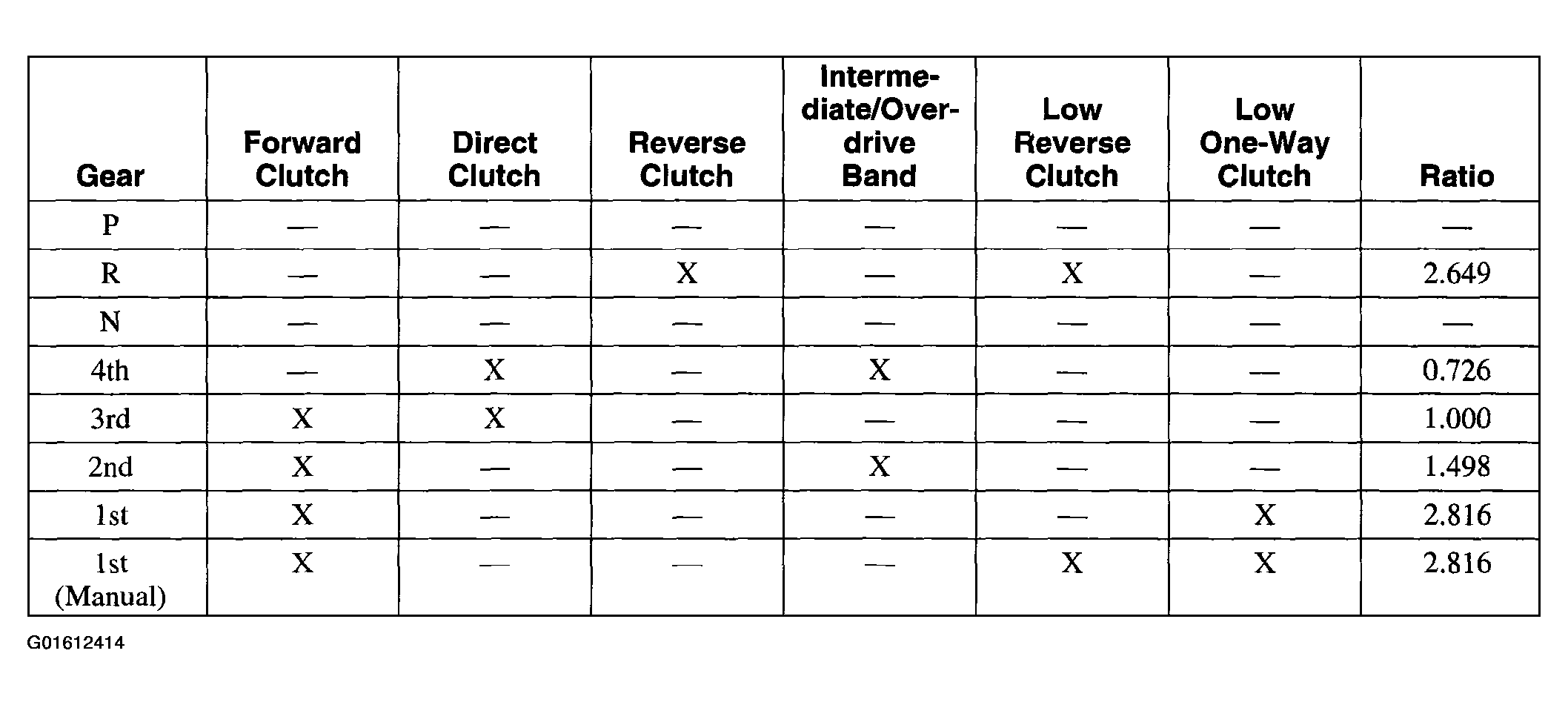

Fig 1: Reference: Band/Clutch Application Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
