Direct and Reverse Clutch Assembly: Disassembly

  1. Remove the reverse drum snap ring.

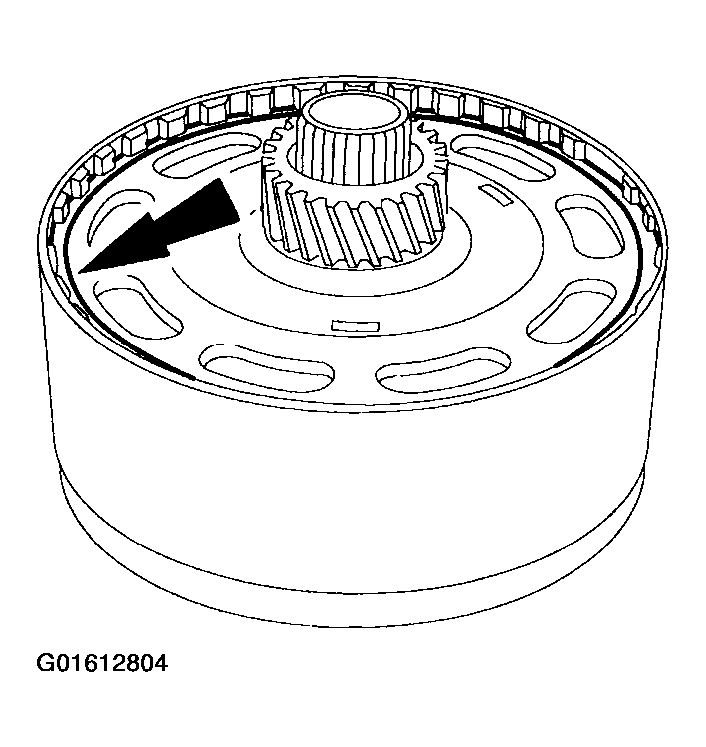

    Fig 1: Removing Reverse Drum Snap Ring
    G01612804Courtesy of FORD MOTOR CO.
  2. Remove the sun gear.

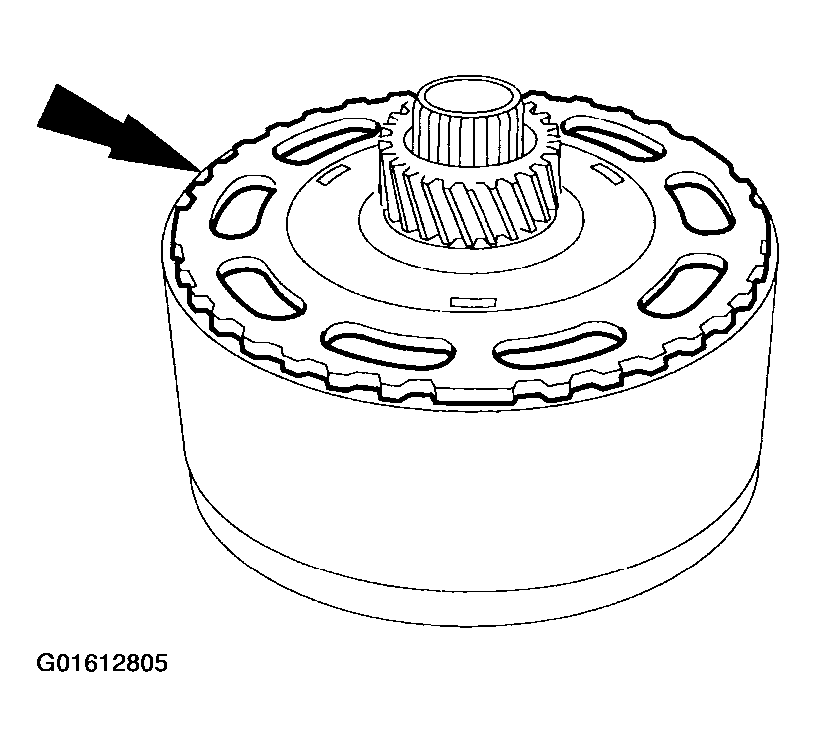

    Fig 2: Removing Sun Gear
    G01612805Courtesy of FORD MOTOR CO.
  3. Remove the sun gear thrust bearing.

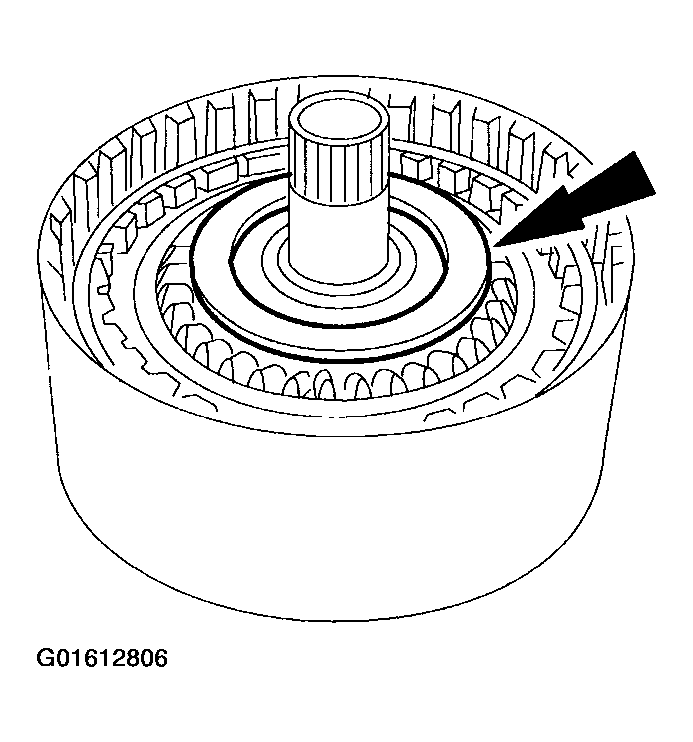

    Fig 3: Removing Sun Gear Thrust Bearing
    G01612806Courtesy of FORD MOTOR CO.
  4. Remove the direct clutch hub.
    Fig 4: Removing Direct Clutch Hub
    G01612807Courtesy of FORD MOTOR CO.
  5. Remove the direct clutch thrust bearing.

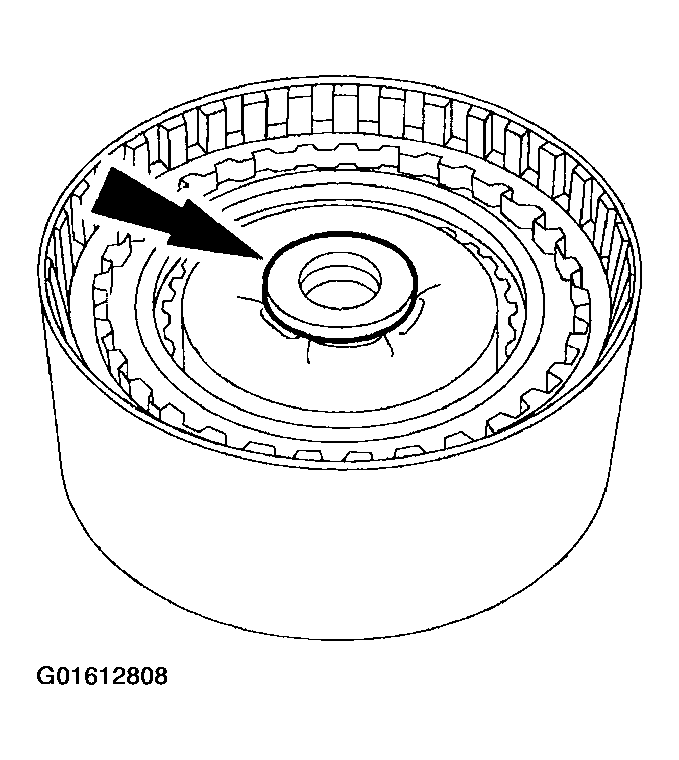

    Fig 5: Removing Direct Clutch Thrust Bearing
    G01612808Courtesy of FORD MOTOR CO.
  6. Remove the direct clutch assembly.

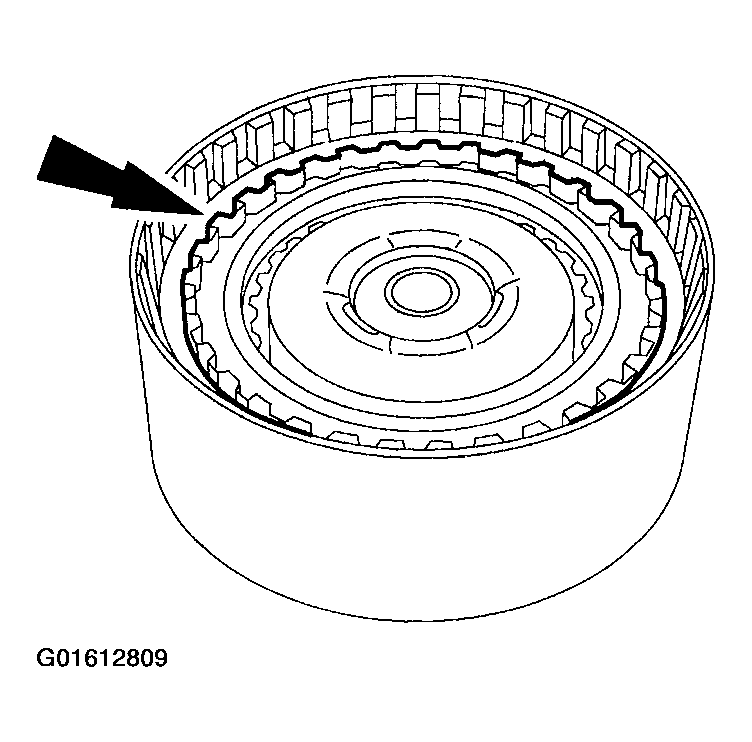

    Fig 6: Removing Direct Clutch Assembly
    G01612809Courtesy of FORD MOTOR CO.
