Intermediate/Overdrive Band Bolt Chart

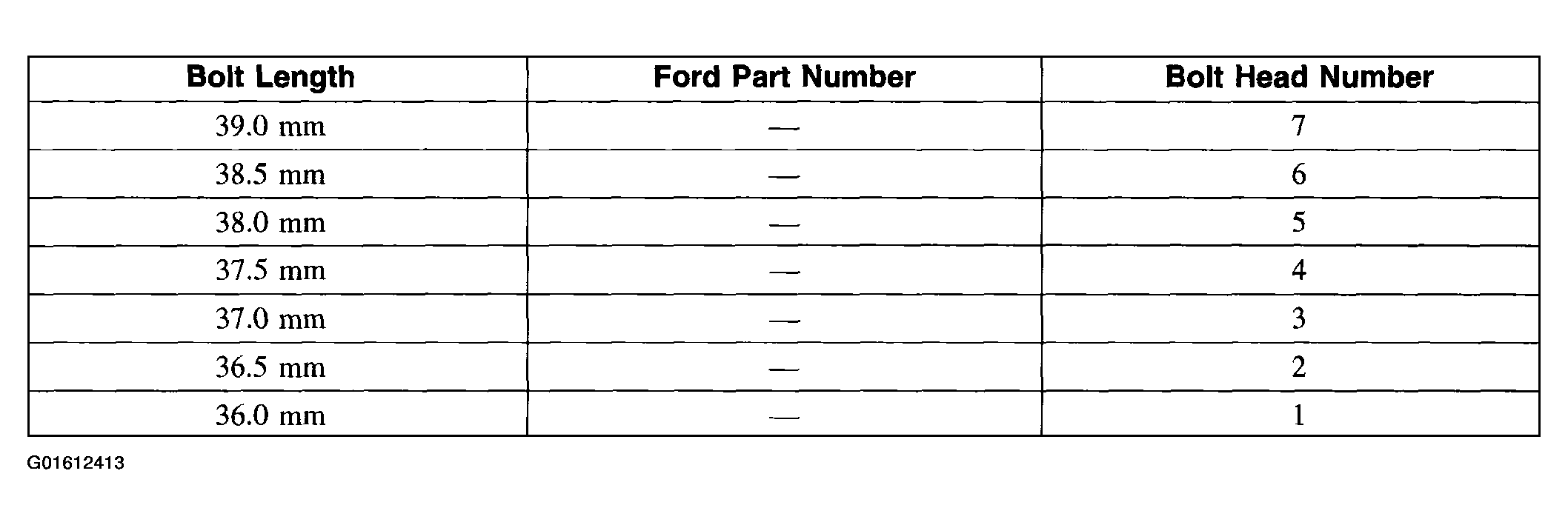

Fig 1: Intermediate/Overdrive Band Bolt Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
