Master window/door lock/unlock switch, coupe
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Master window/door lock/unlock switch, coupe

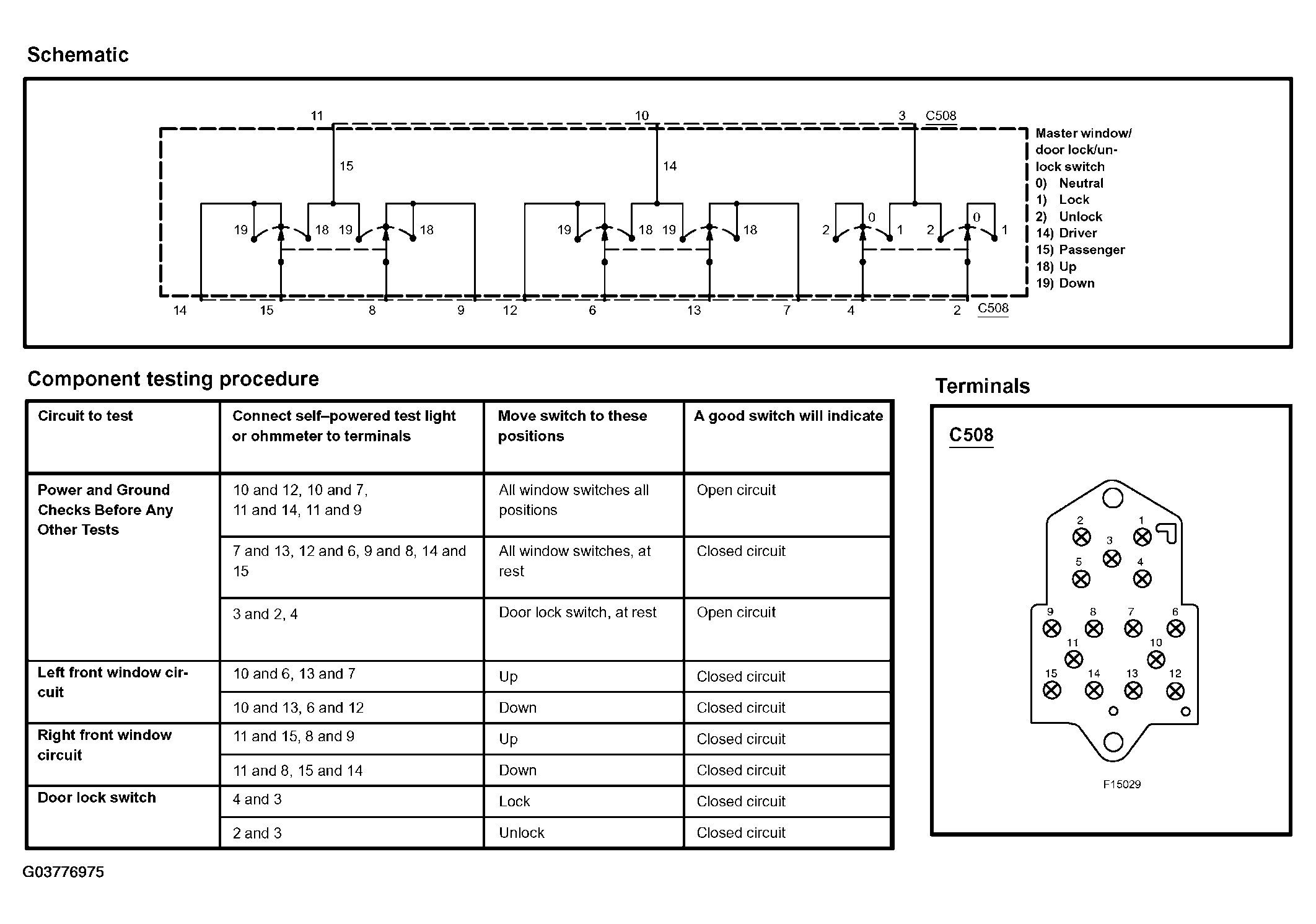

Fig 1: Testing Master Window/Door Lock/Unlock Switch, Coupe
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
