Engine Components

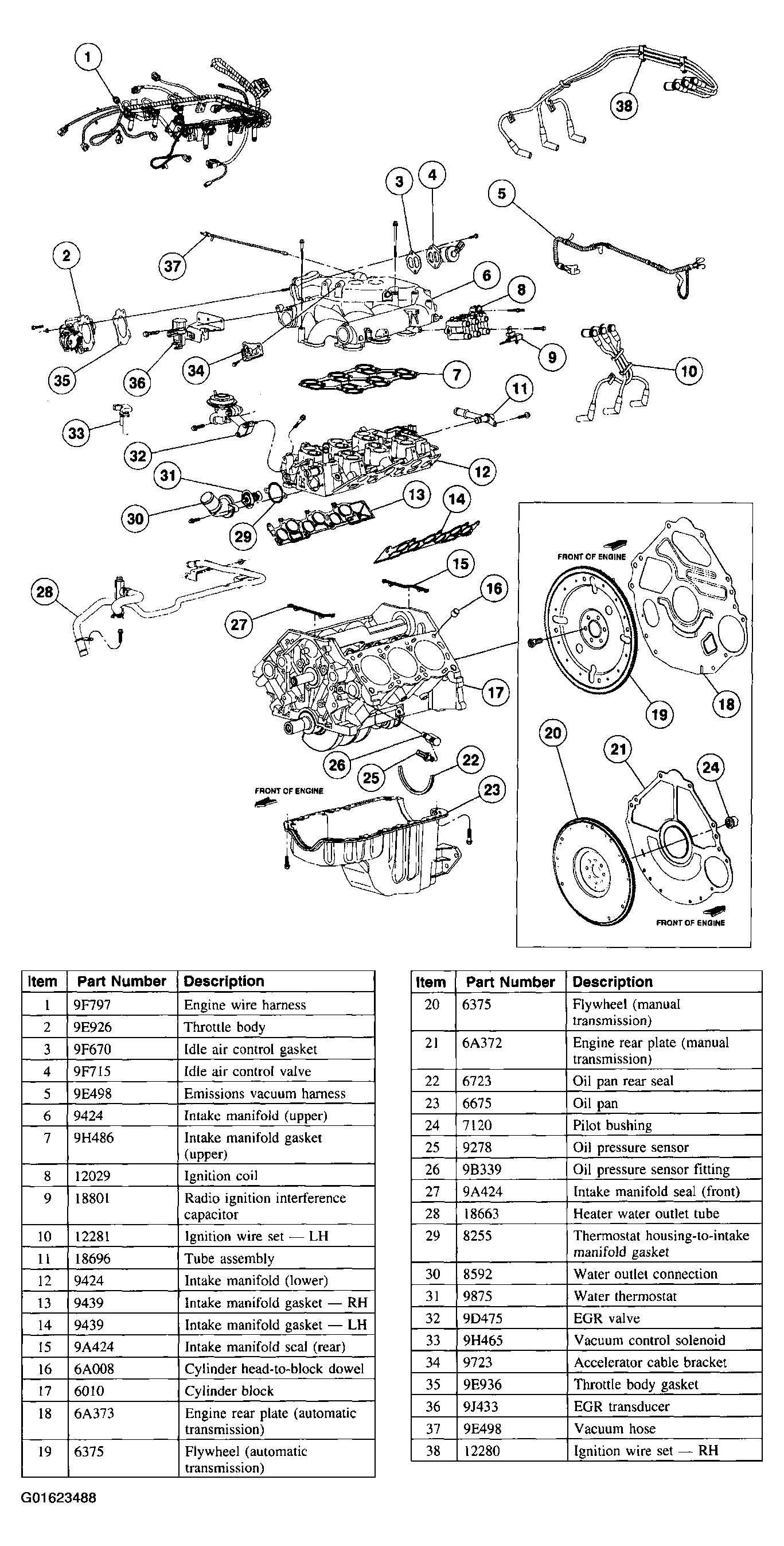

Fig 1: Identifying Engine Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
