Disassembly And Assembly Of Subassemblies: Piston: Assembly

Lubricate the piston pin and piston pin bore with clean engine oil.

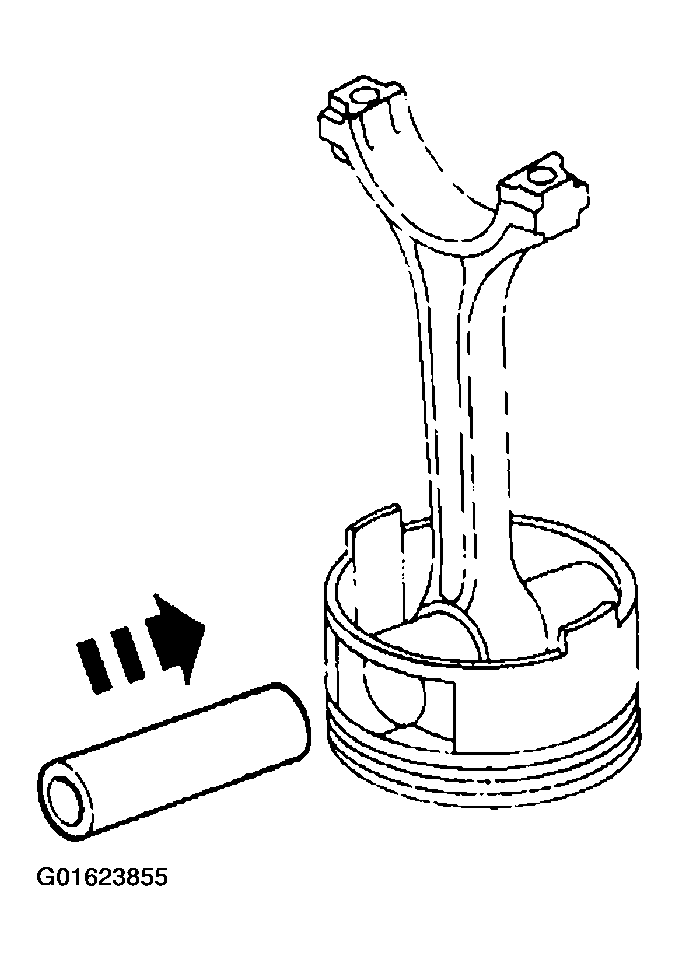

Fig 1: Lubricating Piston Pin And Piston Pin Bore With Clean Engine Oil
Courtesy of FORD MOTOR CO.

NOTE: The connecting rod can be installed in either direction

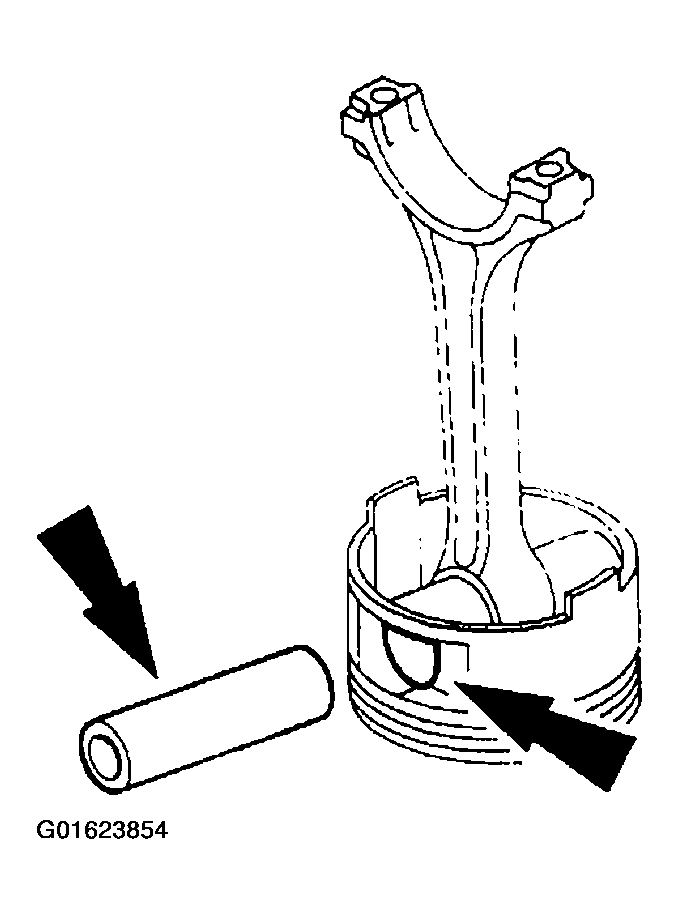

Fig 2: Positioning Piston Pin In Bore

Courtesy of FORD MOTOR CO.

Position the piston pin in the bore aligned with the connecting rod bore.
Using the special tool, press the piston pin into the piston and rod assembly.

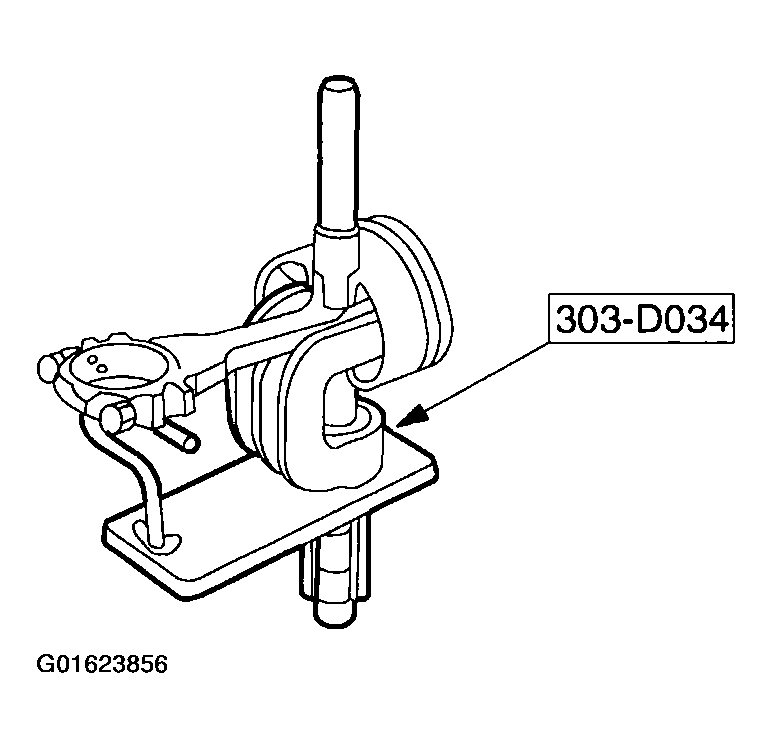

Fig 3: Pressing Piston Pin Into Piston And Rod Assembly
