Engine Support Insulators: Removal

Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the air cleaner outlet tube (9B659). For additional information, refer to REMOVAL & INSTALLATION .
Remove the radiator sight shield (8C291).

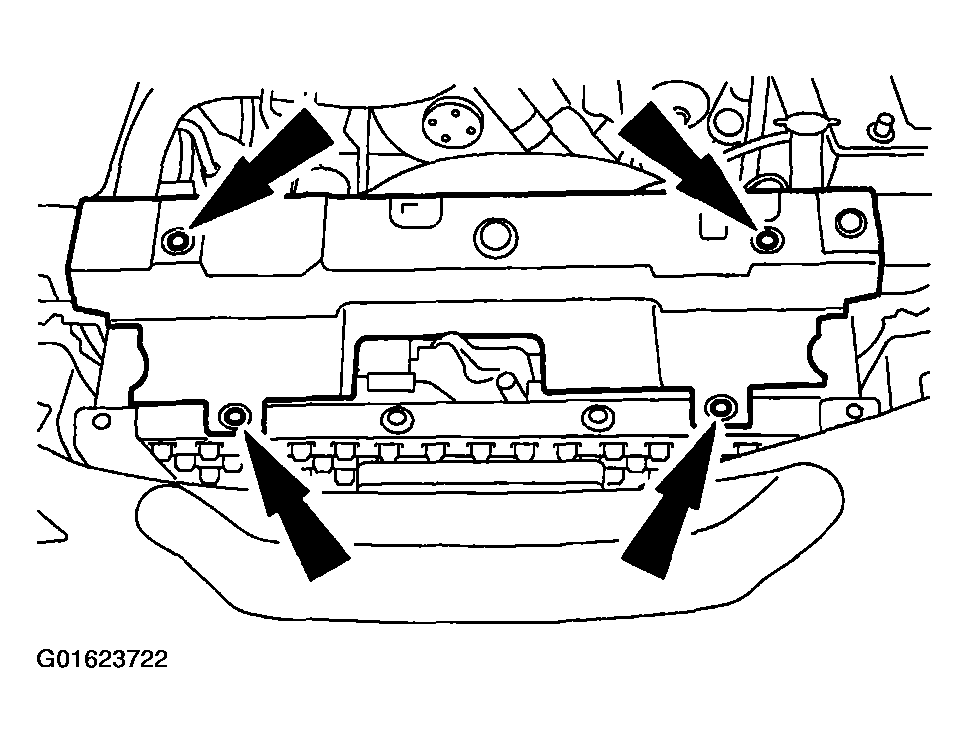

Fig 1: Removing Radiator Sight Shield
Courtesy of FORD MOTOR CO.
Remove the coolant recovery reservoir (8A080).
1. Disconnect the hose.
2. Remove the bolts.
3. Remove the coolant recovery reservoir.

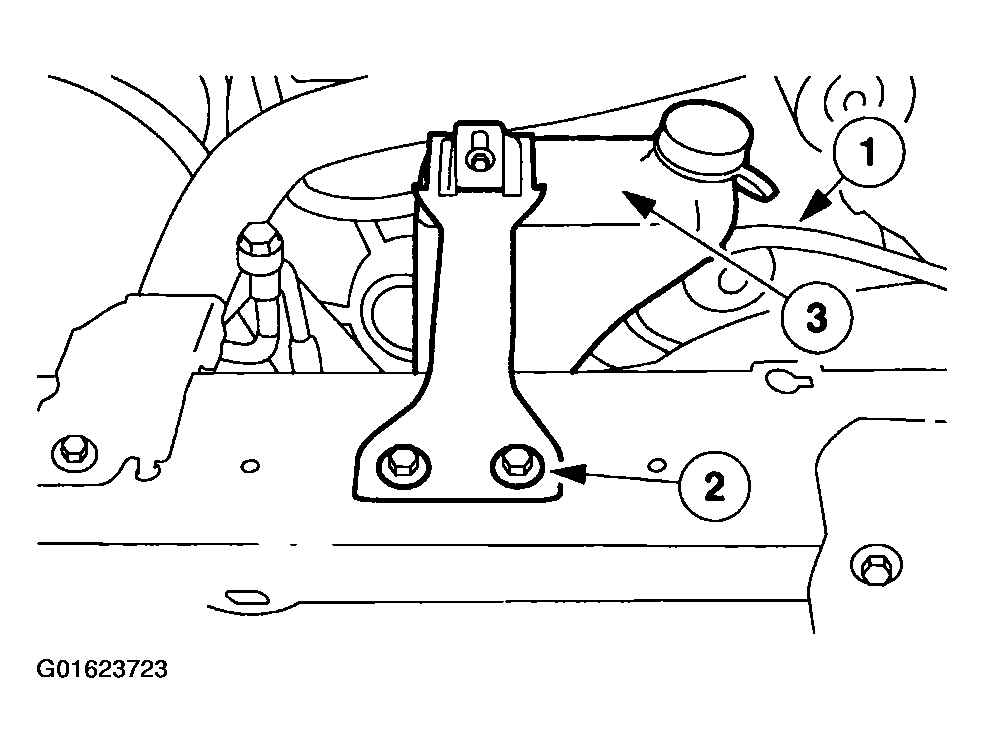

  Fig 2: Removing Coolant Recovery Reservoir
  Courtesy of FORD MOTOR CO.
Install the special tool.

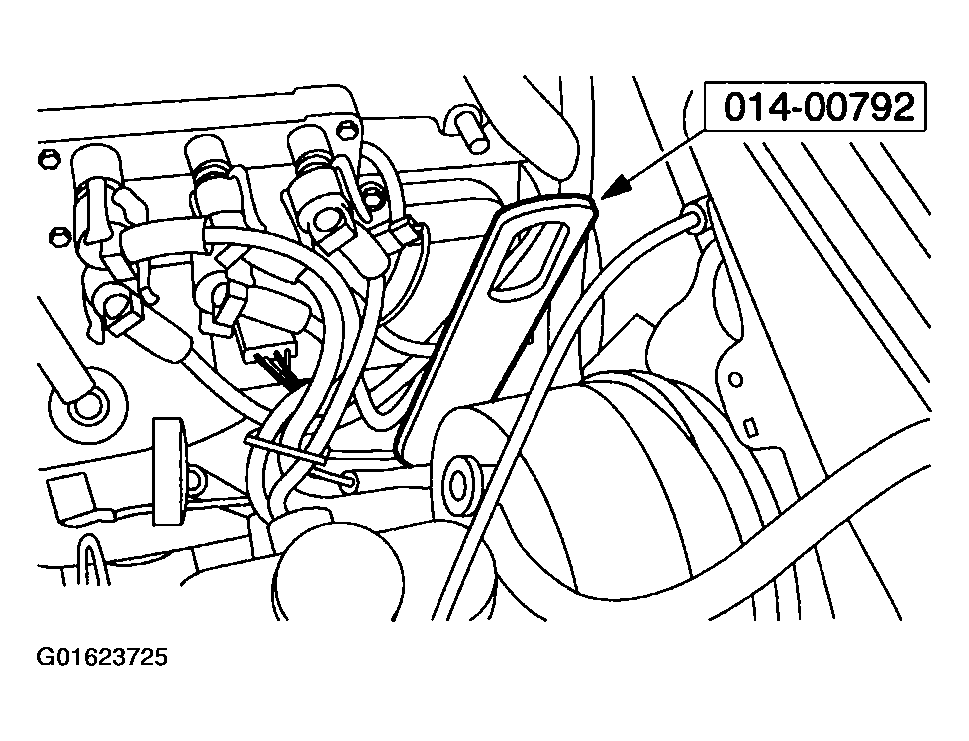

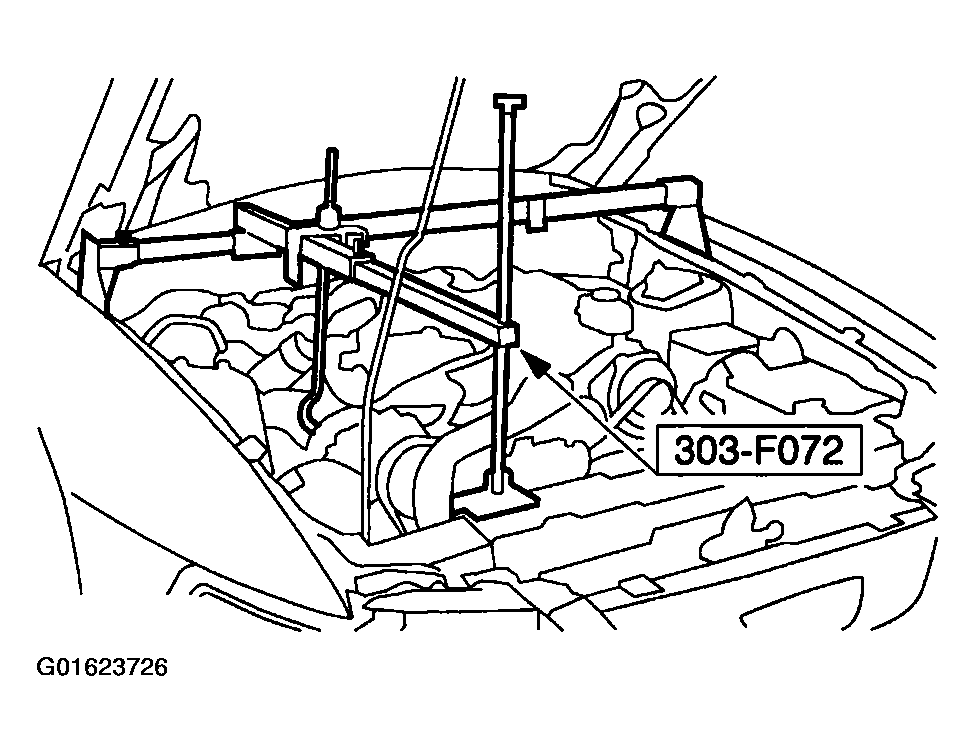

Fig 3: Installing Special Tool
Courtesy of FORD MOTOR CO.
Install the special tool.

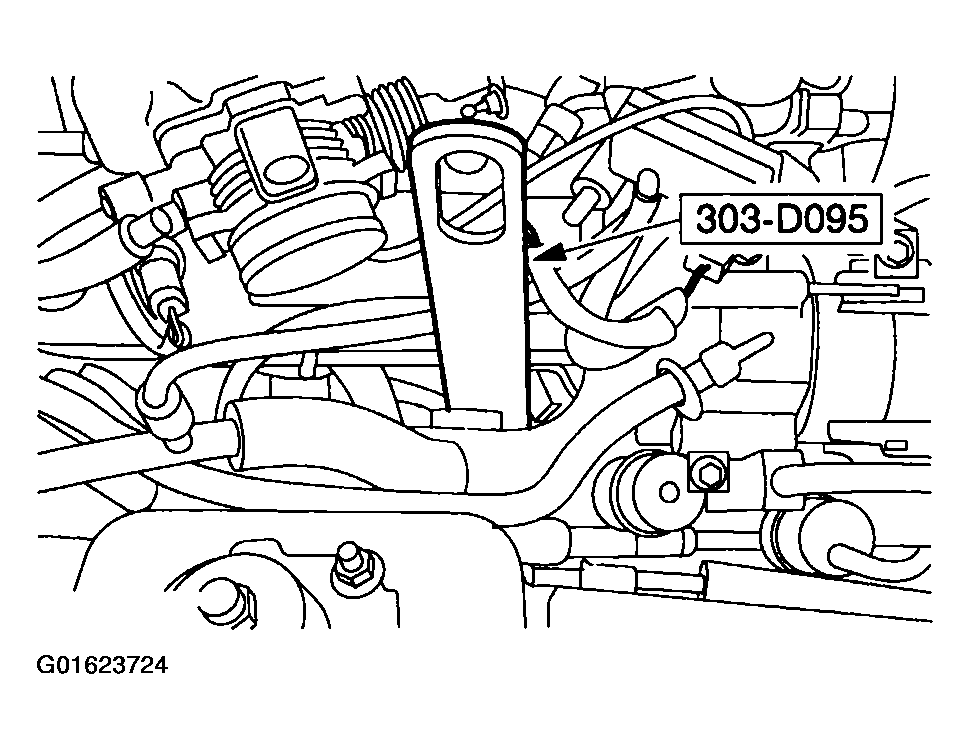

Fig 4: Installing Special Tool
Courtesy of FORD MOTOR CO.
Install the special tool.

Fig 5: Installing Special Tool
Courtesy of FORD MOTOR CO.
Raise the vehicle on a hoist.
Remove the LH engine mount nut.

Fig 6: Removing LH Engine Mount Nut
Courtesy of FORD MOTOR CO.
Remove the RH engine mount nut.

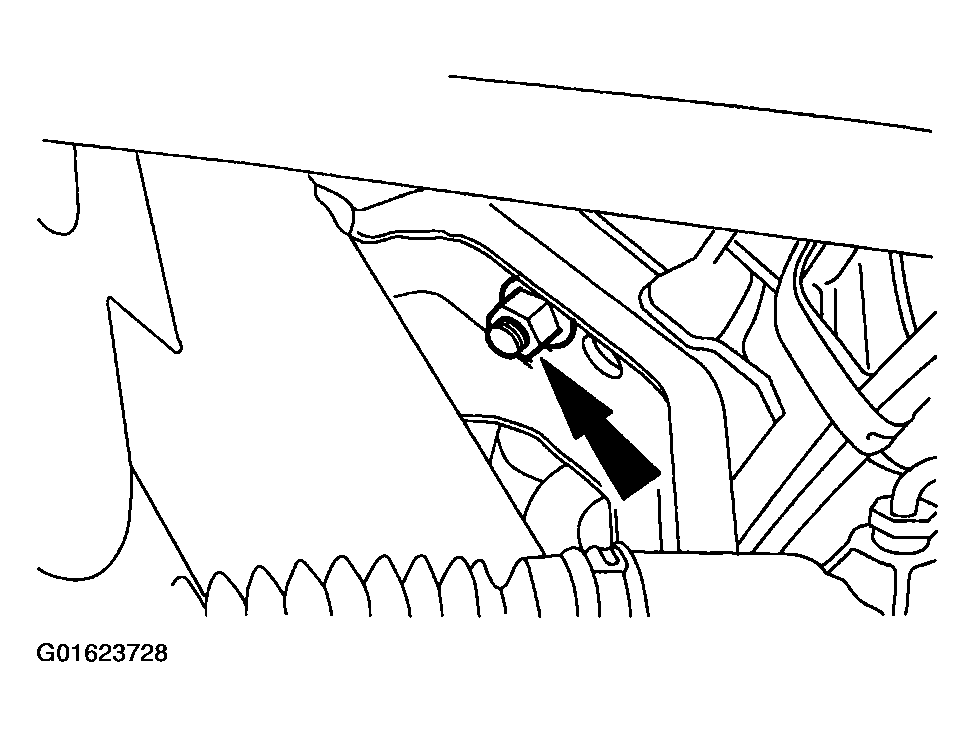

Fig 7: Removing RH Engine Mount Nut
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Raise the engine.

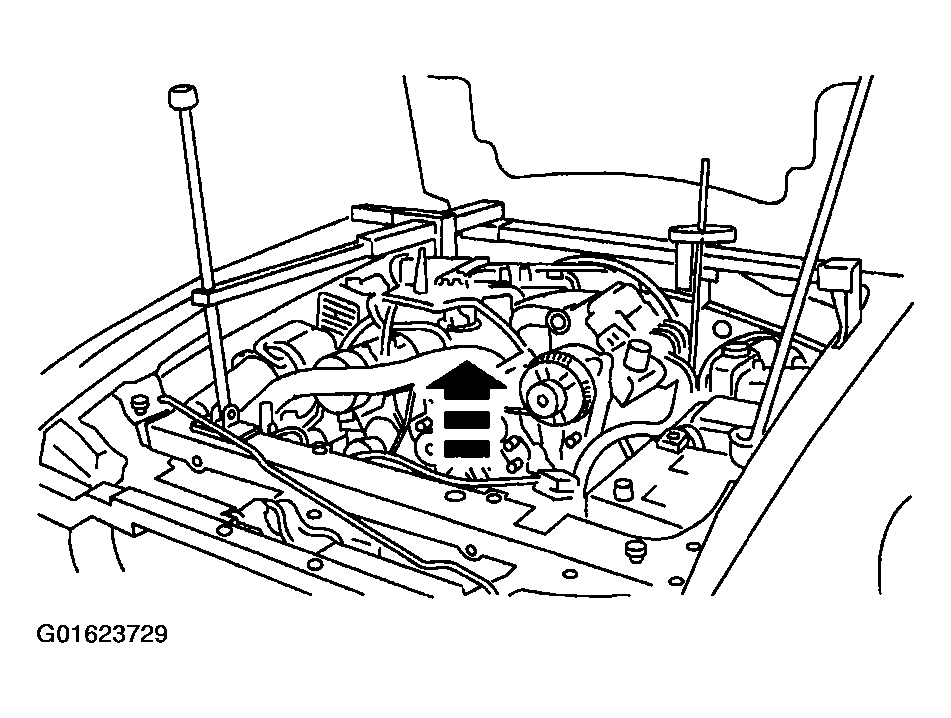

Fig 8: Raising Engine
Courtesy of FORD MOTOR CO.
Raise the vehicle on a hoist.
Position the bracket aside.
- Remove the nut.

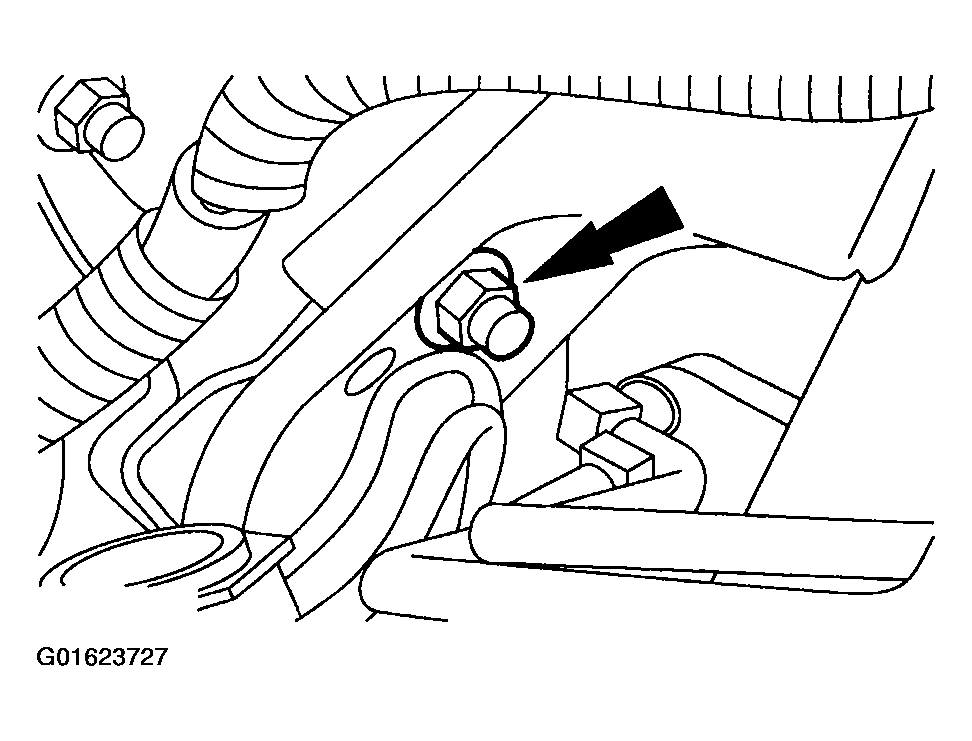

  Fig 9: Removing Bracket
  Courtesy of FORD MOTOR CO.
Disconnect the engine ground strap.
- Remove the nut.

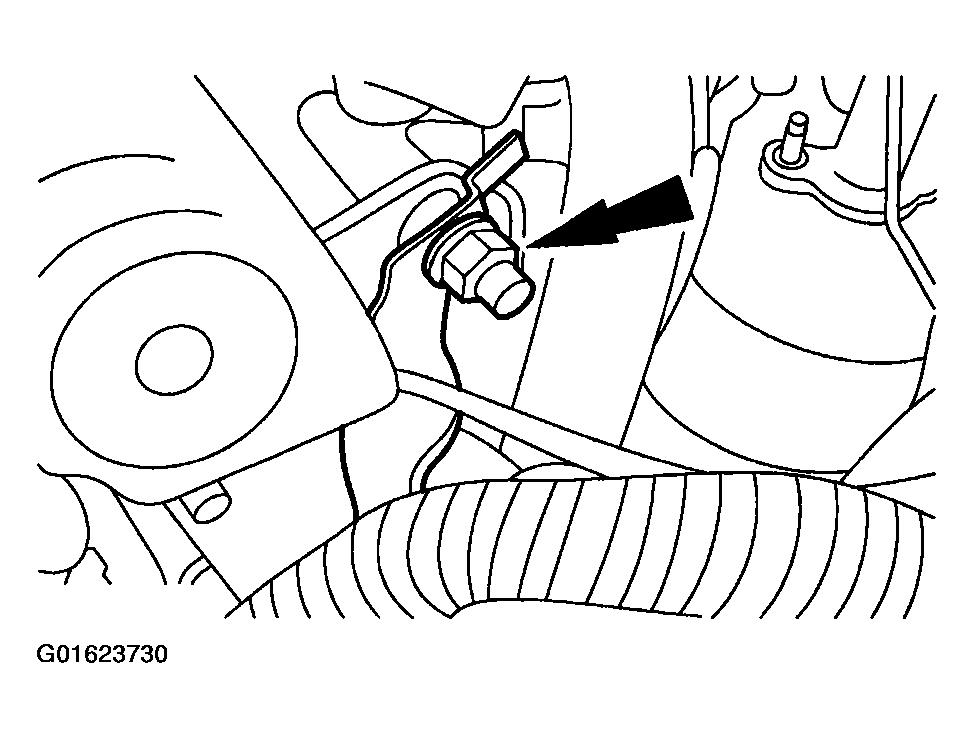

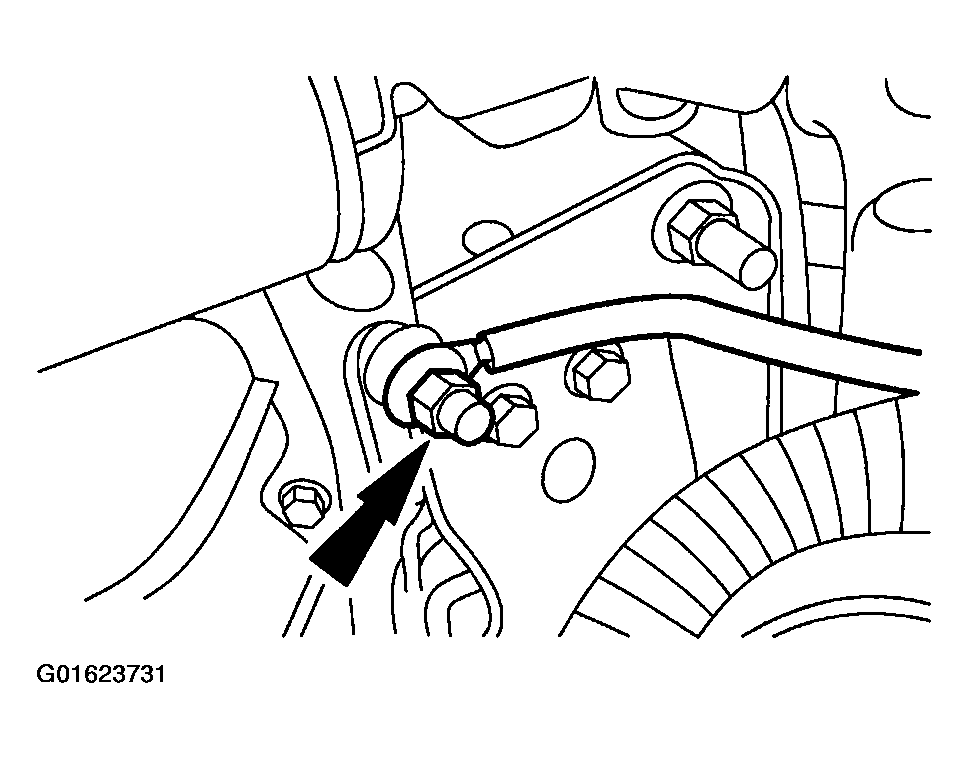

  Fig 10: Disconnecting Engine Ground Strap
  Courtesy of FORD MOTOR CO.
Remove the LH engine insulator (6038).
- Remove the bolts.

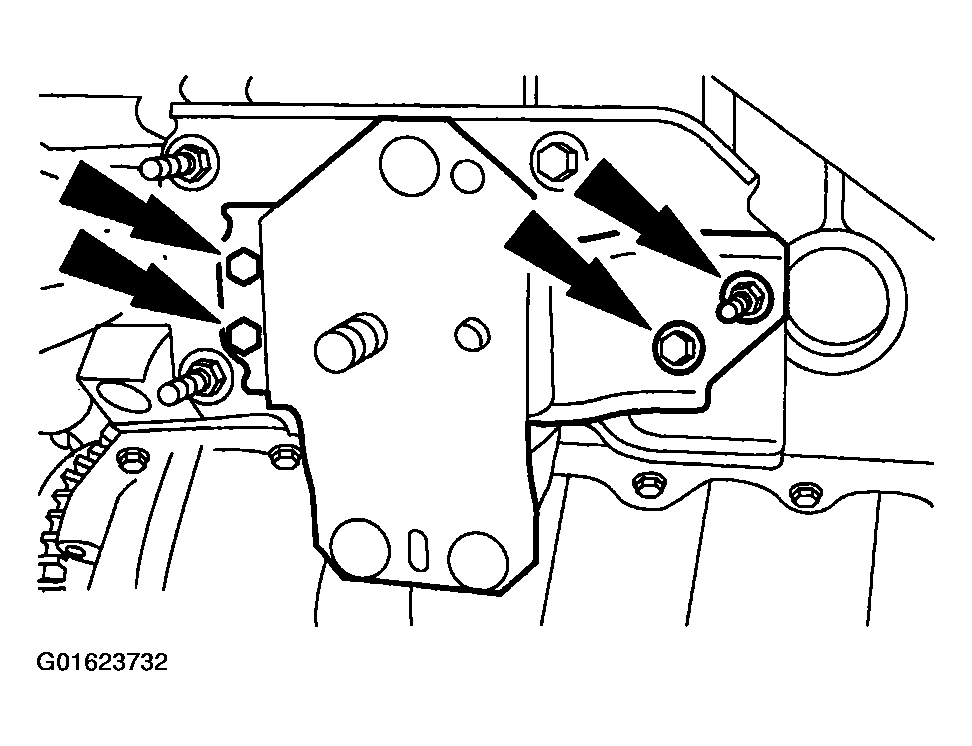

  Fig 11: Removing LH Engine Insulator
  Courtesy of FORD MOTOR CO.
Remove the RH engine insulator.
- Remove the bolts.
- Remove the nuts.

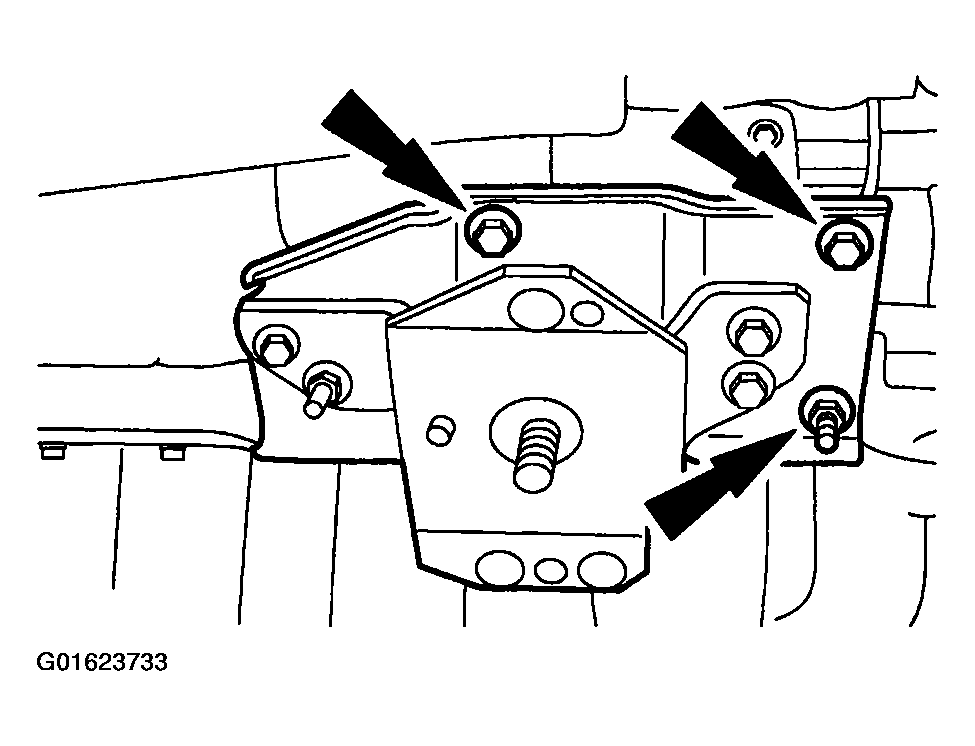

  Fig 12: Removing RH Engine Insulator
  Courtesy of FORD MOTOR CO.
