Push Rod: Removal

CAUTION: Mark the components removed for correct location.
  1. Remove the rocker arms (6564). For additional information, refer to ROCKER ARM .
  2. Remove the push rods (6565).

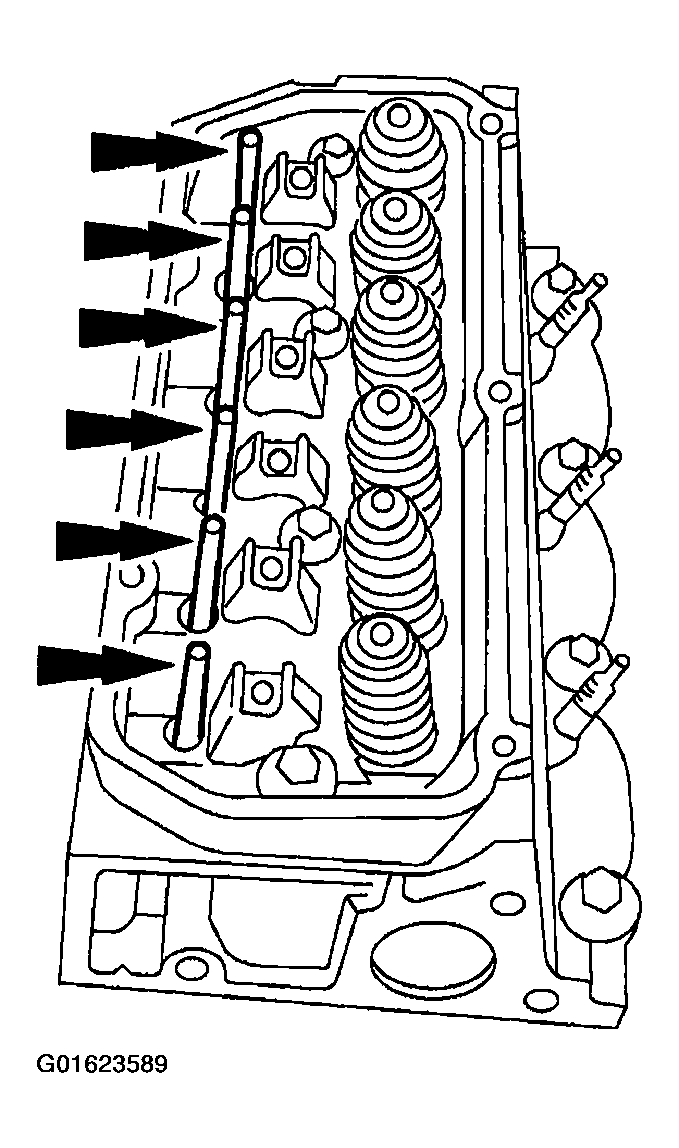

    Fig 1: Removing Push Rods
    G01623589Courtesy of FORD MOTOR CO.
  3. Inspect the components. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
