Vehicle Certification (VC) Label Example

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

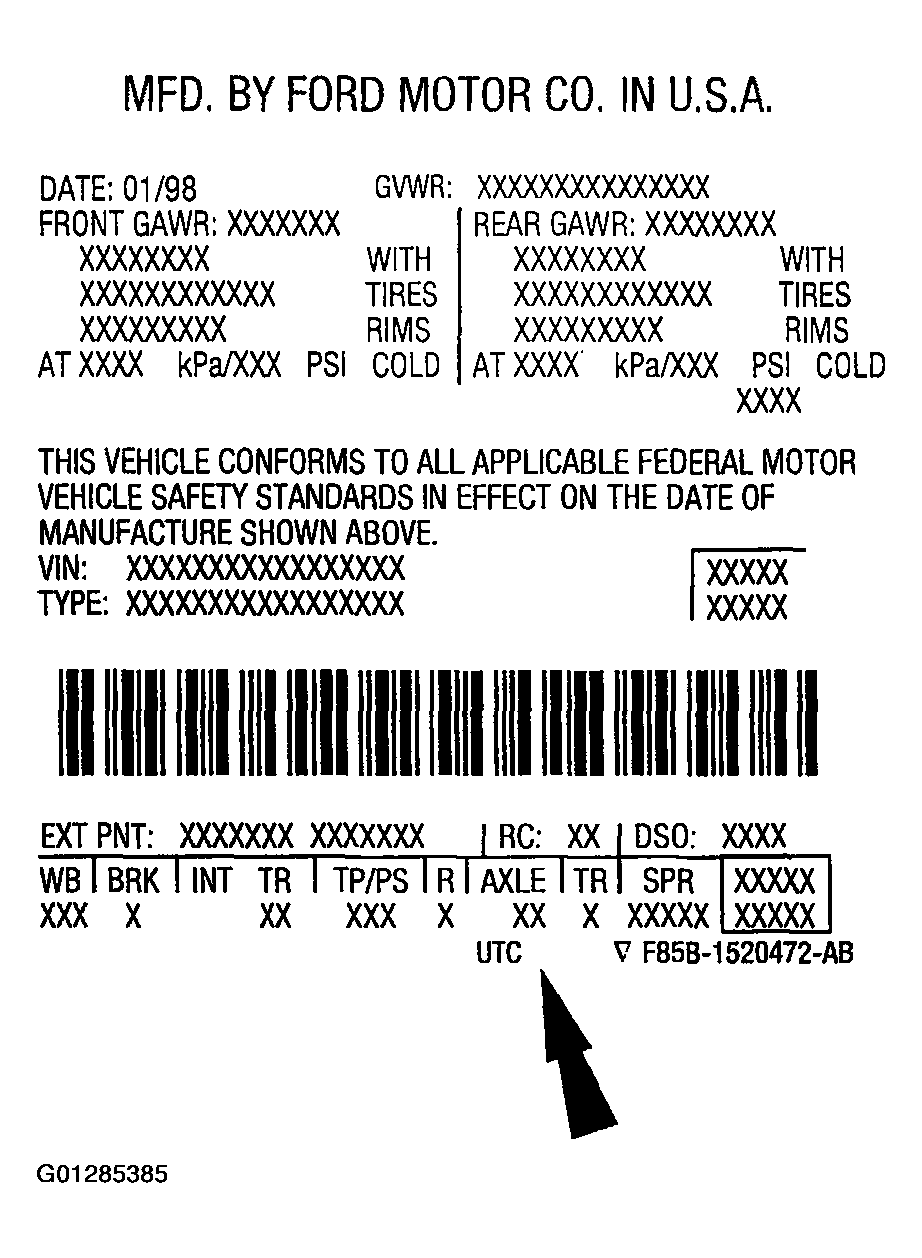

Fig 1: Vehicle Certification (VC) Label Example
G01285385Courtesy of FORD MOTOR CO.

The vehicle certification (VC) label is located in the driver door jamb. The first two digits of the axle code indicate the axle and ratio.

A metal axle identification tag is attached to the differential by a housing cover bolt.

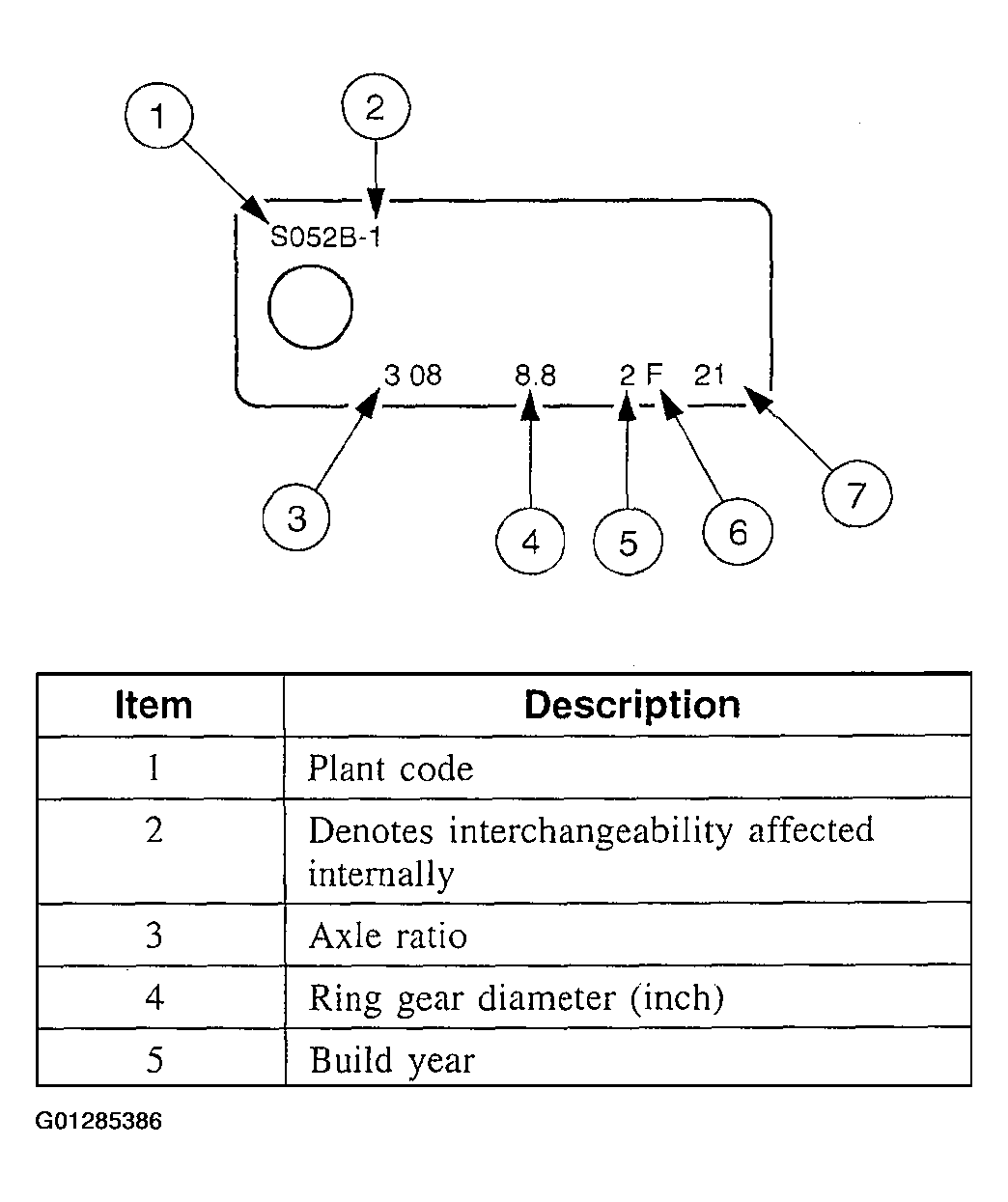

Fig 2: Identifying Metal Axle Identification Tag
G01285386Courtesy of FORD MOTOR CO.
