Differential Snap Ring Size Chart-13277-

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

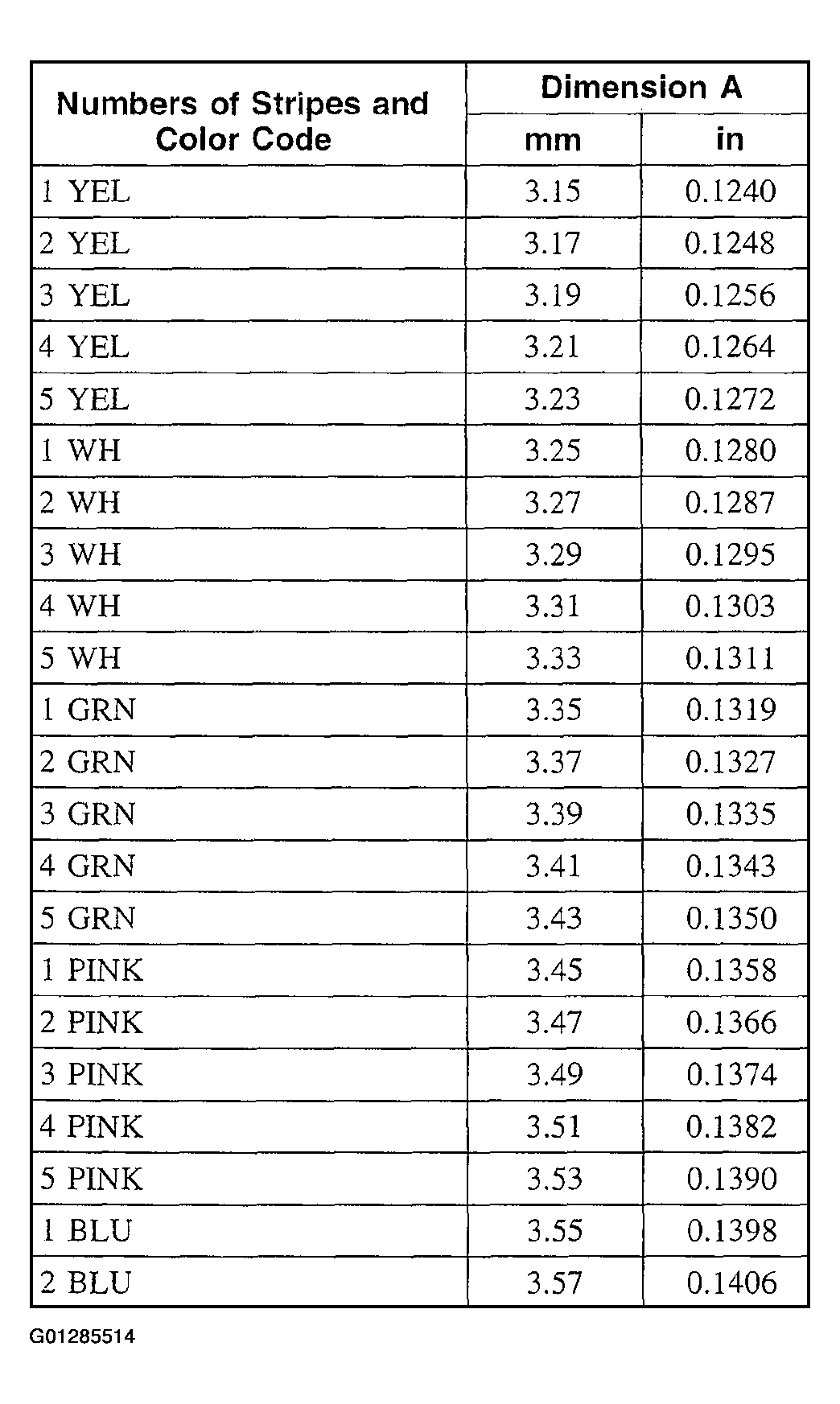

Fig 1: Differential Snap Ring Size Chart-13277 (1 Of 2)
G01285514Courtesy of FORD MOTOR CO.

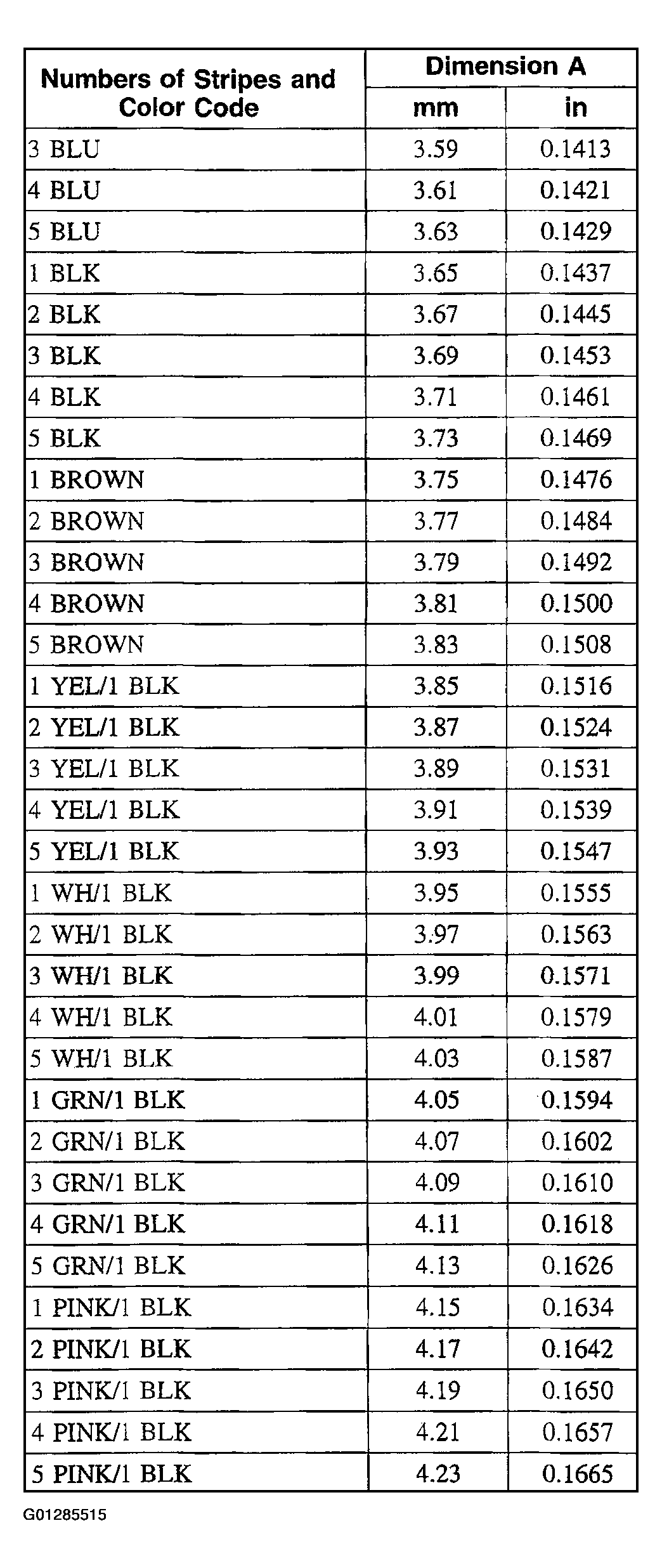

Fig 2: Differential Snap Ring Size Chart-13277 (2 Of 2)
G01285515Courtesy of FORD MOTOR CO.
