Item 33: Axle Isolator Bushing Disassembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, remove the rear axle isolator bushing.

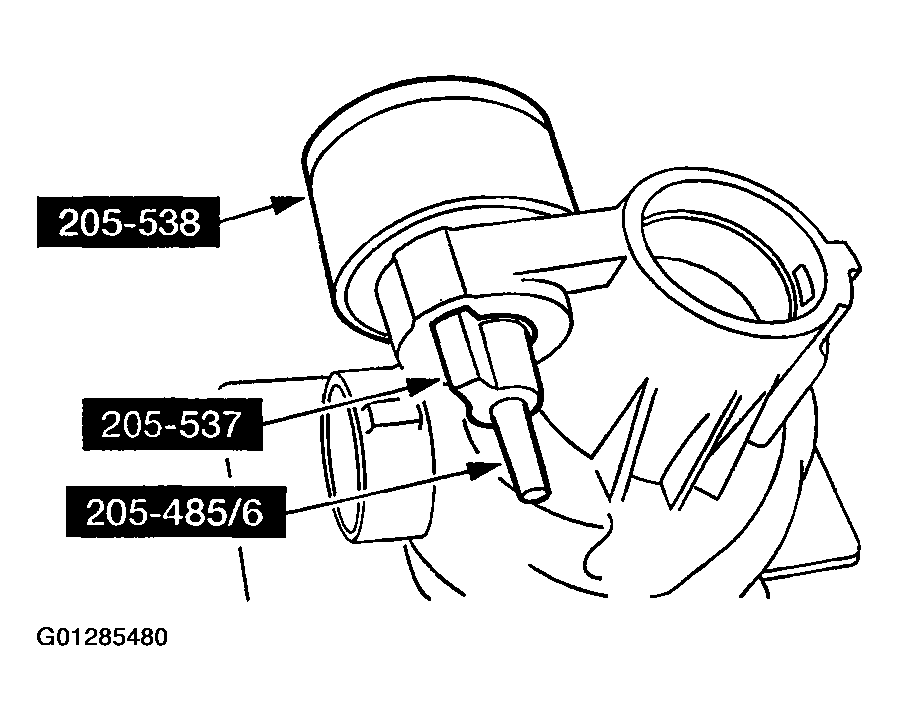

Fig 1: Removing Rear Axle Isolator Bushing
G01285480Courtesy of FORD MOTOR CO.
