Antenna Isolator Module C4194

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Antenna Isolator Module C4194 Connector Pinouts
G02238694Courtesy of FORD MOTOR CO.

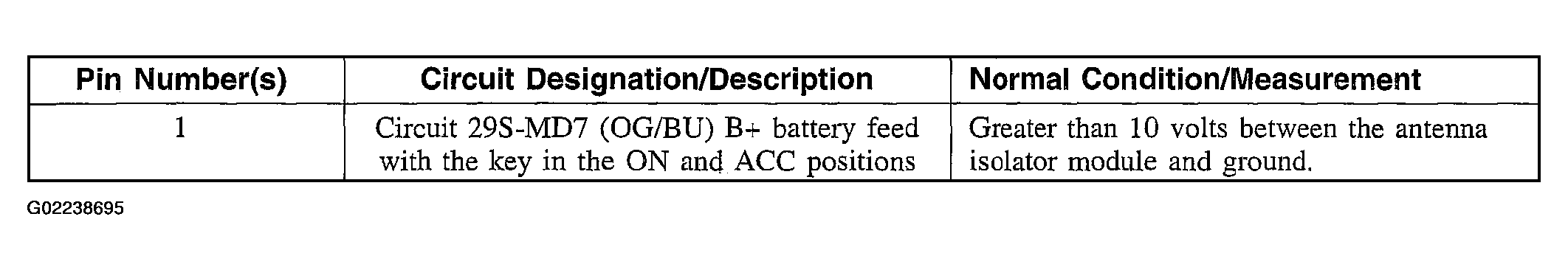

Fig 2: Antenna Isolator Module C4194 Connector Pins Reference Chart
G02238695Courtesy of FORD MOTOR CO.
