Pinpoint Test L: Poor Vehicle Tracking During Anti-Lock Function

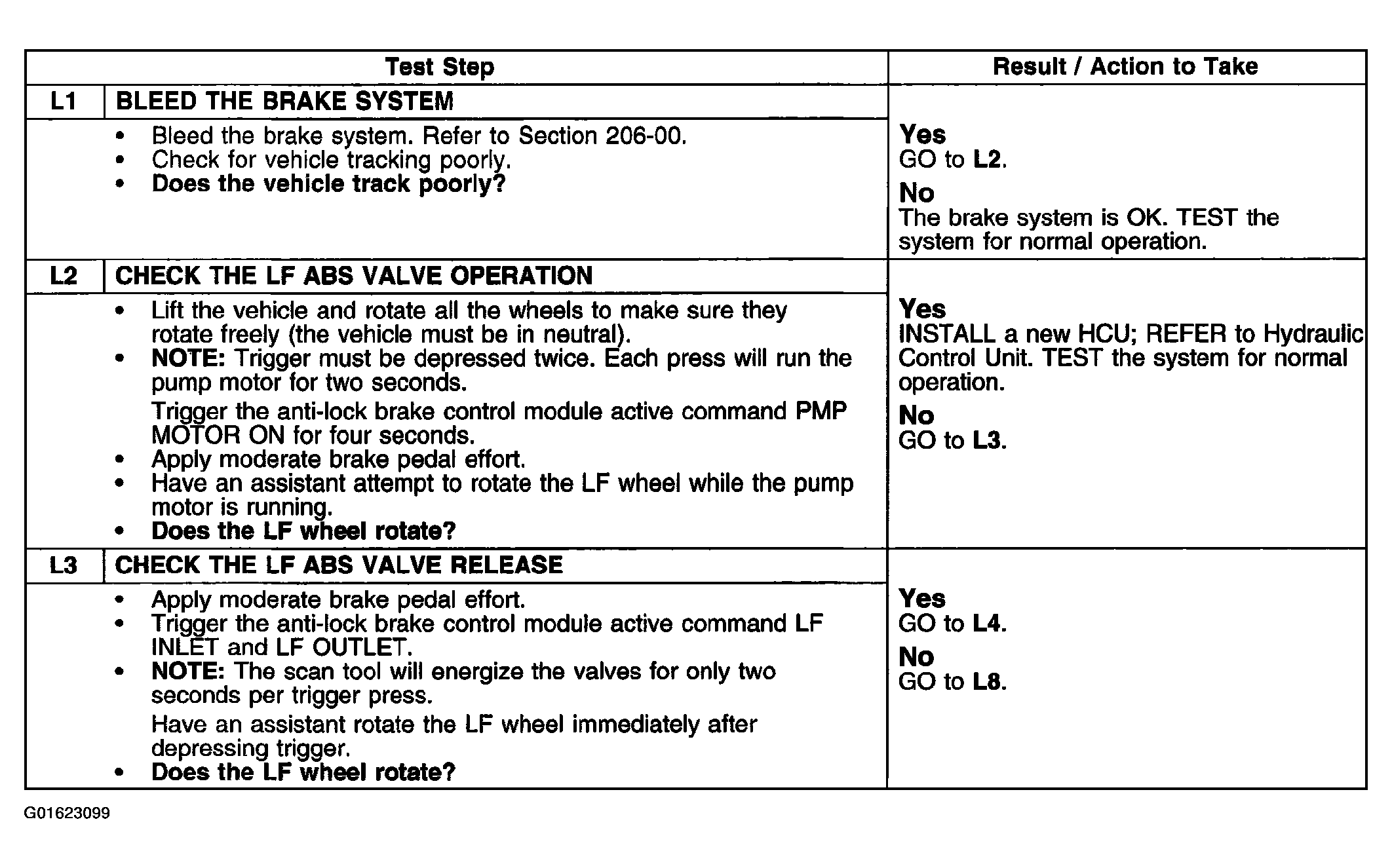

Fig 1: Pinpoint Test L: Poor Vehicle Tracking During Anti-Lock Function (L1-L3)

Courtesy of FORD MOTOR CO.

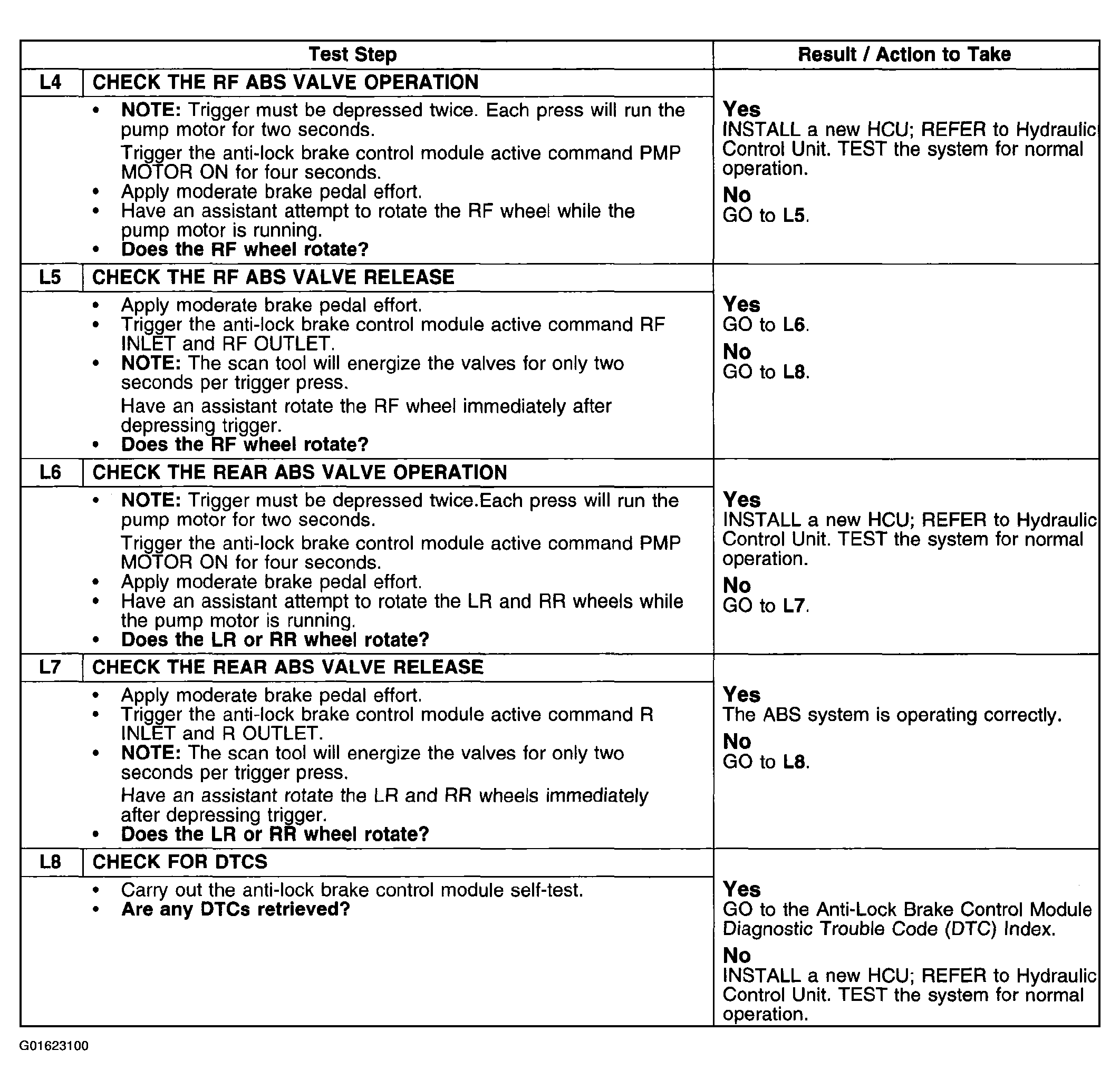

Fig 2: Pinpoint Test L: Poor Vehicle Tracking During Anti-Lock Function (L4-L8)

Courtesy of FORD MOTOR CO.
