Pcm Connector End View & Pcm Connector Circuit Functions (BLACKWOOD)

BLACKWOOD PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Blackwood	Fig 1	Fig 2-Fig 4

Fig 1: Identifying PCM Connector Terminals (Blackwood)

Courtesy of FORD MOTOR CO.

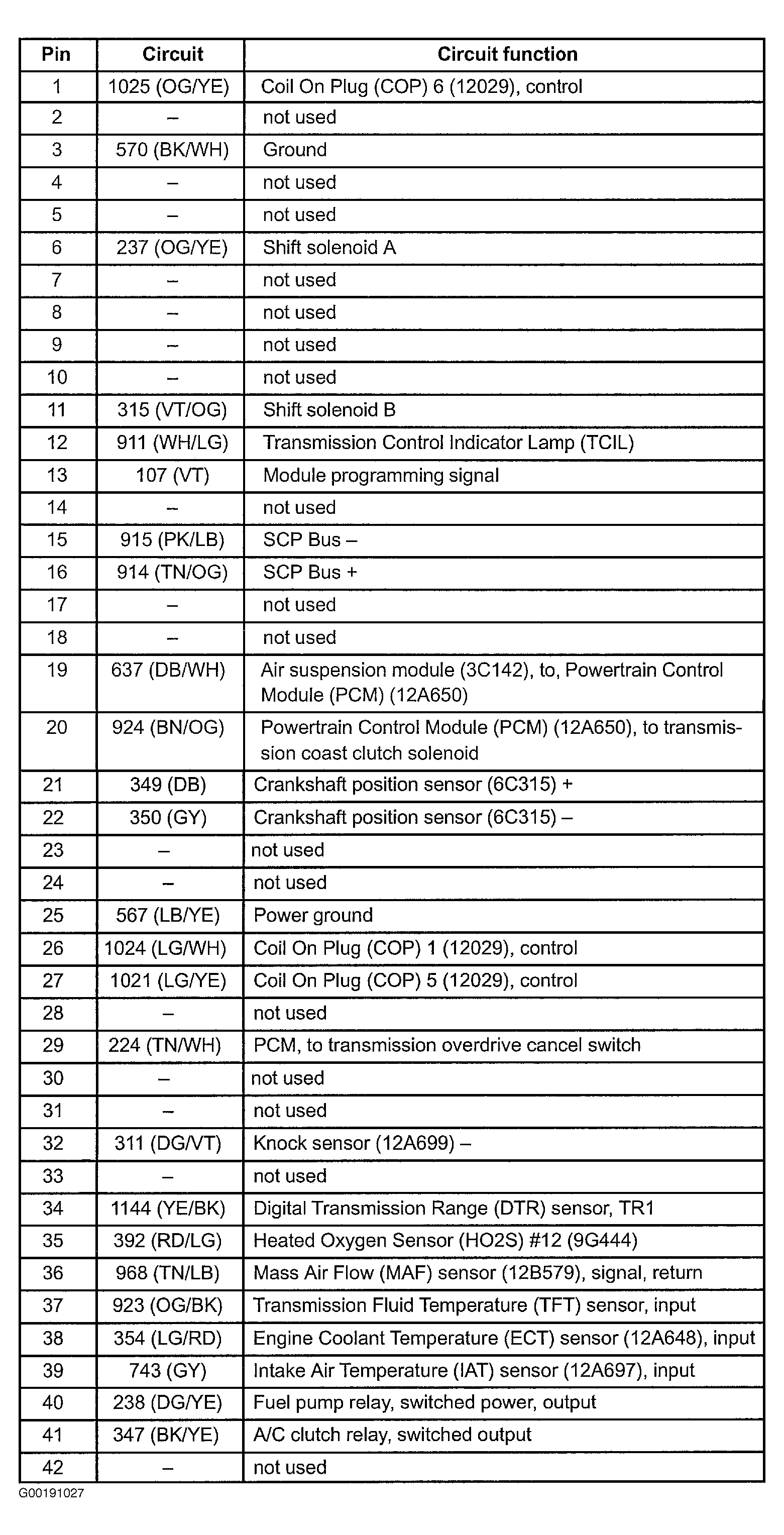

Fig 2: Identifying PCM Connector Circuit Functions (1 Of 3 - Blackwood)

Courtesy of FORD MOTOR CO.

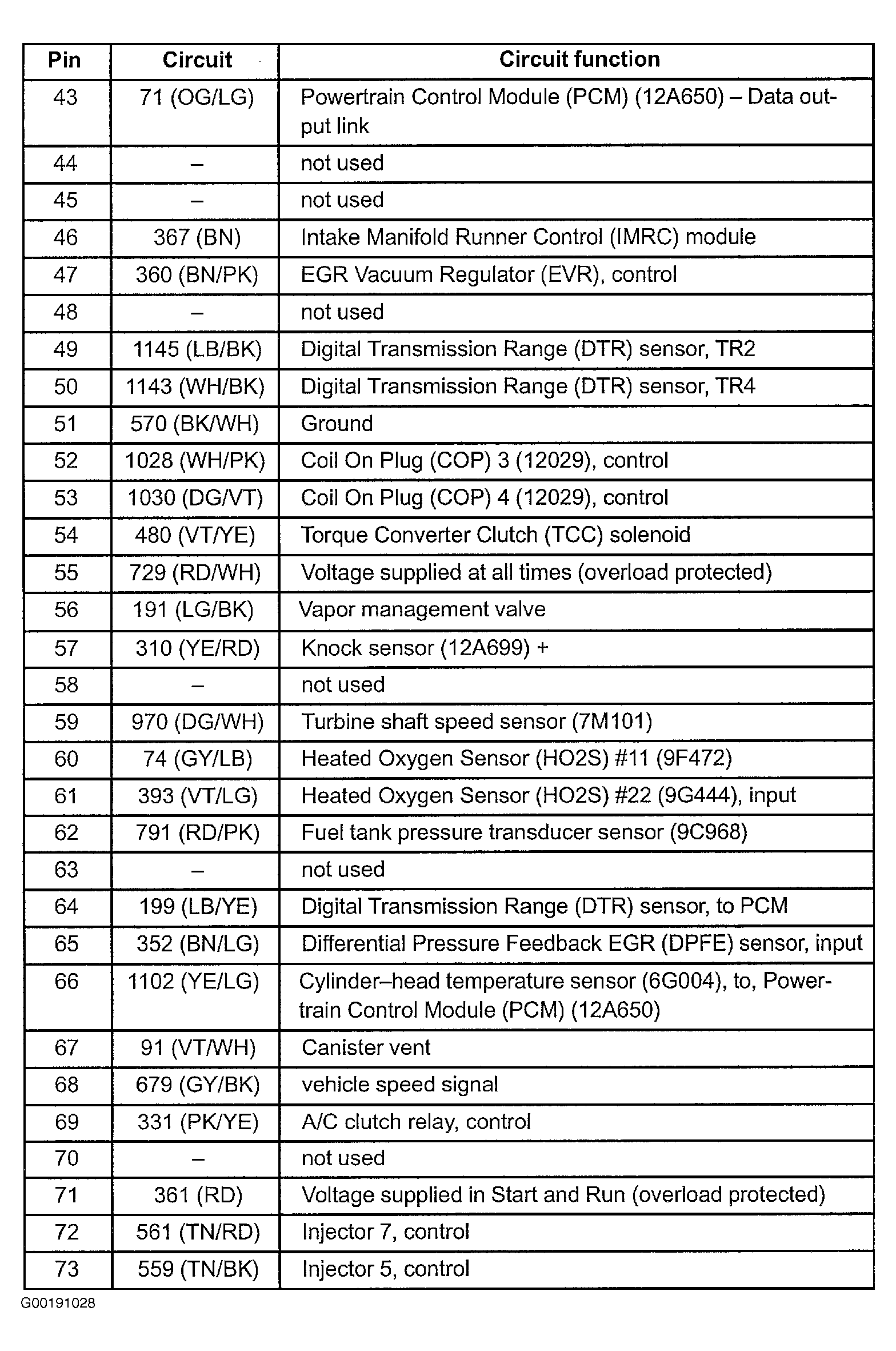

Fig 3: Identifying PCM Connector Circuit Functions (2 Of 3 - Blackwood)

Courtesy of FORD MOTOR CO.

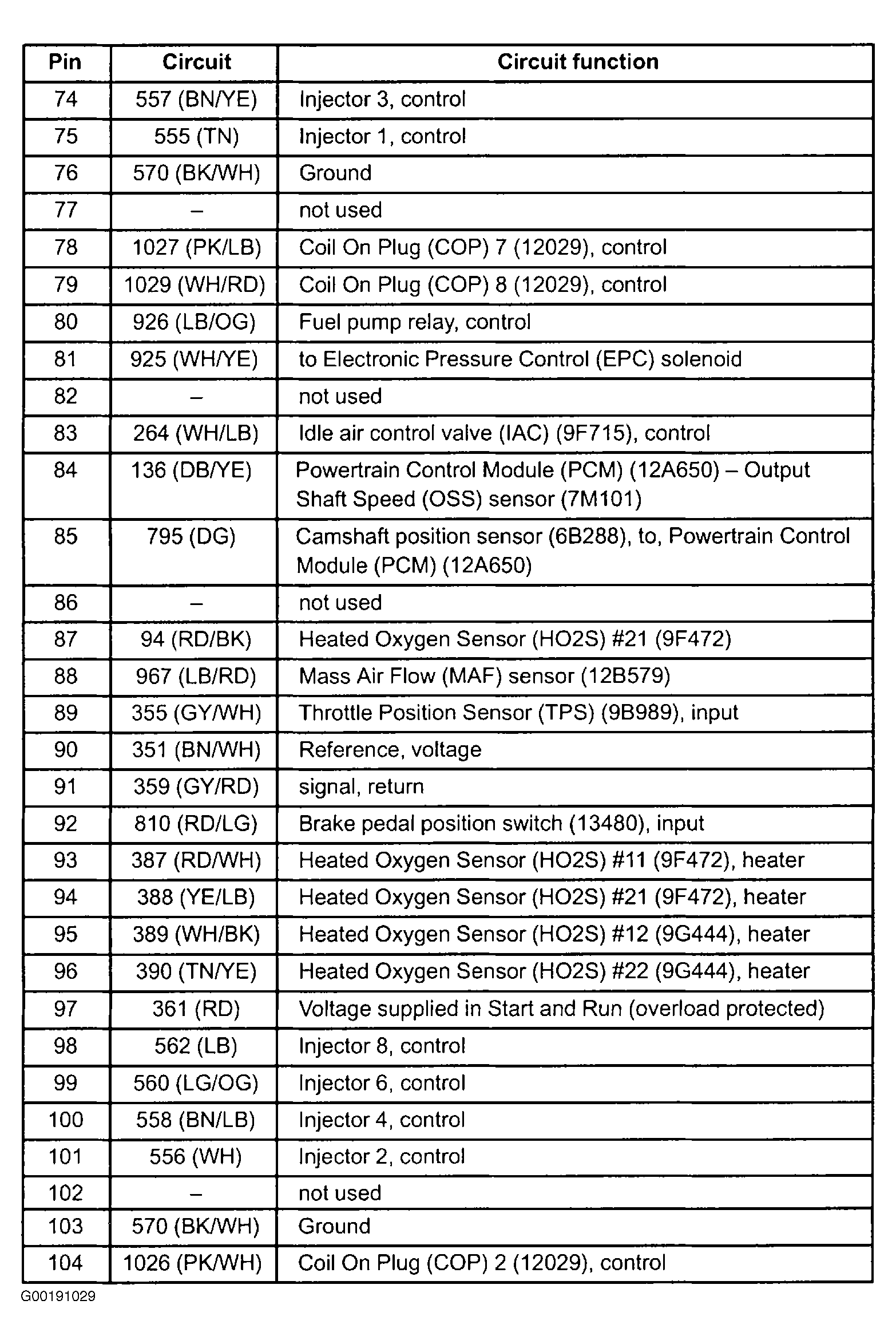

Fig 4: Identifying PCM Connector Circuit Functions (3 Of 3 - Blackwood)

Courtesy of FORD MOTOR CO.
