Pcm Connector End View & Pcm Connector Circuit Functions (E-Series)

E-SERIES PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
"E" Series	Fig 1	Fig 2-Fig 7

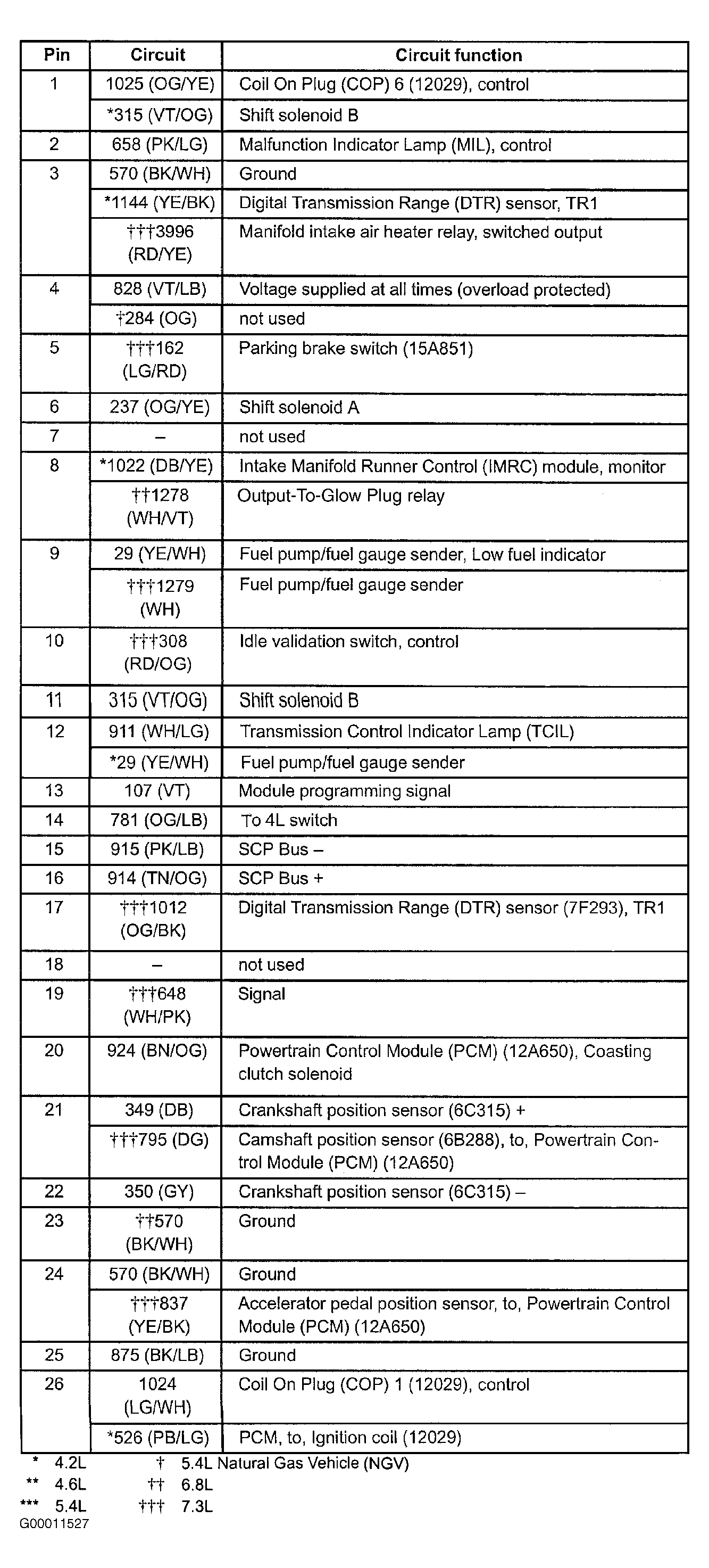

Fig 1: Identifying PCM Connector Terminals ("E" Series)

Courtesy of FORD MOTOR CO.

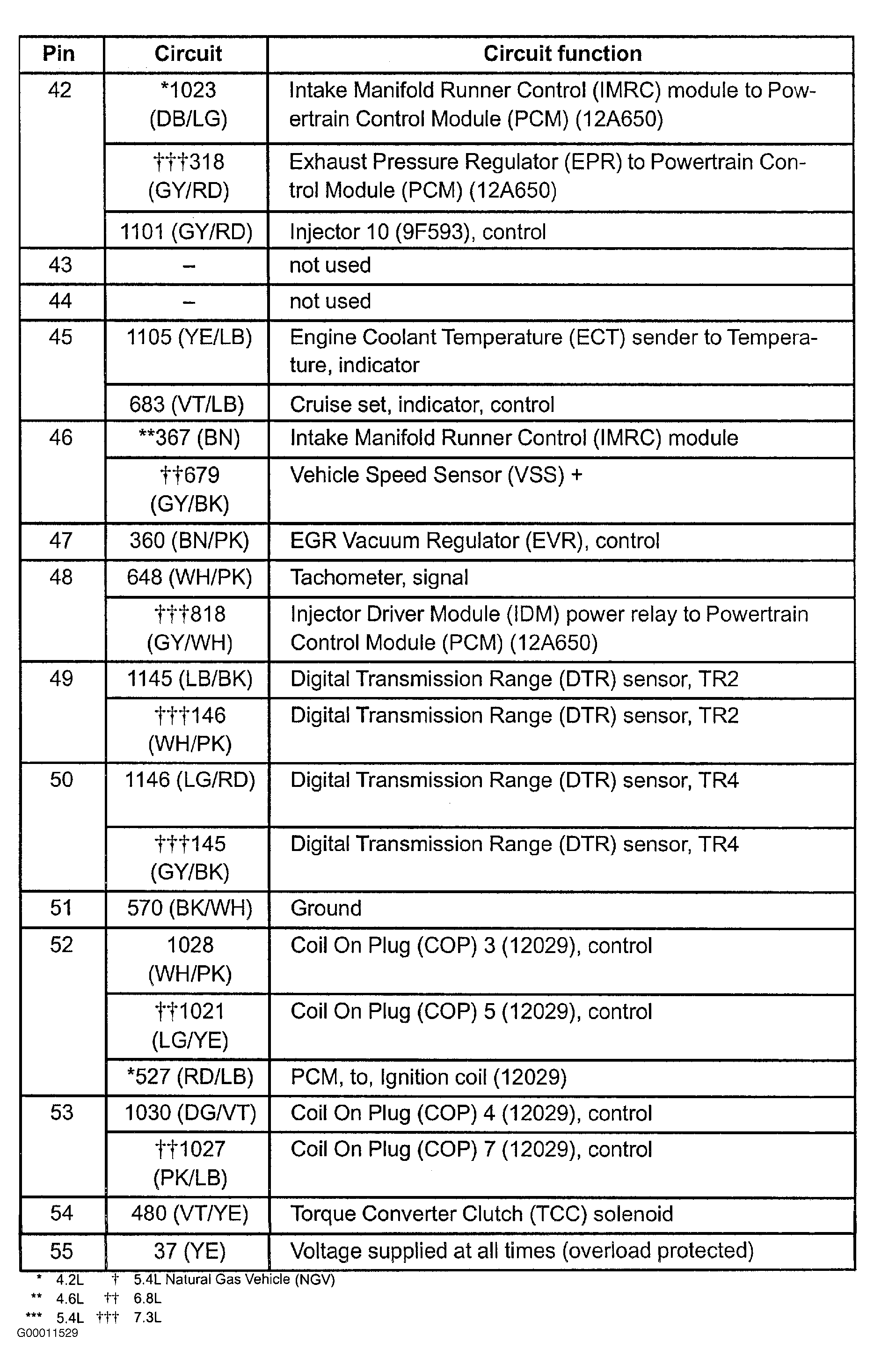

Fig 2: Identifying PCM Connector Circuit Functions (1 Of 6 - "E" Series)

Courtesy of FORD MOTOR CO.

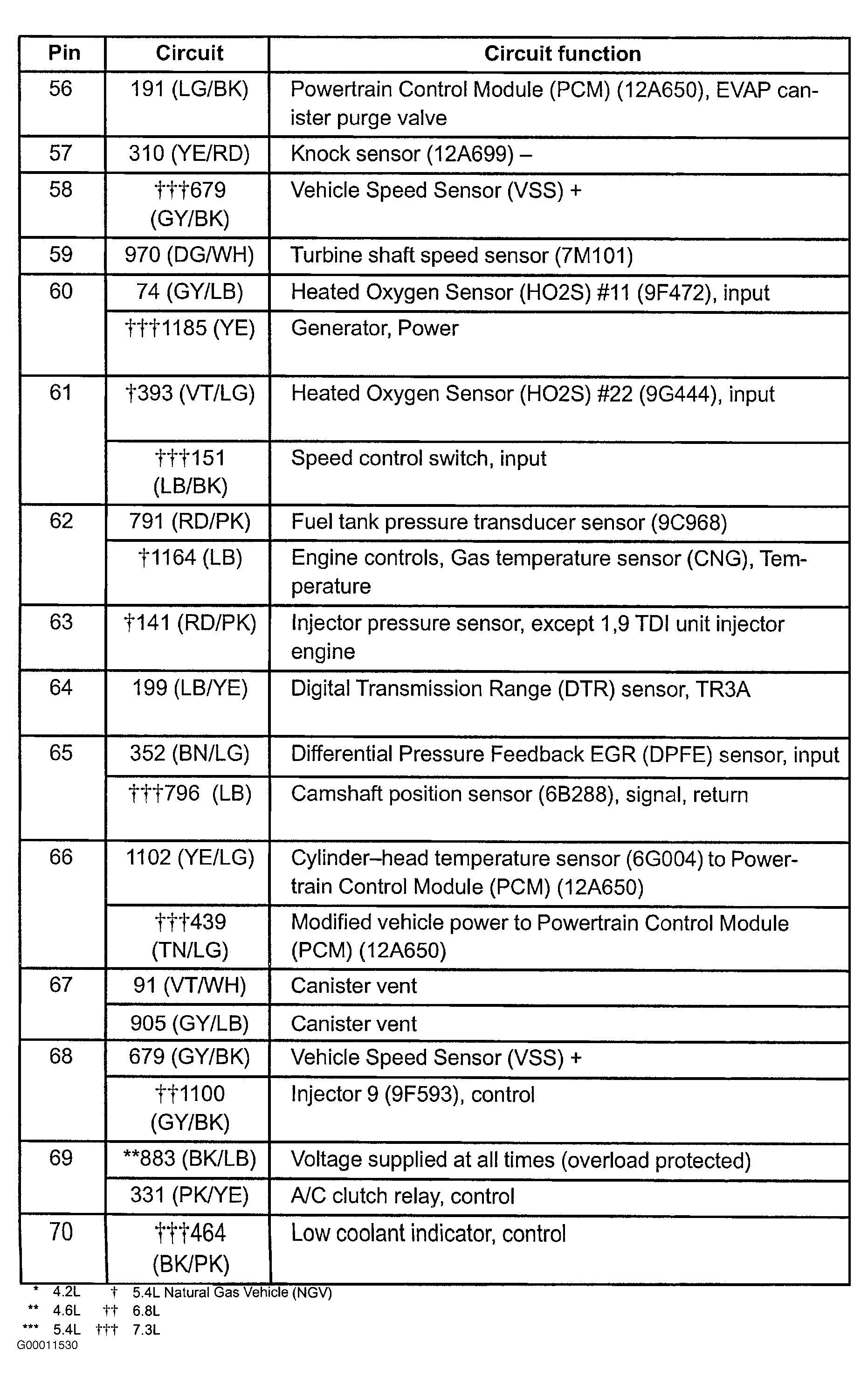

Fig 3: Identifying PCM Connector Circuit Functions (2 Of 6 - "E" Series)

Courtesy of FORD MOTOR CO.

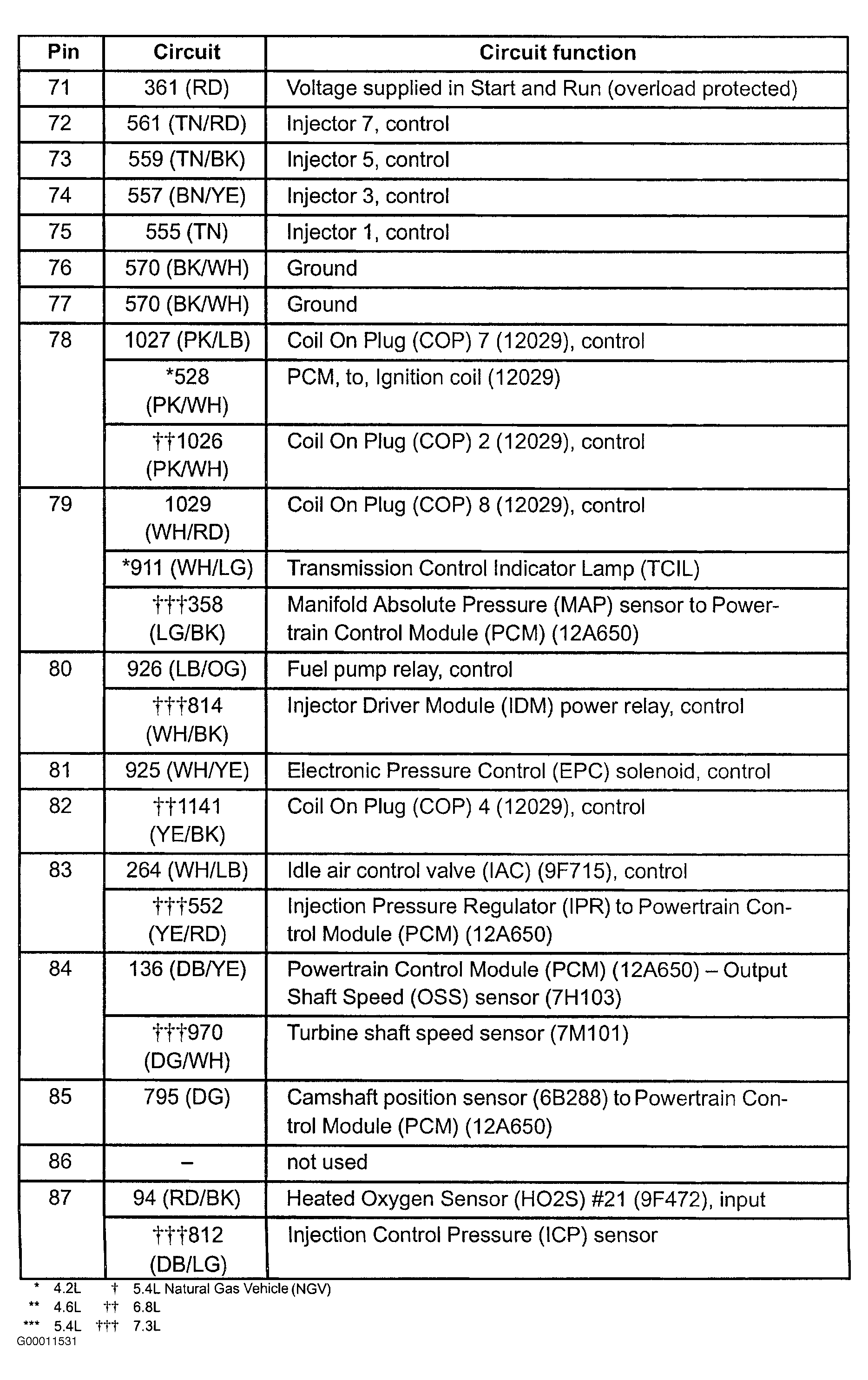

Fig 4: Identifying PCM Connector Circuit Functions (3 Of 6 - "E" Series)

Courtesy of FORD MOTOR CO.

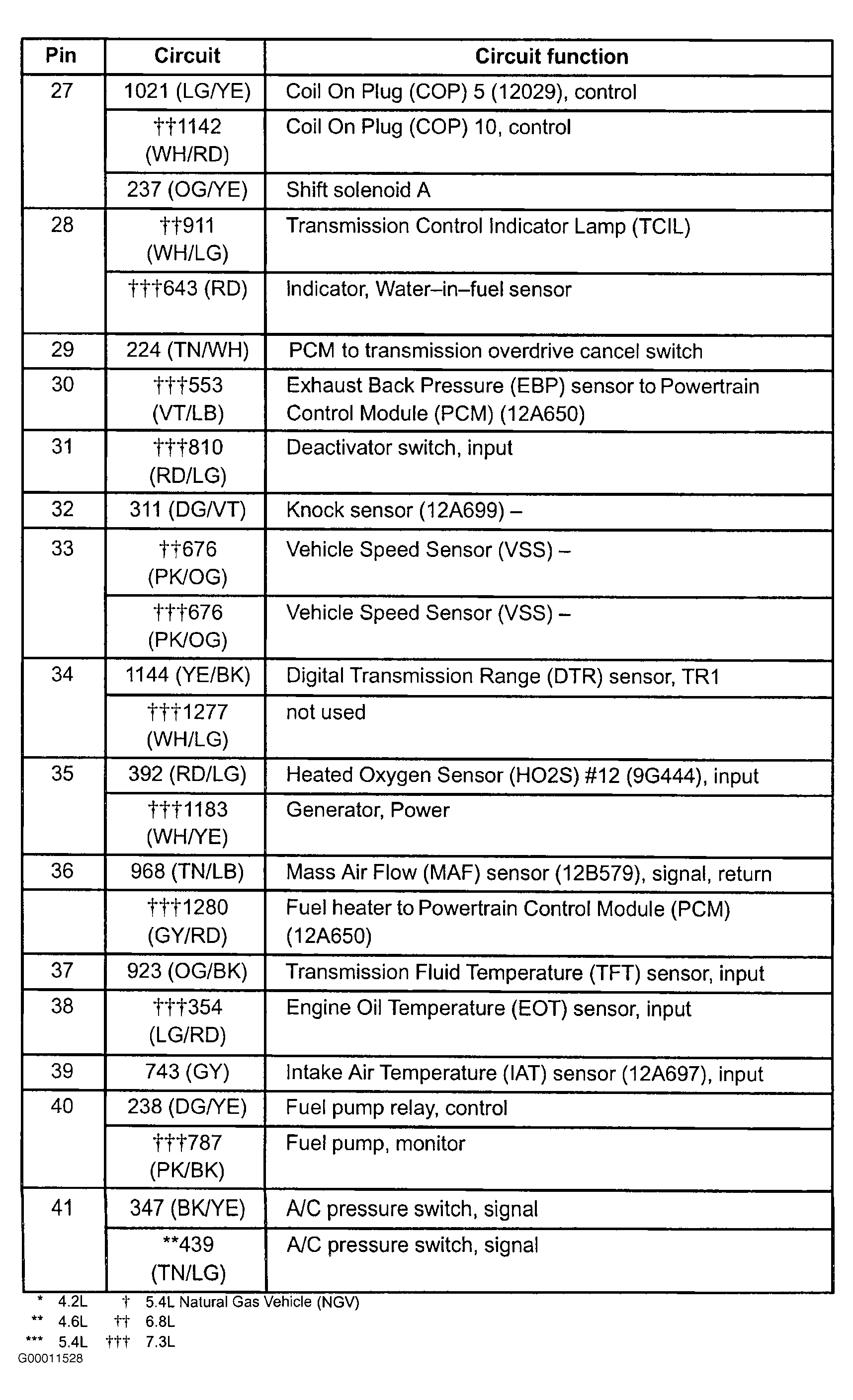

Fig 5: Identifying PCM Connector Circuit Functions (4 Of 6 - "E" Series)

Courtesy of FORD MOTOR CO.

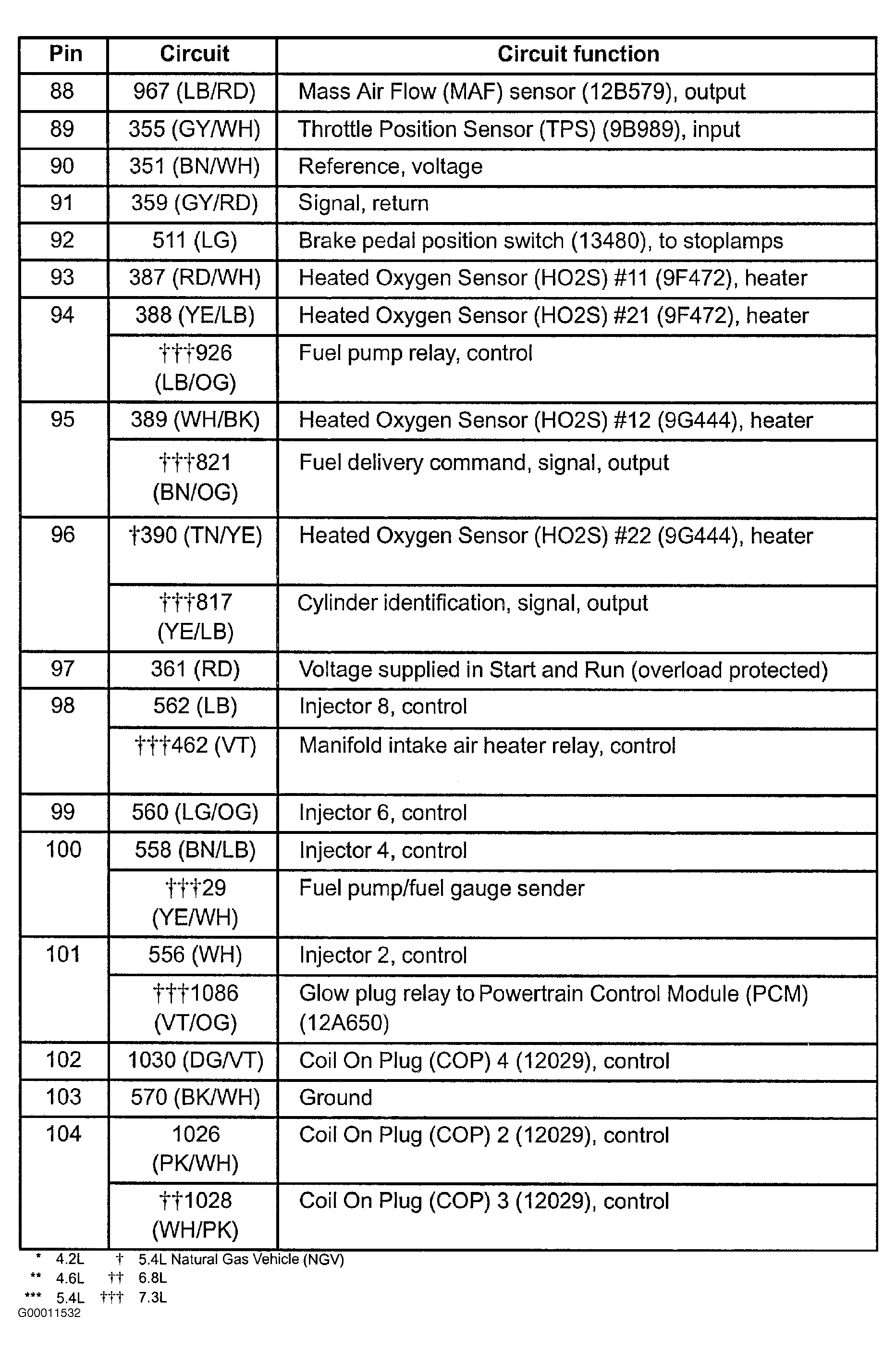

Fig 6: Identifying PCM Connector Circuit Functions (5 Of 6 - "E" Series)

Courtesy of FORD MOTOR CO.

Fig 7: Identifying PCM Connector Circuit Functions (6 Of 6 - "E" Series)

Courtesy of FORD MOTOR CO.
