Pcm Connector End View & Pcm Connector Circuit Functions (Escape)

ESCAPE PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Escape	Fig 1	Fig 2-Fig 6

Fig 1: Identifying PCM Connector Terminals (Escape)

Courtesy of FORD MOTOR CO.

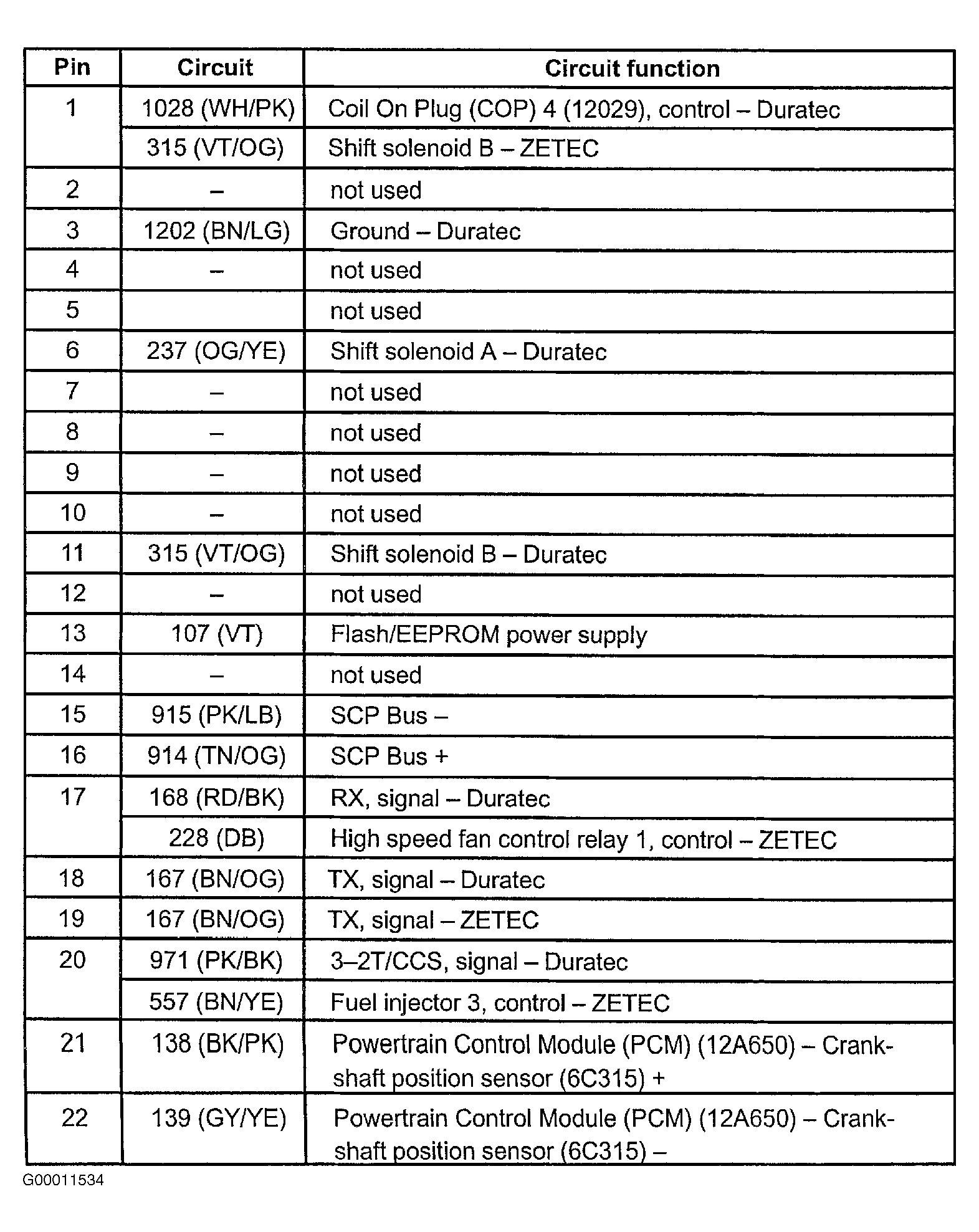

Fig 2: Identifying PCM Connector Circuit Functions (1 Of 5 - Escape)

Courtesy of FORD MOTOR CO.

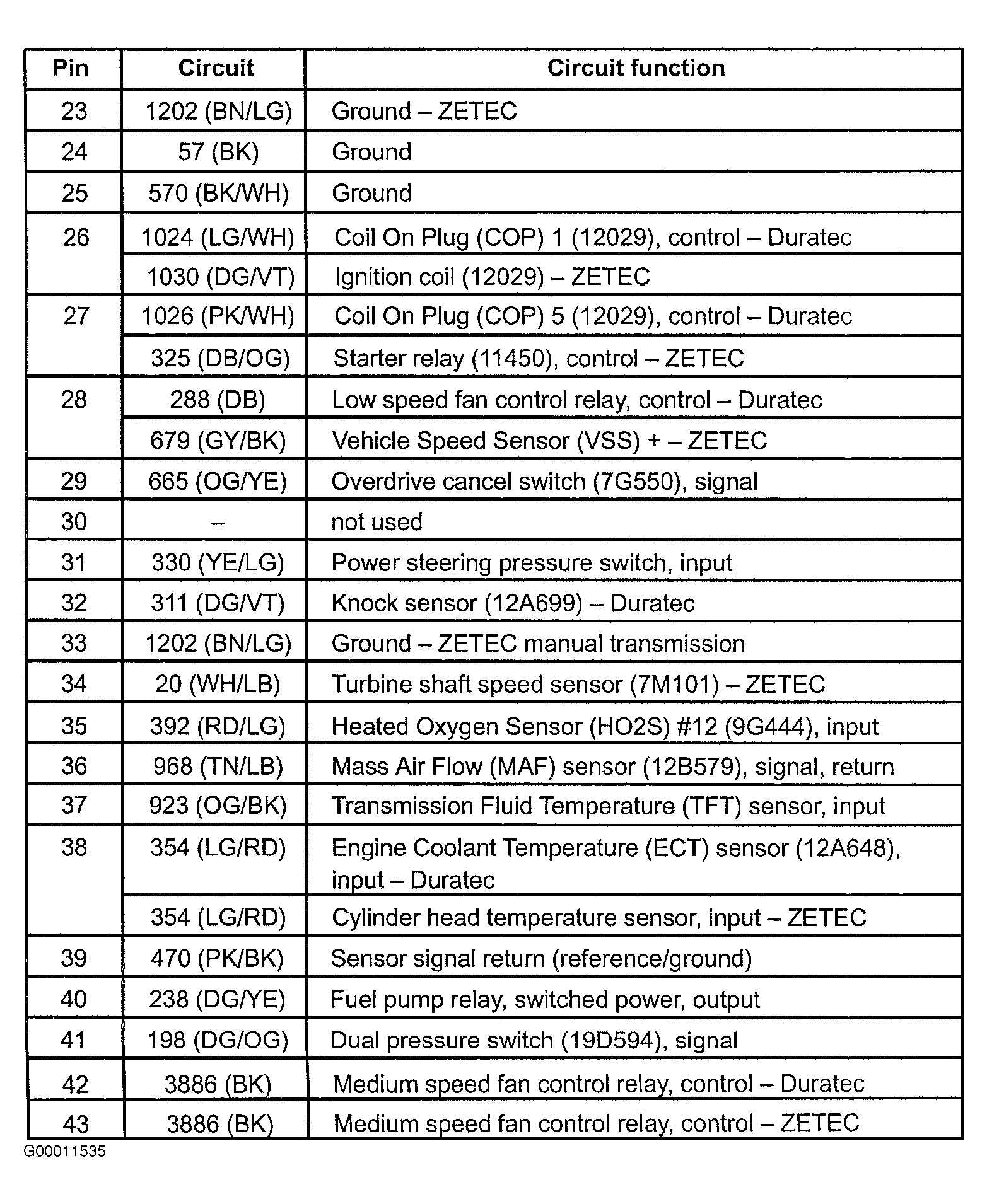

Fig 3: Identifying PCM Connector Circuit Functions (2 Of 5 - Escape)

Courtesy of FORD MOTOR CO.

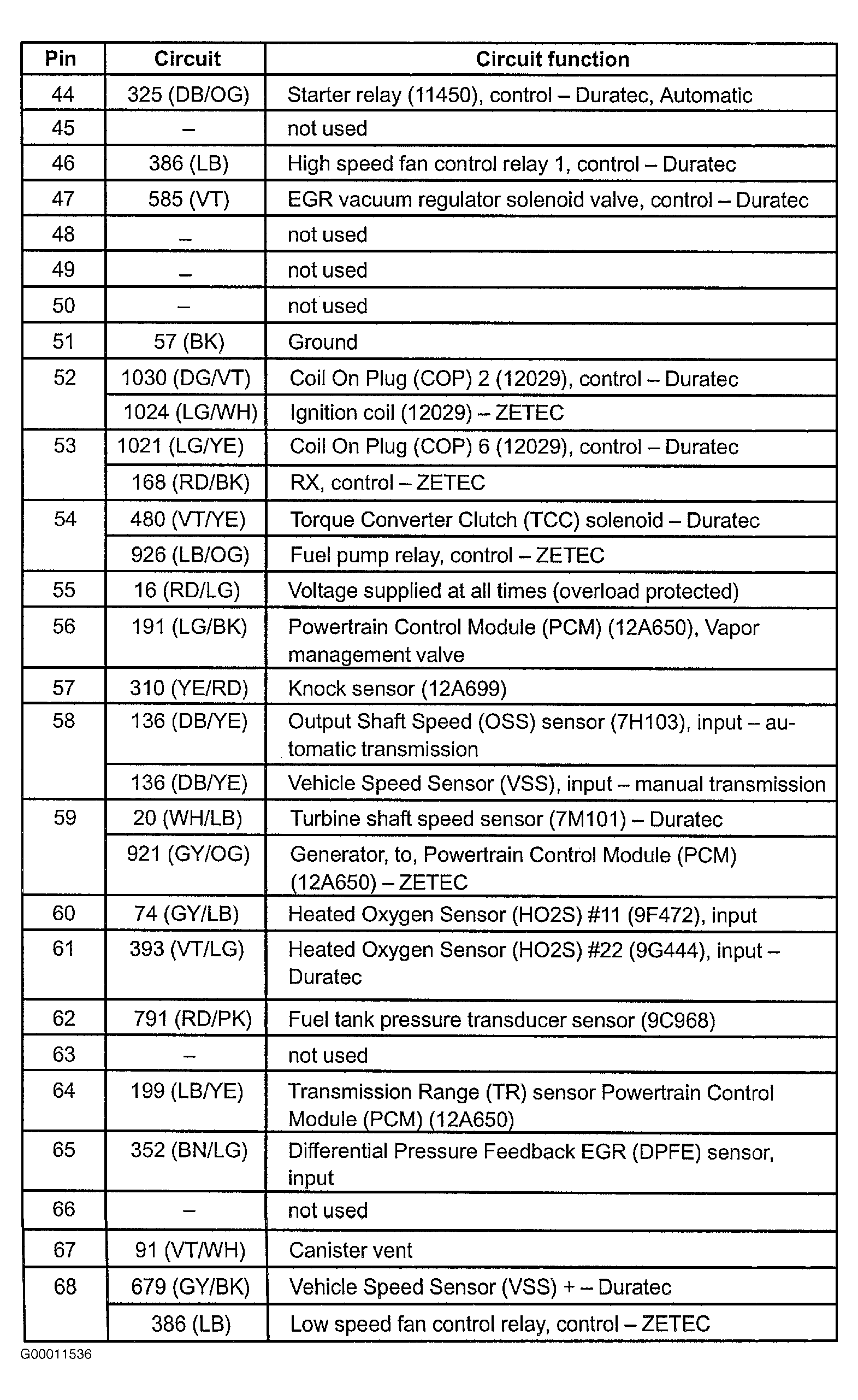

Fig 4: Identifying PCM Connector Circuit Functions (3 Of 5 - Escape)

Courtesy of FORD MOTOR CO.

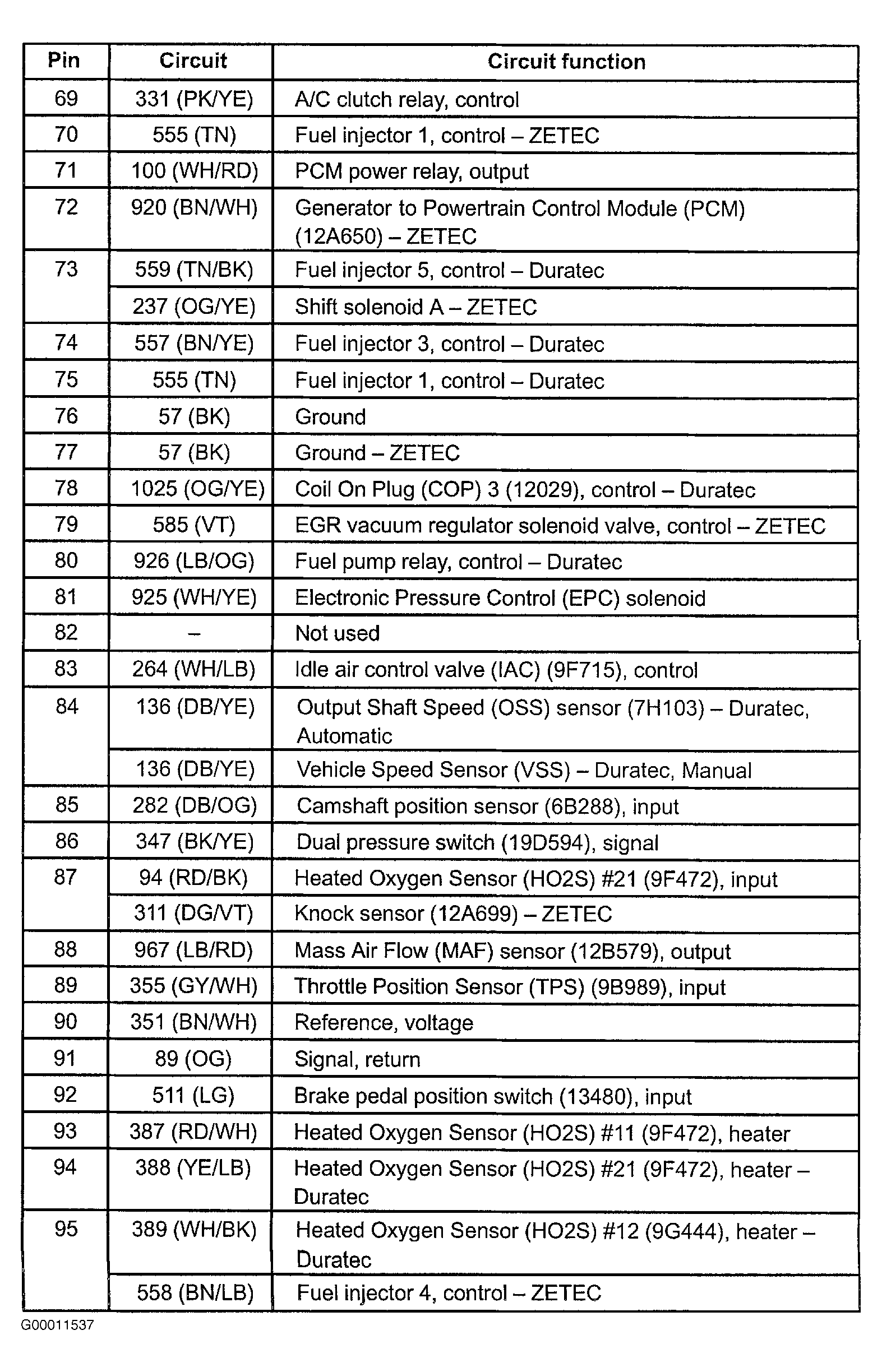

Fig 5: Identifying PCM Connector Circuit Functions (4 Of 5 - Escape)

Courtesy of FORD MOTOR CO.

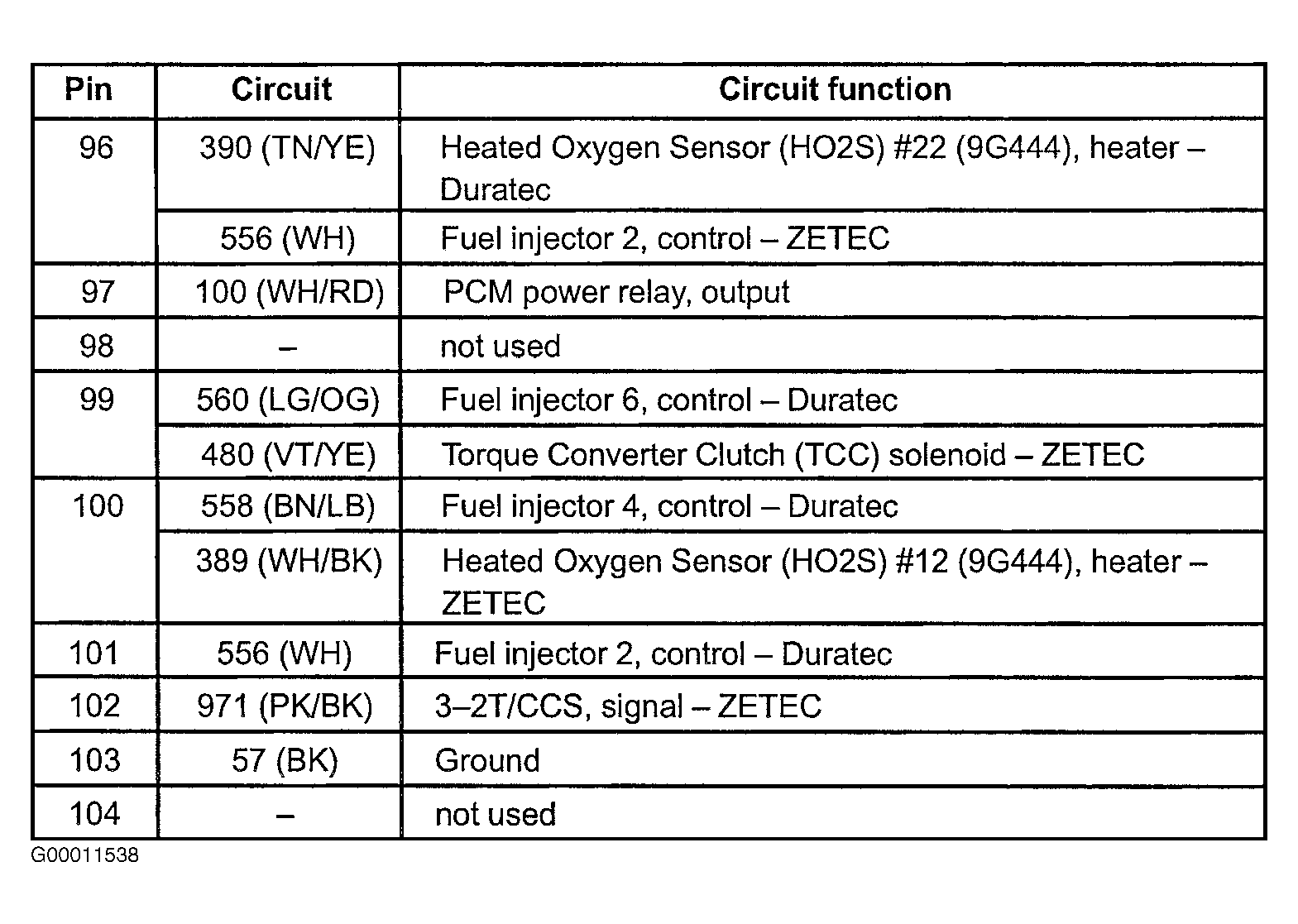

Fig 6: Identifying PCM Connector Circuit Functions (5 Of 5 - Escape)

Courtesy of FORD MOTOR CO.
