Pcm Connector End View & Pcm Connector Circuit Functions (F150)

F150 PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
F150	Fig 1	Fig 2-Fig 6

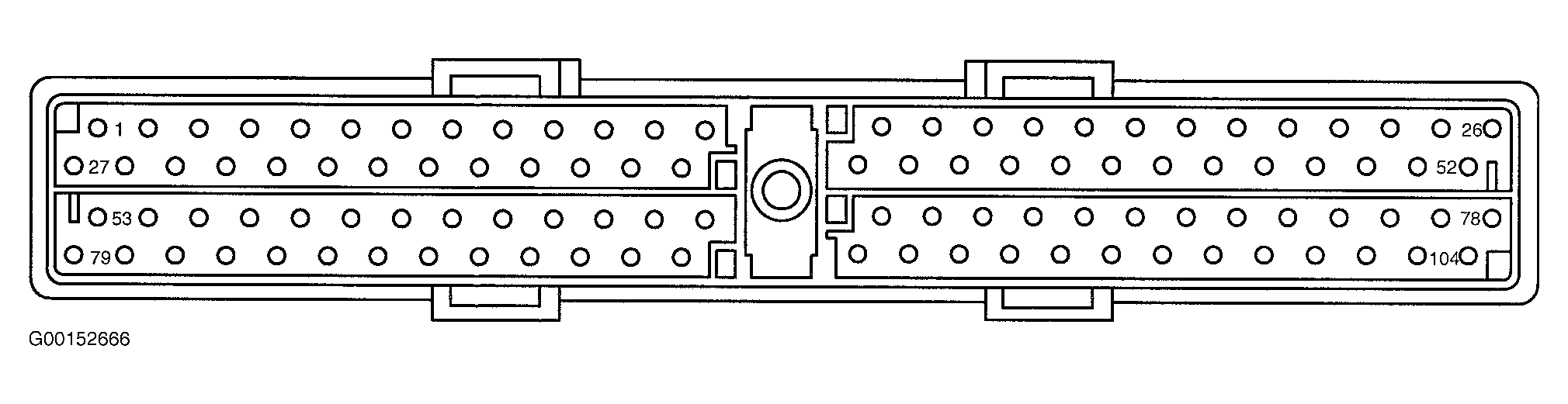

Fig 1: Identifying PCM Connector Terminals (F150)

Courtesy of FORD MOTOR CO.

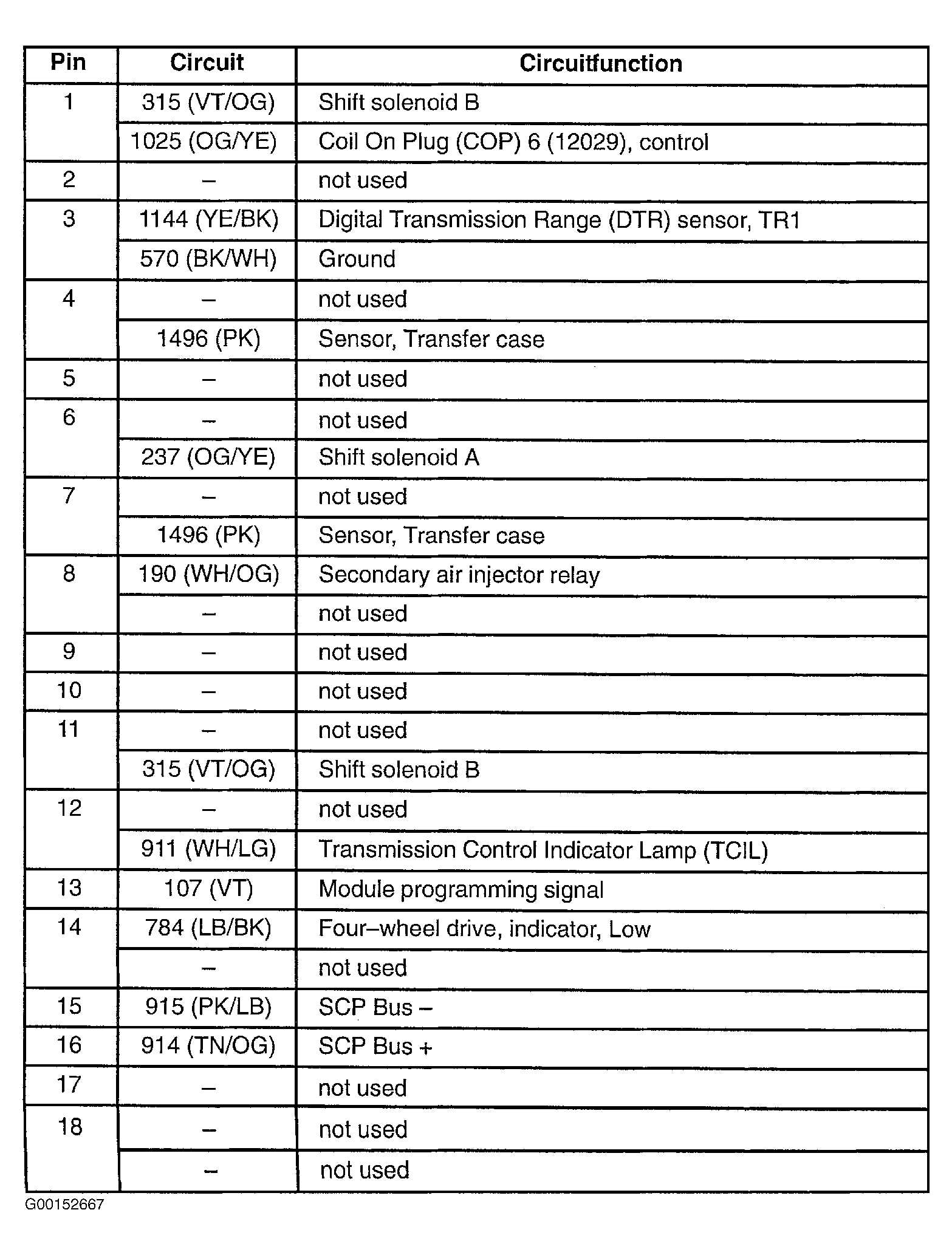

Fig 2: Identifying PCM Connector Circuit Functions (1 Of 5 - F150)

Courtesy of FORD MOTOR CO.

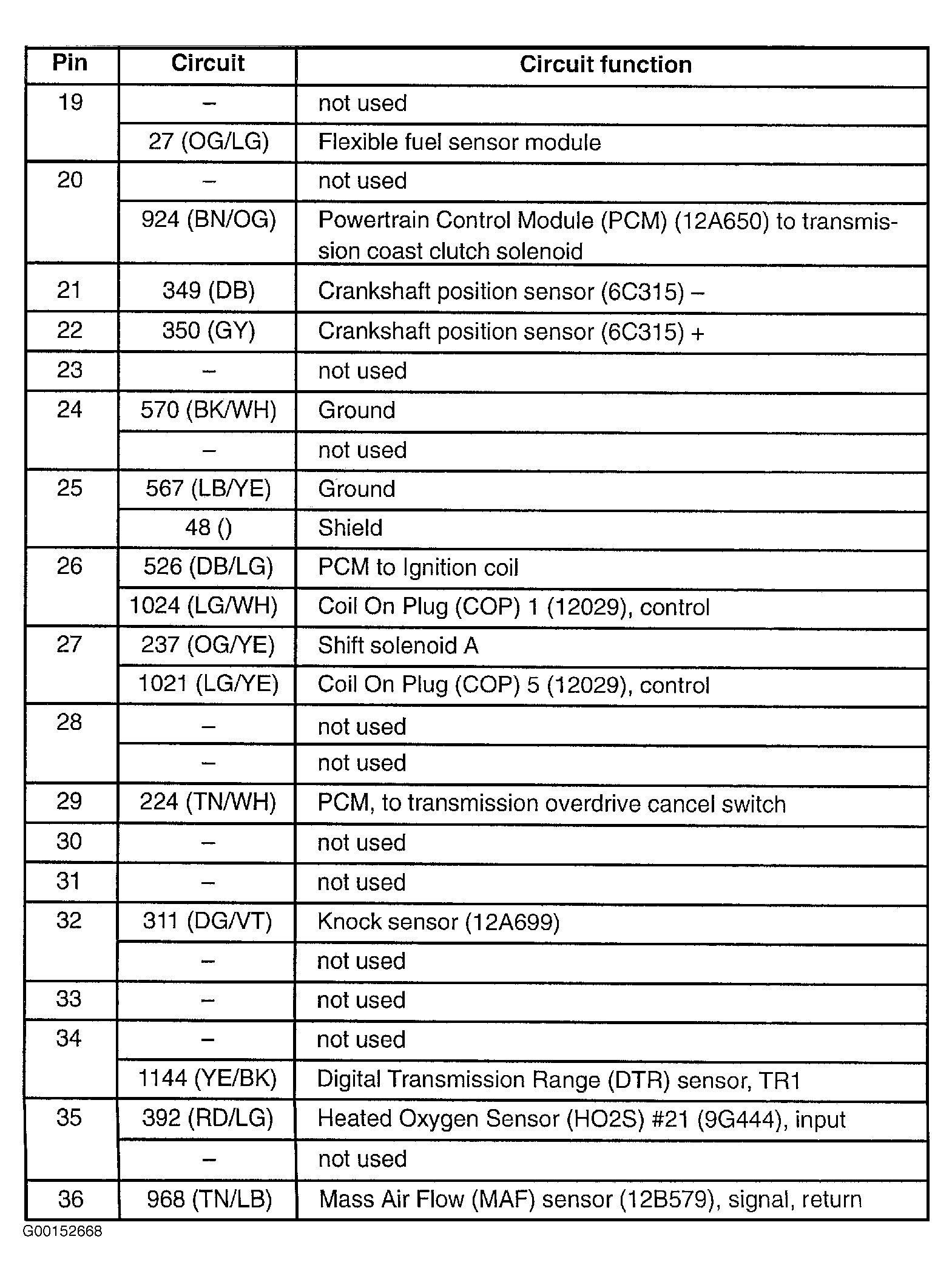

Fig 3: Identifying PCM Connector Circuit Functions (2 Of 5 - F150)

Courtesy of FORD MOTOR CO.

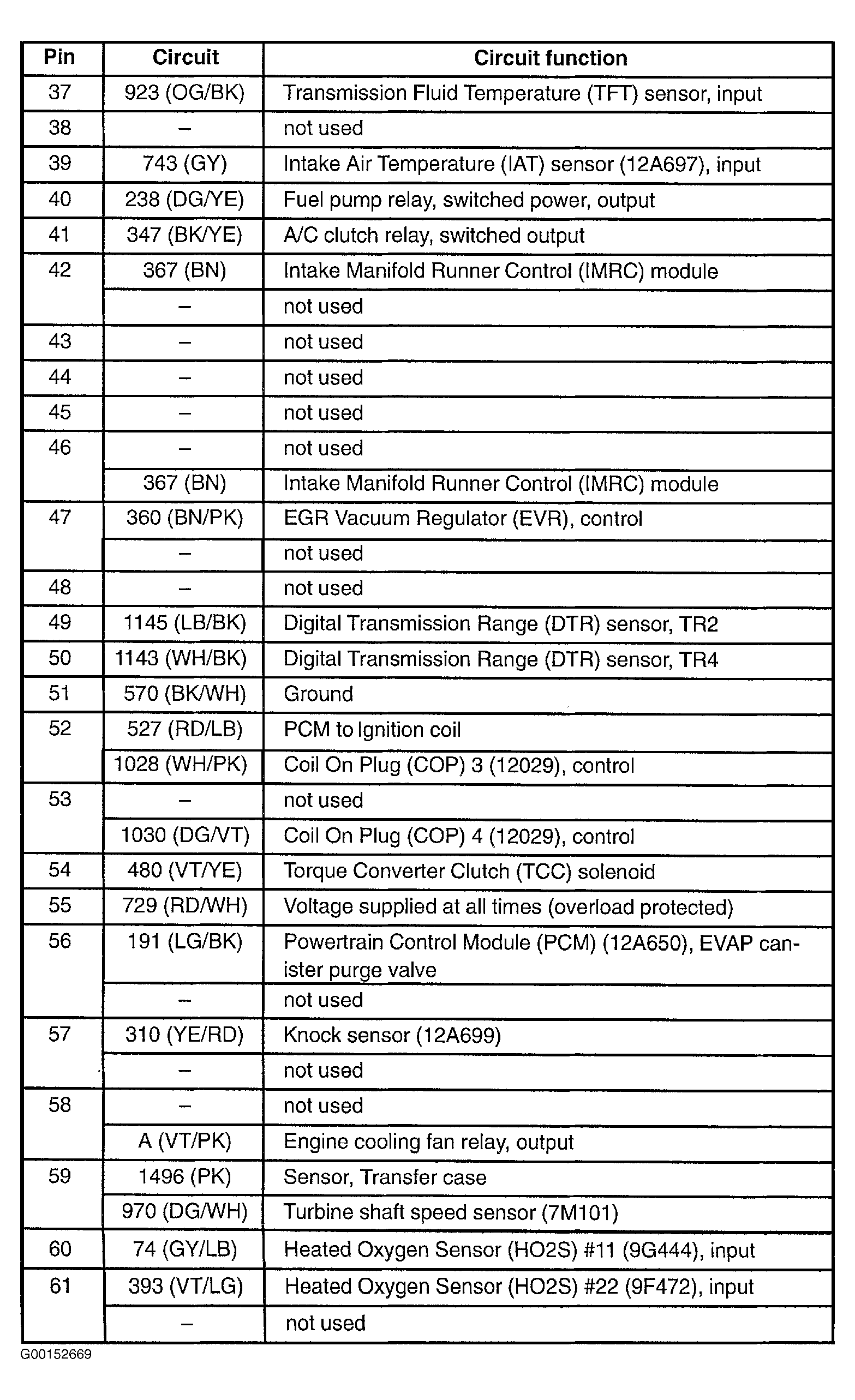

Fig 4: Identifying PCM Connector Circuit Functions (3 Of 5 - F150)

Courtesy of FORD MOTOR CO.

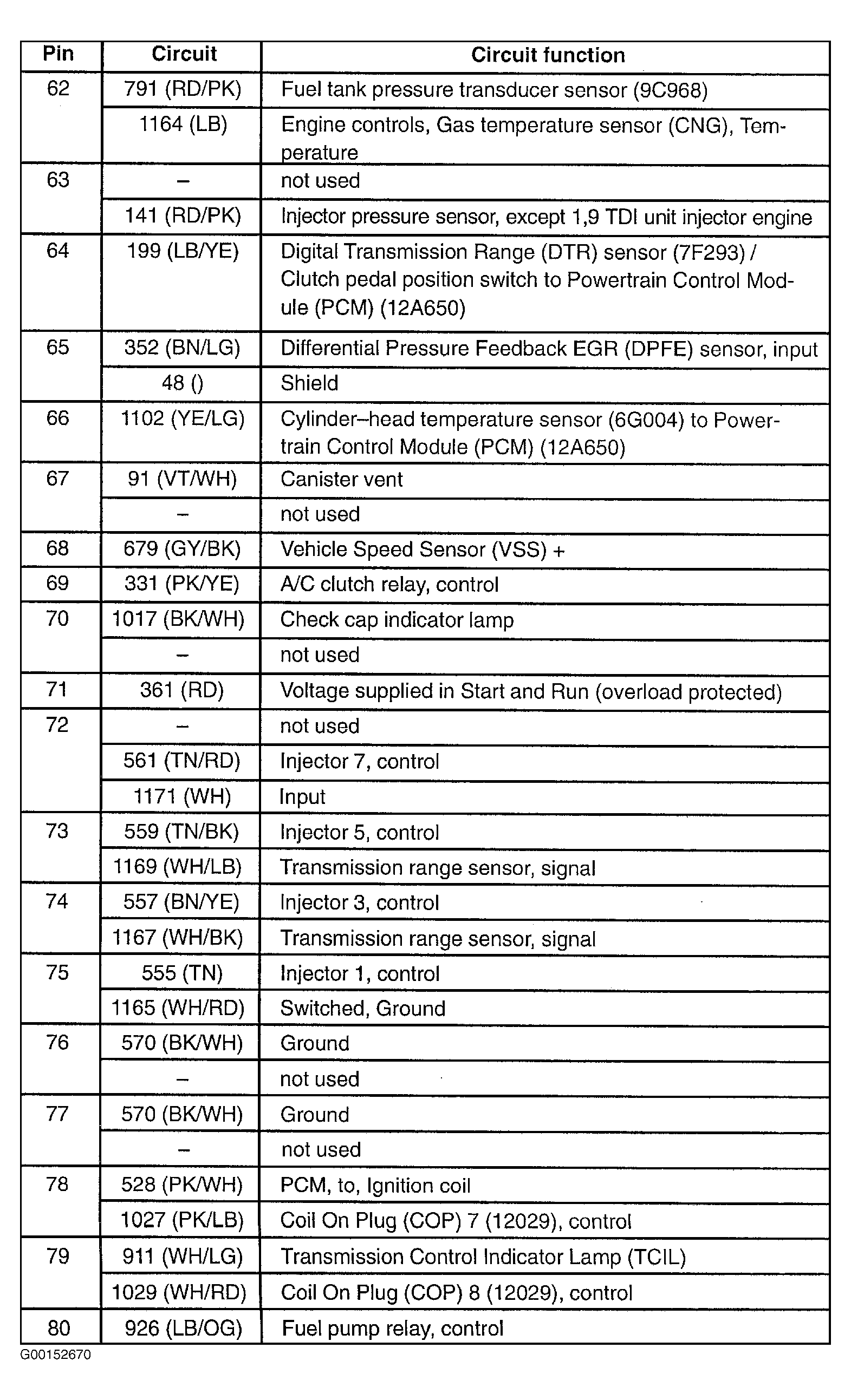

Fig 5: Identifying PCM Connector Circuit Functions (4 Of 5 - F150)

Courtesy of FORD MOTOR CO.

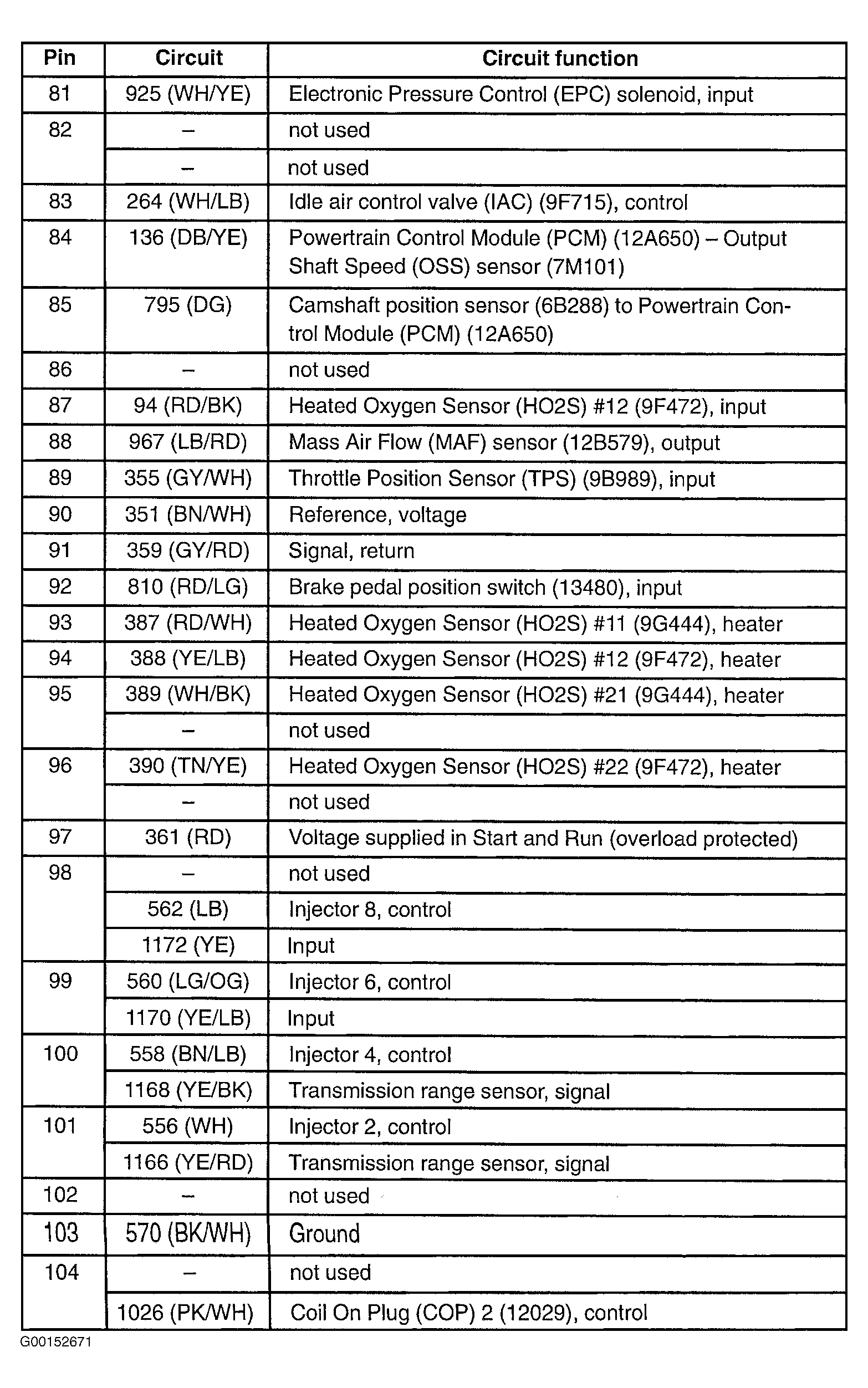

Fig 6: Identifying PCM Connector Circuit Functions (5 Of 5 - F150)

Courtesy of FORD MOTOR CO.
