Pcm Connector End View & Pcm Connector Circuit Functions (Focus 2.0L)

FOCUS 2.0L PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Focus 2.0L	Fig 1	Fig 2-Fig 4

Fig 1: Identifying PCM Connector Terminals (Focus 2.0L)

Courtesy of FORD MOTOR CO.

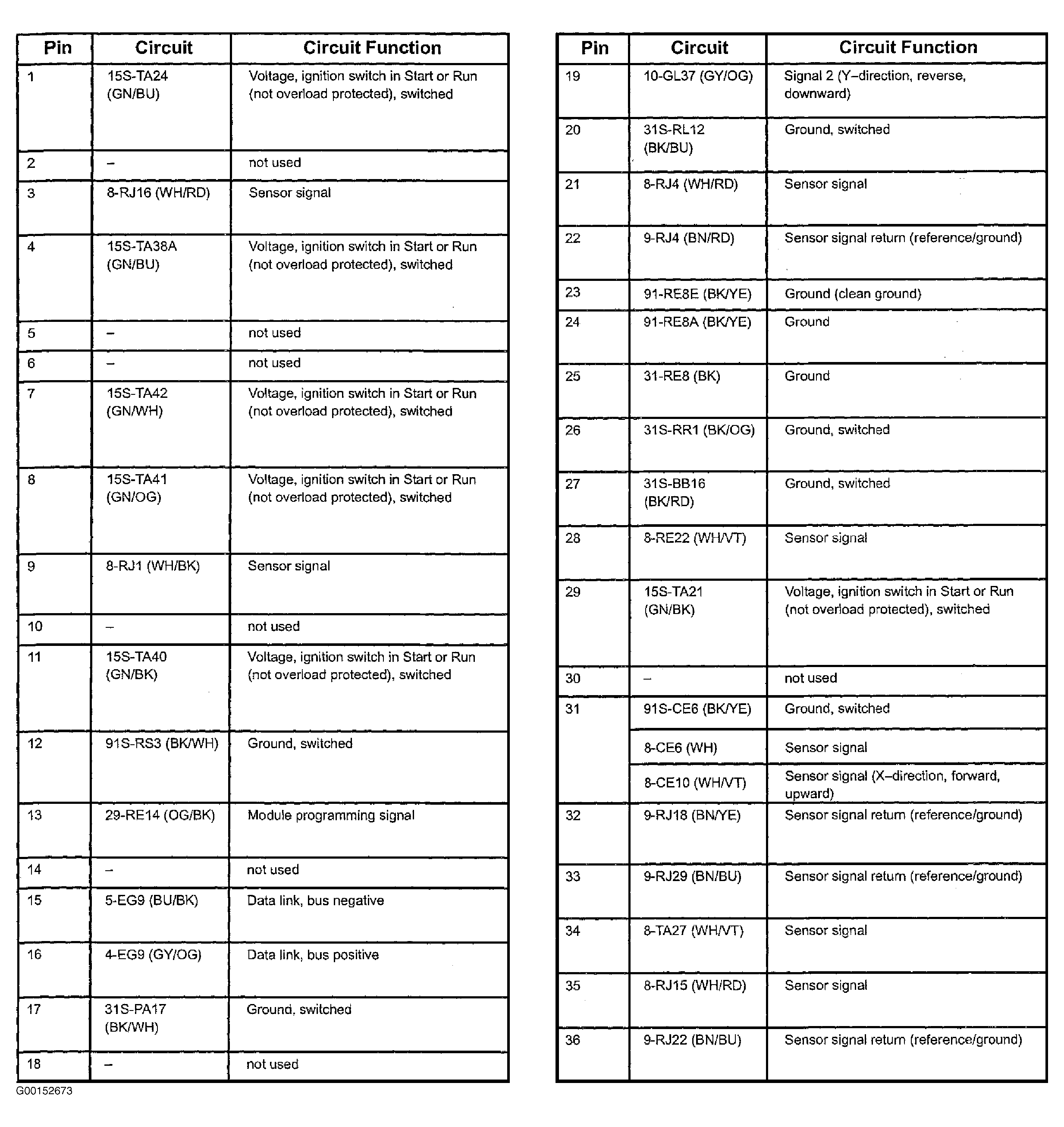

Fig 2: Identifying PCM Connector Circuit Functions (1 Of 3 - Focus 2.0L)

Courtesy of FORD MOTOR CO.

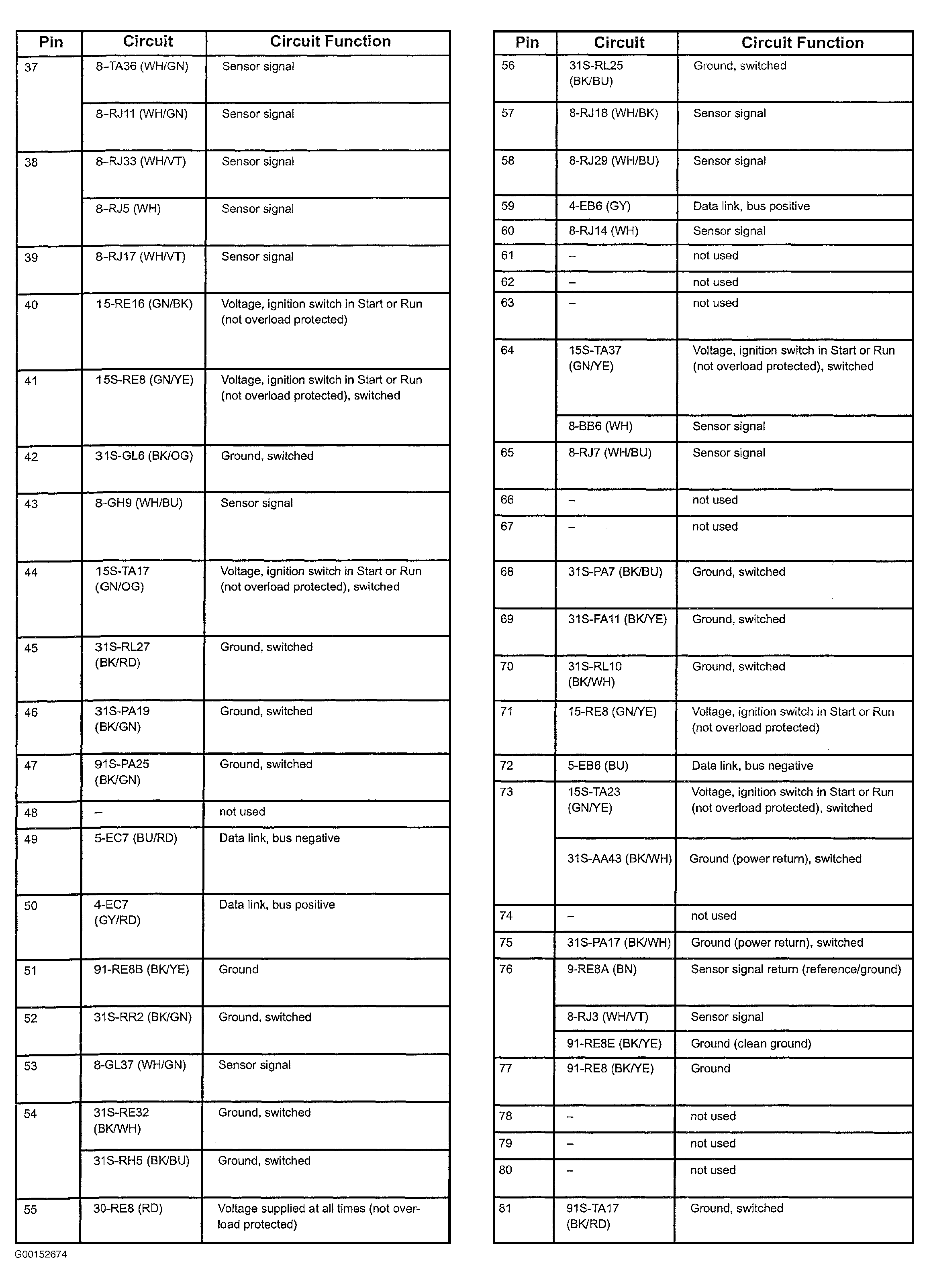

Fig 3: Identifying PCM Connector Circuit Functions (2 Of 3 - Focus 2.0L)

Courtesy of FORD MOTOR CO.

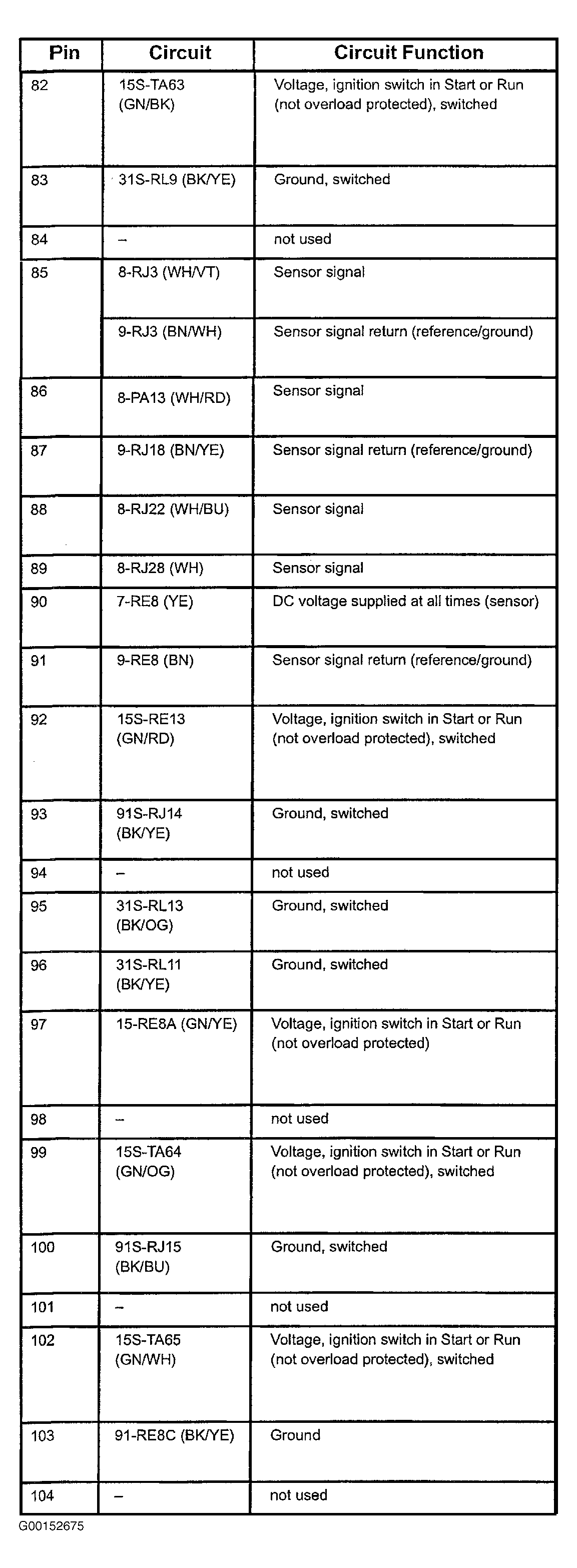

Fig 4: Identifying PCM Connector Circuit Functions (3 Of 3 - Focus 2.0L)

Courtesy of FORD MOTOR CO.
