Pcm Connector End View & Pcm Connector Circuit Functions (Focus 2.3L)

FOCUS 2.3L PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Focus 2.3L	Fig 1	Fig 2-Fig 7

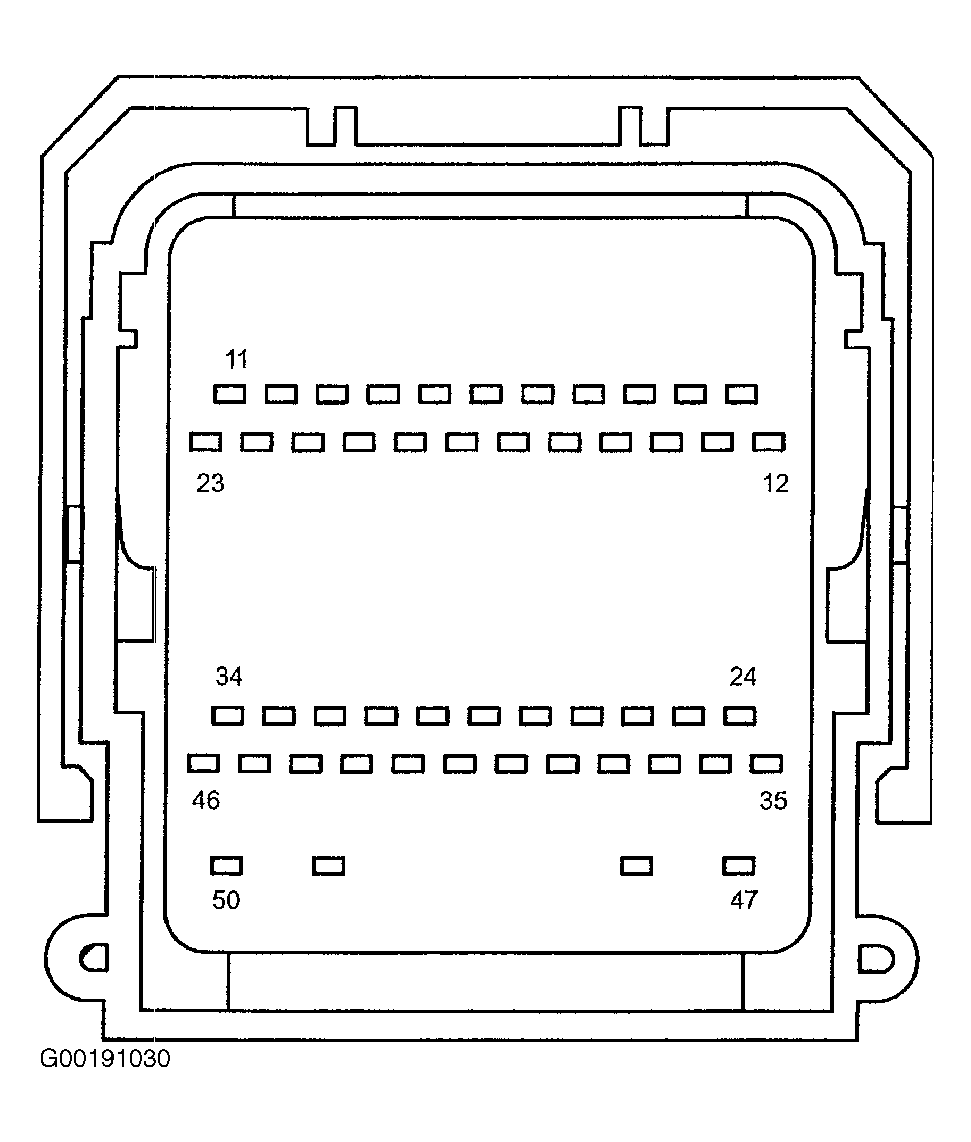

Fig 1: Identifying PCM Connector C175B, C175E & C175T Terminals (Focus 2.3L)

Courtesy of FORD MOTOR CO.

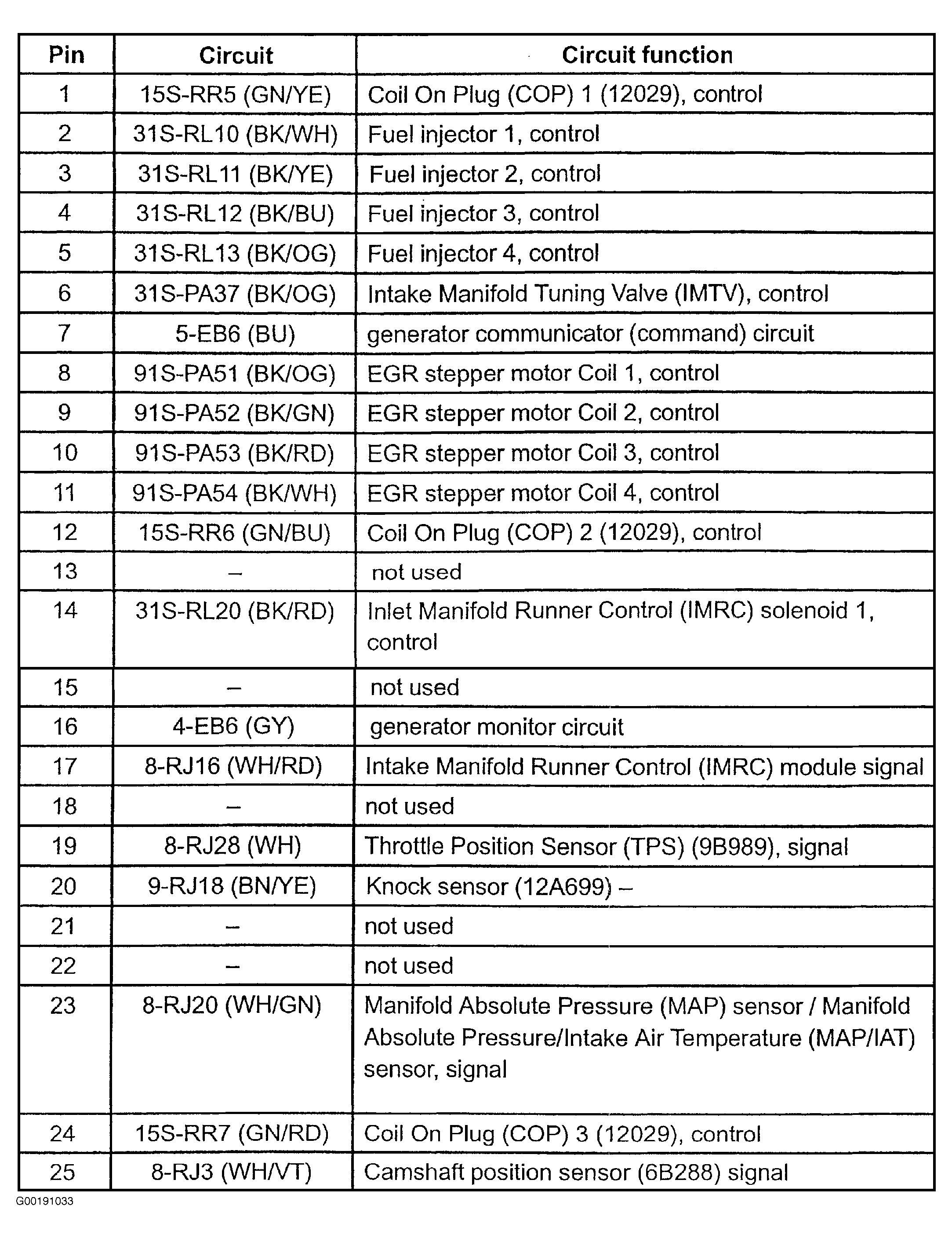

Fig 2: Identifying PCM Connector C175B Circuit Functions (1 Of 2 - Focus 2.3L)

Courtesy of FORD MOTOR CO.

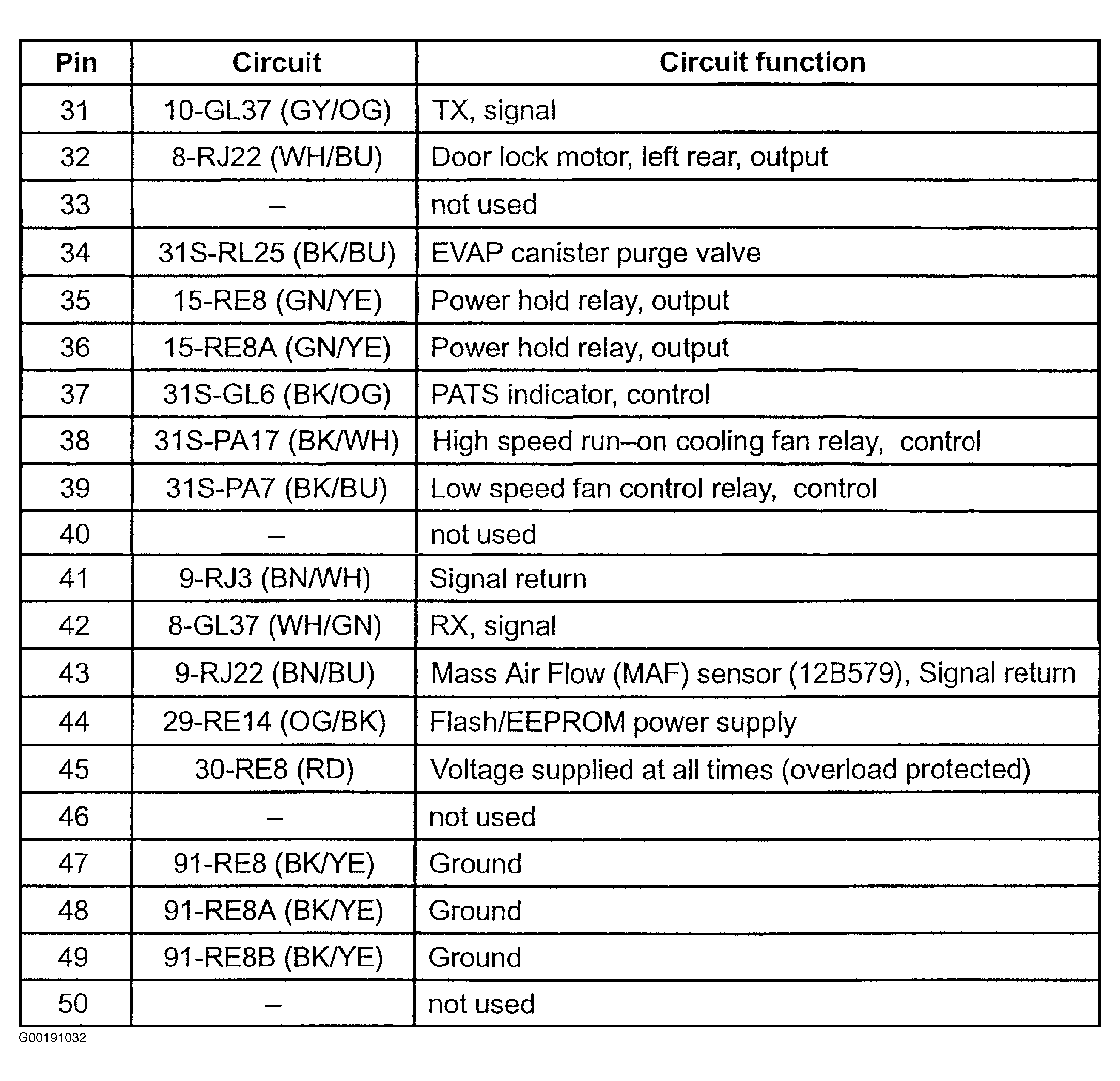

Fig 3: Identifying PCM Connector C175B Circuit Functions (2 Of 2 - Focus 2.3L)

Courtesy of FORD MOTOR CO.

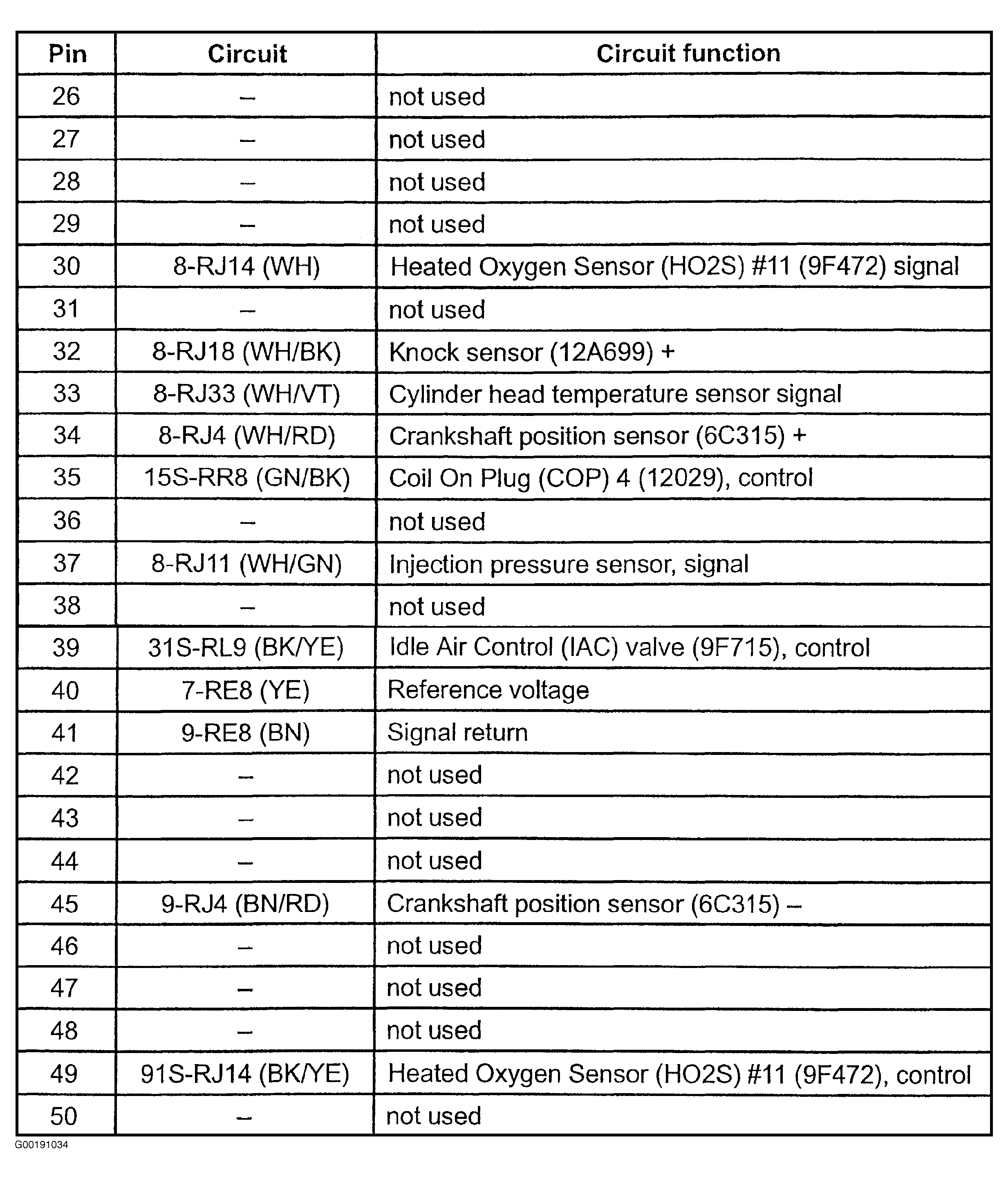

Fig 4: Identifying PCM Connector C175E Circuit Functions (1 Of 2 - Focus 2.3L)

Courtesy of FORD MOTOR CO.

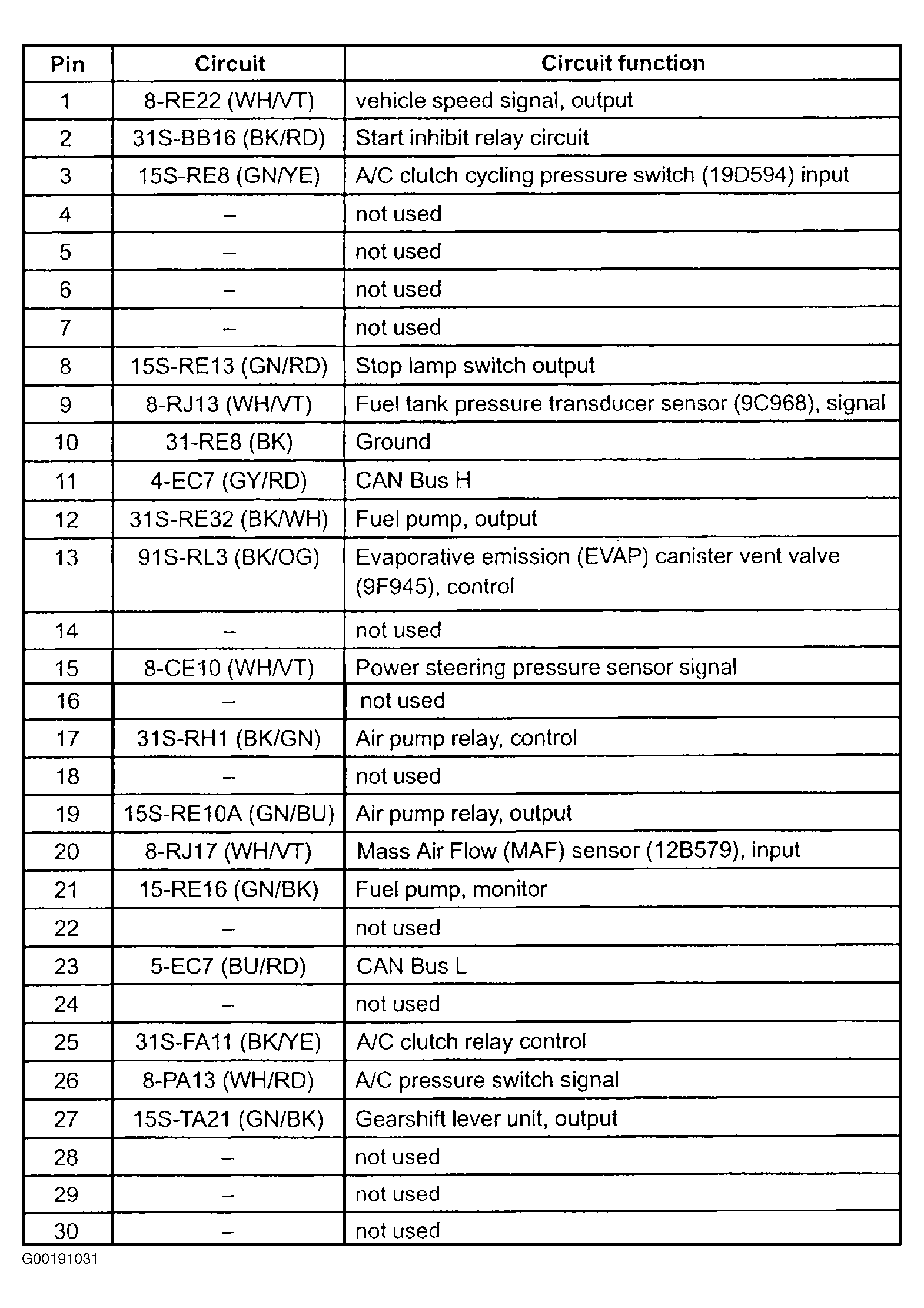

Fig 5: Identifying PCM Connector C175E Circuit Functions (2 Of 2 - Focus 2.3L)

Courtesy of FORD MOTOR CO.

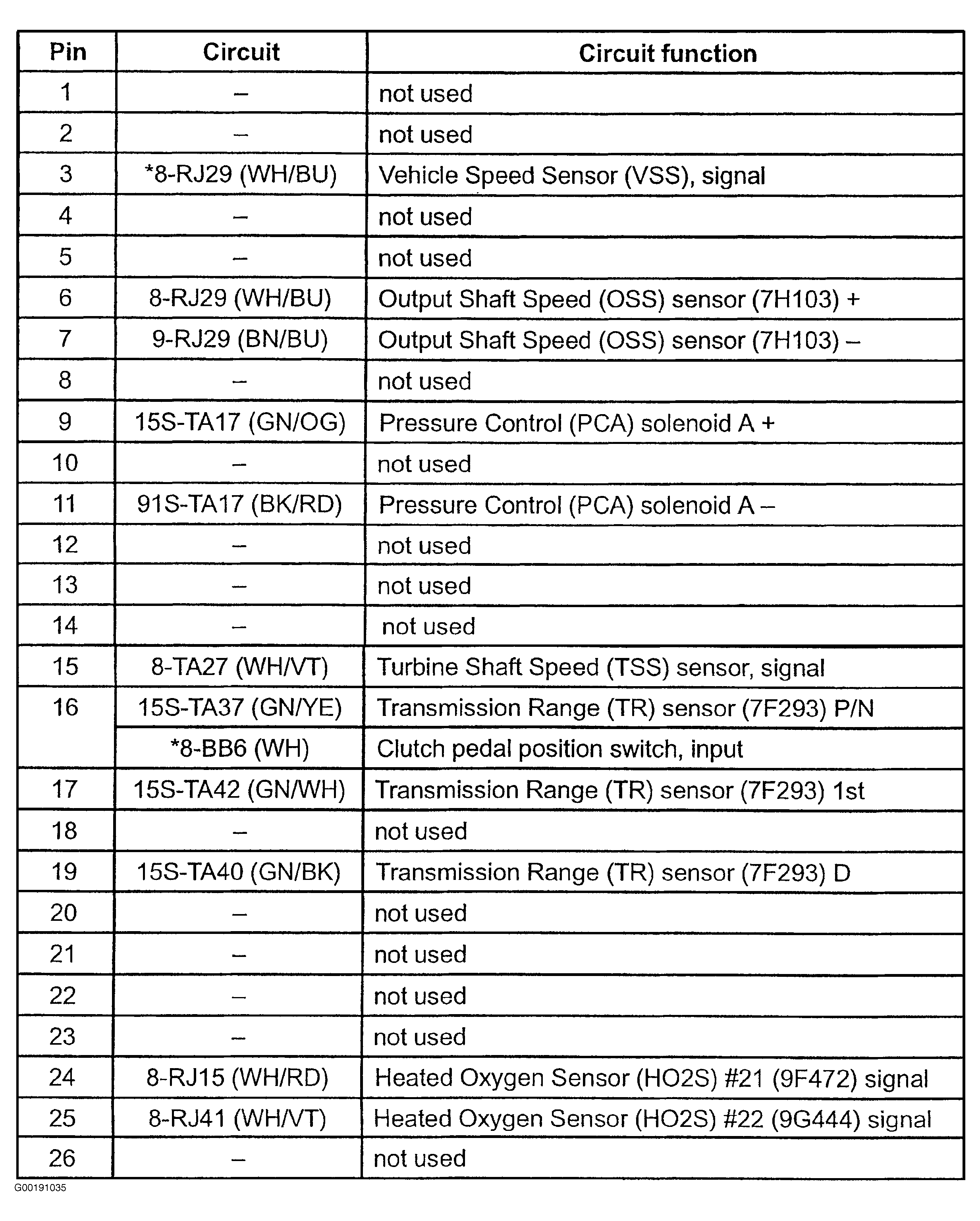

Fig 6: Identifying PCM Connector C175T Circuit Functions (1 Of 2 - Focus 2.3L)

Courtesy of FORD MOTOR CO.

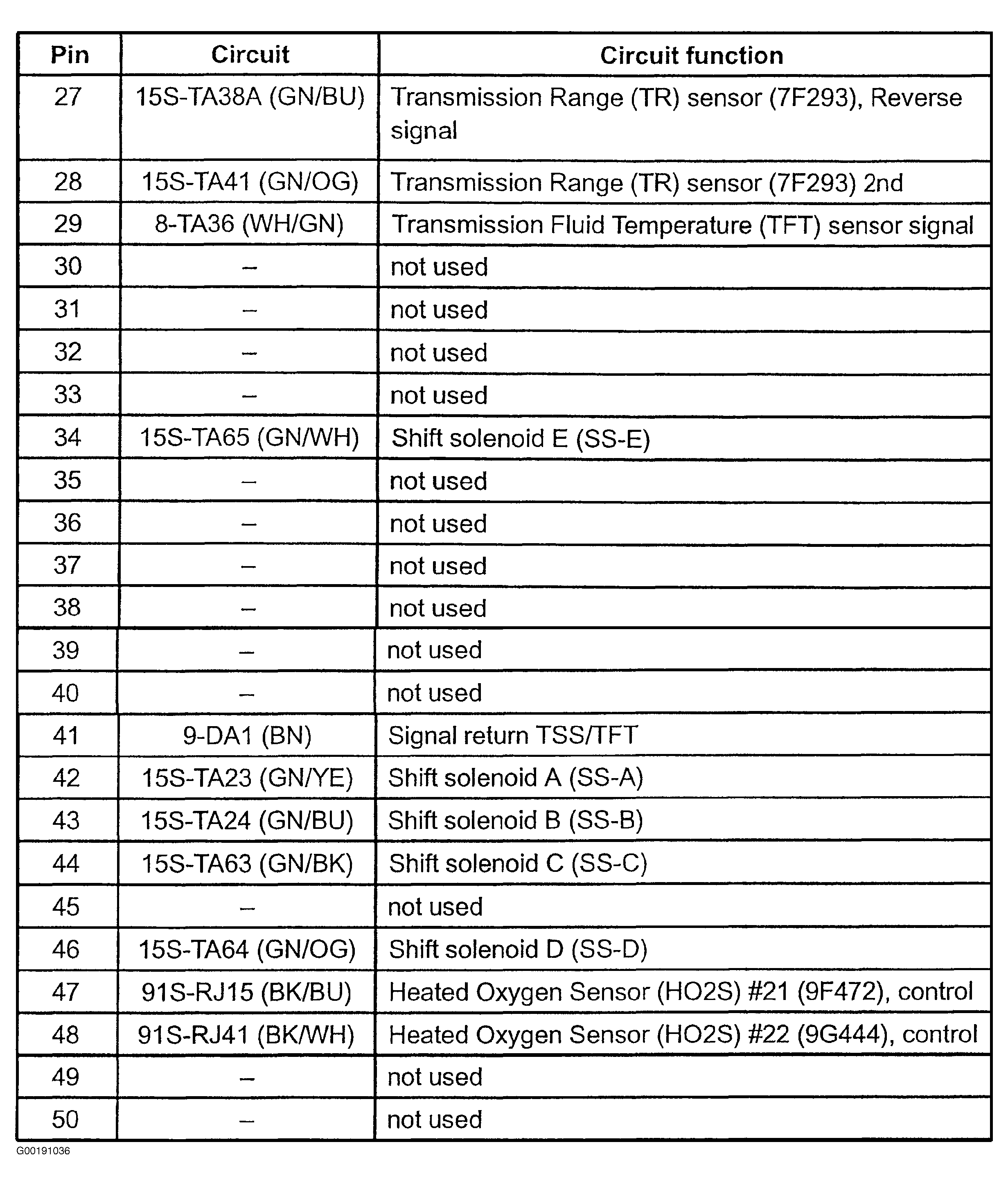

Fig 7: Identifying PCM Connector C175T Circuit Functions (2 Of 2 - Focus 2.3L)

Courtesy of FORD MOTOR CO.
