Pcm Connector End View & Pcm Connector Circuit Functions (LS)

LS PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
LS	C175A Fig 1, C175B Fig 5 & C175C Fig 7	C175A Fig 2-Fig 4 , C175B Fig 6 & C175C Fig 8-Fig 10

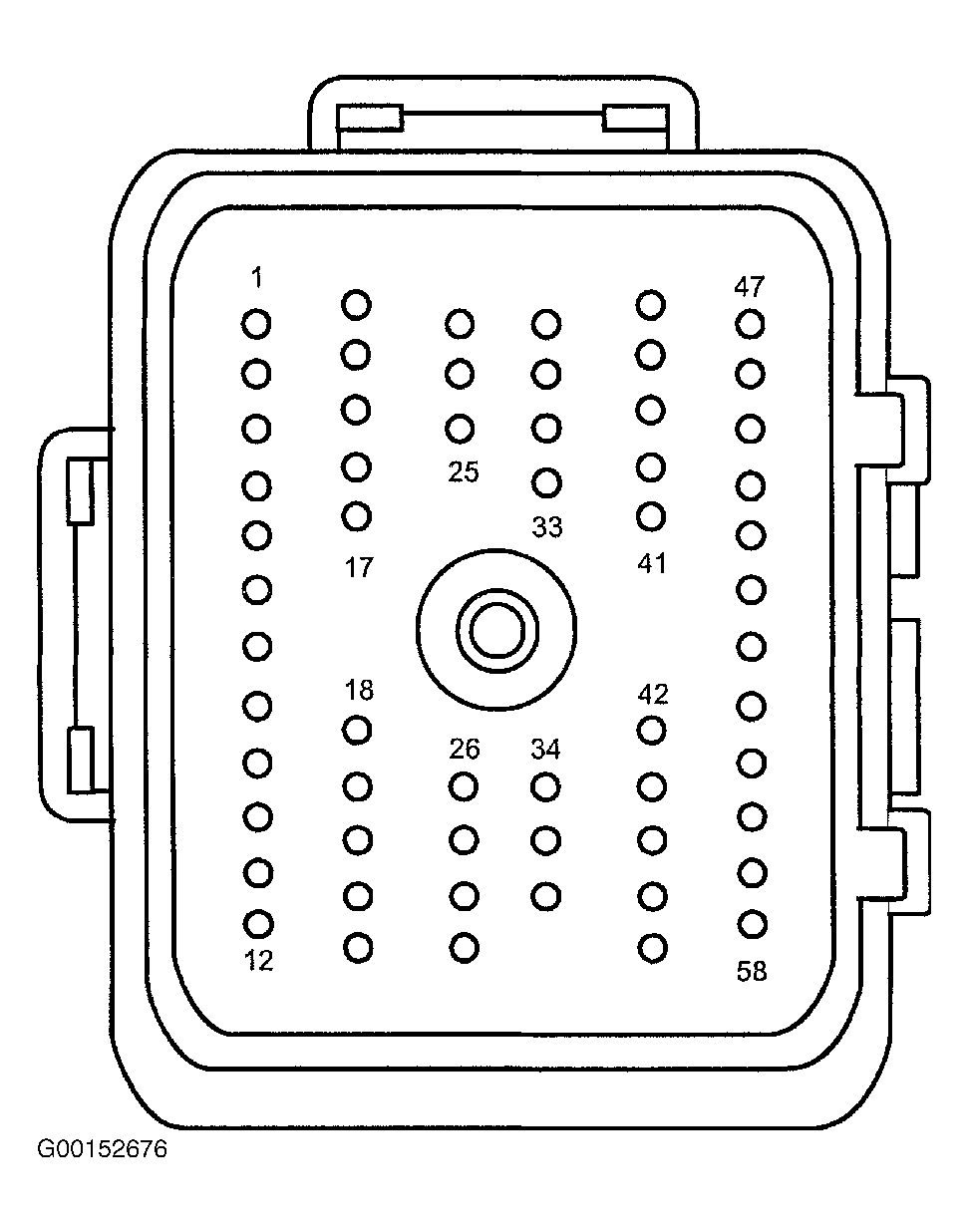

Fig 1: Identifying PCM Connector C175A Terminals (LS)

Courtesy of FORD MOTOR CO.

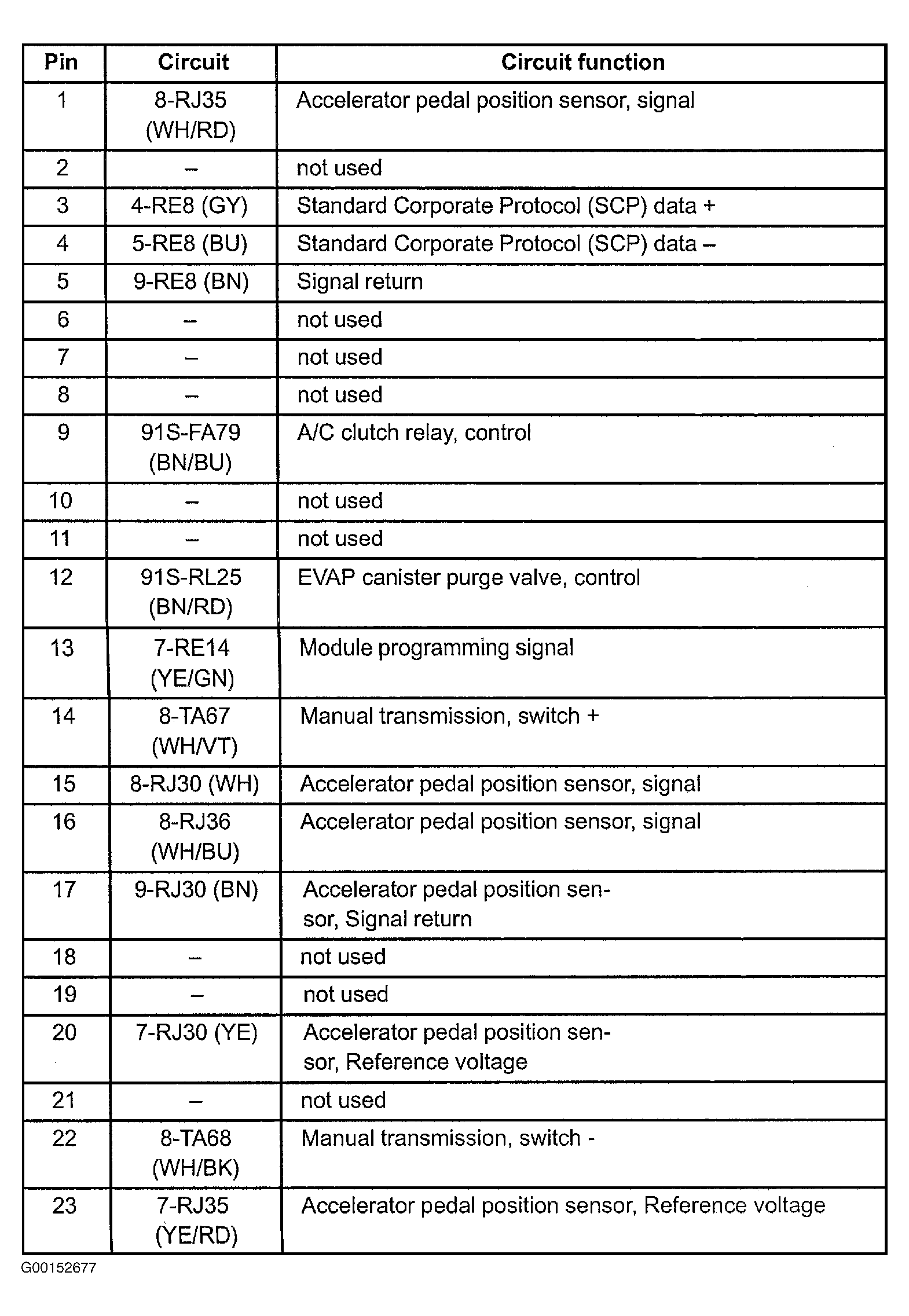

Fig 2: Identifying PCM Connector C175A Circuit Functions (1 Of 3 - LS)

Courtesy of FORD MOTOR CO.

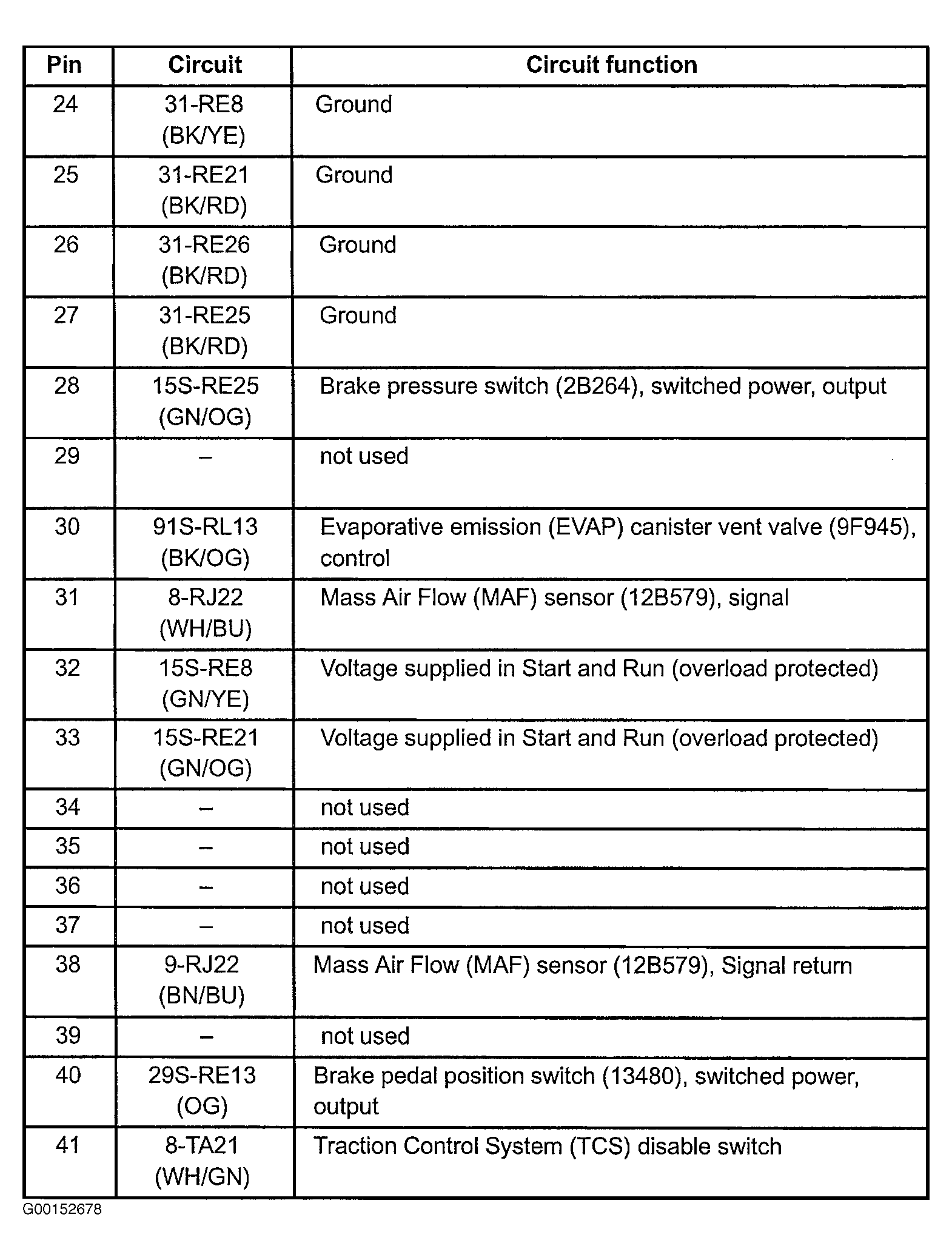

Fig 3: Identifying PCM Connector C175A Circuit Functions (2 Of 3 - LS)

Courtesy of FORD MOTOR CO.

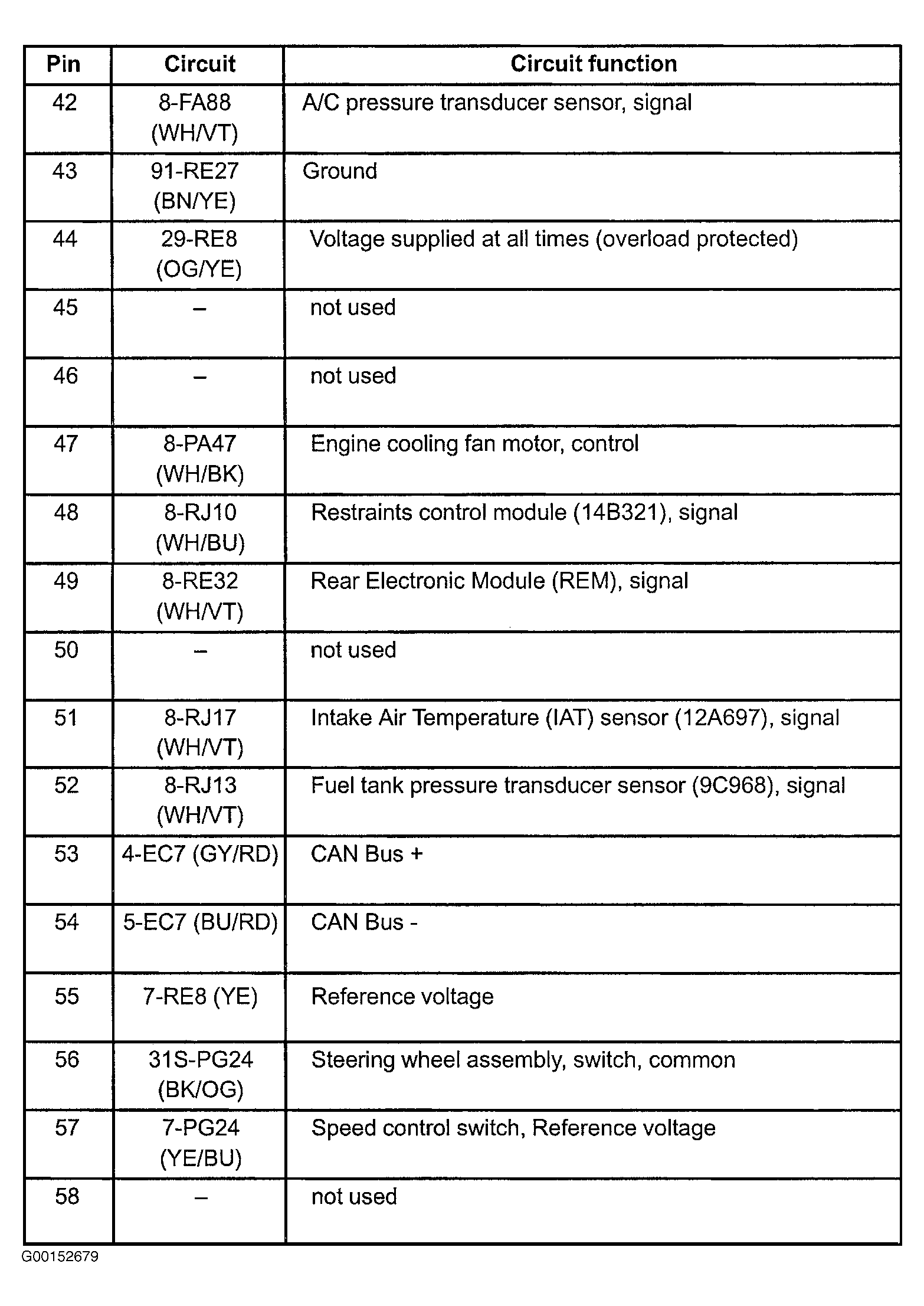

Fig 4: Identifying PCM Connector C175A Circuit Functions (3 Of 3 - LS)

Courtesy of FORD MOTOR CO.

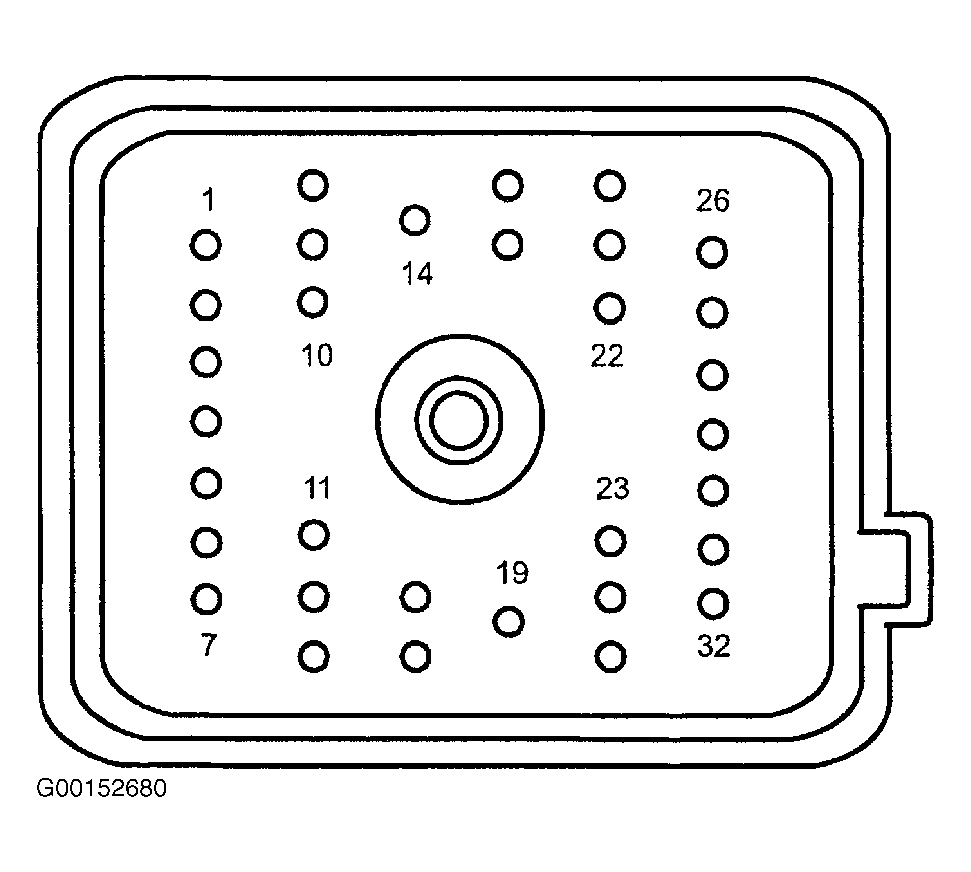

Fig 5: Identifying PCM Connector C175B Terminals (LS)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying PCM Connector C175B Circuit Functions (LS)

Courtesy of FORD MOTOR CO.

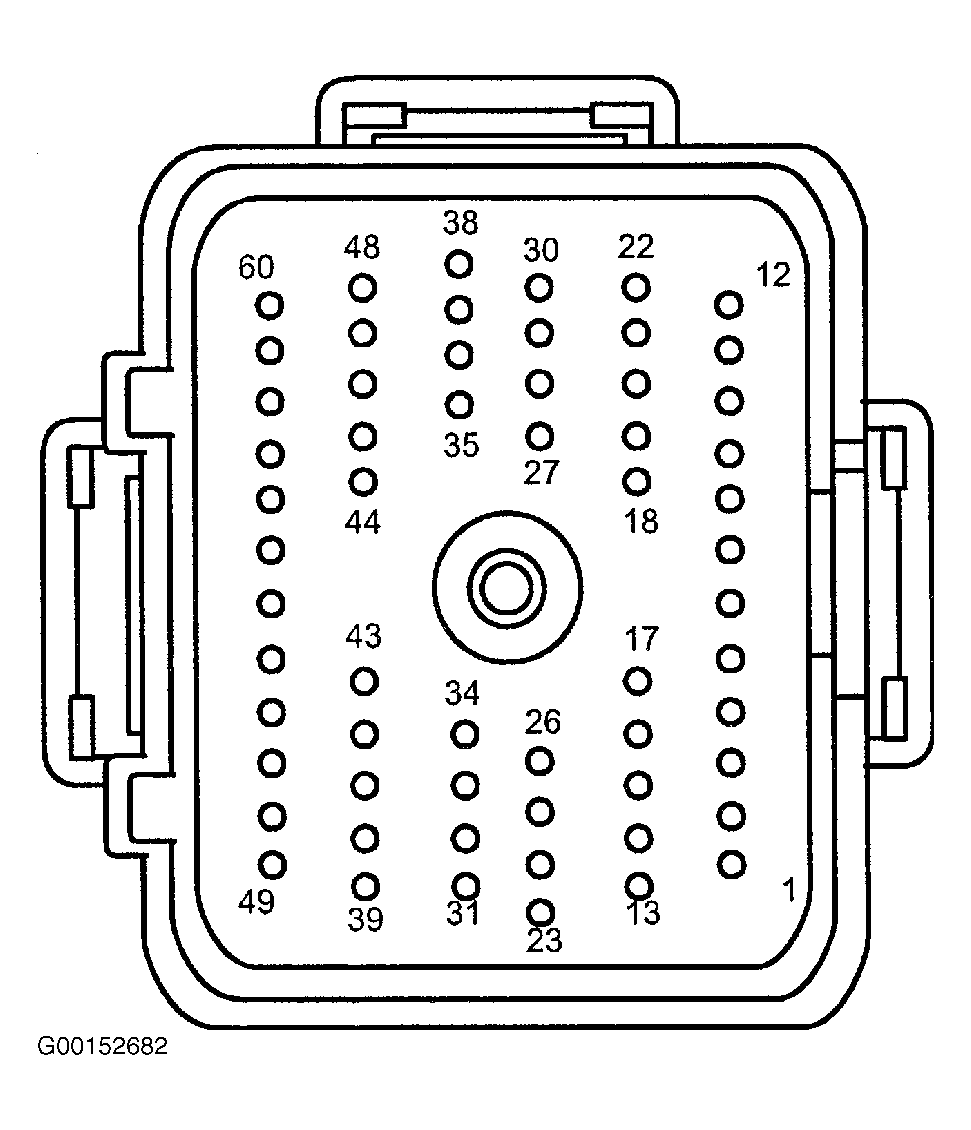

Fig 7: Identifying PCM Connector C175C Terminals (LS)

Courtesy of FORD MOTOR CO.

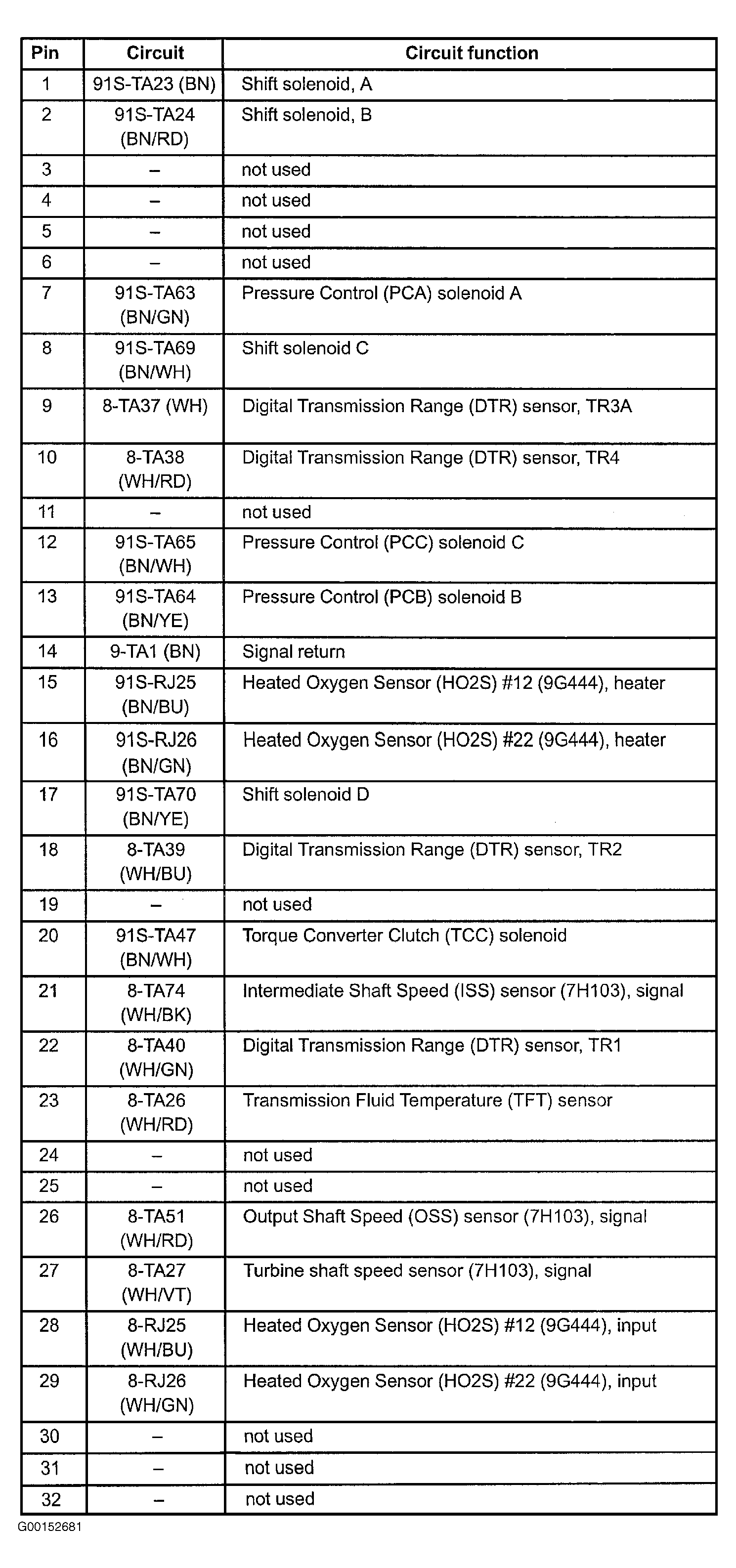

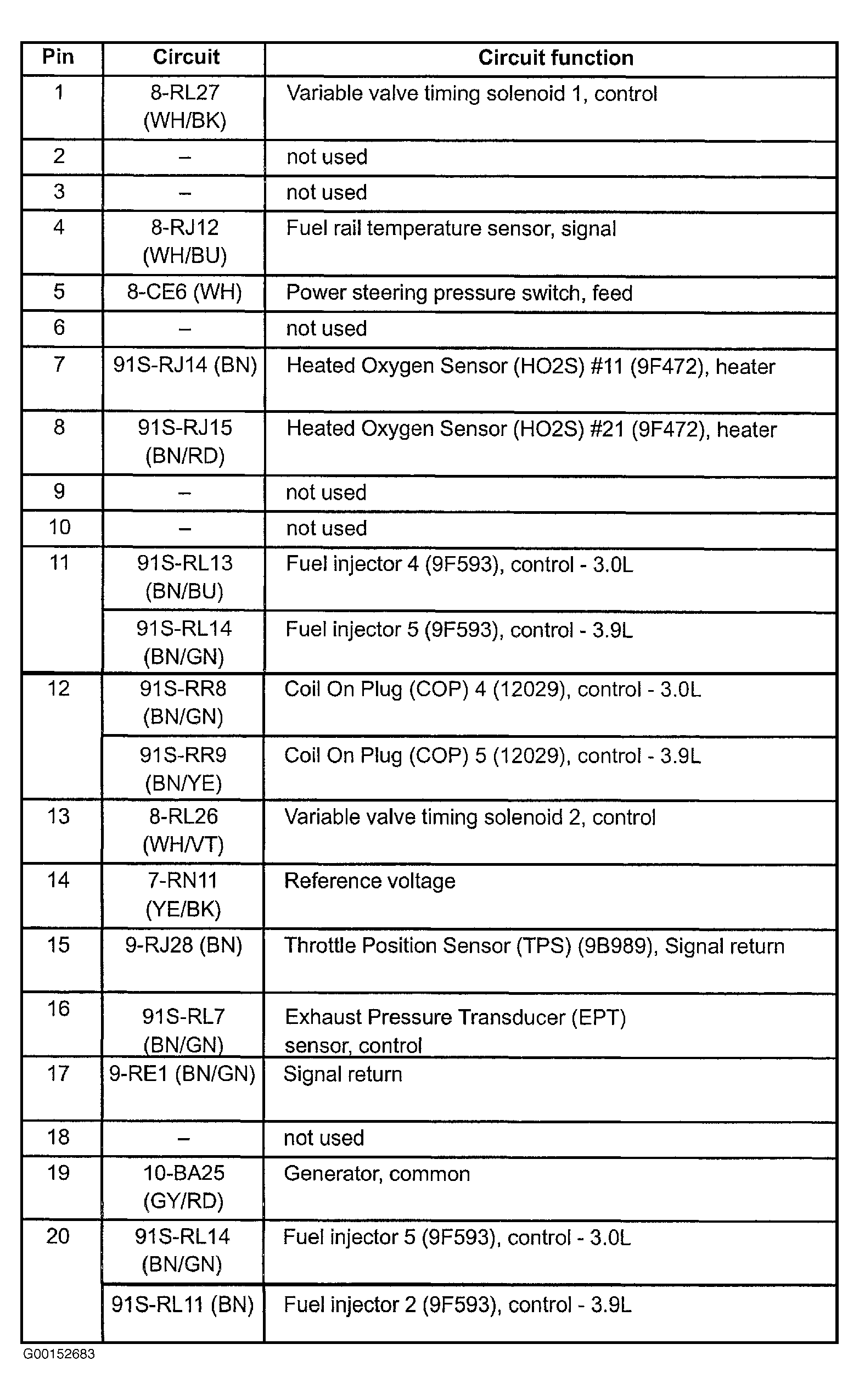

Fig 8: Identifying PCM Connector C175C Circuit Functions (1 Of 3 - LS)

Courtesy of FORD MOTOR CO.

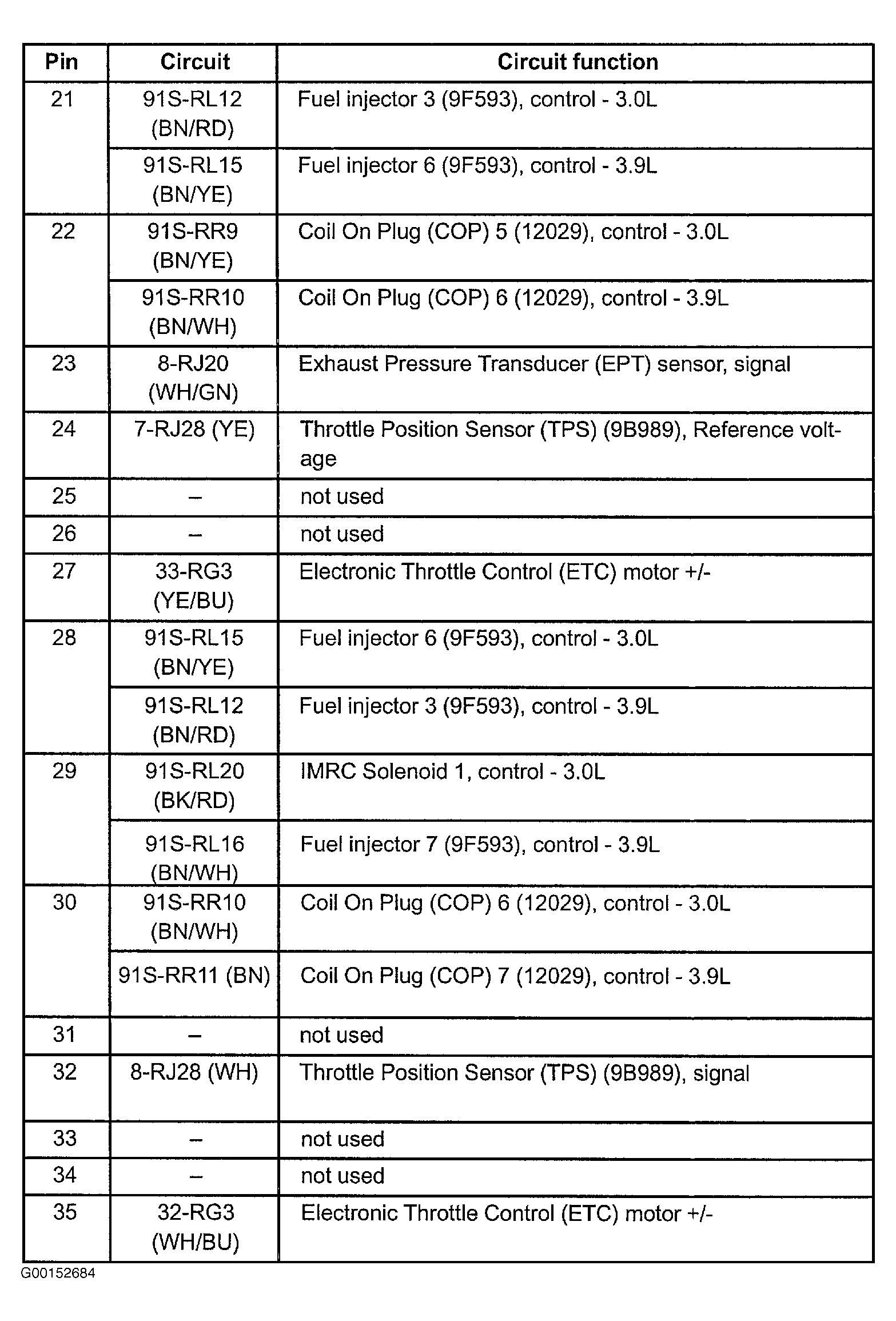

Fig 9: Identifying PCM Connector C175C Circuit Functions (2 Of 3 - LS)

Courtesy of FORD MOTOR CO.

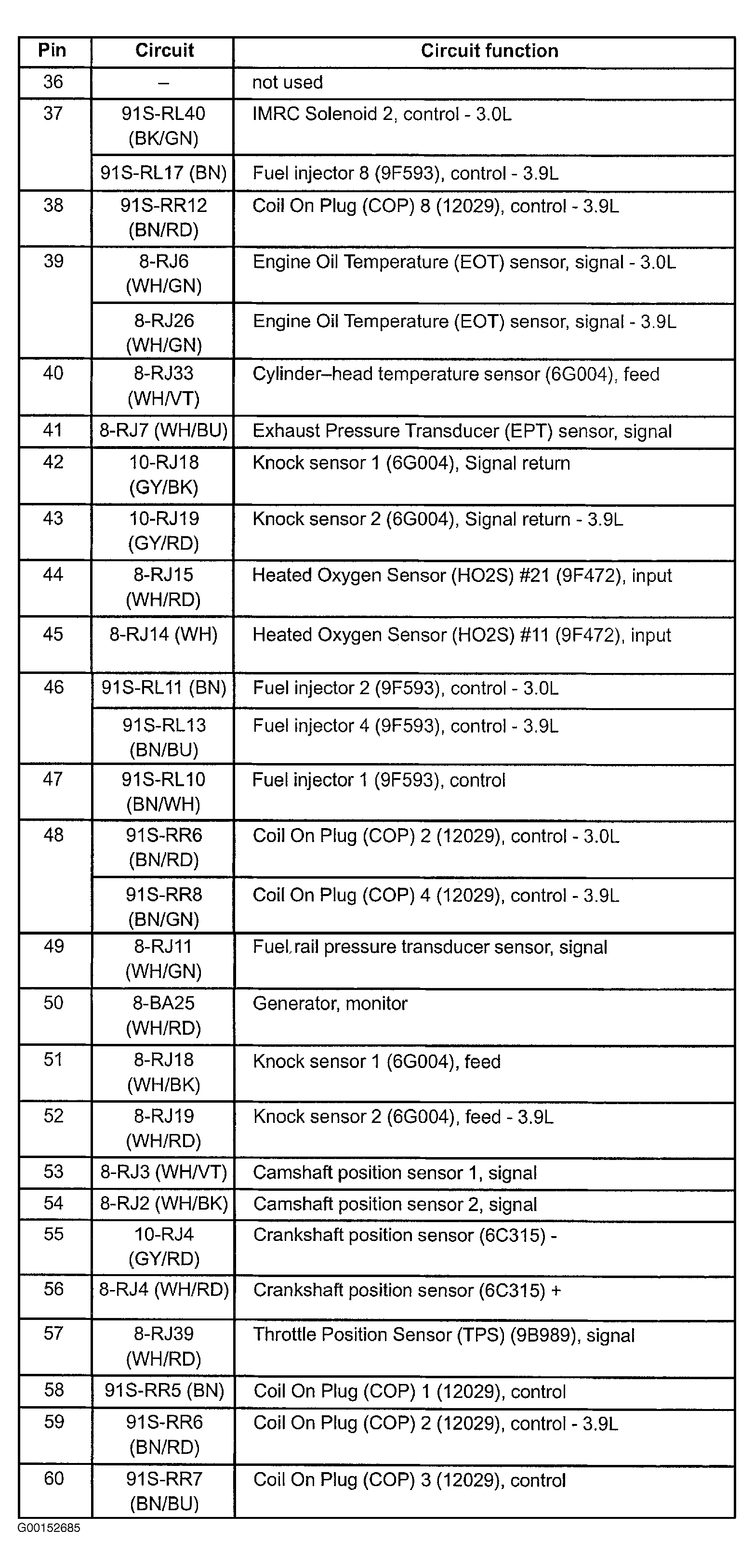

Fig 10: Identifying PCM Connector C175C Circuit Functions (3 Of 3 - LS)

Courtesy of FORD MOTOR CO.
