Pcm Connector End View & Pcm Connector Circuit Functions (Mustang)

MUSTANG PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Mustang	Fig 1	Fig 2-Fig 5

Fig 1: Identifying PCM Connector Terminals (Mustang)

Courtesy of FORD MOTOR CO.

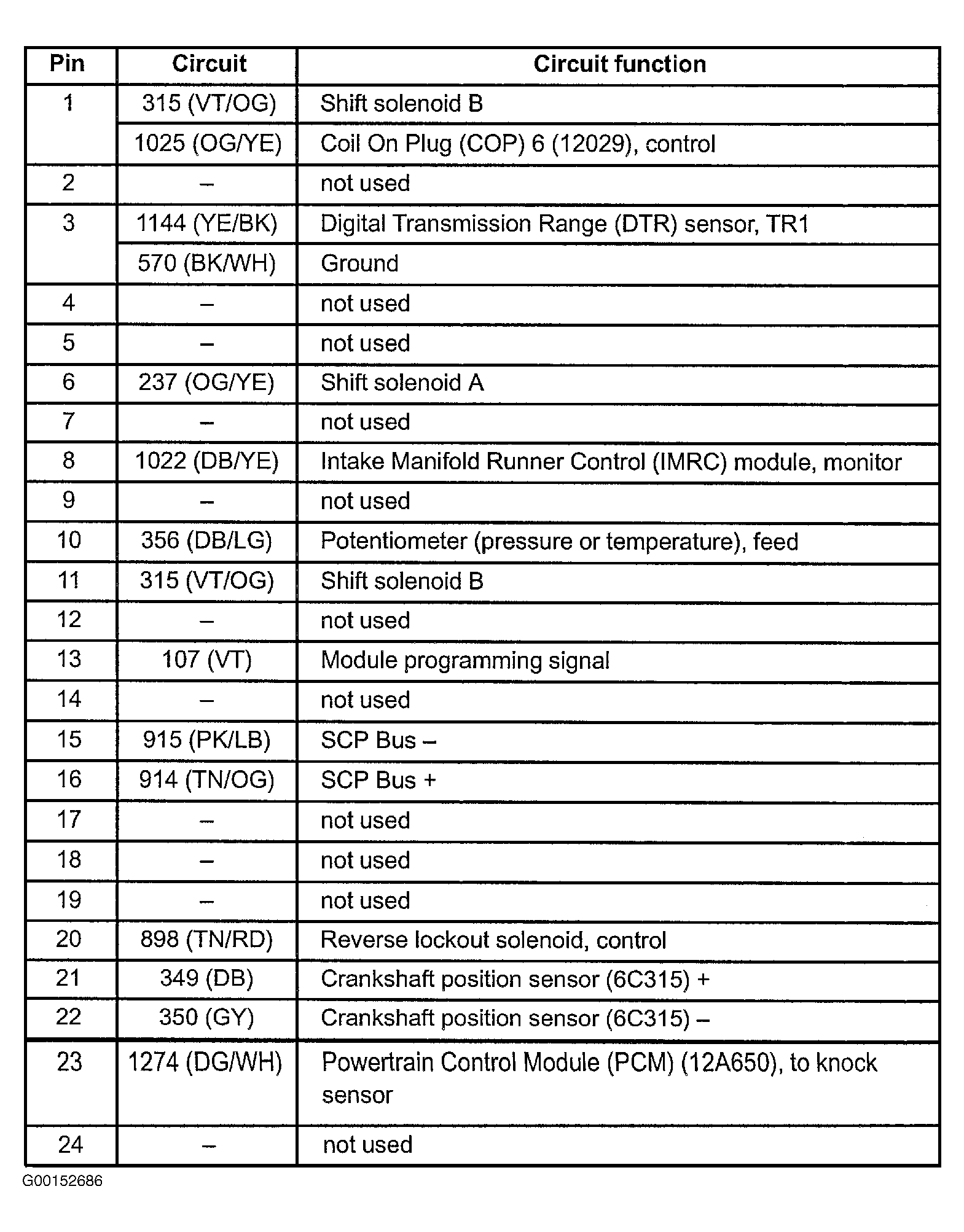

Fig 2: Identifying PCM Connector Circuit Functions (1 Of 4 - Mustang)

Courtesy of FORD MOTOR CO.

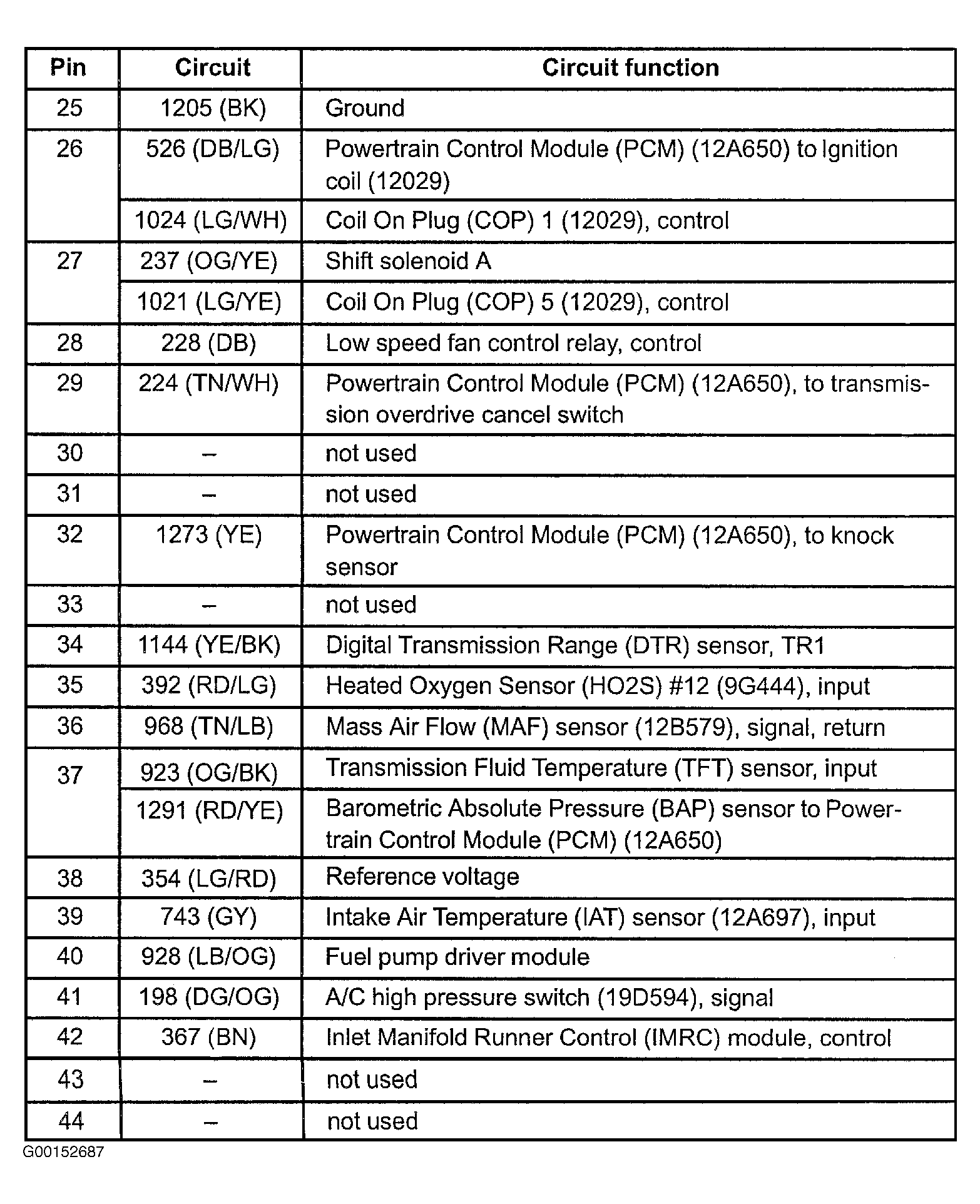

Fig 3: Identifying PCM Connector Circuit Functions (2 Of 4 - Mustang)

Courtesy of FORD MOTOR CO.

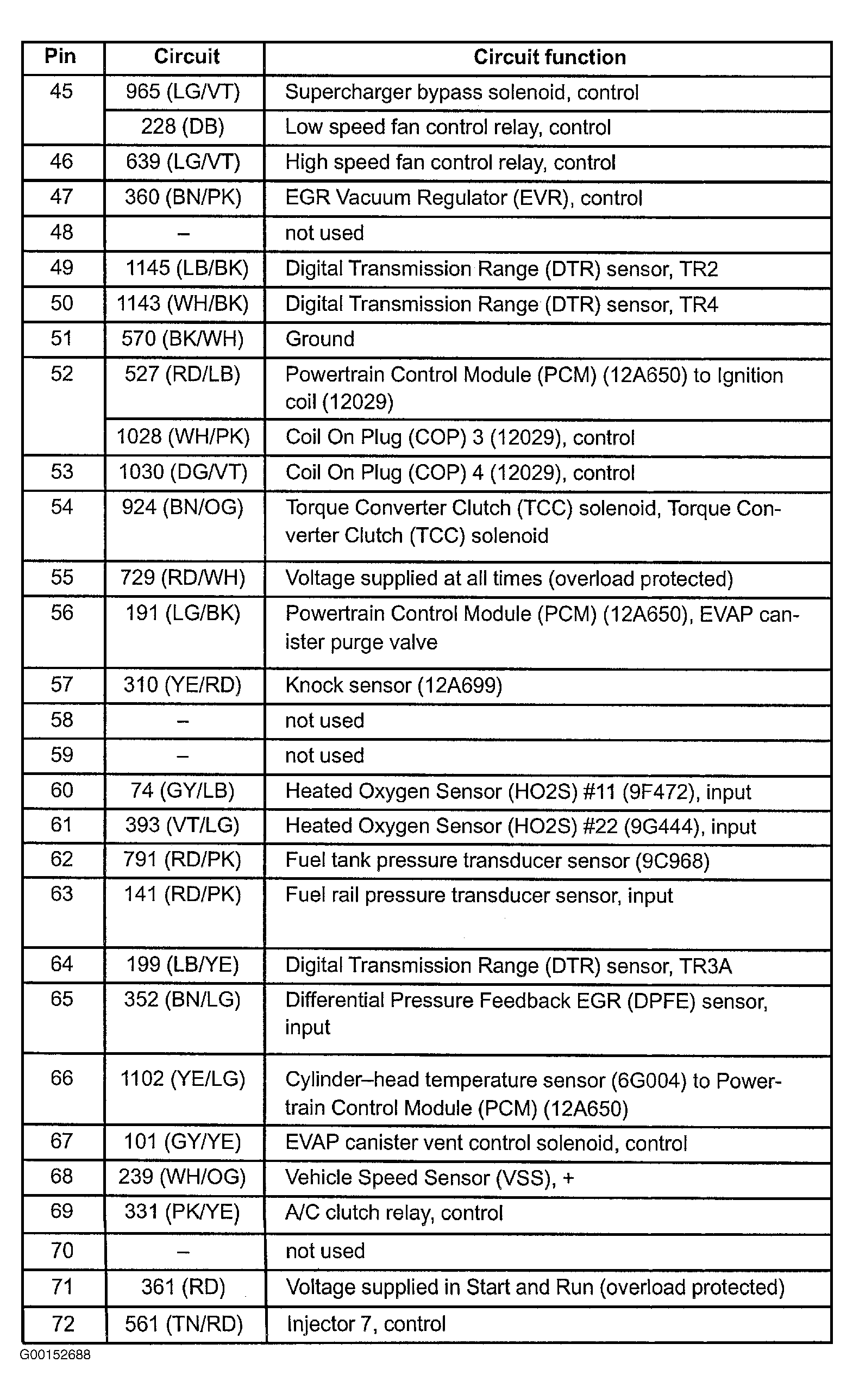

Fig 4: Identifying PCM Connector Circuit Functions (3 Of 4 - Mustang)

Courtesy of FORD MOTOR CO.

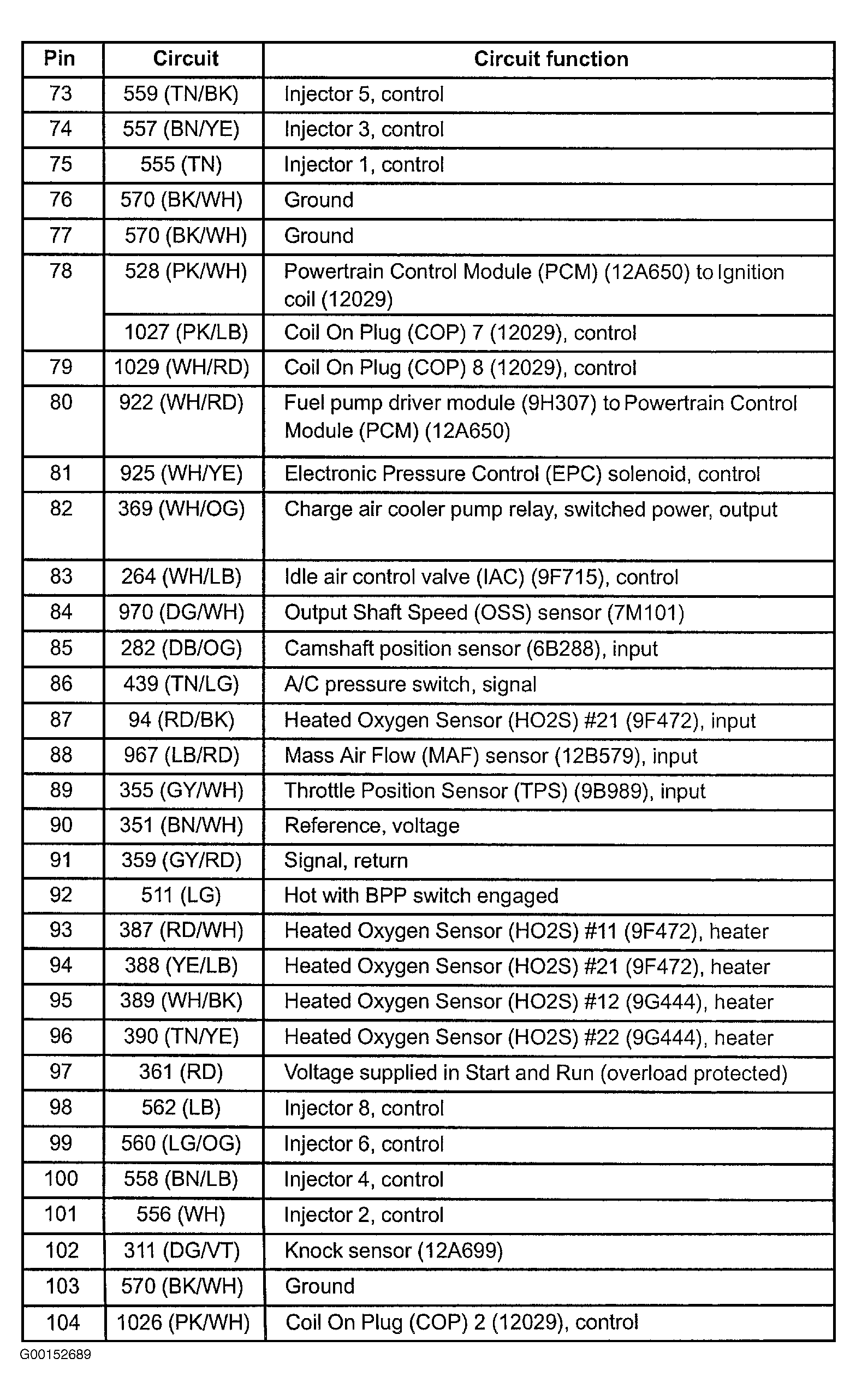

Fig 5: Identifying PCM Connector Circuit Functions (4 Of 4 - Mustang)

Courtesy of FORD MOTOR CO.
