Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative

WARNING: This page is about a different variant/trim than selected.

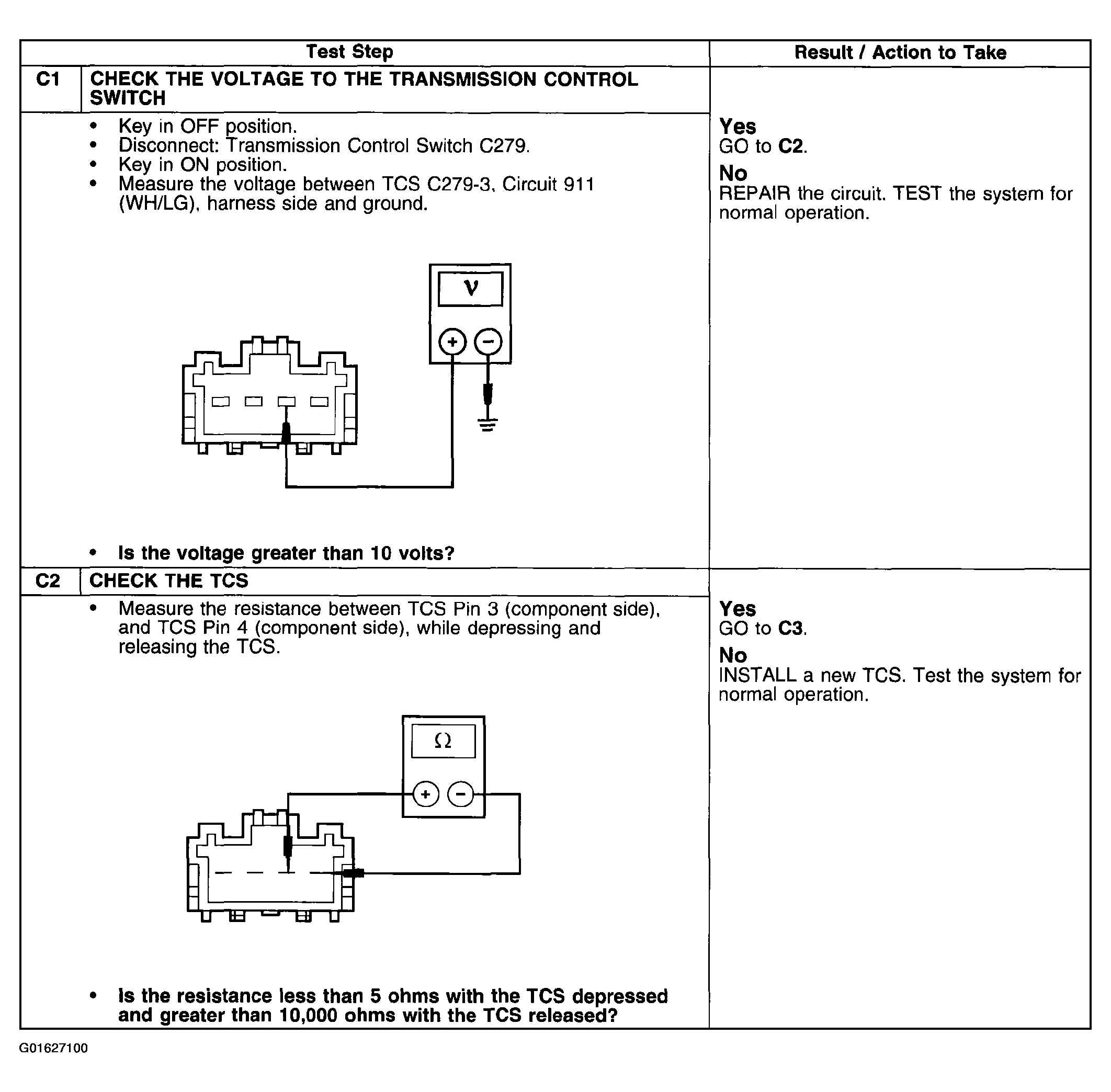

Fig 1: Identifying Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (1 Of 2)

Courtesy of FORD MOTOR CO.

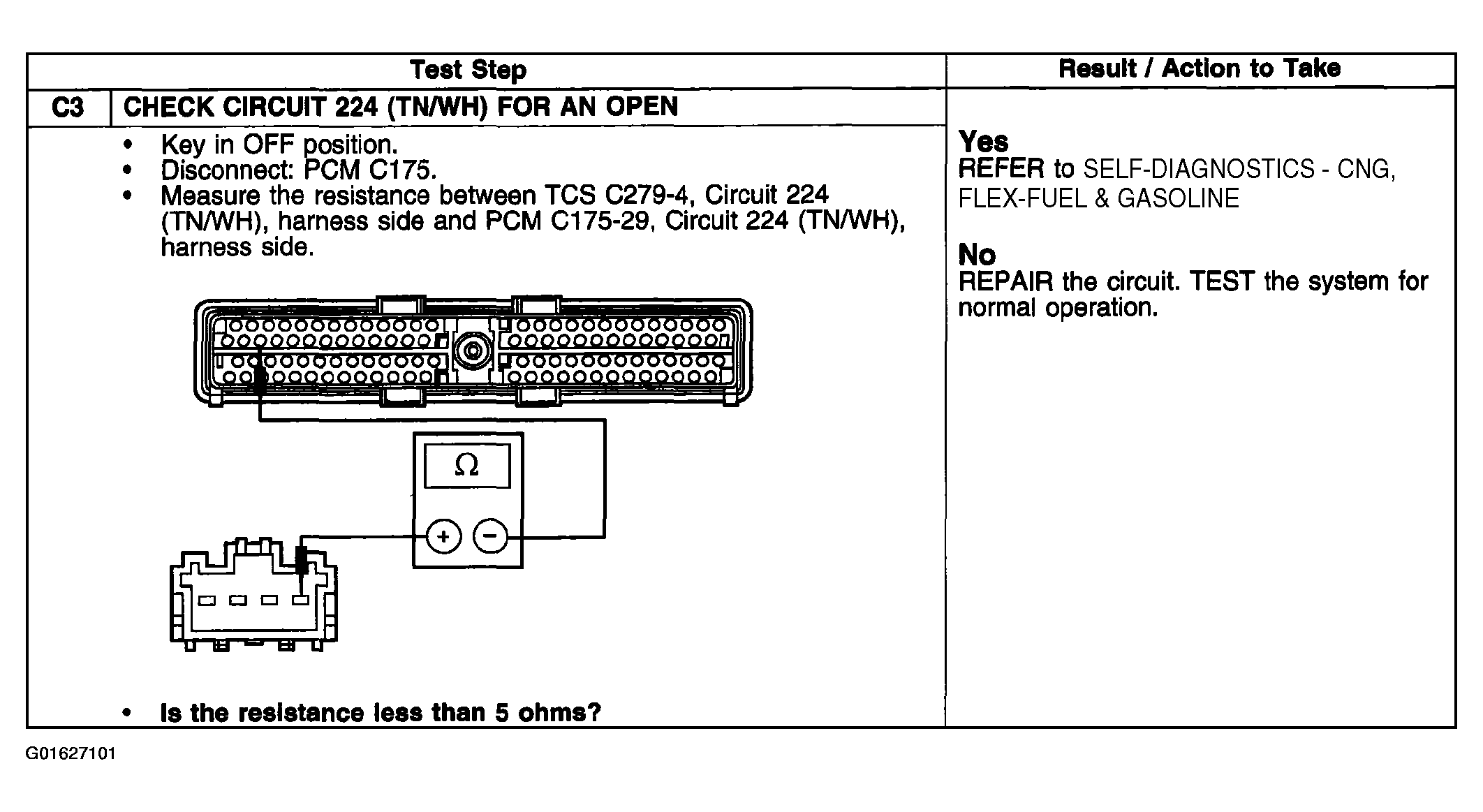

Fig 2: Identifying Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (2 Of 2)

Courtesy of FORD MOTOR CO.
