Pinpoint Test A: No Communication With The Generic Electronic Module (Gem)

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

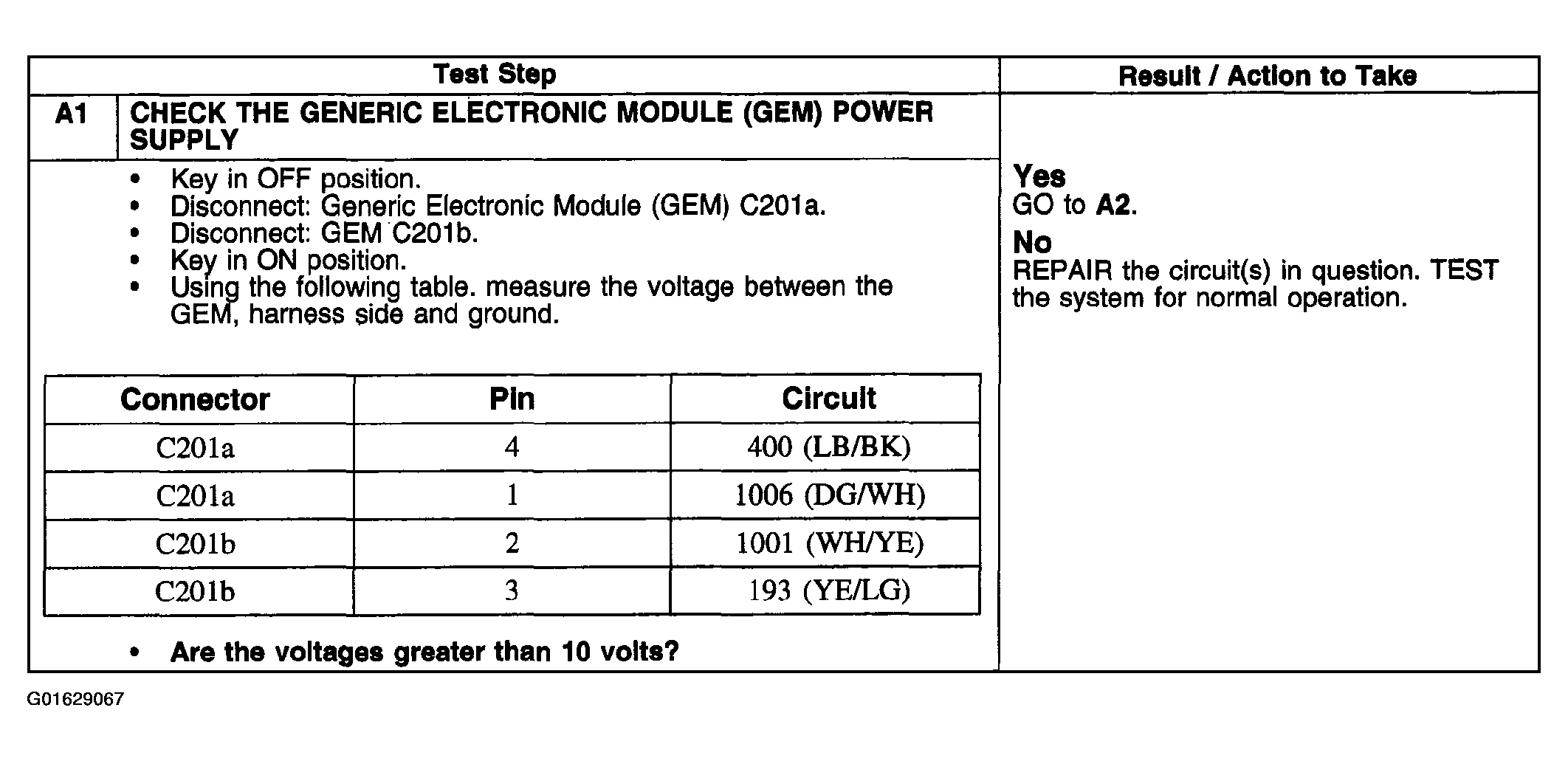

Fig 1: Identifying Pinpoint Test A: No Communication With Generic Electronic Module (Gem) (A1)

Courtesy of FORD MOTOR CO.

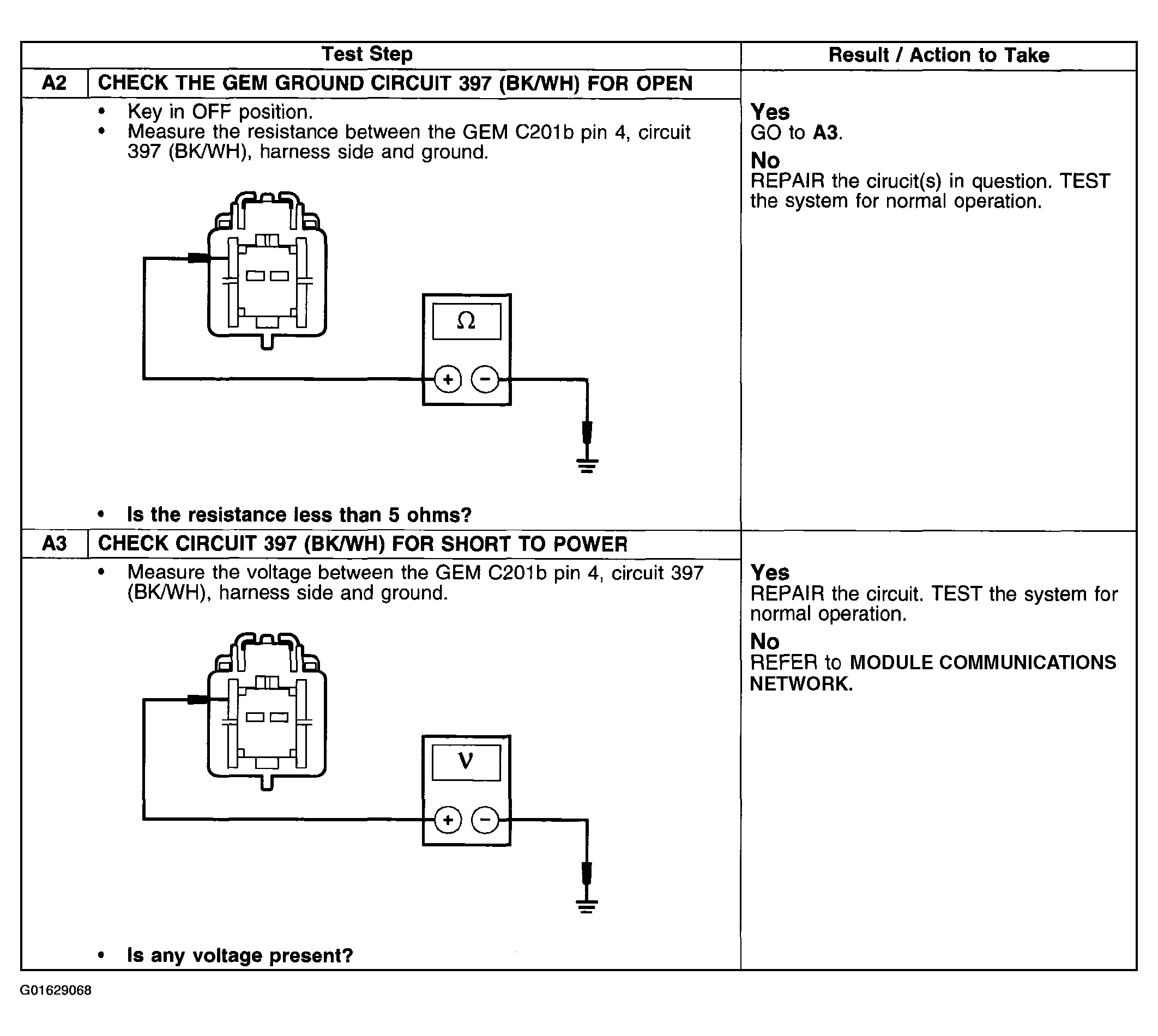

Fig 2: Identifying Pinpoint Test A: No Communication With Generic Electronic Module (Gem) (A2 &A3)

Courtesy of FORD MOTOR CO.
