Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the special tool.

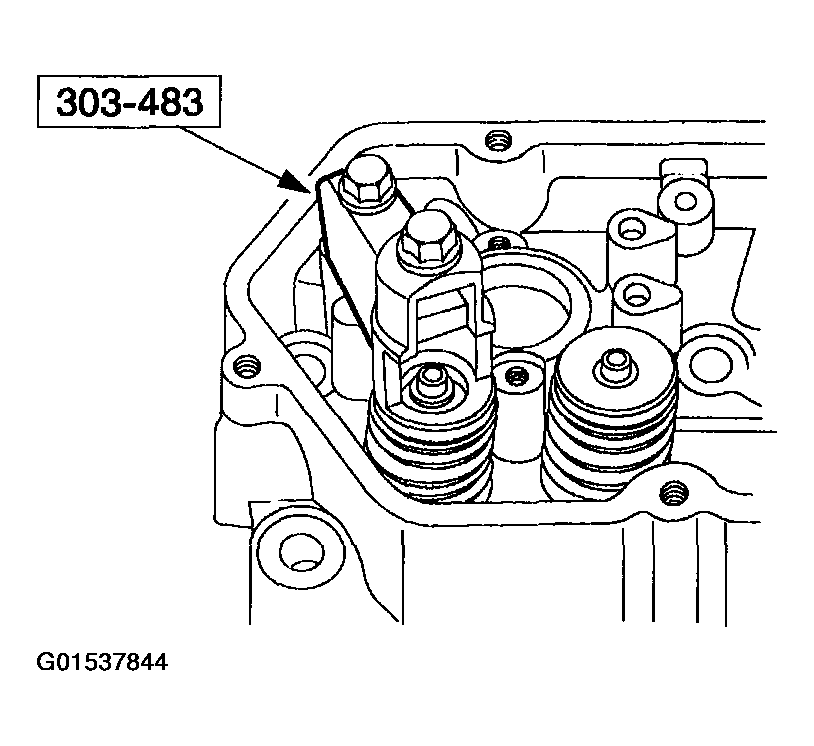

    Fig 1: Installing Special Tool
    G01537844Courtesy of FORD MOTOR CO.
    2. NOTE: If necessary, strike the valve stem end with a plastic-tipped hammer to loosen the valve spring retainer keys.

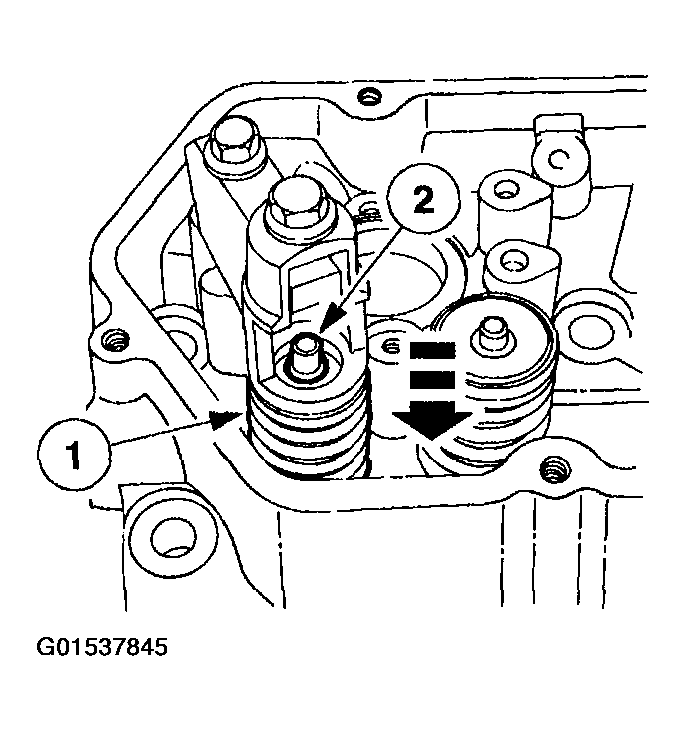

    Fig 2: Removing Valve Spring Retainer Keys
    G01537845Courtesy of FORD MOTOR CO.
  2. Remove the valve spring retainer keys.
    1. Compress the valve spring.
    2. Remove the valve spring retainer keys.
  3. Remove the valve rotator.
    1. Remove the special tool.
    2. Remove the valve rotator.

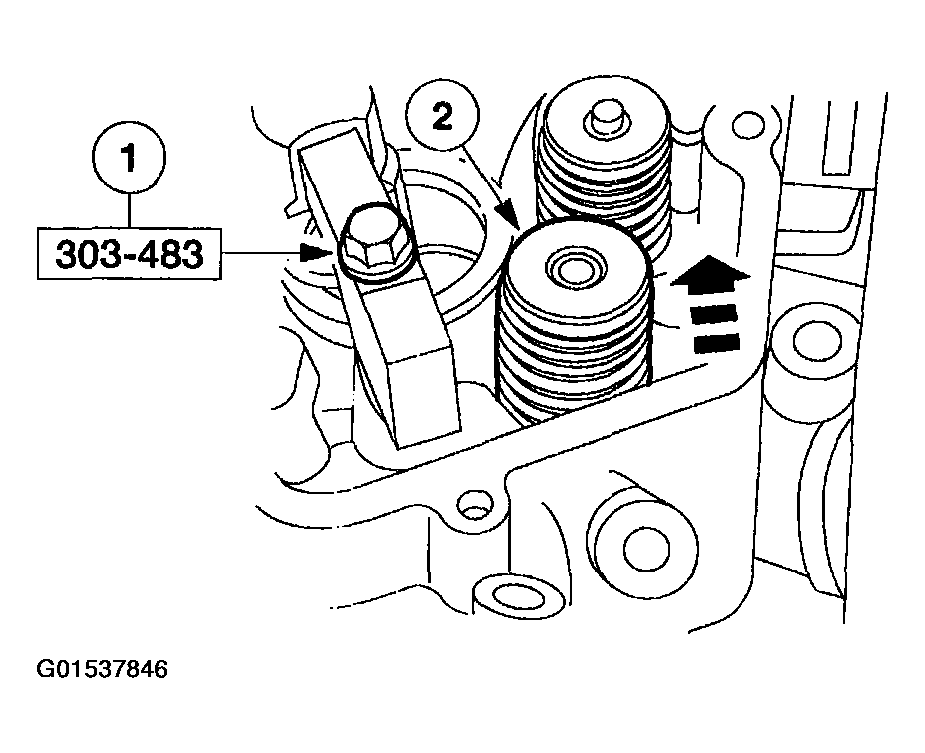

    Fig 3: Removing Valve Rotator
    G01537846Courtesy of FORD MOTOR CO.
  4. Remove the valve spring.

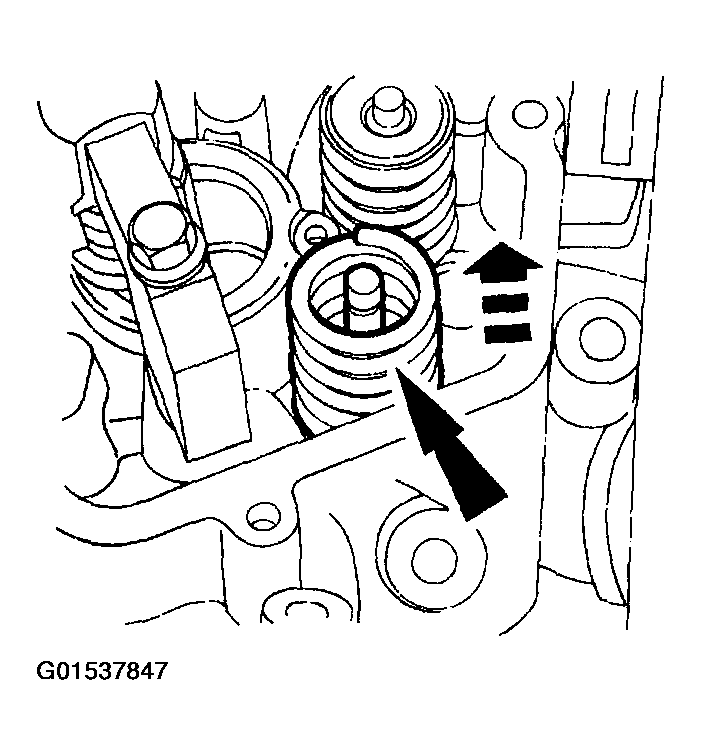

    Fig 4: Removing Valve Spring
    G01537847Courtesy of FORD MOTOR CO.
  5. Remove the valve.

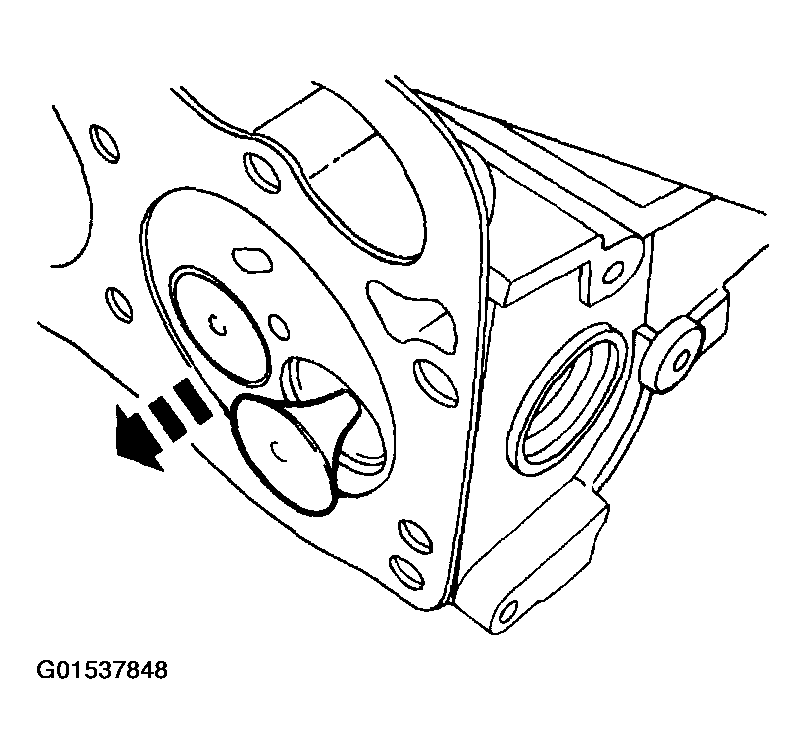

    Fig 5: Removing Valve
    G01537848Courtesy of FORD MOTOR CO.
  6. Remove the valve stem seal.

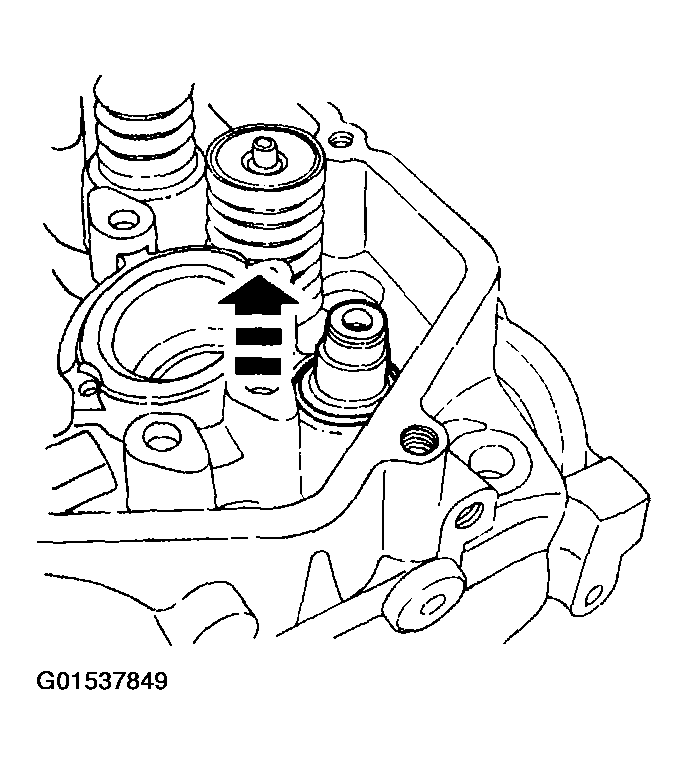

    Fig 6: Removing Valve Stem Seal
    G01537849Courtesy of FORD MOTOR CO.
